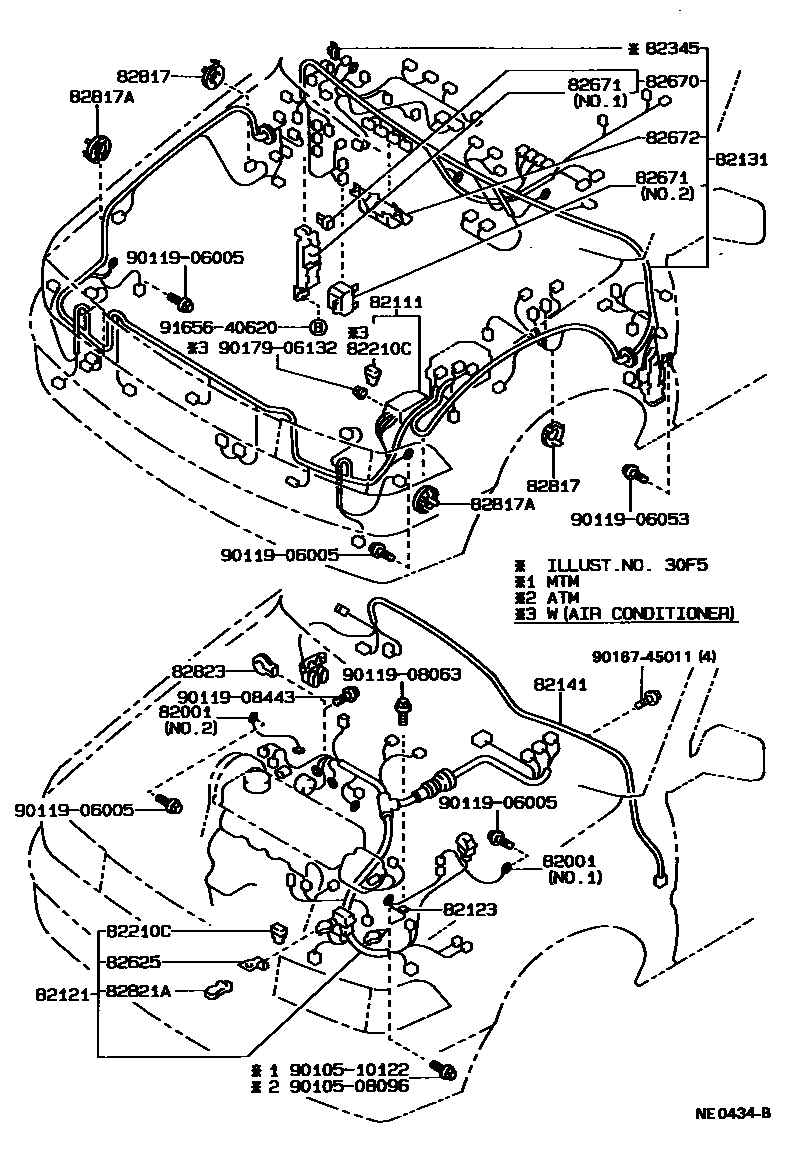

WIRING & CLAMP
82001CABLE, BOND, NO.1
NO.1
NO.2
NO.2
NO.2
NO.2
82111WIRE, ENGINE ROOM MAIN
UNITED KINGDOM SPEC
W(HEADLAMP CLEANER)
*FRG OR NORWAY SPEC; *FRG OR SWEDEN SPEC & W(HEADLAMP CLEANER) OR NORWAY SPEC
W(AIR CONDITIONER)
UNITED KINGDOM SPEC
W(HEADLAMP CLEANER)
main82111-1A770iAE92..LHD..GTI; EE90..3D..XLI;AE92..(GLI,SR5,XLI)..EFI; EE90..5D..EFI;CE90,EE90..LHD..(STD,XL)..(DSL,EFI)198908-199101
NORWAY SPEC; SWEDEN SPEC & W(HEADLAMP CLEANER) OR NORWAY SPEC; SWEDEN SPEC OR NORWAY SPEC OR ICELAND SPEC
ANTI PROJECT MEASURE COUNTRIES
*FRG
W(ABS)
NORWAY SPEC & W(ABS) OR DENMARK SPEC & W(ABS) OR SWEDEN SPEC & W(ABS)
*FRG & W(ABS)
82121WIRE, ENGINE
EX.EMISSION CONTROL(ANNEX 25)
EX.EMISSION CONTROL(A 11)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
EX.EMISSION CONTROL(ANNEX 25)
EX.EMISSION CONTROL(ANNEX 25)
EX.EMISSION CONTROL(A 11)
EX.EMISSION CONTROL(A 11)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
EX.EMISSION CONTROL(A 11)
EX.EMISSION CONTROL(A 11)
W(AIR CONDITIONER)
EX.EMISSION CONTROL(ANNEX 25)
ANTI PROJECT MEASURE COUNTRIES
ANTI PROJECT MEASURE COUNTRIES
EX.EMISSION CONTROL(ANNEX 25)
W(AIR CONDITIONER)
EX.EMISSION CONTROL(A 11)
EX.EMISSION CONTROL(A 11)
W(*66)
W(ABS)
EX.EMISSION CONTROL & W(*66)
EX.EMISSION CONTROL & W(ABS)
W(AIR CONDITIONER)
82123WIRE, ENGINE, NO.3
82131WIRE, COWL
UNITED KINGDOM SPEC
UNITED KINGDOM SPEC
UNITED KINGDOM SPEC
UNITED KINGDOM SPEC
EX.EMISSION CONTROL(A 11) & W(RR WIPER); EX.EMISSION CONTROL(A 11) OR W(*EL) OR W(*RW) OR W(*DRC)
EX.EMISSION CONTROL(A 11) & W(RR WIPER); EX.EMISSION CONTROL(A 11) OR W(*EL) OR W(*RW) OR W(*DRC)
EX.EMISSION CONTROL(A 11)
EX.EMISSION CONTROL(A 11)
*FRG
main82131-1A841iAE92..CBR;EE90..LHD..GL;EE90..3D..4F..XL;EE90..LHD..5D..MTM..XL; CE90..LHD;EE90..LHD..3FC; EE90..LHD..3D..5F..XL; EE90..STD198806-198908
*FRG
*FRG
*FRG
*FRG & EX.EMISSION CONTROL(A 11)
*FRG & EX.EMISSION CONTROL(A 11)
main82131-1A870iAE92..3D..XL; AE92..5D;AE92..3D..GL; EE90..LHD..3D..MTM..XL; EE90..LHD..GL;EE90..LHD..5D..MTM..XL; EE90..STD198711-198806
NORWAY SPEC; NORWAY SPEC OR W(*DRC); SWEDEN SPEC; SWEDEN SPEC OR NORWAY SPEC
main82131-1A871iAE92..5D;AE92..3D..GL;EE90..LHD..GL;EE90..LHD..5D..5F..XL; EE90..3D..4F..XL; EE90..5D..4F; EE90..LHD..3D..5F..XL198808-198908
NORWAY SPEC; NORWAY SPEC OR W(*DRC); SWEDEN SPEC; SWEDEN SPEC OR NORWAY SPEC
SWEDEN SPEC OR NORWAY SPEC
SWEDEN SPEC OR NORWAY SPEC
SWEDEN SPEC OR NORWAY SPEC
W(AIR CONDITIONER)
W(AIR CONDITIONER)
main82131-1E800iAE92,CE90,EE90..LHD..3D..XL; AE92..3D..GL;AE92,CE90..5D; EE90..LHD..GL;EE90..LHD..5D..XL198802-198806
FINLAND SPEC OR DENMARK SPEC & W(SEAT HEATER)
main82131-1E801iAE92,CE90,EE90..LHD..3D..XL; AE92..3D..GL;AE92,CE90..5D; EE90..LHD..GL;EE90..LHD..5D..XL198806-198908
FINLAND SPEC OR DENMARK SPEC & W(SEAT HEATER)
FINLAND SPEC OR DENMARK SPEC & W(SEAT HEATER)
FINLAND SPEC OR DENMARK SPEC & W(SEAT HEATER)
UNITED KINGDOM SPEC
UNITED KINGDOM SPEC
W(*EL) OR W(*RW) OR W(*DRC)
main82131-1H770iAE92,EE90..LHD..3D..MTM..(SR5,XL)..CBR; AE92..5D..CBR; CE90..LHD; EE90..LHD..3FC; EE90..LHD..5D..MTM..CBR; EE90..STD..CBR198908-199002
ANTI PROJECT MEASURE COUNTRIES & W(AIR CONDITIONER)
main82131-1H780iAE92,EE90..LHD..3D..MTM..(SR5,XL)..CBR; AE92,EE90..LHD..5D..MTM..CBR; CE90..5D; CE90..LHD..3D..XL; EE90..5D..3FC; EE90..STD..CBR;EE90..LHD..3D..3FC198908-199008
FINLAND OR DENMARK SPEC; FINLAND SPEC OR DENMARK SPEC & W(*RCM & *SH); FINLAND SPEC OR DENMARK SPEC & W(*RW & *SH)
W(*66)
FINLAND SPEC OR DENMARK SPEC & W(SEAT HEATER)
W(*EL) OR W(*RW) OR W(*DRC); W(*RW) OR W(*DRC); W(RR WIPER)
W(*RW) OR W(*DRC); W(RR WIPER)
main82131-1H850iAE92..GLI,XLI; AE92..SR5..CBR; AE92..SR5..EFI; EE90..3D..XLI; EE90..5D..EFI; EE90..STD..EFI198908-199008
FINLAND SPEC OR DENMARK SPEC & W(SEAT HEATER & *DRC); FINLAND SPEC OR DENMARK SPEC & W(SEAT HEATER)
FINLAND SPEC OR DENMARK SPEC & W(SEAT HEATER & *DRC); FINLAND SPEC OR DENMARK SPEC & W(SEAT HEATER)
EX.EMISSION CONTROL(A 11)
FINLAND SPEC OR DENMARK SPEC & EX.EMISSION CONTROL(A 11) & W(SEAT HEATER)
EX.EMISSION CONTROL & W(*66)
FINLAND SPEC OR DENMARK SPEC & EX.EMISSION CONTROL(A 11) & W(SEAT HEATER & *66)
ICELAND SPEC; NORWAY SPEC
SWEDEN SPEC OR NORWAY SPEC
SWEDEN SPEC OR NORWAY SPEC
SWEDEN SPEC OR NORWAY SPEC OR DENMARK SPEC
main82131-1K140iAE92,EE90..LHD..MTM..(GL,SR5,XL)..CBR; CE90..LHD;EE90..LHD..3FC;EE90..STD..CBR198908-198911
*FRG
*FRG
*FRG
*FRG
*FRG & EX.EMISSION CONTROL(A 11)
ICELAND SPEC
82141WIRE, INSTRUMENT PANEL
main82141-12080iEE90..3FC..EFI;EE90..5D..5F..EFI;EE90..LHD..(GL,XL);AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI)198908-199211
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK
40A,TERM.:FEMALE,GRN
60A,TERM.:FEMALE,YEL
60A,TERM.:MALE,YEL
80A,TERM.:MALE,BLK
GLOW RESISTER
30A,TERM.:MALE,PNK
100A,TERM.:MALE,BLUE
80A,TERM.:MALE,BLK
82345DIODE
NO.2
NO.3
NO.4
NO.8
82625TERMINAL, FUSIBLE LINK
W(*66)
82670BLOCK ASSY, JUNCTION, NO.1
main82670-12090iAE92,CE90..LHD..3D..XL;EE90..LHD..3D..(3FC,4F)..XL; EE90..5D..4F; EE90..LHD..3D..5F..XL; EE90..LHD..GL;EE90..LHD..5D..5F..XL198808-198908
*FRG
82671BLOCK, JUNCTION
NO.1
NO.2
82672COVER, JUNKTION BLOCK
ICELAND SPEC
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82821ACOVER, CONNECTOR
W(AIR CONDITIONER)
82823CAP, TERMINAL, NO.1
9010508096
main90105-08096
9010510122
main90105-10122
9011906005
main90119-06005
9011906053
main90119-06053
9011908063
main90119-08063
9011908443
main90119-08443
9016745011
main90167-45011
9017906132
main90179-06132
9165640620
main91656-40620
25 parts on this diagram · 11 diagrams in section
