EPC Data

FRONT SEAT & SEAT TRACK

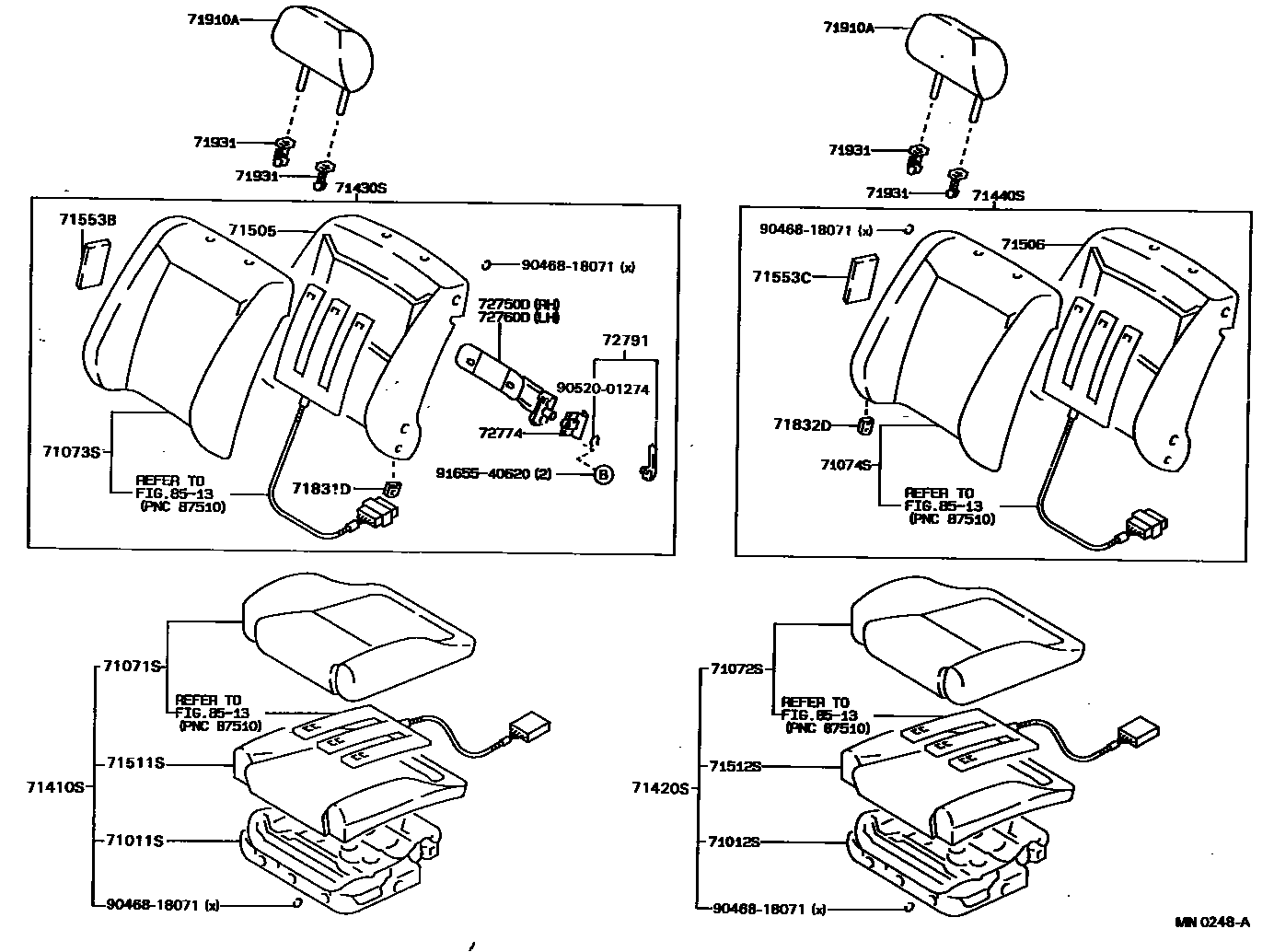

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-12280i198705-199211
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71011-12280i198705-199211
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-1H140-03i198705-198908
SADOW GRAY,TRIM1#
main71071-1H141-03i198908-199205
SHADOW GRAY,TRIM1#
main71071-1H150-03i198705-199205
SHADOW GRAY,TRIM1#
main71071-1H150-04i198908-199205
DARK BLUE,TRIM8#
main71071-1H150-05i198705-198908
DARK BEIGE,TRIM4#
main71071-1H170-03i198705-198908
W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H170-05i198705-198908
W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71071-1H171-03i198908-199205
W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H171-04i198908-199205
W(2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71071-1H180-03i198705-198908
SHADOW GRAY,TRIM1#
main71071-1H180-04i198705-198908
BLUE,TRIM8#
main71071-1H180-05i198705-198908
DARK BEIGE,TRIM4#
main71071-1H181-03i198908-199206
SHADOW GRAY,TRIM1#
main71071-1H181-04i198908-199206
DARK BLUE,TRIM8#
main71071-1H181-06i198908-199206
BROWN,TRIM4#
main71071-1H210-03i198705-198908
SADOW GRAY,TRIM1#
main71071-1H211-03i198908-199211
SHADOW GRAY,TRIM1#
main71071-1H280-03i198808-198908
FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71071-1H280-04i198808-198908
FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8#; SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8#
main71071-1H280-05i198705-198908
DARK BEIGE,TRIM4#; W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71071-1H281-03i199101-199206
FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; SWEDEN OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; SWEDEN OR NORWAY OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71071-1H281-04i199101-199206
FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#; SWEDEN OR FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#; SWEDEN OR NORWAY OR FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#
main71071-1H281-06i198908-199206
BROWN,TRIM4#
main71071-1H340-03i198705-198908
W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H340-05i198705-198908
W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71071-1H341-03i198908-199206
W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H341-04i198908-199206
W(2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71071-1H860-03i198802-198808
W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H860-04i198802-198908
W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71071-1H861-03i199101-199206
W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H861-04i199106-199206
W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71071-1H861-06i198909-199205
NORWAY SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE
main71071-1K310-03i198908-199205
SHADOW GRAY,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-1H150-03i198705-199205
SHADOW GRAY,TRIM1#
main71071-1H150-04i198908-199205
DARK BLUE,TRIM8#
main71071-1H150-05i198705-198908
DARK BEIGE,TRIM4#
main71071-1H180-03i198705-198908
SHADOW GRAY,TRIM1#
main71071-1H180-04i198705-198908
BLUE,TRIM8#
main71071-1H180-05i198705-198908
DARK BEIGE,TRIM4#
main71071-1H210-03i198705-198908
SADOW GRAY,TRIM1#
main71071-1H211-03i198908-199205
SHADOW GRAY,TRIM1#
main71071-1H230-03i198705-198908
W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H230-04i198705-198908
W(2WAY VERTICAL SEAT),BLUE,TRIM8#
main71071-1H230-05i198705-198908
W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71071-1H231-03i198908-199206
W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H231-04i198908-199206
W(2WAY VERTICAL SEAT),DARK BLUEE,TRIM8#
main71071-1H231-06i198908-199206
W(2WAY VERTICAL SEAT),BROWN,TRIM4#
main71071-1H250-03i198808-198908
FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71071-1H250-04i198802-198808
FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8#
main71071-1H250-05i198802-198808
FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4#
main71071-1H251-03i198908-199101
FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71071-1H251-04i199101-199206
FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#; SWEDEN OR FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#; SWEDEN OR NORWAY OR FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#
main71071-1H251-06i198908-199101
FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4#; SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4#; SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4#
main71071-1H280-03i198705-198908
SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71071-1H280-04i198705-198908
BLUE,TRIM8#
main71071-1H280-05i198705-198908
DARK BEIGE,TRIM4#; W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71071-1H281-03i198908-199206
SHADOW GRAY,TRIM1#
main71071-1H281-04i198908-199205
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71071-1H281-06i198908-199206
BROWN,TRIM4#
main71071-1H330-03i198705-198908
W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H330-04i198705-198908
W(2WAY VERTICAL SEAT),BLUE,TRIM8#
main71071-1H330-05i198705-198908
W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71071-1H331-03i198908-199206
W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H331-04i198908-199206
W(2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71071-1H331-06i198908-199206
W(2WAY VERTICAL SEAT),BROWN,TRIM4#
main71071-1H350-03i198705-198908
SADOW GRAY,TRIM1#
main71071-1H351-03i198908-199211
SHADOW GRAY,TRIM1#
main71071-1H370-03i198808-198908
FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#; FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH);SWEDEN SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#
main71071-1H370-04i198802-198808
FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BLUE,TRIM8#
main71071-1H370-05i198808-198908
FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BEIGE,TRIM4#; FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH);SWEDEN SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BEIGE,TRIM4#
main71071-1H371-03i199101-199206
FINLAND OR DENMARK SPEC & W(2WAY VERTICAL) & W(*SH),SHADOW GRAY,TRIM1#; SWEDEN OR FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#; SWEDEN OR NORWAY OR FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#
main71071-1H371-04i199101-199206
FINLAND OR DENMARK SPEC & W(2WAY VERTICAL) & W(*SH),DARK BLUE,TRIM8#; SWEDEN OR FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#; SWEDEN OR NORWAY OR FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#
main71071-1H371-06i199101-199206
FINLAND OR DENMARK SPEC & W(2WAY VERTICAL) & W(*SH),BROWN,TRIM4#; SWEDEN OR FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BROWN,TRIM4#; SWEDEN OR NORWAY OR FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BROWN,TRIM4#
main71071-1H380-03i198705-198802
SWEDEN SPEC & W(2WAY VERTICAL SEAT) OR NORWAY SPEC & W(2WAY VERTICAL SEAT),SHADOWGRAY,TRIM1#
main71071-1H380-04i198705-198802
SWEDEN SPEC & W(2WAY VERTICAL SEAT) OR NORWAY SPEC & W(2WAY VERTICAL SEAT),BLUE,TRIM8#
main71071-1H380-05i198705-198802
SWEDEN SPEC & W(2WAY VERTICAL SEAT) OR NORWAY SPEC & W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71071-1H381-03i198908-199101
FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#; FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH);SWEDEN SPEC & W(2WAY VERTICAL SEAT & *SH) OR NORWAY SPEC & W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H381-04i199101-199205
SWEDEN OR NORWAY OR FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#
main71071-1H381-06i198908-199101
FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BROWN,TRIM4#; FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH);SWEDEN SPEC & W(2WAY VERTICAL SEAT & *SH) OR NORWAY SPEC & W(2WAY VERTICAL SEAT),BROWN,TRIM4#
main71071-1H400-03i198802-198908
SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71071-1H400-04i198705-198802
SWEDEN SPEC OR NORWAY SPEC,BLUE,TRIM8#
main71071-1H400-05i198802-198808
FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4#
main71071-1H401-03i198908-199101
FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71071-1H401-04i198908-199101
FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#; SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#
main71071-1H401-06i199101-199205
SWEDEN OR NORWAY OR FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4#
main71071-1H420-03i198802-198908
SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SADOW GRAY,TRIM1#
main71071-1H421-03i198908-199101
SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71071-1H870-03i198705-198908
W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H870-04i198705-198908
W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71071-1H871-03i198908-199206
W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71071-1H871-06i198908-199206
W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71071-1H880-03i198802-198808
FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#
main71071-1H880-04i198808-198908
FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#; FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH);SWEDEN SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#
main71071-1H881-03i198908-198909
FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#; FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH);SWEDEN SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#; FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH);SWEDEN SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH);NORWAY SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#; NORWAY SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#
main71071-1H881-04i198908-198909
FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#; FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH);SWEDEN SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#; FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH);SWEDEN SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH);NORWAY SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#; NORWAY SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#
main71071-1K100-03i198908-199206
SHADOW GRAY,TRIM1#
main71071-1K100-04i198908-199206
DARK BLUE,TRIM8#
main71071-1K100-06i198908-199206
BROWN,TRIM4#
main71071-1K300-03i199101-199205
NORWAY OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; SWEDEN OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71071-1K310-03i198908-199205
NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#; SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-1H200-03i198705-198908
SHADOW GRAY,TRIM1#
main71073-1H201-03i198908-199205
SHADOW GRAY,TRIM1#
main71073-1H210-03i198705-199205
SHADOW GRAY,TRIM1#
main71073-1H210-04i198908-199205
DARK BLUE,TRIM8#
main71073-1H210-05i198705-198908
DARK BEIGE,TRIM4#
main71073-1H280-03i198808-198908
FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71073-1H280-04i198802-198808
FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8#
main71073-1H280-05i198705-198908
DARK BEIGE,TRIM4#; W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71073-1H281-03i199101-199206
FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; SWEDEN OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; SWEDEN OR NORWAY OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71073-1H281-04i199101-199206
FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#; SWEDEN OR FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#; SWEDEN OR NORWAY OR FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#
main71073-1H281-06i198908-199206
BROWN,TRIM4#
main71073-1H310-03i198705-198908
SHADOW GRAY,TRIM1#
main71073-1H310-04i198705-198908
BLUE,TRIM8#
main71073-1H310-05i198705-198908
DARK BEIGE,TRIM4#
main71073-1H311-03i198908-199206
SHADOW GRAY,TRIM1#
main71073-1H311-04i198908-199206
DARK BLUE,TRIM8#
main71073-1H311-06i198908-199206
BROWN,TRIM4#
main71073-1H320-03i198705-198908
W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71073-1H320-05i198705-198908
W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71073-1H580-03i198705-198802
W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1#
main71073-1H580-04i198705-198802
DARK BLUE,TRIM8#; W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8#
main71073-1H581-03i198909-199101
W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1#
main71073-1H581-04i198908-198909
W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8#; W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8#
main71074-1E160-03i198812-198908
S PACKAGE,SHADOW GRAY,TRIM1#
main71074-1E161-03i198908-199211
SHADOW GRAY,TRIM1#
main71074-1E810-03i198908-199205
SHADOW GRAY,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-1E160-03i198705-198908
SHADOW GRAY,TRIM1#
main71074-1E161-03i198908-199205
SHADOW GRAY,TRIM1#
main71074-1E170-03i198705-199205
SHADOW GRAY,TRIM1#
main71074-1E170-04i198908-199205
DARK BLUE,TRIM8#
main71074-1E170-05i198705-198908
DARK BEIGE,TRIM4#
main71074-1E190-03i198705-198908
W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71074-1E190-04i198705-198908
W(2WAY VERTICAL SEAT),BLUE,TRIM8#
main71074-1E190-05i198705-198908
W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71074-1E200-03i198705-198908
SHADOW GRAY,TRIM1#
main71074-1E201-03i198908-199211
SHADOW GRAY,TRIM1#
main71074-1E210-03i198808-198905
FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71074-1E210-04i198802-198908
SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8#
main71074-1E210-05i198705-198802
SWEDEN SPEC OR NORWAY SPEC,DARK BEIGE,TRIM4#
main71074-1E211-03i198908-199101
FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71074-1E211-04i198908-199101
FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#; SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#; SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#
main71074-1E211-06i198908-199101
FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4#; SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4#; SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4#
main71074-1E240-03i198705-198908
SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71074-1E240-04i198705-198908
BLUE,TRIM8#
main71074-1E240-05i198705-198908
DARK BEIGE,TRIM4#; W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71074-1E241-03i198908-199206
SHADOW GRAY,TRIM1#
main71074-1E241-04i198908-199205
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71074-1E241-06i198908-199206
BROWN,TRIM4#
main71074-1E270-03i198705-198908
SHADOW GRAY,TRIM1#
main71074-1E270-04i198705-198908
BLUE,TRIM8#
main71074-1E270-05i198705-198908
DARK BEIGE,TRIM4#
main71074-1E271-03i198908-199206
SHADOW GRAY,TRIM1#
main71074-1E271-04i198908-199206
DARK BLUE,TRIM8#
main71074-1E271-06i198908-199206
BROWN,TRIM4#
main71074-1E280-03i198808-198908
SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71074-1E280-04i198802-198908
SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8#
main71074-1E280-05i198705-198802
SWEDEN SPEC OR NORWAY SPEC,DARK BEIGE,TRIM4#
main71074-1E281-03i199101-199205
SWEDEN OR NORWAY OR FINLAND OR DENMARK & W(*SH),SHADOW GRAY,TRIM1#
main71074-1E281-04i198908-199101
FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#; SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#
main71074-1E281-06i198908-199101
FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4#; SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4#
main71074-1E310-03i198812-198908
W(S PACKAGE & *SH),SHADOW GRAY,TRIM1#
main71074-1E311-03i198908-199101
SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71074-1E460-03i198705-198802
SWEDEN SPEC & W(2WAY VERTICAL SEAT) OR NORWAY SPEC & W(2WAY VERTICAL SEAT),SHADOWGRAY,TRIM1#
main71074-1E460-04i198802-198908
FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH);NORWAY SPEC & W(2WAY VERTICAL SEAT & *SH);SWEDEN SPEC & W(2WAY VERTICAL SEAT & *SH),BLUE,TRIM8#
main71074-1E460-05i198802-198908
FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH);NORWAY SPEC & W(2WAY VERTICAL SEAT & *SH);SWEDEN SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BEIGE,TRIM4#
main71074-1E540-03i198705-198908
W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1#
main71074-1E540-04i198705-198802
DARK BLUE,TRIM8#; W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8#
main71074-1E541-03i198908-199206
W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1#
main71074-1E541-04i198908-199206
W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8#
main71074-1E550-03i198808-198908
FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1#; FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH);SWEDEN SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1#
main71074-1E550-04i198808-198908
FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),DARK BLUE,TRIM8#; FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH);SWEDEN SPEC & W(FULL FABRIC SEAT FOR SR & *SH),DARK BLUE,TRIM8#
main71074-1E551-03i198909-199101
FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1#; FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH);SWEDEN SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1#; FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH);SWEDEN SPEC & W(FULL FABRIC SEAT FOR SR & *SH);NORWAY SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1#
main71074-1E551-04i198908-198909
FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),DARK BLUE,TRIM8#; FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH);SWEDEN SPEC & W(FULL FABRIC SEAT FOR SR & *SH),DARK BLUE,TRIM8#; FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH);SWEDEN SPEC & W(FULL FABRIC SEAT FOR SR & *SH);NORWAY SPEC & W(FULL FABRIC SEAT FOR SR & *SH),DARK BLUE,TRIM8#; NORWAY SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#
main71074-1E800-03i199101-199205
NORWAY OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; SWEDEN OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71074-1E810-03i198908-199205
SHADOW GRAY,TRIM1#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-1H480-03i198705-198908
***,SADOW GRAY,TRIM1#
main71410-1H481-03i198908-199205
***,SHADOW GRAY,TRIM1#
main71410-1H490-03i198812-198908
***,S PACKAGE,SADOW GRAY,TRIM1#
main71410-1H491-03i198908-199211
***,SHADOW GRAY,TRIM1#
main71410-1H500-03i198705-199205
***,SHADOW GRAY,TRIM1#
main71410-1H500-04i198908-199205
***,DARK BLUE,TRIM8#
main71410-1H500-05i198705-198908
***,DARK BEIGE,TRIM4#
main71410-1H510-03i198705-198908
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H510-05i198705-198908
***,W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71410-1H511-03i198908-199205
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H511-04i198908-199205
***,W(2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71410-1H520-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71410-1H520-04i198705-198908
***,BLUE,TRIM8#
main71410-1H520-05i198705-198908
***,DARK BEIGE,TRIM4#
main71410-1H521-03i198908-199206
***,SHADOW GRAY,TRIM1#
main71410-1H521-04i198908-199206
***,DARK BLUE,TRIM8#
main71410-1H521-06i198908-199206
***,BROWN,TRIM4#
main71410-1H660-03i198705-198908
***,SHADOW GRAY,TRIM1#; ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1H660-04i198808-198908
***,FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8#; ***,SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8#
main71410-1H660-05i198705-198908
***,DARK BEIGE,TRIM4#; ***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71410-1H661-03i199101-199206
***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; ***,NORWAY OR SWEDEN OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; ***,SWEDEN OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71410-1H661-04i199101-199206
***,FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#; ***,NORWAY OR SWEDEN OR FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#; ***,SWEDEN OR FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#
main71410-1H661-06i198908-199206
***,BROWN,TRIM4#
main71410-1H730-03i198705-198908
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H730-05i198705-198908
***,W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71410-1H731-03i198908-199206
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H731-04i198908-199206
***,W(2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71410-1K360-03i198705-198802
***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1K360-04i198705-198802
***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71410-1K361-03i198908-198909
***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1K361-04i198908-198909
***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71410-1K510-03i198908-199205
***,SHADOW GRAY,TRIM1#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71410-1H490-03i198705-198908
***,SADOW GRAY,TRIM1#
main71410-1H491-03i198908-199205
***,SHADOW GRAY,TRIM1#
main71410-1H500-03i198705-199205
***,SHADOW GRAY,TRIM1#
main71410-1H500-04i198908-199205
***,DARK BLUE,TRIM8#
main71410-1H500-05i198705-198908
***,DARK BEIGE,TRIM4#
main71410-1H520-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71410-1H520-04i198705-198908
***,BLUE,TRIM8#
main71410-1H520-05i198705-198908
***,DARK BEIGE,TRIM4#
main71410-1H530-03i198705-198908
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H530-04i198901-198908
***,W(2WAY VERTICAL SEAT),BLUE,TRIM8#
main71410-1H530-05i198705-198908
***,W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71410-1H531-03i198908-199206
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H531-04i198908-199206
***,W(2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71410-1H531-06i198908-199206
***,W(2WAY VERTICAL SEAT),BROWN,TRIM4#
main71410-1H560-03i198705-198908
***,SADOW GRAY,TRIM1#
main71410-1H561-03i198908-199211
***,SHADOW GRAY,TRIM1#
main71410-1H630-03i198808-198908
***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; ***,SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71410-1H630-04i198808-198908
***,FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8#; ***,SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8#
main71410-1H630-05i198808-198908
***,FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4#; ***,SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4#
main71410-1H631-03i198908-199101
***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; ***,SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; ***,SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71410-1H631-04i198908-199101
***,FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#; ***,SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#; ***,SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#
main71410-1H631-06i199101-199206
***,FINLAND OR NORWAY SPEC & W(*SH),BROWN,TRIM4#; ***,NORWAY OR SWEDEN OR FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4#; ***,SWEDEN OR FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4#
main71410-1H660-03i198705-198908
***,SHADOW GRAY,TRIM1#; ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1H660-04i198705-198908
***,BLUE,TRIM8#
main71410-1H660-05i198705-198908
***,DARK BEIGE,TRIM4#; ***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71410-1H661-03i198908-199205
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71410-1H661-04i198908-199205
***,W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71410-1H661-06i198908-199206
***,BROWN,TRIM4#
main71410-1H740-03i198705-198908
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H740-04i198705-198901
***,W(2WAY VERTICAL SEAT),BLUE,TRIM8#
main71410-1H740-05i198705-198908
***,W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71410-1H741-03i198908-199206
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1H741-04i198908-199206
***,W(2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71410-1H741-06i198908-199206
***,W(2WAY VERTICAL SEAT),BROWN,TRIM4#
main71410-1H750-03i198808-198908
***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#; ***,W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#
main71410-1H750-04i198808-198908
***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BLUE,TRIM8#; ***,W(2WAY VERTICAL SEAT & *SH),BLUE,TRIM8#
main71410-1H750-05i198808-198908
***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BEIGE,TRIM4#; ***,W(2WAY VERTICAL SEAT & *SH),DARK BEIGE,TRIM4#
main71410-1H751-03i199101-199206
***,FINLAND OR NORWAY SPEC & 2WAY VERTICAL SEAT OR W(*SH),SHADOW GRAY,TRIM1#; ***,SWEDEN OR FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#; ***,SWEDEN OR NORWAY OR FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#
main71410-1H751-04i198908-199101
***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#; ***,SWEDEN SPEC & W(2WAY VERTICAL SEAT & *SH) OR NORWAY SPEC & W(2WAY VERTICAL SEAT & *SH);FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#; ***,W(2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#
main71410-1H751-06i198908-199101
***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BROWN,TRIM4#; ***,SWEDEN SPEC & W(2WAY VERTICAL SEAT & *SH) OR NORWAY SPEC & W(2WAY VERTICAL SEAT & *SH);FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BROWN,TRIM4#; ***,W(2WAY VERTICAL SEAT & *SH),BROWN,TRIM4#
main71410-1H770-03i198705-198802
***,SWEDEN SPEC OR NORWAY SPEC,SHADOW GRAY,TRIM1#
main71410-1H770-04i198808-198908
***,SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8#
main71410-1H770-05i198705-198802
***,SWEDEN SPEC OR NORWAY SPEC,DARK BEIGE,TRIM4#
main71410-1H771-03i199101-199205
***,NORWAY OR SWEDEN OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71410-1H771-04i198908-199101
***,FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#; ***,SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#
main71410-1H771-06i198908-199101
***,FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4#; ***,SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4#
main71410-1H780-03i198808-198908
***,W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#
main71410-1H780-04i198802-198808
***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BLUE,TRIM8#
main71410-1H780-05i198705-198802
***,SWEDEN SPEC & W(2WAY VERTICAL SEAT) OR NORWAY SPEC & W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71410-1H781-03i198908-199101
***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#; ***,SWEDEN SPEC & W(2WAY VERTICAL SEAT & *SH) OR NORWAY SPEC & W(2WAY VERTICAL SEAT & *SH);FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#
main71410-1H781-04i198908-199101
***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#; ***,SWEDEN SPEC & W(2WAY VERTICAL SEAT & *SH) OR NORWAY SPEC & W(2WAY VERTICAL SEAT & *SH);FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#
main71410-1H781-06i198908-199101
***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BROWN,TRIM4#; ***,SWEDEN SPEC & W(2WAY VERTICAL SEAT & *SH) OR NORWAY SPEC & W(2WAY VERTICAL SEAT & *SH);FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BROWN,TRIM4#
main71410-1H800-03i198802-198908
***,SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SADOW GRAY,TRIM1#
main71410-1H801-03i198908-199101
***,SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71410-1K280-03i198908-199206
***,SHADOW GRAY,TRIM1#
main71410-1K280-04i198908-199206
***,DARK BLUE,TRIM8#
main71410-1K280-06i198908-199206
***,BROWN,TRIM4#
main71410-1K370-03i198705-198908
***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1K370-04i198705-198908
***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71410-1K371-03i198908-199206
***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71410-1K371-04i198908-199206
***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71410-1K380-03i198802-198808
***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#
main71410-1K380-04i198802-198908
***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH);SWEDEN SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH);NORWAY SPEC& W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#
main71410-1K381-03i199101-199206
***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#; ***,SWEDEN OR FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICALSEAT & *SH),SHADOW GRAY,TRIM1#; ***,SWEDEN OR NORWAY SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH);FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#
main71410-1K381-04i198908-198909
***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#; ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH);SWEDEN SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#; ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH);SWEDEN SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH);NORWAY SPEC& W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#; ***,NORWAY SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#
main71410-1K500-03i198908-199101
***,NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; ***,SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71410-1K510-03i198908-199205
***,SHADOW GRAY,TRIM1#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-1H520-03i198705-199205
***,SHADOW GRAY,TRIM1#
main71430-1H520-04i198908-199205
***,DARK BLUE,TRIM8#
main71430-1H520-05i198705-198908
***,DARK BEIGE,TRIM4#
main71430-1H530-03i198705-198908
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71430-1H530-05i198705-198908
***,W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71430-1H531-03i198908-199205
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71430-1H531-04i198908-199205
***,W(2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71430-1H540-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71430-1H540-04i198705-198908
***,BLUE,TRIM8#
main71430-1H540-05i198705-198908
***,DARK BEIGE,TRIM4#
main71430-1H541-03i198908-199206
***,SHADOW GRAY,TRIM1#
main71430-1H541-04i198908-199206
***,DARK BLUE,TRIM8#
main71430-1H541-06i198908-199206
***,BROWN,TRIM4#
main71430-1H550-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71430-1H551-03i198908-199205
***,SHADOW GRAY,TRIM1#
main71430-1H610-03i198705-198908
***,SHADOW GRAY,TRIM1#; ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71430-1H610-04i198802-198908
***,SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8#
main71430-1H610-05i198705-198908
***,DARK BEIGE,TRIM4#; ***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71430-1H611-03i199101-199206
***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; ***,NORWAY OR SWEDEN OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; ***,SWEDEN OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71430-1H611-04i198908-199101
***,FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#; ***,SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#; ***,SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#
main71430-1H611-06i198908-199206
***,BROWN,TRIM4#
main71430-1K050-03i198705-198802
***,W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1#
main71430-1K050-04i198705-198802
***,DARK BLUE,TRIM8#; ***,W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8#
main71430-1K051-03i198909-199101
***,W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1#
main71430-1K051-04i198908-198909
***,W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),DARK BLUE,TRIM8#; ***,W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8#
main71440-1H450-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71440-1H451-03i198908-199211
***,SHADOW GRAY,TRIM1#
main71440-1K170-03i198908-199205
***,SHADOW GRAY,TRIM1#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-1H450-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71440-1H451-03i198908-199205
***,SHADOW GRAY,TRIM1#
main71440-1H460-03i198705-199205
***,SHADOW GRAY,TRIM1#
main71440-1H460-04i198908-199205
***,DARK BLUE,TRIM8#
main71440-1H460-05i198705-198908
***,DARK BEIGE,TRIM4#
main71440-1H470-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71440-1H470-04i198705-198908
***,BLUE,TRIM8#
main71440-1H470-05i198705-198908
***,DARK BEIGE,TRIM4#
main71440-1H471-03i198908-199206
***,SHADOW GRAY,TRIM1#
main71440-1H471-04i198908-199206
***,DARK BLUE,TRIM8#
main71440-1H471-06i198908-199206
***,BROWN,TRIM4#
main71440-1H480-03i198705-198908
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71440-1H480-04i198705-198908
***,W(2WAY VERTICAL SEAT),BLUE,TRIM8#
main71440-1H480-05i198705-198908
***,W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71440-1H481-03i198908-199206
***,W(2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#
main71440-1H481-04i198908-199206
***,W(2WAY VERTICAL SEAT),BROWN,TRIM8#
main71440-1H481-06i198908-199206
***,W(2WAY VERTICAL SEAT),MAROON,TRIM4#
main71440-1H510-03i198808-198908
***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; ***,SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71440-1H510-04i198802-198808
***,FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8#
main71440-1H510-05i198808-198908
***,FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4#; ***,SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4#
main71440-1H511-03i198908-199101
***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; ***,SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; ***,SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71440-1H511-04i199101-199206
***,FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#; ***,SWEDEN OR FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#; ***,SWEDEN OR NORWAY OR FINLAND OR DENMARK SPEC & W(*SH),DARK BLUE,TRIM8#
main71440-1H511-06i198908-199101
***,FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4#; ***,SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4#; ***,SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4#
main71440-1H540-03i198705-198908
***,SHADOW GRAY,TRIM1#; ***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71440-1H540-04i198705-198908
***,BLUE,TRIM8#
main71440-1H540-05i198705-198908
***,DARK BEIGE,TRIM4#; ***,W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71440-1H541-03i198908-199205
***,W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71440-1H541-04i198908-199206
***,DARK BLUE,TRIM8#
main71440-1H541-06i198908-199206
***,BROWN,TRIM4#
main71440-1H610-03i198808-198908
***,SWEDEN SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71440-1H610-04i198802-198808
***,FINLAND OR DENMARK SPEC & W(*SH),BLUE,TRIM8#
main71440-1H610-05i198802-198908
***,SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),DARK BEIGE,TRIM4#
main71440-1H611-03i198908-199101
***,FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; ***,SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71440-1H611-04i199101-199206
***,FINLAND OR NORWAY SPEC & W(*SH),DARK BLUE,TRIM8#
main71440-1H611-06i198908-199101
***,FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4#; ***,SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),BROWN,TRIM4#
main71440-1H620-03i198802-198908
***,SWEDEN SPEC & W(*SH) OR NORWAY SPEC & W(*SH) OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71440-1H621-03i199101-199211
***,NORWAY OR SWEDEN OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71440-1H630-03i198705-198908
***,SHADOW GRAY,TRIM1#
main71440-1H631-03i198908-199211
***,SHADOW GRAY,TRIM1#
main71440-1H770-03i198802-198908
***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH);NORWAY SPEC & W(2WAY VERTICAL SEAT & *SH);SWEDEN SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#
main71440-1H770-04i198802-198908
***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH);NORWAY SPEC & W(2WAY VERTICAL SEAT & *SH);SWEDEN SPEC & W(2WAY VERTICAL SEAT & *SH),BLUE,TRIM8#
main71440-1H770-05i198802-198808
***,FINLAND OR DENMARK SPEC & W(*SH) & W(2WAY VERTICAL SEAT),DARK BEIGE,TRIM4#
main71440-1H771-03i198908-199101
***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#; ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH);NORWAY SPEC & W(2WAY VERTICAL SEAT & *SH);SWEDEN SPEC & W(2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#
main71440-1H771-04i198908-199101
***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#; ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH);NORWAY SPEC & W(2WAY VERTICAL SEAT & *SH);SWEDEN SPEC & W(2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#
main71440-1H771-06i198908-199101
***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH),BROWN,TRIM4#; ***,FINLAND OR DENMARK SPEC & W(2WAY VERTICAL SEAT & *SH);NORWAY SPEC & W(2WAY VERTICAL SEAT & *SH);SWEDEN SPEC & W(2WAY VERTICAL SEAT & *SH),BROWN,TRIM4#
main71440-1H850-03i198705-198908
***,W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1#
main71440-1H850-04i198705-198802
***,DARK BLUE,TRIM8#; ***,W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8#
main71440-1H851-03i198908-199206
***,W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1#
main71440-1H851-04i198908-199206
***,W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8#
main71440-1H860-03i198808-198908
***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1#; ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH);SWEDEN SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1#
main71440-1H860-04i198808-198908
***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),DARK BLUE,TRIM8#; ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH);SWEDEN SPEC & W(FULL FABRIC SEAT FOR SR & *SH),DARK BLUE,TRIM8#
main71440-1H861-03i198908-198909
***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1#; ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH);SWEDEN SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOW GRAY,TRIM1#; ***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & *SH);SWEDEN SPEC & W(FULL FABRIC SEAT FOR SR & *SH);NORWAY SPEC & W(FULL FABRIC SEAT FOR SR & *SH),SHADOWGRAY,TRIM1#; ***,NORWAY SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),SHADOW GRAY,TRIM1#
main71440-1H861-04i199101-199206
***,FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#; ***,SWEDEN OR FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICALSEAT & *SH),DARK BLUE,TRIM8#; ***,SWEDEN OR NORWAY SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH);FINLAND OR DENMARK SPEC & W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT & *SH),DARK BLUE,TRIM8#
main71440-1K160-03i199101-199205
***,NORWAY OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#; ***,SWEDEN OR FINLAND OR DENMARK SPEC & W(*SH),SHADOW GRAY,TRIM1#
main71440-1K170-03i198908-199205
***,SHADOW GRAY,TRIM1#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-12030i198705-199205
W(2WAY VERTICAL SEAT)
main71505-12050i198705-199206
main71505-12060i198705-199206
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71506-12030i198705-199206
W(2WAY VERTICAL SEAT)
main71506-12040i198705-199206
main71506-12050i198705-199206
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-12580i198705-199211
main71511-12590i198812-198908
main71511-12610i198705-199206
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-12580i198812-198908
S PACKAGE
main71511-12590i198705-199206
main71511-12610i198705-199206
71553BPAD, FRONT SEATBACK, B
main71553-12200i198705-199206
71553CPAD, FRONT SEATBACK, C
main71553-12200i198705-199206
71831DCOVER, FRONT SEAT HINGE, RH
main71831-12010i198705-199206
71832DCOVER, FRONT SEAT HINGE, LH
main71831-12010i198705-199206
71910AHEADREST ASSY, FRONT SEAT
main71910-12710-03×2i198705-198804
SHADOW GRAY,TRIM1#
main71910-12710-04×2i198705-198804
BLUE,TRIM8#
main71910-12710-05×2i198705-198804
DARK BEIGE,TRIM4#
main71910-12710-13×2i198804-198908
SHADOW GRAY,TRIM1#
main71910-12710-14×2i198804-198908
DARK BLUE,TRIM8#
main71910-12710-15×2i198804-198908
DARK BEIGE,TRIM4#
main71910-12711-03×2i198908-199206
SHADOW GRAY,TRIM1#
main71910-12711-04×2i198908-199206
DARK BLUE,TRIM8#
main71910-12711-06×2i198908-199206
BROWN,TRIM4#
main71910-12780-03×2i198705-198908
SHADOW GRAY,TRIM1#
main71910-12780-05×2i198705-198908
DARK BEIGE,TRIM4#
main71910-12790-03×2i198705-198908
SHADOW GRAY,TRIM1#
main71910-12790-04×2i198808-198908
BLUE,TRIM8#
main71910-12790-05×2i198705-198908
DARK BEIGE,TRIM4#
main71910-12791-03×2i199101-199206
W(*SH),SHADOW GRAY,TRIM1#
main71910-12791-04×2i198908-199101
DARK BLUE,TRIM8#
main71910-12791-06×2i198908-199206
BROWN,TRIM4#
main71910-12840-13×2i198812-198908
S PACKAGE,SHADOW GRAY,TRIM1#
main71910-12871-01×2i198908-199211
BLACK,TRIM1#
main71910-1A100-03×2i198705-198802
W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1#
main71910-1A100-04×2i198705-198802
DARK BLUE,TRIM8#; W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8#
main71910-1A101-03×2i198908-198909
W(FULL FABRIC SEAT FOR SR & 2WAY VERTICAL SEAT),SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1#
main71910-1A101-04×2i198909-199101
W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8#
main71910-1A160-03×2i198908-199205
SHADOW GRAY,TRIM1#
main71910-1A160-04×2i198908-199205
DARK BLUE,TRIM8#
71931SUPPORT, FRONT SEAT HEADREST
main71930-12050-03×2i198705-199206
W(LOCK),SHADOW GRAY,TRIM1#
main71930-12050-04×2i198808-198810
W(LOCK),DARK BLUE,TRIM8#
main71930-12050-05×2i198705-198908
W(LOCK),DARK BEIGE,TRIM4#
main71930-12050-16×2i198908-199206
W(LOCK),BROWN,TRIM4#
main71930-12060-03×2i198705-199211
W(LOCK),SHADOW GRAY,TRIM1#
main71931-12010-03×2i198812-198908
W/O(LOCK),SHADOW GRAY,TRIM1#
main71931-12010-04×2i198802-198810
W/O(LOCK),DARK BLUE,TRIM8#
main71931-12010-05×2i198705-198908
W/O(LOCK),DARK BEIGE,TRIM4#
main71931-12010-16×2i198908-199206
W/O(LOCK),BROWN,TRIM4#
main71931-12030-03×2i198812-198908
W/O(LOCK),S PACKAGE,SHADOW GRAY,TRIM1#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-12060i198705-199205
main72750-12070i198705-199205
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-12070i198802-199206
main72760-12080i198908-199211
72774PROTECTOR, LUMBAR SUPPORT SPRING
main72774-12020i198705-198802
main72774-12030i198705-199205
main72775-12020i198705-199211
72791LEVER, LUMBAR SUPPORT
main72791-20030-03i198705-198802
SHADOW GRAY,TRIM1#
main72791-20030-05i198705-198802
DARK BEIGE,TRIM4#
main72791-20030-14i198705-198802
DARK BLUE,TRIM8#
main72791-20030-26i198908-199206
BROWN,TRIM4#
main72791-22020-23i198812-198908
S PACKAGE,GRAY,TRIM1#
8513SEAT MOTOR & SEAT HEATER
→ Go to FIG 85-13
9046818071
main90468-18071
9052001274
main90520-01274
9165540620
main91655-40620

28 parts on this diagram · 4 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
