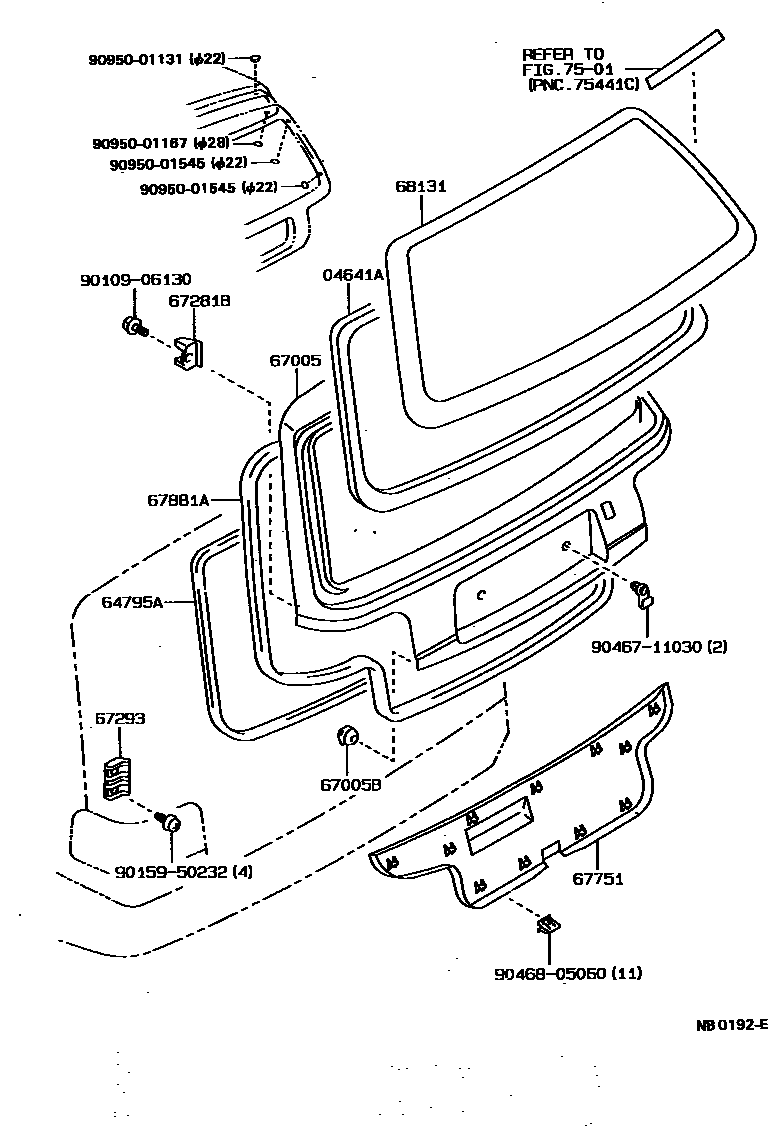

BACK DOOR PANEL & GLASS

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main04562-12010iAE92,CE90,EE90198705-199211

64795ATRIM, BACK WINDOW OPENING

main64795-12030iAE92,CE90,EE90198705-199211

67005PANEL SUB-ASSY, BACK DOOR

main67005-1A360iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI198705-199206

main67005-1A370iAE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI198705-199206

W(*RW)

main67005-1A390iAE92,CE90,EE90..GL,GLI,SR5,XL,XLI198705-199206

W(REAR AIR SPOILER & *RW)

main67005-1A520iAE92,CE90,EE90..GL,GLI,SR5,XL,XLI198705-199206

W(REAR AIR SPOILER)

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-17002×2iEE90..CBR;EE90..XLI;AE92,CE90..GL,GLI,GTI,STD,XL,XLI198705-199211

67281BSTOPPER, BACK DOOR, LOWER

main67281-12050×2iEE90..CBR;EE90..XLI;AE92,CE90..GL,GLI,GTI,STD,XL,XLI198705-199211

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-12040×2iEE90..CBR;EE90..XLI;AE92,CE90..GL,GLI,GTI,STD,XL,XLI198705-199211

67751BOARD, BACK DOOR TRIM

main67751-12090-03iAE92,CE90,EE90198705-199211

SHADOW GRAY,TRIM1#

main67751-12090-04iAE92,CE90,EE90..GL,GLI,STD,XL,XLI198908-199206

DARK BLUE,TRIM8#

main67751-12090-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

main67751-12090-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

67881AWEATHERSTRIP, BACK DOOR

main67881-12210iEE90..CBR;EE90..XLI;AE92,CE90..GL,GLI,GTI,STD,XL,XLI198705-199211

68131GLASS, BACK DOOR

main68131-12540iCE90,EE90..LHD..(GL,XL,XLI)198705-199206

*EHTT,T=3.5

main68131-12560iCE90;EE90..RHD;EE90..STD;EE90..LHD..5D;EE90..3D..3FC..EFI198908-199206

*EHT,T=3.5

main68131-12570iCE90,EE90..STD..(CBR,DSL); EE90..LHD..3D..XL;EE90..3D..MTM..XLI; EE90..STD..EFI198908-199205

*EHT,T=3.5; *EHT,T=3.5,COLD SPEC

main68131-12580iCE90..5D;EE90..LHD..(GL,XL,XLI)198908-199206

*EHTT,T=3.5

main68131-12660iAE92..GL,GLI,SR5,XL,XLI198705-199206

*EHTT,T=3.5

main68131-12670iEE90..STD198705-198908

*EHT,T=3.5

main68131-12720iEE90..STD198705-198908

*EHT,T=3.5,W(*RWD HEAVY)

main68131-1A010iAE92,EE90..GL,GLI,GTI199011-199211

*EHTT,T=3.5,GRAY

main68131-1A100iAE92..GL,GLI,SR5,XL,XLI198705-199206

*EHT,T=3.5

main68131-1A110iAE92..CBR198705-198908

*EHT,T=3.5,W(*RWD HEAVY)

main68131-1A120iAE92..GL,GLI,SR5,XL,XLI198705-199206

*EHTT,T=3.5,W(*RWD HEAVY)

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9010906130

main90109-06130

9015950232

main90159-50232

9046711030

main90467-11030

9046805060

main90468-05060

9095001131

main90950-01131

9095001167

main90950-01167

9095001545

main90950-01545

17 parts on this diagram · 1 diagram in section
