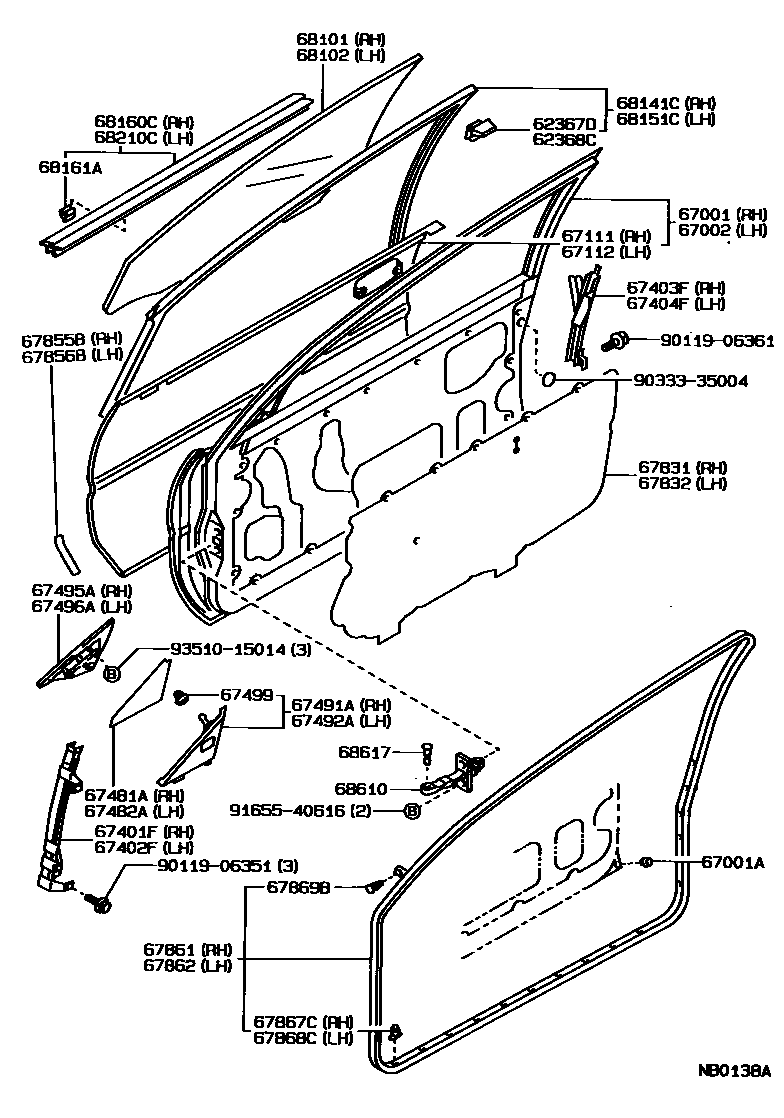

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

62367DCLIP, DOOR WINDOW GLASS, RH

main62367-12050iAE92,CE90,EE90..3D198711-199211

62368CCLIP, DOOR WINDOW GLASS, LH

main62367-12050iAE92,CE90,EE90..3D198711-199211

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-1A140iAE92,CE90,EE90..5D198705-198803

sub67001-1A141

sub68141-12311

main67001-1A141iAE92,CE90,EE90..5D198803-199206

main67001-1A320iAE92,CE90,EE90..3D198705-198803

sub67001-1A321

sub68141-12361

sub68141-12381

main67001-1A321iAE92,CE90,EE90..3D198803-199211

67001ACUSHION, FRONT DOOR PANEL

main90541-09035iAE92,CE90,EE90..5D198705-199206

main90541-09059iAE92,CE90,EE90..3D198705-199211

sub90541-09006

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-1A120iAE92,CE90,EE90..5D198705-198803

sub67002-1A121

sub68151-12031

main67002-1A121iAE92,CE90,EE90..5D198803-199206

main67002-1A300iAE92,CE90,EE90..3D198705-198803

sub67002-1A301

sub68151-12081

sub68151-12101

main67002-1A301iAE92,CE90,EE90..3D198803-199211

67111PANEL, FRONT DOOR, OUTER RH

main67111-12440iAE92,CE90,EE90..5D198705-199206

main67111-12480iAE92,CE90,EE90..3D198705-199211

67112PANEL, FRONT DOOR, OUTER LH

main67112-12430iAE92,CE90,EE90..5D198705-199206

main67112-12470iAE92,CE90,EE90..3D198705-199211

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-12280iAE92,CE90,EE90..3D198705-199211

main67401-12290iAE92,CE90,EE90..5D198705-199206

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-12300iAE92,CE90,EE90..3D198705-199211

main67402-12310iAE92,CE90,EE90..5D198705-199206

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-12100iAE92,CE90,EE90..5D198705-199206

main67403-12140iAE92,CE90,EE90..3D198705-199211

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-12100iAE92,CE90,EE90..5D198705-199206

main67404-12140iAE92,CE90,EE90..3D198705-199211

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-12210iAE92,CE90,EE90..LHD..5D198705-199211

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-12140iAE92,CE90,EE90198705-199211

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-12150iAE92,CE90,EE90..5D198705-199206

main67491-12160iEE90..RHD..5D198705-199206

W(MANUAL REMOTE CONTROL MIRROR)

main67491-12190iCE90,EE90..3D;AE92..LHD..3D198705-199211

main67491-12190iAE92..RHD198705-199205

W(ELECTRIC REMOTE CONTROL MIRROR)

main67491-12200iAE92..RHD198705-199211

W(MANUAL REMOTE CONTROL MIRROR)

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-12130iAE92,CE90,EE90..5D198705-199206

main67492-12160iAE92,CE90,EE90..LHD..5D198705-199206

W(MANUAL REMOTE CONTROL MIRROR)

main67492-12190iAE92..LHD..GTI198705-199211

W(ELECTRIC REMOTE CONTROL MIRROR)

main67492-12190iAE92..RHD;AE92,CE90,EE90..3D..(GL,GLI,SR5,STD,XL,XLI)198705-199205

main67492-12200iAE92,CE90,EE90..LHD..3D..(GL,GLI,SR5,STD,XL,XLI)198705-199205

W(MANUAL REMOTE CONTROL MIRROR)

main67492-12200iAE92..LHD..GTI198705-199211

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-12120iAE92,CE90,EE90..LHD..5D198705-199206

main67495-12140iAE92,CE90,EE90..LHD..3D198705-199211

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-12120iEE90..RHD..5D198705-199206

main67496-12140iAE92,CE90,EE90..RHD..3D198705-199205

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-12030iAE92,CE90,EE90198710-199211

main67499-32010iAE92,CE90,EE90198705-198710

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-12360iAE92,CE90,EE90..5D198705-199206

sub67831-12350

main67831-12390iAE92,CE90,EE90..5D198705-198908

W(*PW)

main67831-12430iAE92,EE90..3D..(GL,GTI)198705-198908

W(*PW)

main67832-12260iAE92,CE90,EE90..3D198705-199211

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-12360iAE92,CE90,EE90..5D198705-199206

sub67831-12350

main67832-12220iAE92,CE90,EE90..5D198705-198908

W(*PW)

sub67832-12210

main67832-12260iAE92,CE90,EE90..3D198705-199211

67855BPROTECTOR, FRONT DOOR PANEL, RH

main58741-12060iAE92,CE90,EE90198710-199211

67856BPROTECTOR, FRONT DOOR PANEL, LH

main58741-12060iAE92,CE90,EE90198710-199211

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-12440iAE92,CE90,EE90..5D198705-198710

sub67861-12710

main67861-12610iAE92,CE90,EE90..3D198705-198710

sub67861-12750

main67861-12710iAE92,CE90,EE90..5D198710-199206

main67861-12750iAE92,CE90,EE90..3D198710-199211

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-12580iAE92,CE90,EE90..5D198705-198710

sub67862-12670

main67862-12610iAE92,CE90,EE90..3D198705-198710

sub67862-12710

main67862-12670iAE92,CE90,EE90..5D198710-199206

main67862-12710iAE92,CE90,EE90..3D198710-199211

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67868-12020iAE92,CE90,EE90..3D198705-199106

sub67868-12050

main67868-12050iAE92,CE90,EE90..5D198705-199211

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67868-12030iAE92,CE90,EE90..5D198705-198710

sub67868-12050

main67868-12050iAE92,CE90,EE90..5D198705-199211

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-12020iAE92,CE90,EE90198705-199211

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-12530iAE92,CE90,EE90..5D198705-199206

*TEM,T=3.5

sub68101-12540

main68101-12540iAE92,CE90,EE90..5D198705-199206

*TT,T=3.5

main68101-12750iEE90..5D..GL199011-199206

*TT,T=3.5,GRAY

sub68101-12550

main68111-12650iAE92,CE90,EE90..3D..(GL,GLI,SR5,STD,XL,XLI)198705-199205

*TEM,T=3.5

main68111-12660iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)198705-199211

*TT,T=3.5

main68111-12760iAE92,EE90..3D..(GL,GLI,GTI)199011-199211

*TT,T=3.5,GRAY

sub68111-12670

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-12530iAE92,CE90,EE90..5D198705-199206

*TEM,T=3.5

sub68102-12540

main68102-12540iAE92,CE90,EE90..5D..(XL,XLI)198705-199206

*TT,T=3.5

main68102-12750iEE90..5D..GL199011-199206

*TT,T=3.5,GRAY

sub68102-12550

main68112-12650iAE92,CE90,EE90..3D..(GL,GLI,SR5,STD,XL,XLI)198705-199205

*TEM,T=3.5

sub68112-12660

main68112-12660iAE92,CE90,EE90..3D..(GL,GLI,GTI,SR5,XL,XLI)198705-199211

*TT,T=3.5

main68112-12760iAE92,EE90..3D..(GL,GLI,GTI)199011-199211

*TT,T=3.5,GRAY

sub68112-12670

68141CRUN, FRONT DOOR GLASS, RH

main68141-12310iAE92,CE90,EE90..5D198705-198803

sub68141-12311

main68141-12311iAE92,CE90,EE90..5D198803-199206

main68141-12360iAE92,CE90,EE90..3D198705-198711

sub68141-12361

main68141-12380iAE92,CE90,EE90..3D198711-198803

sub68141-12381

main68141-12381iAE92,CE90,EE90..3D198803-199211

68151CRUN, FRONT DOOR GLASS, LH

main68151-12030iAE92,CE90,EE90..5D198705-198803

sub68151-12031

main68151-12031iAE92,CE90,EE90..5D198803-199206

main68151-12080iAE92,CE90,EE90..3D198705-198711

sub68151-12081

main68151-12100iAE92,CE90,EE90..3D198711-198803

sub68151-12101

main68151-12101iAE92,CE90,EE90..3D198803-199211

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-12170iAE92,CE90,EE90..5D..(XL,XLI)198705-199206

main68160-12180iAE92,CE90,EE90..3D..(STD,XL,XLI)198705-199205

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-12160iAE92,CE90,EE90..3D..(STD,XL,XLI)198705-199206

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-12120iAE92,CE90,EE90..5D..(XL,XLI)198705-199206

main68210-12130iAE92,CE90,EE90..3D..(STD,XL,XLI)198705-199205

68610CHECK ASSY, FRONT DOOR

main68610-12050iAE92,CE90,EE90..5D198705-199206

main68610-12050iAE92,CE90,EE90..3D198907-198908

AISIN

main68610-12070iAE92,CE90,EE90..3D198907-199211

68617PIN, FRONT DOOR CHECK

main68617-12030iAE92,CE90,EE90198809-199211

main68617-22020iAE92,CE90,EE90198705-198809

9011906351

main90119-06351

9011906361

main90119-06361

9033335004

main90333-35004

9165540616

main91655-40616

9351015014

main93510-15014

41 parts on this diagram · 6 diagrams in section
