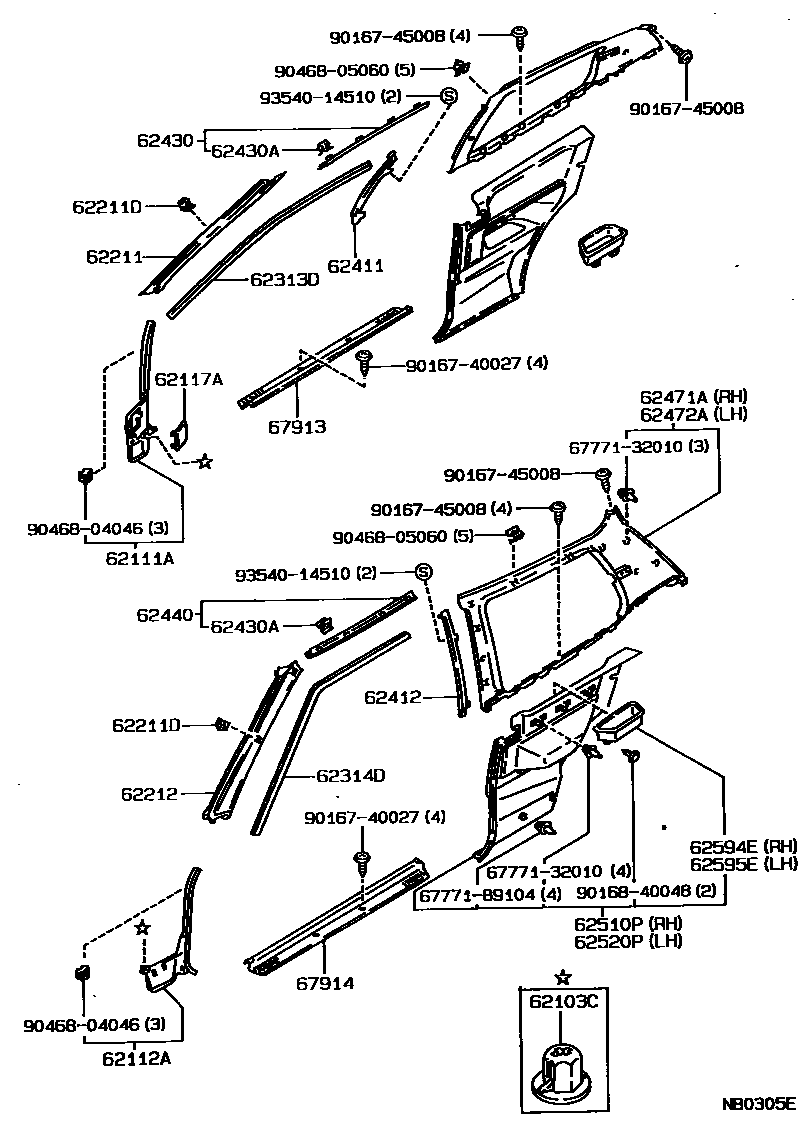

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-05050-01iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198909-199211

BLACK,TRIM1#

sub90467-05050

main90467-05050-01iAE92..GTI,SR5198909-199211

BLACK,TRIM1#,4#,8#

sub90467-05050

main90467-05050-01iAE92..GTI,SR5198909-199211

BLACK,TRIM1#,8#

sub90467-05050

main90467-05050-01iAE92..RHD199008-199211

BLACK,TRIM1#,TYPE A

sub90467-05050

main90467-05050-01iAE92..RHD199008-199211

BLACK,TRIM1#,8#,TYPE A

sub90467-05050

main90467-05050-01iAE92,CE90,EE90..LHD..MTM..(GLI,XL,XLI)..(DSL,EFI)199106-199211

BLACK,TRIM1#,4#,8#,TYPE A

sub90467-05050

main90467-08160iAE92,CE90,EE90199108-199211

TYPE B

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-12140-03iAE92,CE90,EE90..RHD198705-199206

SHADOW GRAY,TRIM1#

sub62101-12140

main62101-12140-04iCE90,EE90..RHD198908-199206

DARK BLUE,TRIM8#

sub62101-12140

main62101-12140-05iCE90,EE90..RHD198705-198908

DARK BEIGE,TRIM4#

sub62101-12140

main62101-12150-03iAE92,CE90,EE90..LHD198705-199211

SHADOW GRAY,TRIM1#

sub62101-12150

main62101-12150-04iAE92,CE90,EE90..LHD..(GL,XL)198705-199206

DARK BLUE,TRIM8#

sub62101-12150

main62101-12150-05iAE92,CE90,EE90..LHD..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

sub62101-12150

main62101-12150-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

sub62101-12150

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-12140-03iAE92,CE90,EE90..RHD198705-199206

SHADOW GRAY,TRIM1#

sub62102-12140

main62102-12140-04iCE90,EE90..RHD198908-199206

DARK BLUE,TRIM8#

sub62102-12140

main62102-12140-05iCE90,EE90..RHD198705-198908

DARK BEIGE,TRIM4#

sub62102-12140

main62102-12150-03iAE92,CE90,EE90..LHD198705-199211

SHADOW GRAY,TRIM1#

sub62102-12150

main62102-12150-04iAE92,CE90,EE90..LHD..(GL,GLI,STD,XL,XLI)198705-199206

DARK BLUE,TRIM8#

sub62102-12150

main62102-12150-05iAE92,CE90,EE90..LHD..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

sub62102-12150

main62102-12150-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

sub62102-12150

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-12090-03iAE92,CE90,EE90..RHD198705-199206

SHADOW GRAY,TRIM1#

sub62117-12090

main62117-12090-04iCE90,EE90..RHD198908-199206

DARK BLUE,TRIM8#

sub62117-12090

main62117-12090-05iCE90,EE90..RHD198705-198908

DARK BEIGE,TRIM4#

sub62117-12090

main62117-12100-03iAE92,CE90,EE90..LHD198705-199211

SHADOW GRAY,TRIM1#

sub62117-12100

main62117-12100-04iAE92,CE90,EE90..LHD..(GL,XL)198705-199206

DARK BLUE,TRIM8#

sub62117-12100

main62117-12100-05iAE92,CE90,EE90..LHD..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

sub62117-12100

main62117-12100-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

sub62117-12100

main62117-12110-03iAE92,CE90,EE90..LHD..MTM..(DSL,EFI)198705-199211

*FRG,SHADOW GRAY,TRIM1#

main62117-12110-04iAE92,CE90,EE90..LHD..(GL,XL)198705-199206

*FRG,DARK BLUE,TRIM8#

main62117-12110-05iAE92,CE90,EE90..LHD..(CBR,DSL)198705-198908

*FRG,DARK BEIGE,TRIM4#

main62117-12110-06iAE92,CE90,EE90..LHD..MTM..(GLI,XL,XLI)..(DSL,EFI)198908-199206

*FRG,BROWN,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62211-12190-03iAE92,CE90,EE90198705-199211

SHADOW GRAY,TRIM1#

sub62211-12190

main62211-12190-04iAE92,CE90,EE90..GL,GLI,STD,XL,XLI198705-199206

DARK BLUE,TRIM8#

sub62211-12190

main62211-12190-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

sub62211-12190

main62211-12190-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

sub62211-12190

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90468-05060iAE92,CE90,EE90198705-199211

62212GARNISH, FRONT PILLAR, LH

main62212-12190-03iAE92,CE90,EE90..GL,GLI,STD,XL,XLI198705-199211

SHADOW GRAY,TRIM1#

sub62212-12190

main62212-12190-04iAE92,CE90,EE90..LHD..(GL,XL)198705-199206

DARK BLUE,TRIM8#

sub62212-12190

main62212-12190-05iAE92,CE90,EE90..CBR,DSL198705-198908

DARK BEIGE,TRIM4#

sub62212-12190

main62212-12190-06iAE92,CE90,EE90..LHD..(GL,GLI,XL,XLI)198908-199206

BROWN,TRIM4#

sub62212-12190

62313DTRIM, FRONT DOOR OPENING, RH

main62313-12130-03iAE92,CE90,EE90..5D198705-199206

SHADOW GRAY,TRIM1#

sub62333-12100

main62313-12130-04iAE92,CE90,EE90..5D198705-199206

DARK BLUE,TRIM8#

sub62333-12100

main62313-12130-05iAE92,CE90,EE90..5D198705-198908

DARK BEIGE,TRIM4#

sub62333-12100

main62313-12130-06iAE92,CE90,EE90..LHD..5D198908-199206

BROWN,TRIM4#

sub62333-12100

main62313-12160-03iAE92,CE90,EE90..3D198705-199211

SHADOW GRAY,TRIM1#

sub62333-12100

main62313-12160-04iAE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI)198705-199205

DARK BLUE,TRIM8#

sub62333-12100

main62313-12160-05iAE92,CE90,EE90..3D..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

sub62333-12100

main62313-12160-06iAE92,CE90,EE90..LHD..3D..(GLI,XL,XLI)198908-199205

BROWN,TRIM4#

sub62333-12100

62314DTRIM, FRONT DOOR OPENING, LH

main62313-12130-03iAE92,CE90,EE90..5D198705-199206

SHADOW GRAY,TRIM1#

sub62333-12100

main62313-12130-04iAE92,CE90,EE90..LHD..5D198705-199206

DARK BLUE,TRIM8#

sub62333-12100

main62313-12130-05iAE92,CE90,EE90..5D198705-198908

DARK BEIGE,TRIM4#

sub62333-12100

main62313-12130-06iAE92,CE90,EE90..LHD..5D198908-199206

BROWN,TRIM4#

sub62333-12100

main62313-12160-03iAE92,CE90,EE90..3D198705-199211

SHADOW GRAY,TRIM1#

sub62333-12100

main62313-12160-04iAE92,CE90,EE90..LHD..3D..(GL,XL)198705-199205

DARK BLUE,TRIM8#

sub62333-12100

main62313-12160-05iAE92,CE90,EE90..3D..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

sub62333-12100

main62313-12160-06iAE92,CE90,EE90..LHD..3D..(GLI,XL,XLI)198908-199205

BROWN,TRIM4#

sub62333-12100

62411GARNISH, CENTER PILLAR, RH

main62411-12430-03iAE92,CE90,EE90..3D198705-199211

SHADOW GRAY,TRIM1#

sub62411-12430

main62411-12430-04iAE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI)198705-199205

DARK BLUE,TRIM8#

sub62411-12430

main62411-12430-05iAE92,CE90,EE90..3D..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

sub62411-12430

main62411-12430-06iAE92,CE90,EE90..LHD..3D..(GLI,XL,XLI)198908-199205

BROWN,TRIM4#

sub62411-12430

62412GARNISH, CENTER PILLAR, LH

main62412-12430-03iAE92,CE90,EE90..3D198705-199211

SHADOW GRAY,TRIM1#

sub62412-12430

main62412-12430-04iAE92,CE90,EE90..LHD..3D..(GL,XL)198705-199205

DARK BLUE,TRIM8#

sub62412-12430

main62412-12430-05iAE92,CE90,EE90..3D..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

sub62412-12430

main62412-12430-06iAE92,CE90,EE90..LHD..3D..(GLI,XL,XLI)198908-199205

BROWN,TRIM4#

sub62412-12430

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62431-12110-03iAE92,CE90,EE90..3D198705-199211

SHADOW GRAY,TRIM1#

main62431-12110-04iAE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI)198705-199205

DARK BLUE,TRIM8#

main62431-12110-05iAE92,CE90,EE90..3D..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

main62431-12110-06iAE92,CE90,EE90..LHD..3D..(GLI,XL,XLI)198908-199205

BROWN,TRIM4#

main62431-12120-03iAE92,CE90,EE90..5D198705-199206

SHADOW GRAY,TRIM1#

sub62431-12120

main62431-12120-04iAE92,CE90,EE90..LHD..5D198705-199206

DARK BLUE,TRIM8#

sub62431-12120

main62431-12120-05iAE92,CE90,EE90..5D198705-198908

DARK BEIGE,TRIM4#

sub62431-12120

main62431-12120-06iAE92,CE90,EE90..LHD..5D198908-199206

BROWN,TRIM4#

sub62431-12120

62430ACLIP, ROOF SIDE RAIL GARNISH

main90468-05017iAE92,CE90,EE90..5D198705-199211

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62432-12090-03iAE92,CE90,EE90..3D198705-199211

SHADOW GRAY,TRIM1#

main62432-12090-04iAE92,CE90,EE90..LHD..3D..(GL,XL)198705-199205

DARK BLUE,TRIM8#

main62432-12090-05iAE92,CE90,EE90..3D..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

main62432-12090-06iAE92,CE90,EE90..LHD..3D..(GLI,XL,XLI)198908-199205

BROWN,TRIM4#

main62432-12100-03iAE92,CE90,EE90..LHD..5D198705-199206

SHADOW GRAY,TRIM1#

sub62432-12100

main62432-12100-04iAE92,CE90,EE90..LHD..5D198705-199206

DARK BLUE,TRIM8#

sub62432-12100

main62432-12100-05iAE92,CE90,EE90..5D198705-198908

DARK BEIGE,TRIM4#

sub62432-12100

main62432-12100-06iAE92,CE90,EE90..LHD..5D198908-199206

BROWN,TRIM4#

sub62432-12100

62471AGARNISH, ROOF SIDE, INNER RH

main62471-12470-03iAE92,CE90,EE90..3D198705-199211

SHADOW GRAY,TRIM1#

sub62471-12470

main62471-12470-04iAE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI)198705-199205

DARK BLUE,TRIM8#

sub62471-12470

main62471-12470-05iAE92,CE90,EE90..3D..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

sub62471-12470

main62471-12470-06iAE92,CE90,EE90..LHD..3D..(GLI,XL,XLI)198908-199205

BROWN,TRIM4#

sub62471-12470

main62471-12480-03iAE92,CE90,EE90..3D198705-199211

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62471-12480-04iAE92,CE90,EE90..LHD..3D..(GL,XL)198705-199205

W(3POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#

main62471-12480-05iAE92,CE90,EE90..3D..(CBR,DSL)198705-198908

W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#

main62471-12480-06iAE92,CE90,EE90..LHD..3D..(GLI,XL,XLI)198908-199205

W(3POINT TYPE REAR SEAT BELT),BROWN,TRIM4#

main62471-12490-03iAE92,CE90,EE90..5D198705-199206

SHADOW GRAY,TRIM1#

sub62471-12490

main62471-12490-04iAE92,CE90,EE90..LHD..5D198705-199206

DARK BLUE,TRIM8#

sub62471-12490

main62471-12490-05iAE92,CE90,EE90..5D198705-198908

DARK BEIGE,TRIM4#

sub62471-12490

main62471-12490-06iAE92,CE90,EE90..LHD..5D198908-199206

BROWN,TRIM4#

sub62471-12490

main62471-12500-03iAE92,CE90,EE90..5D198808-199206

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

sub62471-12500

main62471-12500-04iAE92,CE90,EE90..5D198808-199206

W(3POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#

sub62471-12500

main62471-12500-05iAE92,CE90,EE90..5D198808-198908

W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#

sub62471-12500

main62471-12500-06iAE92,CE90,EE90..LHD..5D198908-199206

W(3POINT TYPE REAR SEAT BELT),BROWN,TRIM4#

sub62471-12500

62472AGARNISH, ROOF SIDE, INNER LH

main62472-12460-03iAE92,CE90,EE90..3D198705-199211

SHADOW GRAY,TRIM1#

main62472-12460-04iAE92,CE90,EE90..LHD..3D..(GL,XL)198705-199205

DARK BLUE,TRIM8#

main62472-12460-05iAE92,CE90,EE90..3D..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

main62472-12460-06iAE92,CE90,EE90..LHD..3D..(GLI,XL,XLI)198908-199205

BROWN,TRIM4#

main62472-12470-03iAE92,CE90,EE90..3D198705-199211

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62472-12470-04iAE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI)198705-199205

W(3POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#

main62472-12470-05iAE92,CE90,EE90..3D..(CBR,DSL)198705-198908

W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#

main62472-12470-06iAE92,CE90,EE90..LHD..3D..(GLI,XL,XLI)198908-199205

W(3POINT TYPE REAR SEAT BELT),BROWN,TRIM4#

main62472-12480-03iAE92,CE90,EE90..5D198705-199206

SHADOW GRAY,TRIM1#

sub62472-12480

main62472-12480-04iAE92,CE90,EE90..5D198705-199206

DARK BLUE,TRIM8#

sub62472-12480

main62472-12480-05iAE92,CE90,EE90..5D198705-198908

DARK BEIGE,TRIM4#

sub62472-12480

main62472-12480-06iAE92,CE90,EE90..LHD..5D198908-199206

BROWN,TRIM4#

sub62472-12480

main62472-12490-03iAE92,CE90,EE90..5D198808-199206

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

sub62472-12490

main62472-12490-04iAE92,CE90,EE90..LHD..5D198808-199206

W(3POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#

sub62472-12490

main62472-12490-05iAE92,CE90,EE90..5D198808-198908

W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#

sub62472-12490

main62472-12490-06iAE92,CE90,EE90..LHD..5D198908-199206

W(3POINT TYPE REAR SEAT BELT),BROWN,TRIM4#

sub62472-12490

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-1A200-03iAE92,CE90,EE90..3D..XL198705-198908

SHADOW GRAY,TRIM1#

main62510-1A200-05iAE92,CE90,EE90..3D..XL198705-198908

DARK BEIGE,TRIM4#

main62510-1A220-03iCE90,EE90..STD198705-199205

W/O(REAR SEAT),SHADOW GRAY,TRIM1#

main62510-1A220-03iAE92,CE90,EE90..3D..(XL,XLI)198705-199205

SHADOW GRAY,TRIM1#

main62510-1A220-04iAE92,CE90,EE90..3D..(XL,XLI)198908-199205

W/O(REAR SEAT),BLUE,TRIM8#

main62510-1A220-04iAE92,CE90,EE90..3D..(XL,XLI)198908-199205

BLUE,TRIM8#

main62510-1A220-05iCE90,EE90..STD198705-198908

W/O(REAR SEAT),DARK BEIGE,TRIM4#

main62510-1A220-05iCE90,EE90..STD198705-198908

DARK BEIGE,TRIM4#

main62510-1A220-06iAE92,CE90,EE90..LHD..3D..(XL,XLI)198908-199205

W/O(REAR SEAT),BROWN,TRIM4#

main62510-1A230-03iAE92,EE90..3D..GL198705-198908

SHADOW GRAY,TRIM1#

main62510-1A230-04iAE92,EE90..LHD..3D..GL198705-198908

BLUE,TRIM8#

main62510-1A230-05iAE92,EE90..3D..GL198705-198908

DARK BEIGE,TRIM4#

main62510-1A240-03iAE92..3D..XL198812-198908

S PACKAGE,SHADOW GRAY,TRIM1#

main62510-1A240-03iAE92..EFI198705-198908

SHADOW GRAY,TRIM1#

main62510-1A300-03iCE90,EE90..STD198705-199205

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62510-1A300-04iCE90,EE90..STD198908-199205

W(3POINT TYPE REAR SEAT BELT),BLUE,TRIM8#

main62510-1A300-05iCE90,EE90..STD198705-198908

W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#

main62510-1A310-03iAE92,EE90..3D..GL198705-198908

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62510-1A310-04iAE92,EE90..LHD..3D..GL198705-198908

W(3POINT TYPE REAR SEAT BELT),BLUE,TRIM8#

main62510-1A310-05iAE92,EE90..3D..GL198705-198908

W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#

main62510-1A320-03iAE92..3D..XL198812-198908

S PACKAGE & W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62510-1A320-03iAE92..EFI198705-198908

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62510-1A330-03iAE92,CE90,EE90..3D..XL198705-198908

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62510-1A330-04iAE92,CE90,EE90..LHD..3D..XL198705-198908

W(3POINT TYPE REAR SEAT BELT),BLUE,TRIM8#

main62510-1A330-05iAE92,CE90,EE90..3D..XL198705-198908

W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#

main62510-1A360-03iAE92,CE90,EE90..LHD..3D..XL198705-198908

W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1#

main62510-1A360-04iAE92,CE90,EE90..LHD..3D..XL198705-198908

W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8#

main62510-1A370-03iAE92,CE90,EE90..LHD..3D..XL198705-198908

W(FULL FABRIC SEAT FOR SR & 3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62510-1A370-04iAE92,CE90,EE90..LHD..3D..XL198705-198908

W(FULL FABRIC SEAT FOR SR & 3POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#

main62510-1A400-03iAE92,CE90,EE90..3D..(XL,XLI)198908-199205

SHADOW GRAY,TRIM1#

main62510-1A400-04iAE92,CE90,EE90..3D..(XL,XLI)198908-199205

DARK BLUE,TRIM8#

main62510-1A400-06iAE92,CE90,EE90..LHD..3D..(XL,XLI)198908-199205

BROWN,TRIM4#

main62510-1A410-03iAE92,CE90,EE90..3D..(XL,XLI)198908-199205

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62510-1A410-04iAE92,CE90,EE90..3D..(XL,XLI)198908-199205

W(3POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#

main62510-1A410-06iAE92,CE90,EE90..LHD..3D..(XL,XLI)198908-199205

W(3POINT TYPE REAR SEAT BELT),BROWN,TRIM4#

main62510-1A420-03iEE90..LHD..3D..XL;EE90..3D..MTM..XLI;AE92,CE90..LHD..3D..(XL,XLI)198908-199205

W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1#

main62510-1A420-04iEE90..LHD..3D..XL;EE90..3D..MTM..XLI;AE92,CE90..LHD..3D..(XL,XLI)198908-199205

W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8#

main62510-1A440-03iAE92,EE90..3D..(GL,GLI)198908-199205

SHADOW GRAY,TRIM1#

main62510-1A440-04iAE92,EE90..3D..(GL,GLI)198908-199205

DARK BLUE,TRIM8#

main62510-1A440-06iAE92..GLI198908-199205

BROWN,TRIM4#

main62510-1A450-03iAE92,EE90..3D..(GL,GLI)198908-199205

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62510-1A450-04iAE92,EE90..3D..(GL,GLI)198908-199205

W(3POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#

main62510-1A450-06iAE92..GLI198908-199205

W(3POINT TYPE REAR SEAT BELT),BROWN,TRIM4#

main62510-1A470-03iAE92..GTI,SR5198908-199211

SHADOW GRAY,TRIM1#

main62510-1A480-03iAE92..GTI,SR5198908-199211

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62510-1A490-03iAE92,CE90,EE90..LHD..3D..(XL,XLI)198908-199205

W(FULL FABRIC SEAT FOR SR & 3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62510-1A490-04iAE92,CE90,EE90..LHD..3D..(XL,XLI)198908-199205

W(FULL FABRIC SEAT FOR SR & 3POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-1A180-03iAE92,CE90,EE90..3D..XL198705-198908

SHADOW GRAY,TRIM1#

main62520-1A180-04iAE92,CE90,EE90..LHD..3D..XL198705-198908

BLUE,TRIM8#

main62520-1A180-05iAE92,CE90,EE90..3D..XL198705-198908

DARK BEIGE,TRIM4#

main62520-1A200-03iCE90,EE90..STD198705-199205

W/O(REAR SEAT),SHADOW GRAY,TRIM1#

main62520-1A200-03iAE92,CE90,EE90..3D..(XL,XLI)198705-199205

SHADOW GRAY,TRIM1#

main62520-1A200-04iAE92,CE90,EE90..3D..(XL,XLI)198908-199205

BLUE,TRIM8#

main62520-1A200-04iCE90,EE90..STD198705-199205

W/O(REAR SEAT),BLUE,TRIM8#

main62520-1A200-05iAE92,CE90,EE90..3D..XL198705-198908

DARK BEIGE,TRIM4#

main62520-1A200-05iCE90,EE90..STD198705-198908

W/O(REAR SEAT),DARK BEIGE,TRIM4#

main62520-1A200-06iAE92,CE90,EE90..LHD..3D..(XL,XLI)198908-199205

W/O(REAR SEAT),BROWN,TRIM4#

main62520-1A210-03iAE92,EE90..3D..GL198705-198908

SHADOW GRAY,TRIM1#

main62520-1A210-04iAE92,EE90..LHD..3D..GL198705-198908

BLUE,TRIM8#

main62520-1A210-05iAE92,EE90..3D..GL198705-198908

DARK BEIGE,TRIM4#

main62520-1A220-03iAE92..3D..XL198812-198908

S PACKAGE,SHADOW GRAY,TRIM1#

main62520-1A220-03iAE92..EFI198705-198908

SHADOW GRAY,TRIM1#

main62520-1A280-03iCE90,EE90..STD198705-199205

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62520-1A280-04iCE90,EE90..STD198908-199205

W(3POINT TYPE REAR SEAT BELT),BLUE,TRIM8#

main62520-1A280-05iCE90,EE90..STD198705-198908

W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#

main62520-1A290-03iAE92,EE90..3D..GL198705-198908

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62520-1A290-04iAE92,EE90..LHD..3D..GL198705-198908

W(3POINT TYPE REAR SEAT BELT),BLUE,TRIM8#

main62520-1A290-05iAE92,EE90..3D..GL198705-198908

W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#

main62520-1A300-03iAE92..3D..XL198812-198908

S PACKAGE & W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62520-1A300-03iAE92..EFI198705-198908

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62520-1A310-03iAE92,CE90,EE90..3D..XL198705-198908

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62520-1A310-04iAE92,CE90,EE90..LHD..3D..XL198705-198908

W(3POINT TYPE REAR SEAT BELT),BLUE,TRIM8#

main62520-1A310-05iAE92,CE90,EE90..3D..XL198705-198908

W(3POINT TYPE REAR SEAT BELT),DARK BEIGE,TRIM4#

main62520-1A340-03iAE92,CE90,EE90..LHD..3D..XL198705-198908

W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1#

main62520-1A340-04iAE92,CE90,EE90..LHD..3D..XL198705-198908

W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8#

main62520-1A350-03iAE92,CE90,EE90..LHD..3D..XL198705-198908

W(FULL FABRIC SEAT FOR SR & 3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62520-1A350-04iAE92,CE90,EE90..LHD..3D..XL198705-198908

W(FULL FABRIC SEAT FOR SR & 3POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#

main62520-1A380-03iAE92,CE90,EE90..3D..(XL,XLI)198908-199205

SHADOW GRAY,TRIM1#

main62520-1A380-04iAE92,CE90,EE90..3D..(XL,XLI)198908-199205

DARK BLUE,TRIM8#

main62520-1A380-06iAE92,CE90,EE90..LHD..3D..(XL,XLI)198908-199205

BROWN,TRIM4#

main62520-1A390-03iAE92,CE90,EE90..3D..(XL,XLI)198908-199205

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62520-1A390-04iAE92,CE90,EE90..3D..(XL,XLI)198908-199205

W(3POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#

main62520-1A390-06iAE92,CE90,EE90..LHD..3D..(XL,XLI)198908-199205

W(3POINT TYPE REAR SEAT BELT),BROWN,TRIM4#

main62520-1A400-03iEE90..LHD..3D..XL;EE90..3D..MTM..XLI;AE92,CE90..LHD..3D..(XL,XLI)198908-199205

W(FULL FABRIC SEAT FOR SR),SHADOW GRAY,TRIM1#

main62520-1A400-04iEE90..LHD..3D..XL;EE90..3D..MTM..XLI;AE92,CE90..LHD..3D..(XL,XLI)198908-199205

W(FULL FABRIC SEAT FOR SR),DARK BLUE,TRIM8#

main62520-1A420-03iAE92,EE90..3D..(GL,GLI)198908-199205

SHADOW GRAY,TRIM1#

main62520-1A420-04iAE92,EE90..3D..(GL,GLI)198908-199205

DARK BLUE,TRIM8#

main62520-1A420-06iAE92..GLI198908-199205

BROWN,TRIM4#

main62520-1A430-03iAE92,EE90..3D..(GL,GLI)198908-199205

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62520-1A430-04iAE92,EE90..3D..(GL,GLI)198908-199205

W(3POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#

main62520-1A430-06iAE92..GLI198908-199205

W(3POINT TYPE REAR SEAT BELT),BROWN,TRIM4#

main62520-1A450-03iAE92..GTI,SR5198908-199211

SHADOW GRAY,TRIM1#

main62520-1A460-03iAE92..GTI,SR5198908-199211

W(3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62520-1A470-03iAE92,CE90,EE90..LHD..3D..(XL,XLI)198908-199205

W(FULL FABRIC SEAT FOR SR & 3POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#

main62520-1A470-04iAE92,CE90,EE90..LHD..3D..(XL,XLI)198908-199205

W(FULL FABRIC SEAT FOR SR & 3POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#

62594EPOCKET, QUARTER TRIM, RH

main62594-12060-03iAE92,CE90,EE90..3D198705-199211

SHADOW GRAY,TRIM1#

main62594-12060-04iAE92,CE90,EE90..LHD..3D..(GL,XL)198705-199205

DARK BLUE,TRIM8#

main62594-12060-05iAE92,CE90,EE90..3D..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

main62594-12060-06iAE92,CE90,EE90..LHD..3D..(GLI,XL,XLI)198908-199205

BROWN,TRIM4#

62595EPOCKET, QUARTER TRIM, LH

main62594-12060-03iAE92,CE90,EE90..3D198705-199211

SHADOW GRAY,TRIM1#

main62594-12060-04iAE92,CE90,EE90..LHD..3D..(GL,XL)198705-199205

DARK BLUE,TRIM8#

main62594-12060-05iAE92,CE90,EE90..3D..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

main62594-12060-06iAE92,CE90,EE90..LHD..3D..(GLI,XL,XLI)198908-199205

BROWN,TRIM4#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-12160-03iAE92,CE90,EE90..5D198705-199206

SHADOW GRAY,TRIM1#

sub67913-12160

main67913-12160-04iAE92,CE90,EE90..5D198705-199206

DARK BLUE,TRIM8#

sub67913-12160

main67913-12160-05iAE92,CE90,EE90..5D198705-198908

DARK BEIGE,TRIM4#

sub67913-12160

main67913-12160-06iAE92,CE90,EE90..LHD..5D198908-199206

BROWN,TRIM4#

sub67913-12160

main67913-12170-03iAE92,CE90,EE90..3D198705-199211

SHADOW GRAY,TRIM1#

sub67913-12170

main67913-12170-04iAE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI)198705-199205

DARK BLUE,TRIM8#

sub67913-12170

main67913-12170-05iAE92,CE90,EE90..3D..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

sub67913-12170

main67913-12170-06iAE92,CE90,EE90..LHD..3D..(GLI,XL,XLI)198908-199205

BROWN,TRIM4#

sub67913-12170

67914PLATE, FRONT DOOR SCUFF, LH

main67913-12160-03iAE92,CE90,EE90..5D198705-199206

SHADOW GRAY,TRIM1#

sub67913-12160

main67913-12160-04iAE92,CE90,EE90..LHD..5D198705-199206

DARK BLUE,TRIM8#

sub67913-12160

main67913-12160-05iAE92,CE90,EE90..5D198705-198908

DARK BEIGE,TRIM4#

sub67913-12160

main67913-12160-06iAE92,CE90,EE90..LHD..5D198908-199206

BROWN,TRIM4#

sub67913-12160

main67913-12170-03iAE92,CE90,EE90..3D198705-199211

SHADOW GRAY,TRIM1#

sub67913-12170

main67913-12170-04iAE92,CE90,EE90..3D..(GL,GLI,STD,XL,XLI)198705-199205

DARK BLUE,TRIM8#

sub67913-12170

main67913-12170-05iAE92,CE90,EE90..3D..(CBR,DSL)198705-198908

DARK BEIGE,TRIM4#

sub67913-12170

main67913-12170-06iAE92,CE90,EE90..LHD..3D..(GLI,XL,XLI)198908-199205

BROWN,TRIM4#

sub67913-12170

6777132010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32010

6777189104WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-89104

9016740027

main90167-40027

9016745008

main90167-45008

9016840048

main90168-40048

9046804046

main90468-04046

9046805060

main90468-05060

9354014510

main93540-14510

30 parts on this diagram · 2 diagrams in section
