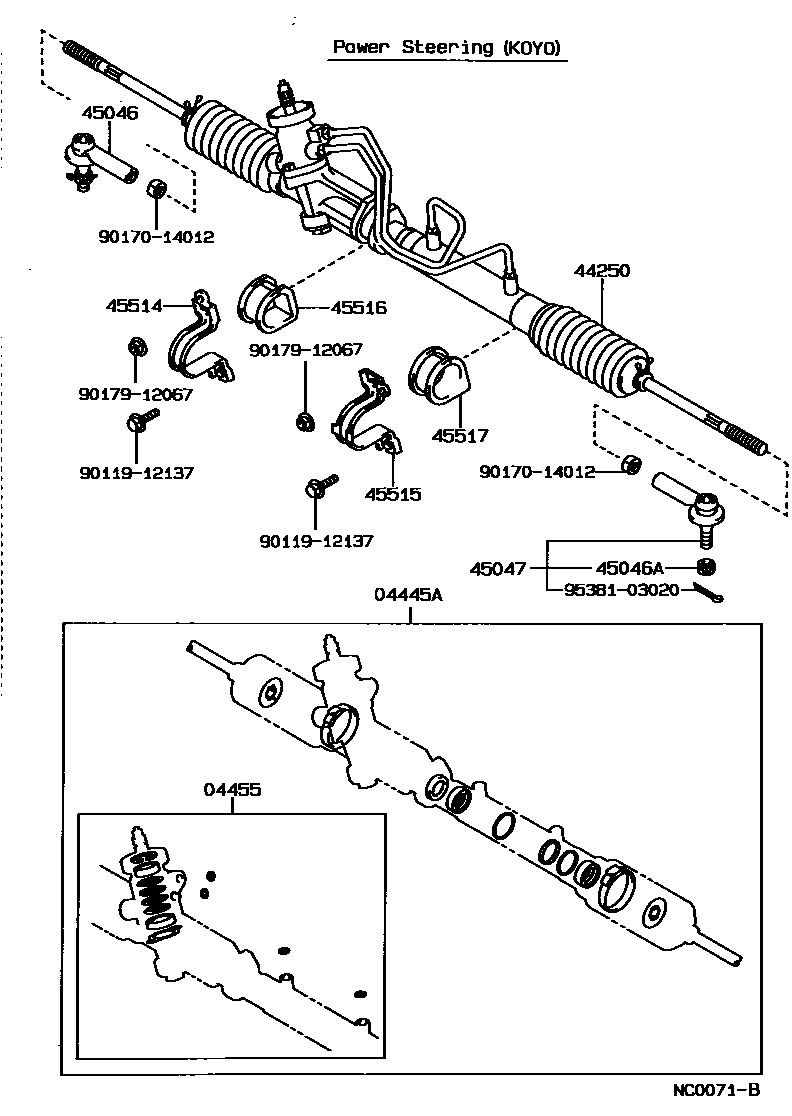

FRONT STEERING GEAR & LINK

0001 1POWER STEERING 0002 1POWER STEERING 0003 1POWER STEERING 0004 1POWER STEERING 0005 1MANUAL STEERING

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-12050iAE92..RHD198802-198805

main04445-12051iAE92,CE90,EE90..RHD199006-199206

main04445-12060iAE92,CE90..LHD..(GL,GTI,XL)198705-198812

main04445-12120iAE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI); EE90..LHD..3D..CBR; EE90..LHD..5D..CBR198908-199211

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-12030iAE92,CE90,EE90..RHD198908-199006

main04455-12031iAE92,CE90,EE90..RHD199006-199206

main04455-12040iAE92,CE90..LHD..(GL,GTI,XL)198705-198812

main04455-12100iAE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI); EE90..LHD..3D..CBR; EE90..LHD..5D..CBR198908-199211

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-12180iCE90,EE90..RHD198908-199103

main44250-12181iCE90,EE90..RHD199103-199206

main44250-12200iAE92..RHD198705-199103

main44250-12201iAE92..RHD199103-199205

main44250-12230iAE92,CE90..LHD..(GL,XL)198705-198809

main44250-12240iAE92..LHD..EFI198705-198809

main44250-12250iAE92,CE90..LHD..(GL,XL)198812-198908

main44250-12251iEE90..LHD..CBR;AE92,CE90..LHD..(GLI,SR5,XL,XLI)199103-199206

main44250-12260iAE92..LHD..GTI198809-199103

main44250-12261iAE92..LHD..GTI199103-199211

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iAE92,CE90,EE90198705-198908

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAE92,CE90,EE90198705-199211

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iAE92,CE90,EE90199012-199211

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-12070iAE92,CE90..GL,GTI,XL198705-198908

W(POWER STEERING)

main45514-12080iAE92,CE90,EE90198705-198905

main45514-12081iAE92,CE90,EE90198905-199211

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-12140iAE92,CE90,EE90..RHD198908-199206

W(POWER STEERING)

main45515-12150iEE90..LHD..CBR;AE92,CE90..LHD..(GLI,GTI,SR5,XL,XLI)198908-199009

W(POWER STEERING)

main45515-12160iAE92,CE90,EE90198705-198905

main45515-12161iAE92,CE90,EE90198905-199211

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-12050iAE92,CE90,EE90198905-199211

main45516-20010iEE90..CBR;AE92,CE90..GLI,GTI,SR5,XL,XLI198908-199009

W(POWER STEERING)

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12110iAE92,CE90..GL,GTI,XL198705-198808

W(POWER STEERING)

main45517-12111iEE90..CBR;AE92,CE90..GLI,GTI,SR5,XL,XLI199103-199211

W(POWER STEERING)

main45517-12120iAE92,CE90,EE90198705-199211

9011912137

main90119-12137

9017014012

main90170-14012

9017912067

main90179-12067

9538103020

main95381-03020

14 parts on this diagram · 5 diagrams in section
