IGNITION COIL & SPARK PLUG / GLOW PLUG

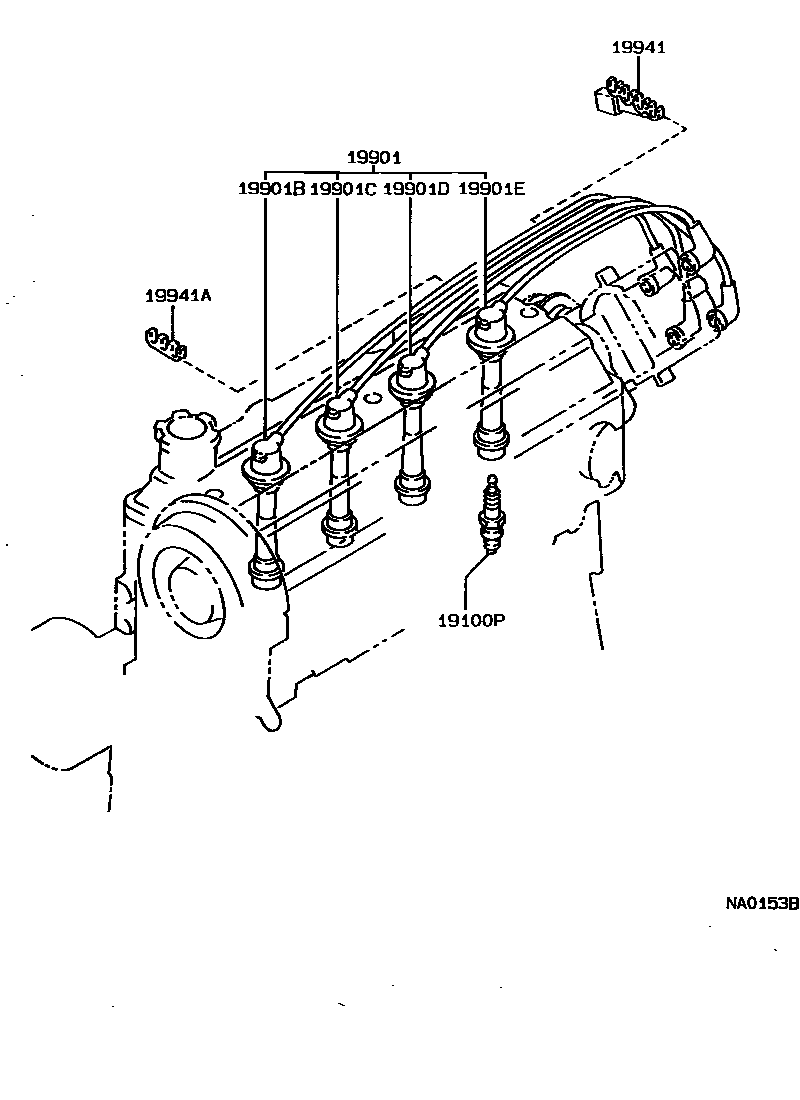

Parts diagram
19100PPLUG, SPARK
main90919-01064i198908-199206
W16EXR-U
main90919-01091i198705-199206
W16EXR-U11
main90919-01121i198705-198908
PQ16R
main90919-01129i198710-198908
Q16R-U11
main90919-01131i198705-198908
Q20R-U11
main90919-01153i198908-199206
Q16R-U
main90919-01155i198705-199206
QJ16AR-U
main90919-01166i198908-199211
K20R-U
main90919-01180i198908-199211
PK20R8
sub90919-01231
19901CORD SET, COIL & SPARK, W/RESISTIVE
main90919-21395i198705-198908
sub90919-29205
main90919-21461i198908-199211
sub90919-29065
main90919-22209i198801-199206
sub90919-22409
main90919-22210i198705-198801
sub90919-22209
main90919-22211i198705-199206
sub90919-22417
main90919-22284i198908-199206
sub90919-22285
19901BCORD, SPARK PLUG RESISTIVE, NO.1
main90919-12699i198705-198908
main90919-12778i198705-199206
main90919-12779i198705-199206
main90919-12982i198908-199211
main90919-15058i198908-199206
19901CCORD, SPARK PLUG RESISTIVE, NO.2
main90919-12700i198705-198908
main90919-12775i198705-199206
main90919-12780i198705-199206
main90919-12983i198908-199211
main90919-15059i198908-199206
19901DCORD, SPARK PLUG RESISTIVE, NO.3
main90919-12701i198705-198908
main90919-12776i198705-199206
main90919-12781i198705-199206
main90919-12984i198908-199211
main90919-15060i198908-199206
19901ECORD, SPARK PLUG RESISTIVE, NO.4
main90919-12702i198705-198908
main90919-12777i198705-199206
main90919-12782i198705-199206
main90919-12985i198908-199211
main90919-15061i198908-199206
19941CLAMP, RESISTIVE CORD, NO.1
main90464-00358i199011-199206
main90464-00490i198705-199011
sub90464-00358
main90929-01165i198705-198909
sub90929-01274
main90929-01274i198909-199206
19941ACLAMP(FOR RESISTIVE CORD)
main90464-00144i198705-198708
main90464-00287i198708-199206

8 parts on this diagram · 5 diagrams in section
