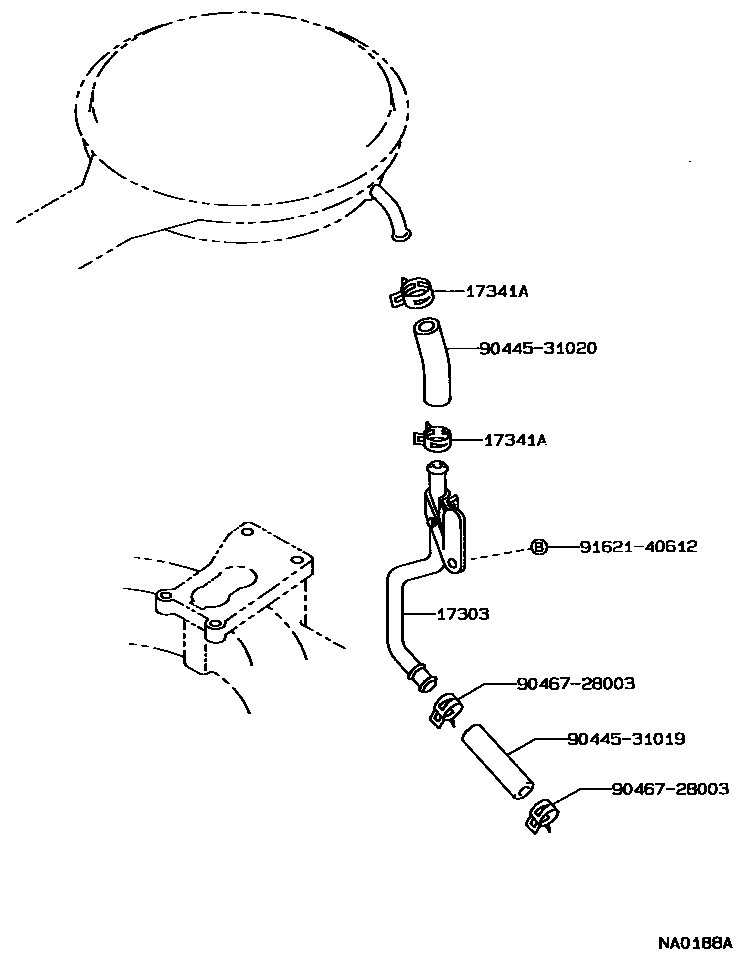

MANIFOLD AIR INJECTION SYSTEM

0001 1EXHAUST EMISSION CONTROL(US'80002 1EX.EMISSION CONT.=PHASE C/ANN0003 1EX.EMISSION CONT.=PHASE C/ANN0004 1EXHAUST EMISSION CONTROL(US'8

17303PIPE SUB-ASSY, AIR

main17303-16080i4AF..AE92198708-198908

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-11010i2E..EE90..LHD..MTM198705-198707

sub17341-11011

main17341-11010i2E..EE90..LHD..MTM198707-198708

EX. EMSSION CONTROL(*77)

sub17341-11011

main17341-11011i2E..EE90..LHD..MTM198708-198904

EX. EMSSION CONTROL(*77)

main17341-11012i2E..EE90..LHD..MTM198904-198908

EX. EMSSION CONTROL(*77)

main17341-11070i2E..EE90..LHD..MTM198707-198908

EX. EMSSION CONTROL(US83)

main17341-11130i2E..EE90..LHD..MTM198908-198911

main17341-15140i4AF..AE92198705-198911

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-26002i2E..EE90..LHD..MTM198705-198911

sub96134-52600

main90467-26002i2E..EE90..LHD..MTM198707-198908

EX. EMSSION CONTROL(*77)

sub96134-52600

main90467-26004i4AF..AE92198705-198911

sub96134-52600

main90467-26004i4AF..AE92198708-198908

EX. EMSSION CONTROL(*77)

sub96134-52600

main90467-28003i2E..EE90..LHD..MTM198707-198908

EX. EMSSION CONTROL(US83)

sub90467-28007

9044531019

main90445-31019

9044531020

main90445-31020

9046728003

main90467-28003

9162140612

main91621-40612

7 parts on this diagram · 4 diagrams in section
