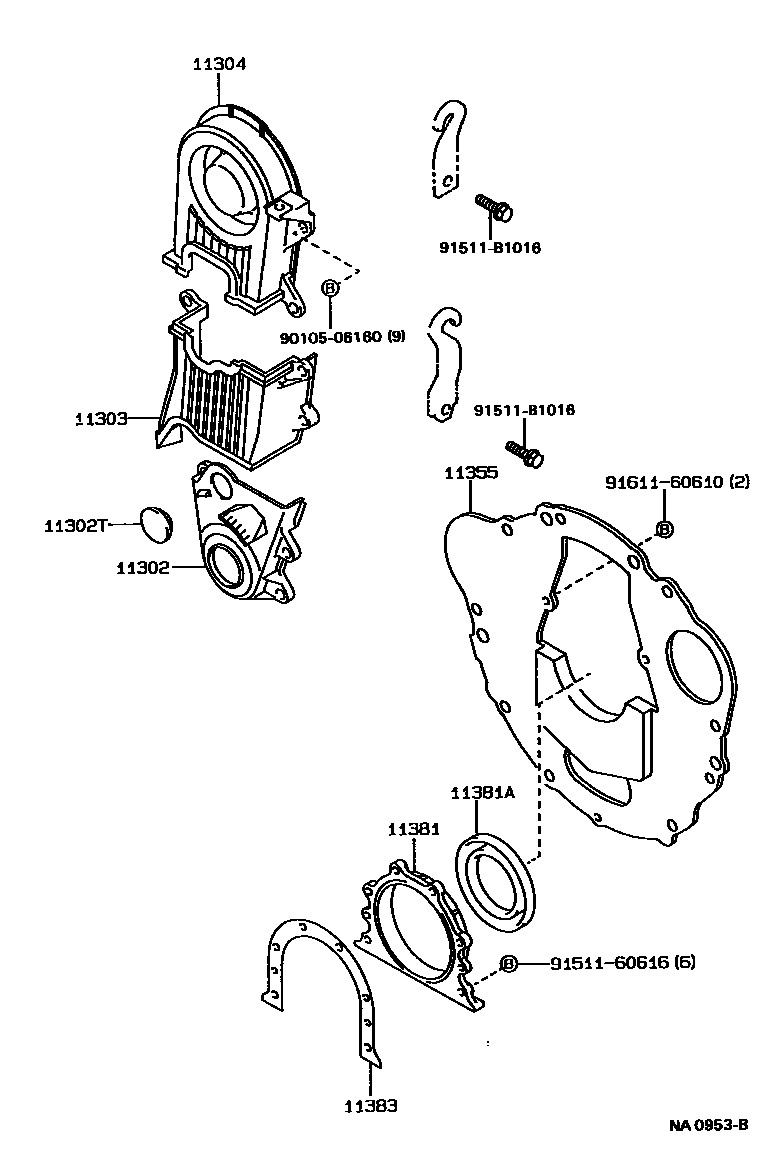

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-11041i2E..EE90198705-198708

sub11302-11042

main11302-11042i2E#..EE90198708-199206

sub11302-11043

sub90387-06015

main11302-15040i4AF..AE92198705-198711

sub11302-15041

main11302-15041i4AF#..AE92198711-199206

11302TPLUG, HOLE

main90950-01391i4AF#..AE92198705-199206

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-15040i4AF#..AE92198705-199206

11304COVER, TIMING CHAIN OR BELT, NO.2

main11304-15020i4AF#..AE92198705-199206

11355PLATE, REAR END

main11355-10011i2E#..EE90..MTM198705-199206

sub11355-10012

main11355-11011i2E#..EE90..3FC198705-199206

sub11355-11012

main11355-15060i4AGE..AE92198705-199211

main11355-15070i4AF..AE92;4AFE..AE92..GLI,XLI198705-199206

main11355-16010i4AFE..AE92..SR5198908-199205

main11355-64032i1C..CE90198705-198910

sub11355-64050

sub11356-64040

main11355-64050i1C..CE90198904-199110

sub11355-64051

sub90119-06670

main11355-64051i1C..CE90199110-199206

sub11355-64052

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10020i2E#..EE90198705-199206

main11381-15010i4AF#,4AGE..AE92198705-199211

main11381-64012i1C..CE90198705-199206

sub11381-64020

11381ASEAL, ENGINE REAR OIL

main90311-70004i4AF#,4AGE..AE92198705-199106

sub90311-70007

main90311-70007i4AF#,4AGE..AE92199106-199211

main90311-75004i2E..EE90198705-199010

sub90311-75006

main90311-75009i2E#..EE90199010-199206

main90311-90003i1C..CE90198705-199002

sub90311-90005

main90311-90005i1C..CE90199002-199206

sub90311-90008

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-15010i4A#..AE92198705-198912

sub11383-15011

main11383-15011i4AF#,4AGE..AE92198912-199205

sub11383-16010

main11383-16010i4AF#,4AGE..AE92199205-199211

9010506160

main90105-06160

9151160616

main91511-60616

91511B1016

main91511-B1016

9161160610

main91611-60610

12 parts on this diagram · 4 diagrams in section
