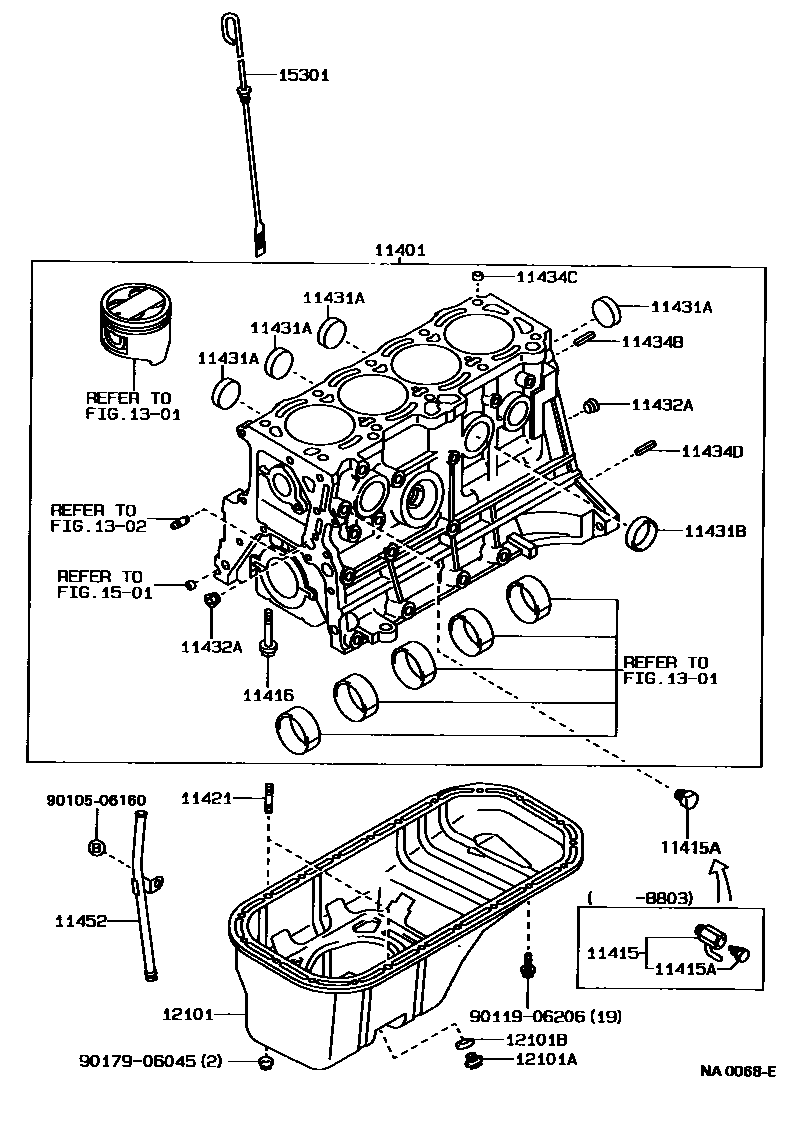

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19298i2E..EE90198705-198908

sub11401-19299

main11401-19415i4AF..AE92198705-198908

sub11401-19416

main11401-19425i4AGE..AE92..LHD198705-198908

EX. EMISSION CONTROL(US83)

sub11401-19426

main11401-19435i4AGE..AE92198705-198908

sub11401-19436

main11401-19475i4AGE..AE92198908-199101

sub11401-19476

main11401-19476i4AGE..AE92199101-199211

main11401-19505i4AF#..AE92198908-199101

sub11401-19506

main11401-19506i4AF#..AE92199101-199206

main11401-19525i2E#..EE90198908-199206

sub11401-19526

main11401-69216i1C..CE90198705-198808

main11401-69375i1C..CE90198908-199008

main11401-69415i1C..CE90198808-198908

main11401-69435i1C..CE90199008-199206

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09088i4A#..AE92198705-199206

sub90345-52003

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90341-12012i2E#..EE90198705-199102

main90341-12026i2E#..EE90199102-199206

sub90341-12012

main90345-52003i4AF#,4AGE..AE92199002-199211

main90345-52013i4AF#..AE92198803-199005

main90910-09087i1C..CE90198705-199206

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007i4AF#,4AGE..AE92198705-199211

main90910-02019i2E#..EE90198705-199206

main90910-02061i1C..CE90198705-199206

11421BOLT, STUD(FOR OIL PAN)

main90116-06014i2E..EE90198705-198907

main90116-06022i4AF#,4AGE..AE92198705-199211

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-42500i2E#..EE90198705-199206

main96411-43500i4AF#,4AGE..AE92198705-199211

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000i2E#..EE90198705-199206

main96411-44000i4AF#,4AGE..AE92198705-199211

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53008i4AF#,4AGE..AE92198705-199211

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10017i2E#..EE90198705-199206

L=20,OD=10

main90250-10113i4AF#,4AGE..AE92198705-199211

L=22,OD=10

main90253-15001i2E..EE90198705-198712

L=14,OD=15

main90253-15003i2E#..EE90198712-199206

L=17,OD=15

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-13017i4AF#,4AGE..AE92198705-199211

L=12,OD=13

main90253-14001i1C..CE90198705-199206

L=9,OD=14

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i4AF#,4AGE..AE92198705-199211

L=14,OD=6

main90250-06068i2E#..EE90198705-199206

L=11,OD=6

11452GUIDE, OIL LEVEL GAGE

main11452-10010i2E#..EE90198705-198912

main11452-11040i2E#..EE90199203-199206

main11452-11050i2E#..EE90198912-199203

sub11452-11040

main11452-15020i4AF#..AE92198705-199206

main11452-16010i4AGE..AE92198705-198906

sub11452-16030

main11452-16030i4AGE..AE92198906-199211

main11452-64030i1C..CE90198705-199206

12101PAN SUB-ASSY, OIL

main12101-11010i2E#..EE90198705-199206

sub12101-11011

main12101-15070i4A#..AE92..LHD198705-199206

ANTI-PROJECT MEASURE COUNTRIES

main12101-16060i4A#..AE92198705-199211

main12101-16090i4AGE..AE92198905-198911

sub12101-16060

main12101-64020i1C..CE90198705-198801

main12101-64040i1C..CE90198801-199007

sub12101-64110

main12101-64110i1C..CE90199007-199206

sub12101-64131

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1C..CE90198705-199206

main90341-12026i2E#..EE90198812-199211

sub90341-12012

main90341-12026i4AF,4AGE..AE92..LHD..(GTI,XL)198908-199008

ANTI-PROJECT MEASURE COUNTRIES

sub90341-12012

main90341-18089i1C..CE90198705-198801

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12011i1C..CE90198801-198803

sub90430-12019

main90430-12019i2E#..EE90198705-199008

sub90430-12028

main90430-12019i4AF,4AGE..AE92..LHD..(GTI,XL)198908-199004

ANTI-PROJECT MEASURE COUNTRIES

sub90430-12028

main90430-12027i2E#..EE90199004-199211

sub90430-12031

main90430-12027i4AF,4AGE..AE92..LHD..(GTI,XL)199004-199008

ANTI-PROJECT MEASURE COUNTRIES

sub90430-12031

main90430-12028i1C..CE90199008-199108

sub90430-12031

main90430-18013i1C..CE90198705-198801

sub90430-18023

1301

1302

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-11020i2E..EE90198705-198908

sub15301-11021

main15301-11021i2E#..EE90198908-198912

main15301-11040i2E#..EE90198912-199206

main15301-15040i4AF..AE92198705-198810

sub15301-15041

main15301-15041i4AF#..AE92198810-199206

main15301-16040i4AGE..AE92198705-198711

sub15301-16041

main15301-16041i4AGE..AE92198711-198905

sub15301-16060

main15301-16060i4AGE..AE92198905-199211

main15301-64010i1C..CE90198705-198901

sub15301-64040

main15301-64040i1C..CE90198901-198911

sub15301-64041

main15301-64041i1C..CE90198911-199206

9010506160

main90105-06160

9011906206

main90119-06206

9017906045

main90179-06045

22 parts on this diagram · 4 diagrams in section
