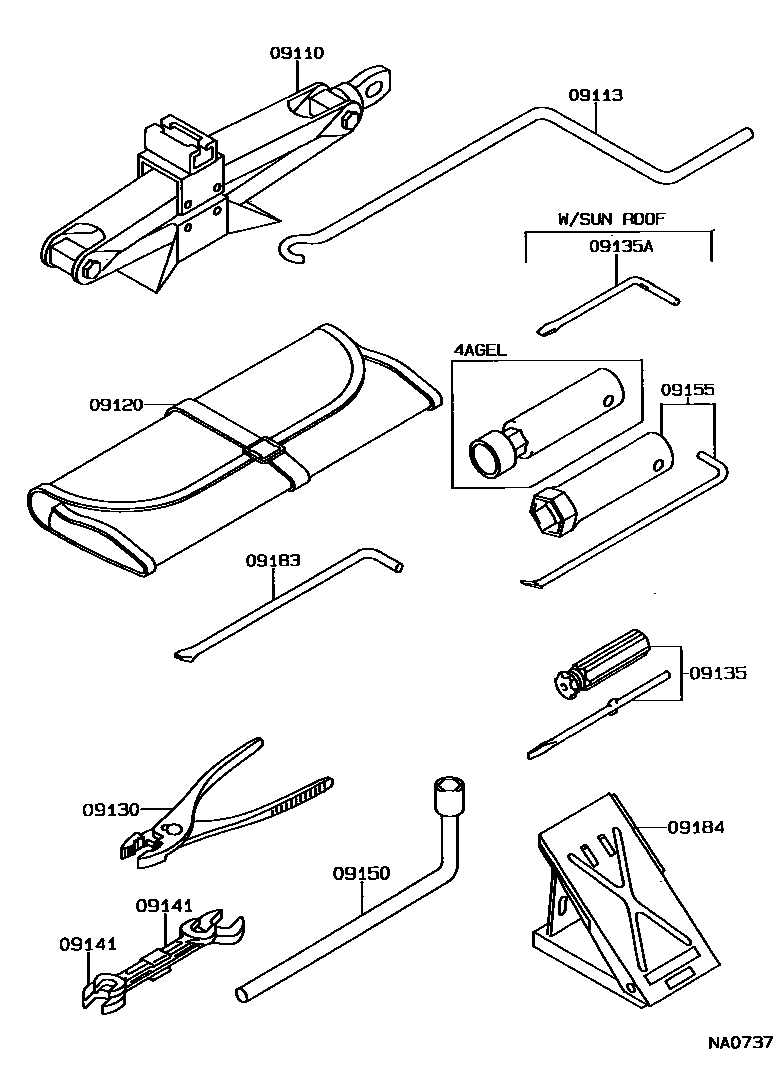

STANDARD TOOL

09110JACK ASSY

main09111-12100iAE92,CE90,EE90198705-199107

sub09111-20060

main09111-12130iAE92,CE90,EE90199107-199211

sub09111-12100

09113HANDLE, JACK

main09113-20030iAE92,CE90,EE90198705-199211

sub09113-20050

09120BAG, TOOL

main09120-10030iAE92,CE90,EE90198705-199211

09130PLIERS

main99913-11500iAE92,CE90,EE90198705-199211

09135DRIVER, SCREW

main99915-10700iAE92,CE90,EE90198705-199211

09135ABIT, SCREW DRIVER

main09135-00012iAE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI198705-199211

09141SPANNER

main99914-10810iAE92,CE90,EE90198705-199211

8 X 10

main99914-11214iAE92,CE90,EE90198705-199211

12 X 14

09150WRENCH, HUB NUT BOX

main09150-26010iAE92,CE90,EE90198705-199211

09155WRENCH, SPARK PLUG

main09155-00130iAE92..GTI198705-199211

main09155-41020iEE90198705-199206

main09155-74020iAE92..GL,GLI,SR5,XL,XLI198705-199206

09183WRENCH, WHEEL CAP

main09183-00010iAE92,CE90,EE90198705-199211

09184STOPPER, WHEEL

main09184-00010iAE92,CE90,EE90198705-199211

11 parts on this diagram · 1 diagram in section
