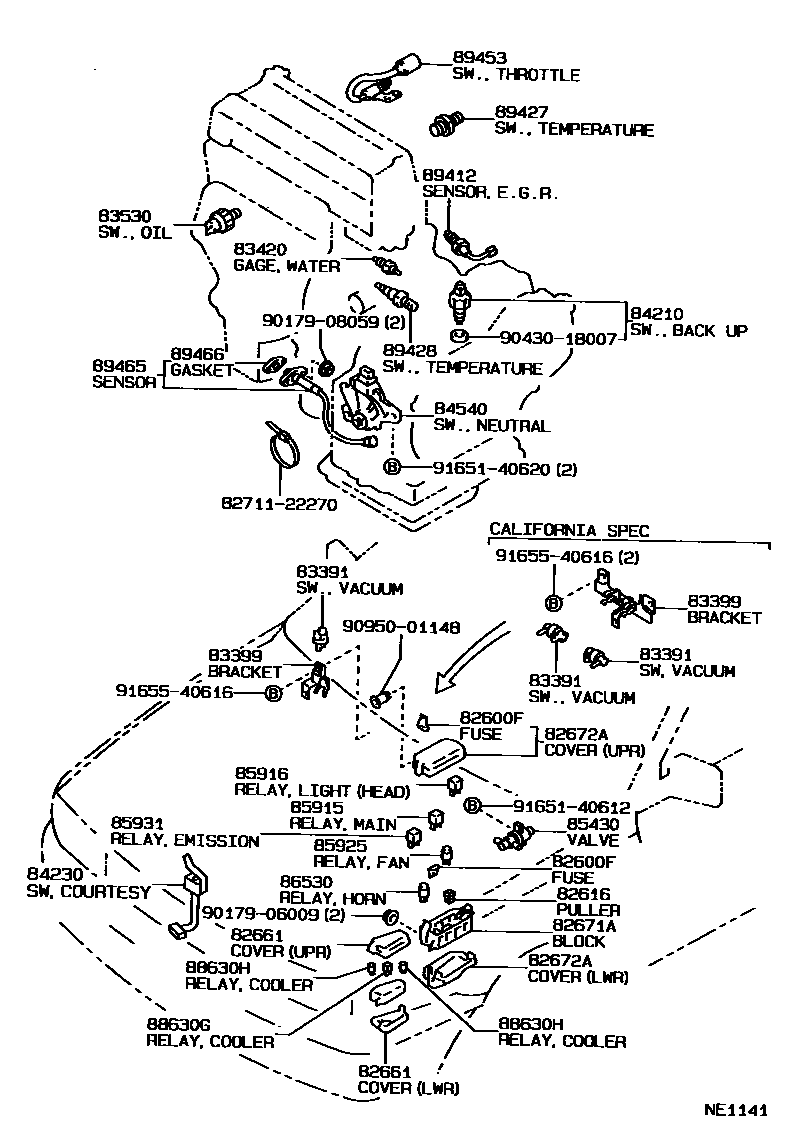

SWITCH & RELAY & COMPUTER
82600FFUSE, FUSE BLOCK
30A,GREEN
10A
15A
20A,YELLOW
7.5A
82616PULLER, FUSE
82661COVER, RELAY BLOCK, NO.1
UPR
LWR
82672ACOVER, JUNCTION BLOCK
UPR
UPR
LWR
UPR
83391SWITCH, VACUUM
MARK=350FB,AISIN
MARK=80FM,TOKAIRIKA
MARK=420FB,AISIN
MARK=420FB,TOKAIRIKA
83399BRACKET, VACUUM SWITCH
CALIFORNIA SPEC
83420GAGE ASSY, WATER TEMPERATURE SENDER
84230SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM)
ANTI THEFT DEVICE
84540SWITCH ASSY, NEUTRAL START
85430VALVE, OUTER VENT CONTROL
85915RELAY, MAIN
85916RELAY, LIGHT CONTROL
NIPPONDENSO,TAIL
HEAD
85925RELAY, RADIATOR FAN
85931RELAY, EMISSION CONTROL
86530RELAY ASSY, HORN
NIPPONDENSO
88630GRELAY ASSY, COOLER
88630HRELAY ASSY, COOLER
89412SENSOR, E.G.R GAS TEMPERATURE
89427SWITCH, TEMPERATURE DETECT
89428SWITCH, TEMPERATURE DETECT, NO.2
sub89428-32010
89453SWITCH, THROTTLE POSITION (FOR T.C.S.)
8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22270
9017906009
main90179-06009
9017908059
main90179-08059
9043018007
main90430-18007
9095001148
main90950-01148
9165140612
main91651-40612
9165140620
main91651-40620
9165540616
main91655-40616
34 parts on this diagram · 8 diagrams in section
