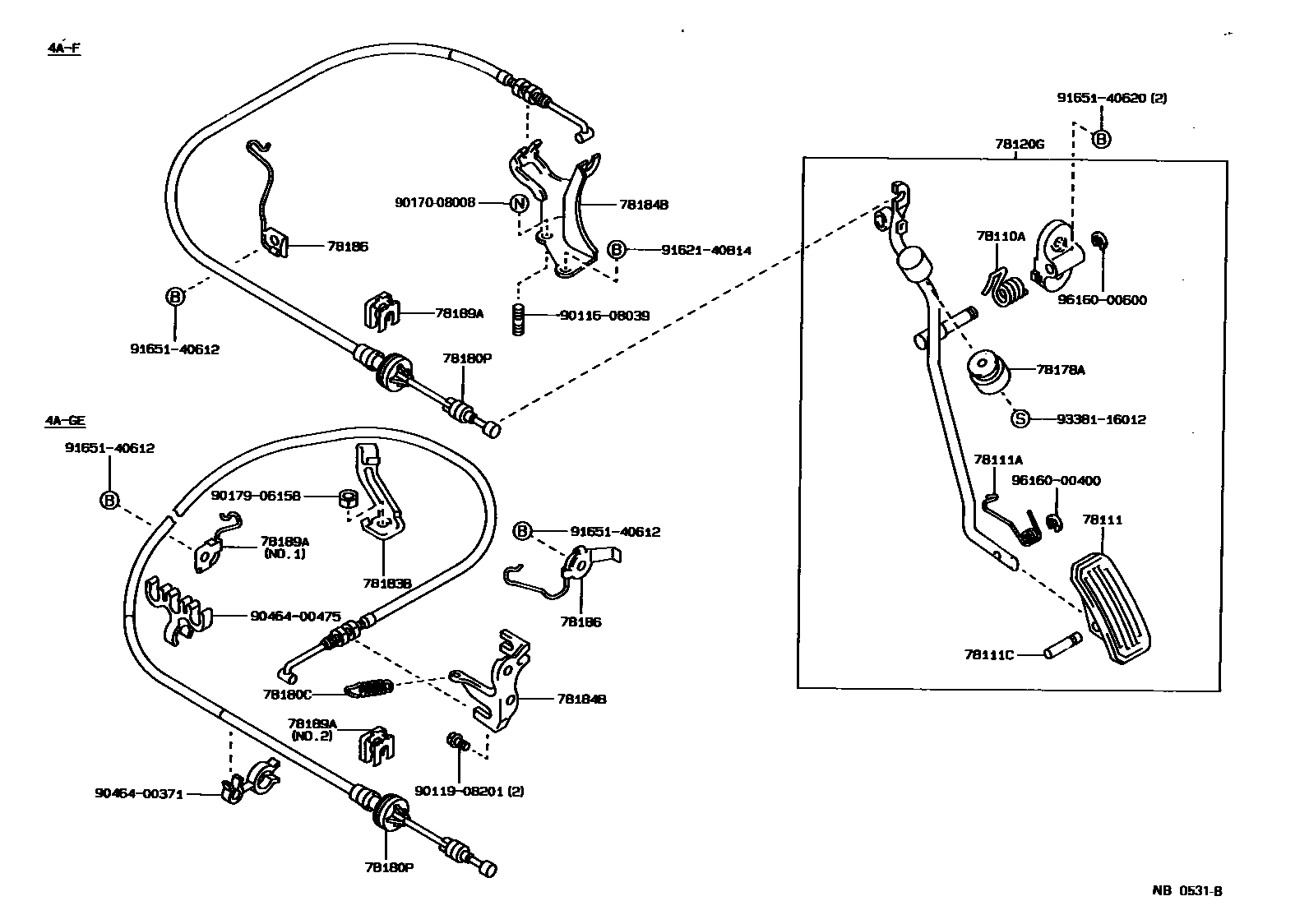

ACCELERATOR LINK

0001 1 0002 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iAE92..ATM198708-199106

main90508-26036iAE92..5F198708-199106

78111PEDAL, ACCELERATOR

main78111-32010iAE92198708-199106

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-20056iAE92198708-199106

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAE92198708-199106

78120GROD ASSY, ACCELERATOR PEDAL

main78120-12090iAE92..5F198708-199106

main78120-12100iAE92..ATM198708-199106

78178ADAMPER, ACCELRATOR PEDAL ROD DYNAMIC

main78178-12030iAE92198708-199106

78180CSPRING, TENSION (FOR ACCELERATOR WIRE)

main90507-10016iAE92..GTS198708-199106

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-1A010iAE92..CBR198708-198908

main78180-1A030iAE92..GTS198708-199106

main78180-1A350iAE92..DX,SR5198908-199106

78183BCLAMP, ACCELERATOR CONTROL CABLE

main35524-12050iAE92..GTS198908-199106

main78183-12120iAE92..EFI198708-198908

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12220iAE92..GTS198708-199106

main78184-12230iAE92..CBR198708-198908

main78184-12250iAE92..DX,SR5198908-199106

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12230iAE92..CBR198708-198908

main78186-12240iAE92..GTS198708-199106

NO.1

main78186-12250iAE92..GTS198708-199106

NO.2

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-12030iAE92198708-199106

9011608039

main90116-08039

9011908201

main90119-08201

9017008008

main90170-08008

9017906158

main90179-06158

9046400371

main90464-00371

9046400475

main90464-00475

9162140814

main91621-40814

9165140612

main91651-40612

9165140620

main91651-40620

9338116012

main93381-16012

9616000400

main96160-00400

9616000600

main96160-00600

24 parts on this diagram · 2 diagrams in section
