FRONT SEAT & SEAT TRACK

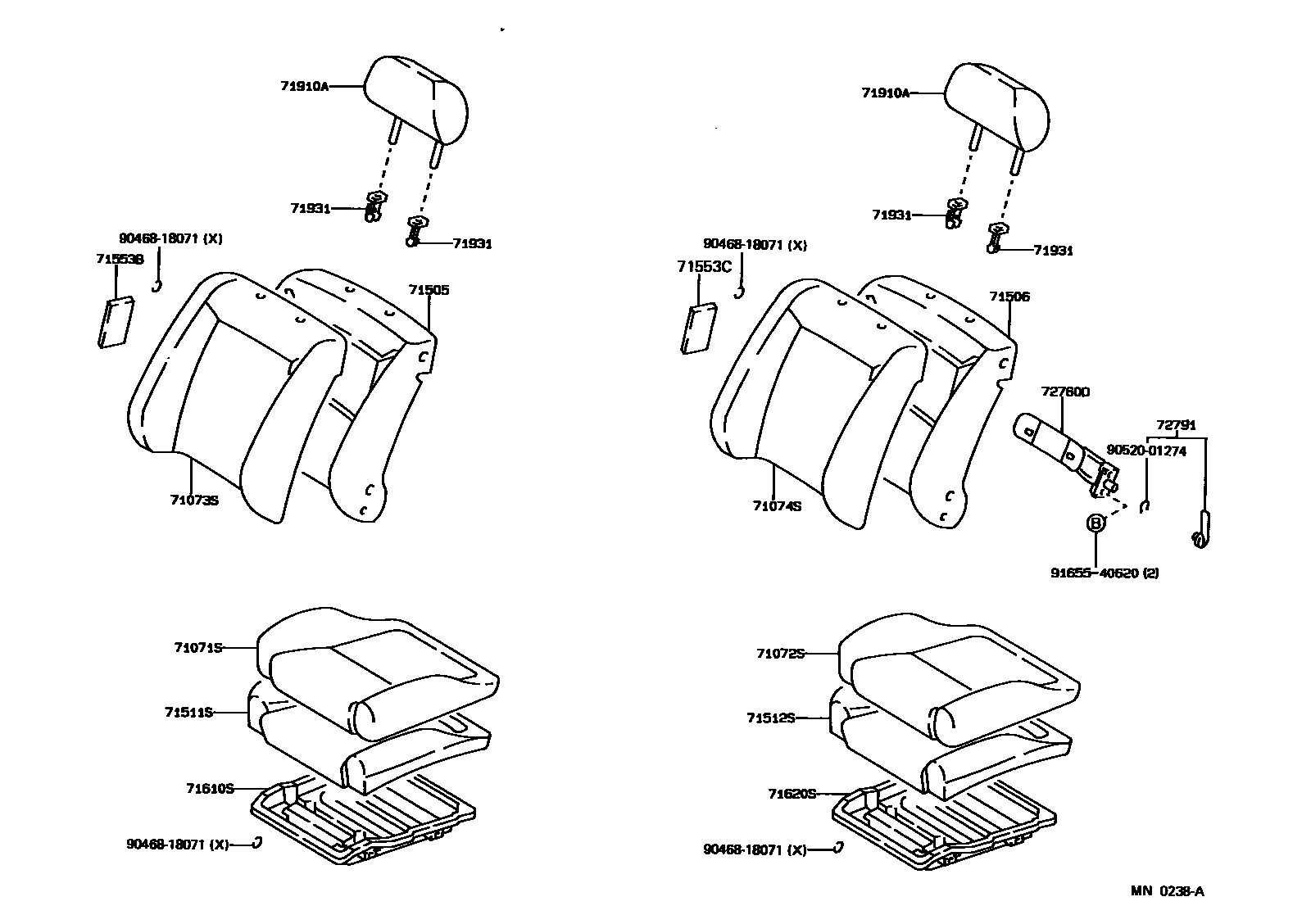

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-1H460-02i198708-198908
RED,TRIM3#
main71071-1H460-03i198708-198908
SHADOW GRAY,TRIM1#
main71071-1H460-04i198708-198908
DARK BLUE,TRIM8#
main71071-1H520-02i198708-198908
W(FULL FABRIC SEAT),RED,TRIM3#
main71071-1H520-03i198708-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71071-1H520-04i198708-198908
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71071-1H520-05i198708-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71071-1H530-02i198708-198908
RED,TRIM3#
main71071-1H530-03i198708-198908
SHADOW GRAY,TRIM1#
main71071-1H530-04i198708-198908
DARK BLUE,TRIM8#
main71071-1H530-05i198708-198908
DARK BEIGE,TRIM4#
main71071-1H540-02i198708-198908
W(SPORTS SEAT),RED,TRIM3#
main71071-1H540-03i198708-198908
W(SPORTS SEAT),SHADOW GRAY,TRIM1#
main71071-1H540-04i198708-198908
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71071-1H550-02i198708-198908
RED,XXXX,TRIM3#
main71071-1H550-03i198708-198908
SHADOW GRAY,TRIM1#
main71071-1H550-04i198708-198908
DARK BLUE,TRIM8#
main71071-1H550-05i198708-198908
DARK BEIGE,TRIM4#
main71071-1K170-02i198908-199106
RED,TRIM3#
main71071-1K170-03i198908-199106
SHADOW GRAY,TRIM1#
main71071-1K170-04i198908-199106
DARK BLUE,TRIM8#
main71071-1K170-06i198908-199106
BROWN,TRIM4#
main71071-1K180-02i198908-199106
RED,TRIM3#
main71071-1K180-03i198908-199106
SHADOW GRAY,TRIM1#
main71071-1K180-04i198908-199106
DARK BLUE,TRIM8#
main71071-1K190-02i198908-199106
W(SPORTS SEAT),RED,TRIM3#
main71071-1K190-03i198908-199106
W(SPORTS SEAT),SHADOW GRAY,TRIM1#
main71071-1K190-04i198908-199106
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71071-1K210-03i198908-199106
SHADOW GRAY,TRIM1#
main71071-1K210-04i198908-199106
DARK BLUE,TRIM8#
main71071-1K210-06i198908-199106
BROWN,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-1H460-02i198708-198908
RED,TRIM3#
main71071-1H460-03i198708-198908
SHADOW GRAY,TRIM1#
main71071-1H460-04i198708-198908
DARK BLUE,TRIM8#
main71071-1H520-02i198708-198908
W(FULL FABRIC SEAT),RED,TRIM3#
main71071-1H520-03i198708-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71071-1H520-04i198708-198908
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71071-1H520-05i198708-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71071-1H530-02i198708-198908
RED,TRIM3#
main71071-1H530-03i198708-198908
SHADOW GRAY,TRIM1#
main71071-1H530-04i198708-198908
DARK BLUE,TRIM8#
main71071-1H530-05i198708-198908
DARK BEIGE,TRIM4#
main71071-1H540-02i198708-198908
W(SPORTS SEAT),RED,TRIM3#
main71071-1H540-03i198708-198908
W(SPORTS SEAT),SHADOW GRAY,TRIM1#
main71071-1H540-04i198708-198908
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71071-1H550-02i198708-198908
RED,XXXX,TRIM3#
main71071-1H550-03i198708-198908
SHADOW GRAY,TRIM1#
main71071-1H550-04i198708-198908
DARK BLUE,TRIM8#
main71071-1H550-05i198708-198908
DARK BEIGE,TRIM4#
main71071-1K170-02i198908-199106
RED,TRIM3#
main71071-1K170-03i198908-199106
SHADOW GRAY,TRIM1#
main71071-1K170-04i198908-199106
DARK BLUE,TRIM8#
main71071-1K170-06i198908-199106
BROWN,TRIM4#
main71071-1K180-02i198908-199106
RED,TRIM3#
main71071-1K180-03i198908-199106
SHADOW GRAY,TRIM1#
main71071-1K180-04i198908-199106
DARK BLUE,TRIM8#
main71071-1K190-02i198908-199106
W(SPORTS SEAT),RED,TRIM3#
main71071-1K190-03i198908-199106
W(SPORTS SEAT),SHADOW GRAY,TRIM1#
main71071-1K190-04i198908-199106
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71071-1K210-03i198908-199106
SHADOW GRAY,TRIM1#
main71071-1K210-04i198908-199106
DARK BLUE,TRIM8#
main71071-1K210-06i198908-199106
BROWN,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-1H390-02i198708-198908
RED,TRIM3#
main71073-1H390-03i198708-198908
SHADOW GRAY,TRIM1#
main71073-1H390-04i198708-198908
DARK BLUE,TRIM8#
main71073-1H440-02i198708-198908
W(FULL FABRIC SEAT),RED,TRIM3#
main71073-1H440-03i198708-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71073-1H440-04i198708-198908
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71073-1H440-05i198708-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71073-1H450-02i198708-198908
RED,TRIM3#
main71073-1H450-03i198708-198908
SHADOW GRAY,TRIM1#
main71073-1H450-04i198708-198908
DARK BLUE,TRIM8#
main71073-1H450-05i198708-198908
DARK BEIGE,TRIM4#
main71073-1H460-02i198708-198908
W(SPORTS SEAT),RED,TRIM3#
main71073-1H460-03i198708-198908
W(SPORTS SEAT),SHADOW GRAY,TRIM1#
main71073-1H460-04i198708-198908
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71073-1H480-02i198708-198908
RED,TRIM3#
main71073-1H480-03i198708-198908
SHADOW GRAY,TRIM1#
main71073-1H480-04i198708-198908
DARK BLUE,TRIM8#
main71073-1H480-05i198708-198908
DARK BEIGE,TRIM4#
main71073-1H750-02i198908-199106
RED,TRIM3#
main71073-1H750-03i198908-199106
SHADOW GRAY,TRIM1#
main71073-1H750-04i198908-199106
DARK BLUE,TRIM8#
main71073-1H750-06i198908-199106
BROWN,TRIM4#
main71073-1H760-02i198908-199106
RED,TRIM3#
main71073-1H760-03i198908-199106
SHADOW GRAY,TRIM1#
main71073-1H760-04i198908-199106
DARK BLUE,TRIM8#
main71073-1H770-02i198908-199106
W(SPORTS SEAT),RED,TRIM3#
main71073-1H770-03i198908-199106
W(SPORTS SEAT),SHADOW GRAY,TRIM1#
main71073-1H770-04i198908-199106
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71073-1H780-03i198908-199106
SHADOW GRAY,TRIM1#
main71073-1H780-04i198908-199106
DARK BLUE,TRIM8#
main71073-1H780-06i198908-199106
BROWN,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-1H450-02i198708-198908
RED,RED,TRIM3#
main71073-1H450-03i198708-198908
SHADOW GRAY,SHADOW GRAY,TRIM1#
main71073-1H450-04i198708-198908
DARK BLUE,DARK BLUE,TRIM8#
main71073-1H450-05i198708-198908
DARK BEIGE,DARK BEIGE,TRIM4#
main71073-1H750-02i198908-199106
RED,TRIM3#
main71073-1H750-03i198908-199106
SHADOW GRAY,TRIM1#
main71073-1H750-04i198908-199106
DARK BLUE,TRIM8#
main71073-1H750-06i198908-199106
BROWN,TRIM4#
main71074-1E380-02i198708-198908
W(FULL FABRIC SEAT),RED,TRIM3#
main71074-1E380-03i198708-198908
W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#
main71074-1E380-04i198708-198908
W(FULL FABRIC SEAT),DARK BLUE,TRIM8#
main71074-1E380-05i198708-198908
W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#
main71074-1E390-02i198708-198908
W(2WAY VERTICAL SEAT),RED,RED,TRIM3#
main71074-1E390-03i198708-198908
W(2WAY VERTICAL SEAT),SHADOW GRAY,SHADOW GRAY,TRIM1#
main71074-1E390-04i198708-198908
W(2WAY VERTICAL SEAT),DARK BLUE,DARK BLUE,TRIM8#
main71074-1E390-05i198708-198908
W(2WAY VERTICAL SEAT),DARK BEIGE,DARK BEIGE,TRIM4#
main71074-1E400-02i198708-198908
W(SPORTS SEAT),RED,TRIM3#
main71074-1E400-03i198708-198908
W(SPORTS SEAT),SHADOW GRAY,TRIM1#
main71074-1E400-04i198708-198908
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71074-1E420-02i198708-198908
RED,TRIM3#
main71074-1E420-03i198708-198908
SHADOW GRAY,TRIM1#
main71074-1E420-04i198708-198908
DARK BLUE,TRIM8#
main71074-1E430-02i198708-198908
RED,XXXX,TRIM3#
main71074-1E430-03i198708-198908
SHADOW GRAY,TRIM1#
main71074-1E430-04i198708-198908
DARK BLUE,TRIM8#
main71074-1E430-05i198708-198908
DARK BEIGE,TRIM4#
main71074-1E730-02i198908-199106
W(2WAY VERTICAL SEAT),RED,TRIM3#
main71074-1E730-03i198908-199106
W(2WAY VERTICAL SEAT),SHADOW GRAY,SHADOW GRAY,TRIM1#
main71074-1E730-04i198908-199106
W(2WAY VERTICAL SEAT),DARK BLUE,TRIM8#
main71074-1E730-06i198908-199106
W(2WAY VERTICAL SEAT),BROWN,TRIM4#
main71074-1E740-02i198908-199106
RED,TRIM3#
main71074-1E740-03i198908-199106
SHADOW GRAY,TRIM1#
main71074-1E740-04i198908-199106
DARK BLUE,TRIM8#
main71074-1E750-02i198908-199106
W(SPORTS SEAT),RED,TRIM3#
main71074-1E750-03i198908-199106
W(SPORTS SEAT),SHADOW GRAY,TRIM1#
main71074-1E750-04i198908-199106
W(SPORTS SEAT),DARK BLUE,TRIM8#
main71074-1E760-03i198908-199106
SHADOW GRAY,TRIM1#
main71074-1E760-04i198908-199106
DARK BLUE,TRIM8#
main71074-1E760-06i198908-199106
BROWN,TRIM4#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-12070i198708-199106
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71505-12070i198708-199106
main71505-12080i198708-199106
W(2WAY VERTICAL SEAT)
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-12630i198708-198908
W(SPORTS SEAT)
main71511-12640i198708-198908
main71511-12730i198908-199106
main71511-12740i198908-199106
W(SPORTS SEAT)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-12630i198708-198908
W(SPORTS SEAT)
main71511-12640i198708-198908
main71511-12730i198908-199106
main71511-12740i198908-199106
W(SPORTS SEAT)
71553BPAD, FRONT SEATBACK, B
main71553-12230×3i198708-198908
95X140; W(2WAY VERTICAL SEAT)
main71553-12250i198708-198709
main71553-12260i198708-198908
45X115
main71553-12270×4i199008-199106
71553CPAD, FRONT SEATBACK, C
main71553-12230×4i198908-199106
95X140
main71553-12260i198908-199106
45X115
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-12280i198708-199106
W(SPORTS SEAT)
main71610-12300i198708-199106
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71610-12280i198708-199106
W(SPORTS SEAT)
main71610-12300i198708-199106
71910AHEADREST ASSY, FRONT SEAT
main71910-12880-02×2i198708-198908
W(SPORTS SEAT),MAROON,TRIM3#
main71910-12880-03×2i198708-198908
W(SPORTS SEAT),SHADOW GRAY,TRIM1#
main71910-12880-04×2i198708-198908
W(SPORTS SEAT),BLUE,TRIM8#
main71910-12881-02×2i198908-199106
W(SPORTS SEAT),RED,TRIM3#
main71910-12881-03×2i198908-199106
W(SPORTS SEAT),SHADOW GRAY,TRIM1#
main71910-12881-04×2i198908-199106
W(SPORTS SEAT),DARK BROWN,TRIM8#
main71910-1A020-01×2i198708-198908
RED,TRIM3#
main71910-1A020-03×2i198708-198908
SHADOW GRAY,TRIM1#
main71910-1A020-04×2i198708-198908
DARK BLUE,TRIM8#
main71910-1A021-02×2i198908-199106
RED,TRIM3#
main71910-1A021-03×2i198908-199106
SHADOW GRAY,TRIM1#
main71910-1A021-04×2i198908-199106
DARK BLUE,TRIM8#
main71910-1A150-02×2i198708-198908
RED,TRIM3#
main71910-1A150-03×2i198708-198908
SHADOW GRAY,TRIM1#
main71910-1A150-04×2i198708-198908
DARK BLUE,TRIM8#
main71910-1A150-05×2i198708-198908
DARK BEIGE,TRIM4#
main71910-1A151-02×2i198908-199106
RED,TRIM3#
main71910-1A151-03×2i198908-199106
SHADOW GRAY,TRIM1#
main71910-1A151-04×2i198908-199106
DARK BLUE,TRIM8#
main71910-1A151-06×2i198908-199106
BROWN,TRIM4#
main71910-1A160-02×2i198708-198908
RED,TRIM3#
main71910-1A160-03×2i198708-199106
SHADOW GRAY,TRIM1#
main71910-1A160-04×2i198708-199106
DARK BLUE,TRIM8#
main71910-1A160-05×2i198708-198908
DARK BEIGE,TRIM4#
main71910-1A160-06×2i198908-199106
BROWN,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-12050-03×2i198708-199106
W(LOCK),SHADOW GRAY,TRIM1#
main71930-12050-04×2i198708-199106
W(LOCK),DARK BLUE,TRIM8#
main71930-12050-05×2i198708-198908
W(LOCK),DARK BEIGE,TRIM4#
main71930-12050-12×2i198708-199106
W(LOCK),RED,TRIM3#
main71930-12050-16×2i198908-199106
W(LOCK),BROWN,TRIM4#
main71930-12060-02×2i198708-199106
W(LOCK),W(SPORTS SEAT),RED,TRIM3#
main71930-12060-03×2i198708-199106
W(LOCK),W(SPORTS SEAT),SHADOW GRAY,TRIM1#
main71930-12060-04×2i198708-199106
W(LOCK),W(SPORTS SEAT),DARK BLUE,TRIM8#
main71931-12010-03×2i198708-199106
W/O(LOCK),SHADOW GRAY,TRIM1#
main71931-12010-04×2i198708-199106
W/O(LOCK),DARK BLUE,TRIM8#
main71931-12010-05×2i198708-198908
W/O(LOCK),DARK BEIGE,TRIM4#
main71931-12010-12×2i198708-199106
W/O(LOCK),RED,TRIM3#
main71931-12010-16×2i198908-199106
W/O(LOCK),BROWN,TRIM4#
main71931-12030-02×2i198708-199106
W/O(LOCK),W(SPORTS SEAT),RED,TRIM3#
main71931-12030-03×2i198708-199106
W/O(LOCK),W(SPORTS SEAT),SHADOW GRAY,TRIM1#
main71931-12030-04×2i198708-199106
W/O(LOCK),W(SPORTS SEAT),DARK BLUE,TRIM8#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-12080i198708-199106
W(SPORTS SEAT)
main72760-12090i198708-199106
72791LEVER, LUMBAR SUPPORT
main72791-20030-03i198708-199106
SHADOW GRAY,TRIM1#
main72791-20030-05i198708-198908
DARK BEIGE,TRIM4#
main72791-20030-14i198708-199106
DARK BLUE,TRIM8#
main72791-20030-22i198708-199106
RED,TRIM3#
main72791-20030-26i198908-199106
BROWN,TRIM4#
main72791-22020-23i198708-199106
W(SPORTS SEAT),GRAY,TRIM1#
main72791-22020-42i198708-199106
W(SPORTS SEAT),RED,TRIM3#
main72791-22020-J0i198908-199106
W(SPORTS SEAT),DARK BLUE,TRIM8#
9046818071
main90468-18071
9052001274
main90520-01274
9165540620
main91655-40620

19 parts on this diagram · 3 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
