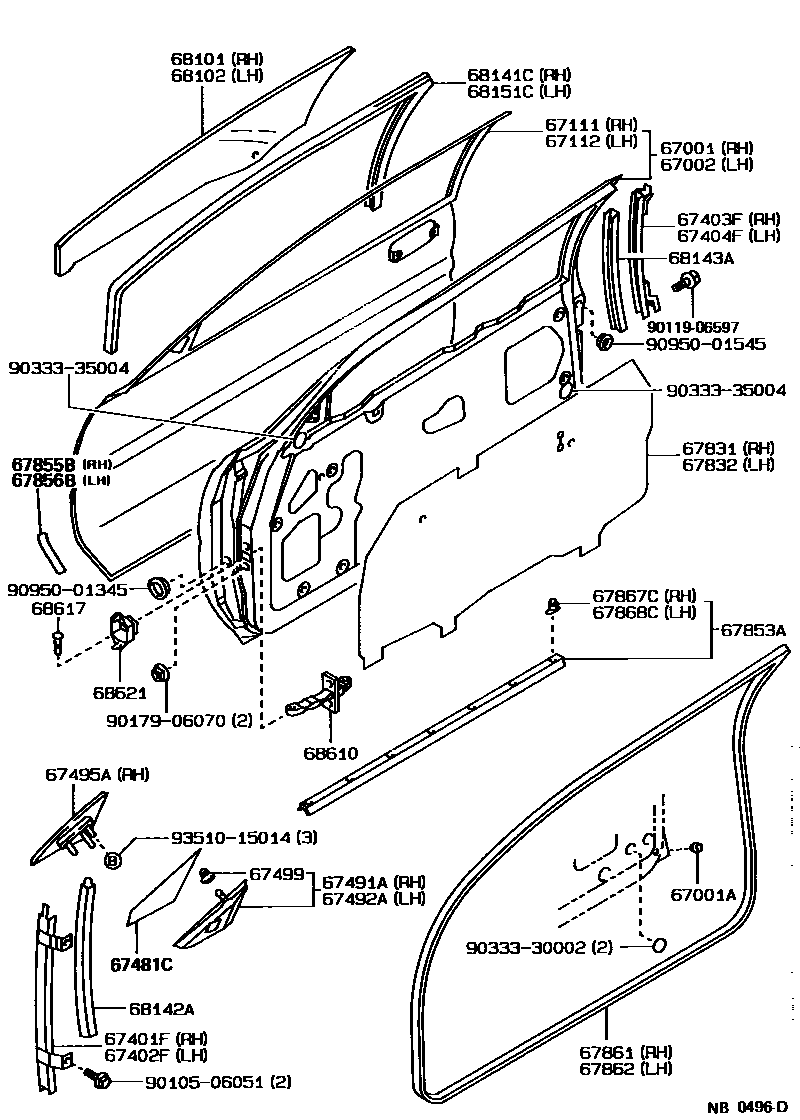

FRONT DOOR PANEL & GLASS
67001ACUSHION, FRONT DOOR PANEL
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67481CSEAL, FRONT DOOR FRONT LOWER FRAME
W(MANUAL REMOTE CONTROL MIRROR)
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
W(MANUAL REMOTE CONTROL MIRROR)
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
W(ELECTRIC REMOTO CONTROL MIRROR)
W(MANUAL REMOTE CONTROL MIRROR)
67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67853AWEATHERSTRIP, FRONT DOOR, OUTER LOWER
67855BPROTECTOR, FRONT DOOR PANEL, RH
67856BPROTECTOR, FRONT DOOR PANEL, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=4.0
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=4.0
68141CRUN, FRONT DOOR GLASS, RH
68142ARUN, FRONT DOOR GLASS SIDE
RH
LH
68143ARUN, FRONT DOOR GLASS, NO.2
RH
LH
68151CRUN, FRONT DOOR GLASS, LH
68610CHECK ASSY, FRONT DOOR
68617PIN, FRONT DOOR CHECK
68621SEAL, DOOR CHECK
9010506051
main90105-06051
9011906597
main90119-06597
9017906070
main90179-06070
9033330002
main90333-30002
9033335004
main90333-35004
9095001345
main90950-01345
9095001545
main90950-01545
9351015014
main93510-15014
40 parts on this diagram · 3 diagrams in section
