INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

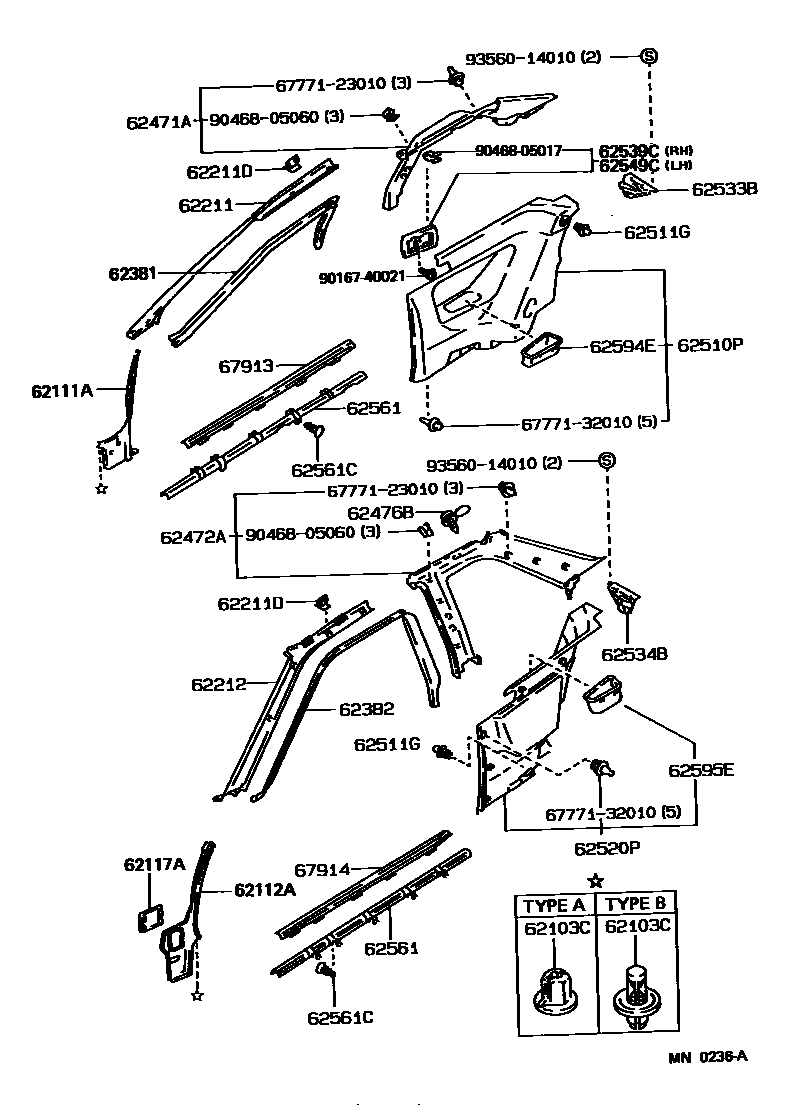

Parts diagram
62103CCLIP, COWL SIDE TRIM BOARD SET
main90467-05050-01i198909-199106
BLACK,TRIM1#,3#,4#,8#,TYPE A
sub90467-05050
main90467-05050-01i198708-199106
TYPE A,BLACK,BLACK,TRIM1#,3#,4#,8#
sub90467-05050
main90467-05050-01i198909-199106
BLACK,TRIM1#,3#,8#,TYPE A
sub90467-05050
main90467-05050-01i198909-199106
BLACK,TRIM1#,4#,8#,TYPE A
sub90467-05050
main90467-07041-03i198708-199106
GRAY,TRIM1#,TYPE B
sub90467-07041
main90467-07041-20i198708-199106
RED,TRIM3#,TYPE B
sub90467-07041
main90467-07041-34i198708-199106
DARK BLUE,TRIM8#,TYPE B
sub90467-07041
main90467-07041-45i198708-198908
DARK BEIGE,TRIM4#,TYPE B
sub90467-07041
main90467-07041-E1i198908-199106
BROWN,TRIM4#,TYPE B
sub90467-07041
62111ATRIM SUB-ASSY, COWL SIDE, RH
main62111-12170-02i198708-199106
RED,TRIM3#
sub62111-12170
main62111-12170-03i198708-199106
SHADOW GRAY,TRIM1#
sub62111-12170
main62111-12170-04i198708-199106
DARK BLUE,TRIM8#
sub62111-12170
main62111-12170-05i198708-198908
DARK BEIGE,TRIM4#
sub62111-12170
main62111-12170-06i198908-199106
BROWN,TRIM4#
sub62111-12170
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62112-12170-02i198708-199106
RED,TRIM3#
sub62112-12170
main62112-12170-03i198708-199106
SHADOW GRAY,TRIM1#
sub62112-12170
main62112-12170-04i198708-199106
DARK BLUE,TRIM8#
sub62112-12170
main62112-12170-05i198708-198908
DARK BEIGE,TRIM4#
sub62112-12170
main62112-12170-06i198908-199106
BROWN,TRIM4#
sub62112-12170
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
main62117-12100-02i198708-199106
RED,TRIM3#
sub62117-12100
main62117-12100-03i198708-199106
SHADOW GRAY,TRIM1#
sub62117-12100
main62117-12100-04i198708-199106
DARK BLUE,TRIM8#
sub62117-12100
main62117-12100-05i198708-198908
DARK BEIGE,TRIM4#
sub62117-12100
main62117-12100-06i198908-199106
BROWN,TRIM4#
sub62117-12100
62211GARNISH, FRONT PILLAR, RH
main62211-12230-02i198708-199106
RED,TRIM3#
main62211-12230-03i198708-199106
SHADOW GRAY,TRIM1#
main62211-12230-04i198708-199106
DARK BLUE,TRIM8#
main62211-12230-05i198708-198908
DARK BEIGE,TRIM4#
main62211-12230-06i198908-199106
BROWN,TRIM4#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
main90468-05060i198708-199106
62212GARNISH, FRONT PILLAR, LH
main62212-12220-02i198708-199106
RED,TRIM3#
sub62212-12220
main62212-12220-03i198708-199106
SHADOW GRAY,TRIM1#
sub62212-12220
main62212-12220-04i198708-199106
DARK BLUE,TRIM8#
sub62212-12220
main62212-12220-05i198708-198908
DARK BEIGE,TRIM4#
sub62212-12220
main62212-12220-06i198908-199106
BROWN,TRIM4#
sub62212-12220
62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH
main62381-12170i198708-199106
62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH
main62382-12180i198708-199106
62471AGARNISH, ROOF SIDE, INNER RH
main62471-12430-02i198908-199106
RED,TRIM3#
main62471-12430-03i198908-199106
SHADOW GRAY,TRIM1#
main62471-12430-04i198908-199106
DARK BLUE,TRIM8#
main62471-12430-06i198908-199106
BROWN,TRIM4#
main62471-12440-02i198908-199106
W(SUN ROOF),RED,TRIM3#
main62471-12440-03i198908-199106
W(SUN ROOF),SHADOW GRAY,TRIM1#
main62471-12440-04i198908-199106
W(SUN ROOF),DARK BLUE,TRIM8#
main62471-12440-06i198908-199106
W(SUN ROOF),BROWN,TRIM4#
main62471-12510-02i198908-199106
RED,TRIM3#
main62471-12510-03i198908-199106
SHADOW GRAY,TRIM1#
main62471-12510-04i198908-199106
DARK BLUE,TRIM8#
main62471-12520-02i198908-199106
W(SUN ROOF),RED,TRIM3#
main62471-12520-03i198908-199106
W(SUN ROOF),SHADOW GRAY,TRIM1#
main62471-12520-04i198908-199106
W(SUN ROOF),DARK BLUE,TRIM8#
main62471-12550-02i198708-198908
RED,TRIM3#
sub62471-12510
main62471-12550-03i198708-198908
SHADOW GRAY,TRIM1#
sub62471-12510
main62471-12550-04i198708-198908
DARK BLUE,TRIM8#
sub62471-12510
main62471-12550-05i198708-198908
DARK BEIGE,TRIM4#
sub62471-12510
main62471-12560-02i198708-198908
W(SUN ROOF),RED,TRIM3#
sub62471-12520
main62471-12560-03i198708-198908
W(SUN ROOF),SHADOW GRAY,TRIM1#
sub62471-12520
main62471-12560-04i198708-198908
W(SUN ROOF),DARK BLUE,TRIM8#
sub62471-12520
main62471-12560-05i198708-198908
W(SUN ROOF),DARK BEIGE,TRIM4#
sub62471-12520
62472AGARNISH, ROOF SIDE, INNER LH
main62472-12430-02i198908-199106
RED,TRIM3#
main62472-12430-03i198908-199106
SHADOW GRAY,TRIM1#
main62472-12430-04i198908-199106
DARK BLUE,TRIM8#
main62472-12430-06i198908-199106
BROWN,TRIM4#
main62472-12500-02i198908-199106
W(SUN ROOF),RED,TRIM3#
main62472-12500-03i198908-199106
W(SUN ROOF),SHADOW GRAY,TRIM1#
main62472-12500-04i198908-199106
W(SUN ROOF),DARK BLUE,TRIM8#
main62472-12500-06i198908-199106
W(SUN ROOF),BROWN,TRIM4#
main62472-12510-02i198908-199106
RED,TRIM3#
main62472-12510-03i198908-199106
SHADOW GRAY,TRIM1#
main62472-12510-04i198908-199106
DARK BLUE,TRIM8#
main62472-12540-02i198708-198908
RED,TRIM3#
sub62472-12510
main62472-12540-03i198708-198908
SHADOW GRAY,TRIM1#
sub62472-12510
main62472-12540-04i198708-198908
DARK BLUE,TRIM8#
sub62472-12510
main62472-12540-05i198708-198908
DARK BEIGE,TRIM4#
sub62472-12510
main62472-12550-02i198708-198908
W(SUN ROOF),RED,TRIM3#
sub62472-12600
main62472-12550-03i198708-198908
W(SUN ROOF),SHADOW GRAY,TRIM1#
sub62472-12600
main62472-12550-04i198708-198908
W(SUN ROOF),DARK BLUE,TRIM8#
sub62472-12600
main62472-12550-05i198708-198908
W(SUN ROOF),DARK BEIGE,TRIM4#
sub62472-12600
main62472-12600-02i198908-199106
W(SUN ROOF),RED,TRIM3#
main62472-12600-03i198908-199106
W(SUN ROOF),SHADOW GRAY,TRIM1#
main62472-12600-04i198908-199106
W(SUN ROOF),DARK BLUE,TRIM8#
62476BCAP, ROOF SIDE INNER GARNISH, NO.1
main62476-12010-02i198708-199106
RED,TRIM3#
main62476-12010-03i198708-199106
SHADOW GRAY,TRIM1#
main62476-12010-04i198708-199106
DARK BLUE,TRIM8#
main62476-12010-05i198708-198908
DARK BEIGE,TRIM4#
main62476-12010-06i198908-199106
BROWN,TRIM4#
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
main62510-1A210-02i198708-198808
RED,TRIM3#
main62510-1A210-03i198708-198808
SHADOW GRAY,TRIM1#
main62510-1A210-04i198708-198808
DARK BLUE,TRIM8#
main62510-1A210-05i198708-198808
DARK BEIGE,TRIM4#
main62510-1A280-02i198708-198808
RED,TRIM3#
main62510-1A280-03i198708-198808
SHADOW GRAY,TRIM1#
main62510-1A280-04i198708-198808
DARK BLUE,TRIM8#
main62510-1A281-02i198808-198908
RED,TRIM3#
main62510-1A281-03i198808-198908
SHADOW GRAY,TRIM1#
main62510-1A281-04i198808-198908
DARK BLUE,TRIM8#
main62510-1A290-02i198708-198808
RED,TRIM3#
main62510-1A290-03i198708-198808
SHADOW GRAY,TRIM1#
main62510-1A290-04i198708-198808
DARK BLUE,TRIM8#
main62510-1A290-05i198708-198808
DARK BEIGE,TRIM4#
main62510-1A291-02i198808-198908
RED,TRIM3#
main62510-1A291-03i198808-198908
SHADOW GRAY,TRIM1#
main62510-1A291-04i198808-198908
DARK BLUE,TRIM8#
main62510-1A291-05i198808-198908
DARK BEIGE,TRIM4#
main62510-1A380-02i198808-198908
RED,TRIM3#
main62510-1A380-03i198808-199106
SHADOW GRAY,TRIM1#
main62510-1A380-04i198808-199106
DARK BLUE,TRIM8#
main62510-1A380-05i198808-198908
DARK BEIGE,TRIM4#
main62510-1A380-06i198908-199106
BROWN,TRIM4#
main62510-1A540-02i198908-199106
RED,TRIM3#
main62510-1A540-03i198908-199106
SHADOW GRAY,TRIM1#
main62510-1A540-04i198908-199106
DARK BLUE,TRIM8#
main62510-1A540-06i198908-199106
BROWN,TRIM4#
main62510-1A550-02i198908-199106
RED,TRIM3#
main62510-1A550-03i198908-199106
SHADOW GRAY,TRIM1#
main62510-1A550-04i198908-199106
DARK BLUE,TRIM8#
62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)
main90467-07041-03i198708-199106
GRAY,TRIM1#
sub90467-07041
main90467-07041-20i198708-199106
RED,TRIM3#
sub90467-07041
main90467-07041-34i198708-199106
DARK BLUE,TRIM8#
sub90467-07041
main90467-07041-45i198708-198908
DARK BEIGE,TRIM4#
sub90467-07041
main90467-07041-E1i198908-199106
BROWN,TRIM4#
sub90467-07041
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
main62520-1A190-02i198708-198808
RED,TRIM3#
main62520-1A190-03i198708-198808
SHADOW GRAY,TRIM1#
main62520-1A190-04i198708-198808
DARK BLUE,TRIM8#
main62520-1A190-05i198708-198808
DARK BEIGE,TRIM4#
main62520-1A260-02i198708-198808
RED,TRIM3#
main62520-1A260-03i198708-198808
SHADOW GRAY,TRIM1#
main62520-1A260-04i198708-198808
DARK BLUE,TRIM8#
main62520-1A261-02i198808-198908
RED,TRIM3#
main62520-1A261-03i198808-198908
SHADOW GRAY,TRIM1#
main62520-1A261-04i198808-198908
DARK BLUE,TRIM8#
main62520-1A270-02i198708-198808
RED,TRIM3#
main62520-1A270-03i198708-198808
SHADOW GRAY,TRIM1#
main62520-1A270-04i198708-198808
DARK BLUE,TRIM8#
main62520-1A270-05i198708-198808
DARK BEIGE,TRIM4#
main62520-1A271-02i198808-198908
RED,TRIM3#
main62520-1A271-03i198808-198908
SHADOW GRAY,TRIM1#
main62520-1A271-04i198808-198908
DARK BLUE,TRIM8#
main62520-1A271-05i198808-198908
DARK BEIGE,TRIM4#
main62520-1A360-02i198808-198908
RED,TRIM3#
main62520-1A360-03i198808-199106
SHADOW GRAY,TRIM1#
main62520-1A360-04i198808-199106
DARK BLUE,TRIM8#
main62520-1A360-05i198808-198908
DARK BEIGE,TRIM4#
main62520-1A360-06i198908-199106
BROWN,TRIM4#
main62520-1A520-02i198908-199106
RED,TRIM3#
main62520-1A520-03i198908-199106
SHADOW GRAY,TRIM1#
main62520-1A520-04i198908-199106
DARK BLUE,TRIM8#
main62520-1A520-06i198908-199106
BROWN,TRIM4#
main62520-1A530-02i198908-199106
RED,TRIM3#
main62520-1A530-03i198908-199106
SHADOW GRAY,TRIM1#
main62520-1A530-06i198908-199106
DARK BLUE,TRIM8#
62533BBRACKET, QUARTER TRIM, RH
main62533-12120i198708-199106
62534BBRACKET, QUARTER TRIM, LH
main62534-12050i198708-199106
62539CCOVER, QUARTER TRIM UPPER BELT HOLE, RH
main62539-12010-02i198908-199106
RED,TRIM3#
sub62539-12010
main62539-12010-03i198908-199106
SHADOW GRAY,TRIM1#
sub62539-12010
main62539-12010-04i198908-199106
DARK BLUE,TRIM8#
sub62539-12010
main62539-12010-06i198908-199106
BROWN,TRIM4#
sub62539-12010
62549CCOVER, QUARTER TRIM UPPER BELT HOLE, LH
main62549-12040-02i198908-199106
RED,TRIM3#
sub62549-12040
main62549-12040-03i198908-199106
SHADOW GRAY,TRIM1#
sub62549-12040
main62549-12040-04i198908-199106
DARK BLUE,TRIM8#
sub62549-12040
main62549-12040-06i198908-199106
BROWN,TRIM4#
sub62549-12040
62561PROTECTOR, ROCKER PANEL, INNER FRONT
main62561-12050i198708-199106
RH
main62562-12030i198708-199106
LH
62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)
main90467-08056-01i198708-199008
BLACK,TRIM3#,8#
sub90467-08056
main90467-08056-01i198708-199008
BLACK,TRIM3#,4#,8#
sub90467-08056
main90467-08056-01i198708-199008
BLACK,TRIM4#,8#
sub90467-08056
main90467-08056-01i198708-199106
BLACK,TRIM1#,3#,4#,8#
sub90467-08056
main90467-08056-01i198708-199106
BLACK,TRIM1#,3#,8#
sub90467-08056
main90467-08056-01i199008-199106
BLACK,TRIM1#,4#,8#
sub90467-08056
62594EPOCKET, QUARTER TRIM, RH
main62594-12070-02i198708-199106
RED,TRIM3#
main62594-12070-03i198708-199106
SHADOW GRAY,TRIM1#
main62594-12070-04i198708-199106
DARK BLUE,TRIM8#
main62594-12070-05i198708-198908
DARK BEIGE,TRIM4#
main62594-12070-06i198908-199106
BROWN,TRIM4#
62595EPOCKET, QUARTER TRIM, LH
main62595-12020-02i198708-199106
RED,TRIM3#
main62595-12020-03i198708-199106
SHADOW GRAY,TRIM1#
main62595-12020-04i198708-199106
DARK BLUE,TRIM8#
main62595-12020-05i198708-198908
DARK BEIGE,TRIM4#
main62595-12020-06i198908-199106
BROWN,TRIM4#
67913PLATE, FRONT DOOR SCUFF, RH
main67913-12180-02i198708-199106
RED,TRIM3#
main67913-12180-03i198708-199106
SHADOW GRAY,TRIM1#
main67913-12180-04i198708-199106
DARK BLUE,TRIM8#
main67913-12180-05i198708-198908
DARK BEIGE,TRIM4#
main67913-12180-06i198908-199106
BROWN,TRIM4#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-12150-02i198708-199106
RED,TRIM3#
sub67914-12150
main67914-12150-03i198708-199106
SHADOW GRAY,TRIM1#
sub67914-12150
main67914-12150-04i198708-199106
DARK BLUE,TRIM8#
sub67914-12150
main67914-12150-05i198708-198908
DARK BEIGE,TRIM4#
sub67914-12150
main67914-12150-06i198908-199106
BROWN,TRIM4#
sub67914-12150
6777123010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-23010
6777132010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32010
9016740021
main90167-40021
9046805017
main90468-05017
9046805060
main90468-05060
9356014010
main93560-14010

31 parts on this diagram · 1 diagram in section

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
