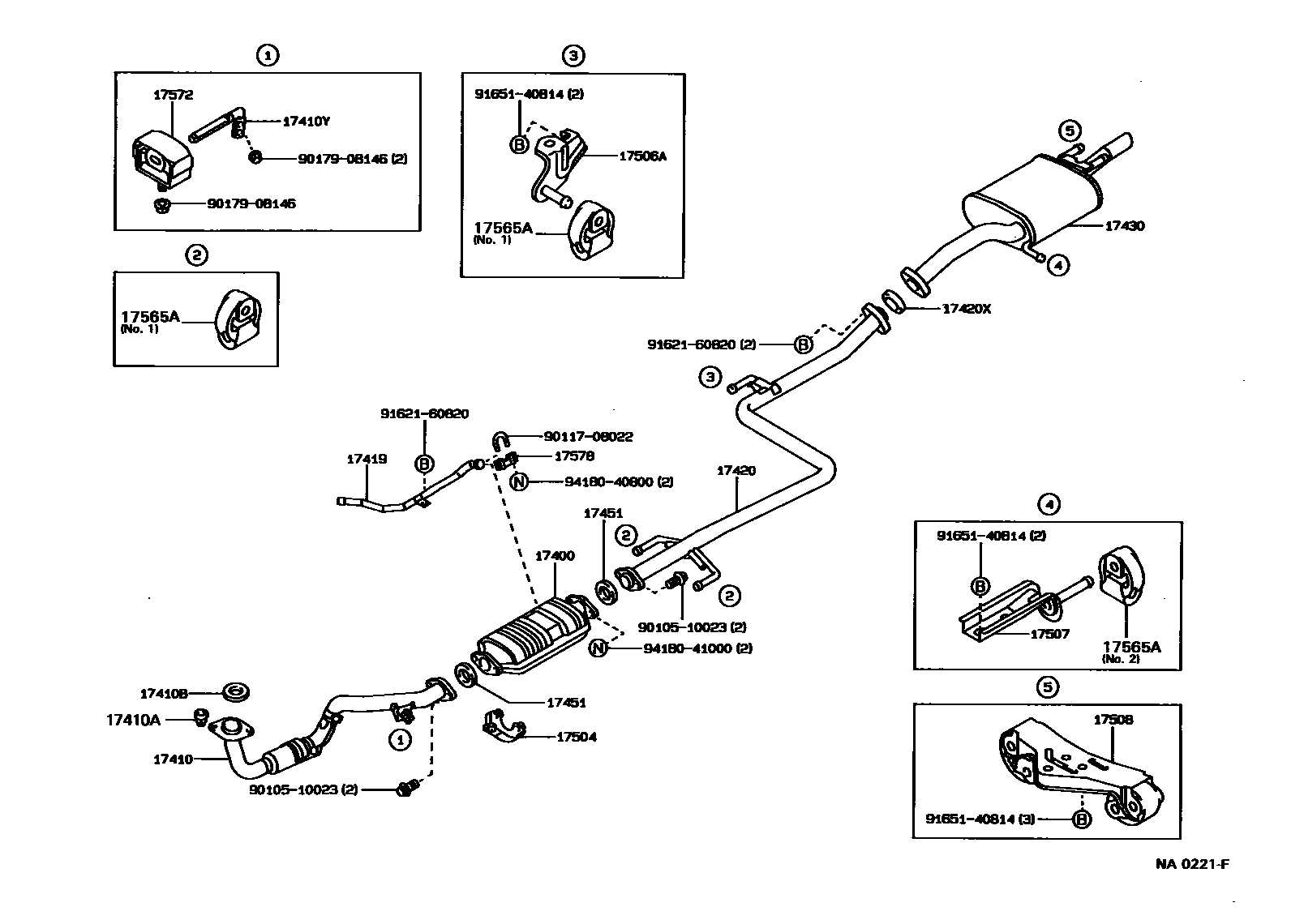

EXHAUST PIPE

0001 1 0002 1

17400CONVERTER ASSY, W/CATALYST

main18450-16180i4AF..AE92198708-198807

main18450-16210i4AGE..AE92198708-198807

main18450-16220i4AF..AE92..USA198708-198807

EX. EMISSION CONTROL(FOR USA CALIFORNIA)

main18450-16250i4AGE..AE92198807-198908

main18450-16330i4AF..AE92..USA198807-198808

main18450-16390i4AF..AE92198808-198908

main18450-16400i4AFE..AE92198908-199008

main18450-16420i4AGE..AE92198908-199106

main18450-16520i4AFE..AE92199008-199106

3

17410PIPE ASSY, EXHAUST, FRONT

main17410-16370i4AGE..AE92..USA198708-198908

main17410-16380i4AGE..AE92..CND198708-198908

main17410-16390i4AF..AE92..USA198708-198803

main17410-16400i4AF..AE92..CND198708-198803

main17410-16680i4AGE..AE92198908-199106

main17410-16690i4AFE..AE92198908-199106

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i4AF#..AE92; 4AGE..AE92198708-199106

17410BGASKET, EXHAUST PIPE

main90917-06004×2i4AGE..AE92198708-198903

main90917-06012i4AF..AE92198708-198903

main90917-06039×2i4AGE..AE92198903-199106

main90917-06047i4AF#..AE92198903-199104

17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)

main17561-16130i4AGE..AE92198708-199106

main17561-16140i4AF#..AE92198708-199106

17419PIPE, CONVERTER AIR INLET

main17409-16020i4AF..AE92198708-198908

17420PIPE ASSY, EXHAUST, CENTER

main17420-16120i4AF..AE92198708-198803

main17420-16130i4AF..AE92..USA198708-198803

EX. EMISSION CONTROL(FOR USA CALIFORNIA)

main17420-16260i4AGE..AE92198708-198908

main17420-16290i4AGE..AE92..USA198808-198908

EX. EMISSION CONTROL(FOR USA CALIFORNIA)

main17420-16320i4AF..AE92198803-198908

main17420-16330i4AF..AE92..USA198803-198908

EX. EMISSION CONTROL(FOR USA CALIFORNIA)

main17420-16340i4AFE..AE92198908-199106

main17420-16400i4AGE..AE92198908-199106

main17420-16410i4AGE..AE92..USA198908-199106

EX. EMISSION CONTROL(FOR USA CALIFORNIA)

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06004i4AF..AE92198708-198903

main90917-06012i4AGE..AE92198708-198903

main90917-06039i4AF#..AE92198903-199106

main90917-06045i4AGE..AE92198903-198908

main90917-06047i4AGE..AE92198908-199104

17430PIPE ASSY, EXHAUST, TAIL

main17430-16350i4AGE..AE92..USA198708-198802

main17430-16380i4AGE..AE92..CND; 4AGE..AE92..USA198708-198802

COLD SPEC

main17430-16381i4AGE..AE92198802-198908

main17430-16410i4AF..AE92..USA198708-198712

main17430-16411i4AF..AE92..USA198712-198908

main17430-16450i4AF..AE92..CND; 4AF..AE92..USA198708-198802

COLD SPEC

main17430-16451i4AF..AE92..CND; 4AF..AE92..USA198802-198908

COLD SPEC

main17430-16740i4AFE..AE92198910-199106

main17430-16750i4AFE..AE92198908-198910

main17430-16780i4AGE..AE92198908-199106

17451GASKET, EXHAUST PIPE

main90917-06012×2i4A#..AE92198708-198903

main90917-06045×2i4AGE..AE92198903-198908

main90917-06047×2i4AF..AE92198903-198908

17504BRACKET SUB-ASSY, CATALYTIC CONVERTER

main17504-16010i4AF#,4AGE..AE92198708-199004

main17504-16011i4A#..AE92199004-199106

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-15060i4AF#,4AGE..AE92198708-199106

17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT

main17507-15030i4AF#,4AGE..AE92198708-199106

17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3

main17508-15030i4AF#,4AGE..AE92198708-199106

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-15050i4AF#..AE92198708-199106

NO.2

main17565-15070×3i4AF#..AE92; 4AGE..AE92198708-199106

NO.1

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17572-15050i4AF#,4AGE..AE92198708-199106

17578CLAMP, PIPE

main17578-15020i4AF..AE92198708-198908

9010510023

main90105-10023

9011708022

main90117-08022

9017908146

main90179-08146

9162160820

main91621-60820

9165140814

main91651-40814

9418040800

main94180-40800

9418041000

main94180-41000

24 parts on this diagram · 2 diagrams in section
