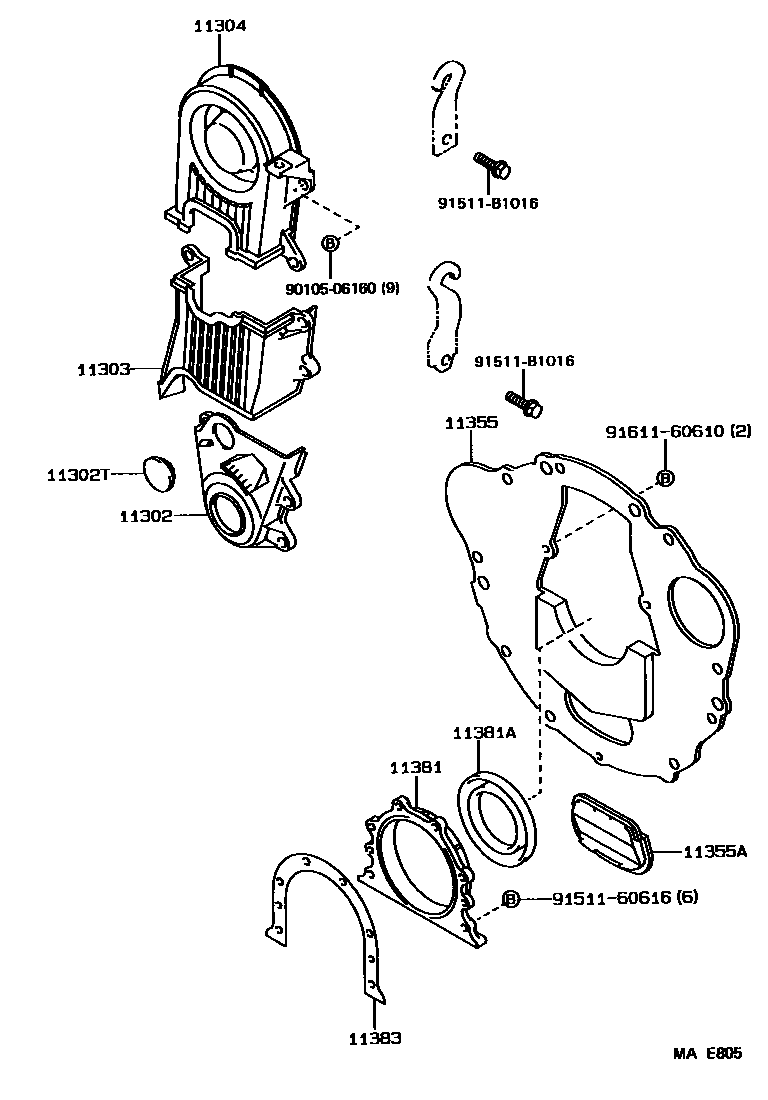

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-15040i4AF..AE92198708-198711

sub11302-15041

main11302-15041i4AF#..AE92198711-199106

11302TPLUG, HOLE

main90950-01391i4AF#..AE92198708-199106

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-15040i4AF#..AE92198708-199106

11304COVER, TIMING CHAIN OR BELT, NO.2

main11304-15020i4AF#..AE92198708-199106

11355PLATE, REAR END

main11355-15060i4AGE..AE92198708-199106

main11355-15070i4AF#..AE92..5F198708-199106

main11355-15080i4AF#..AE92..ATM198708-199106

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01264i4AF#..AE92..ATM198708-199106

11381RETAINER, ENGINE REAR OIL SEAL

main11381-15010i4AF#,4AGE..AE92198708-199106

11381ASEAL, ENGINE REAR OIL

main90311-70004i4AF#,4AGE..AE92198708-199106

sub90311-70007

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-15010i4A#..AE92198708-198912

sub11383-15011

main11383-15011i4A#..AE92198912-199106

sub11383-16010

9010506160

main90105-06160

9151160616

main91511-60616

91511B1016

main91511-B1016

9161160610

main91611-60610

13 parts on this diagram · 2 diagrams in section
