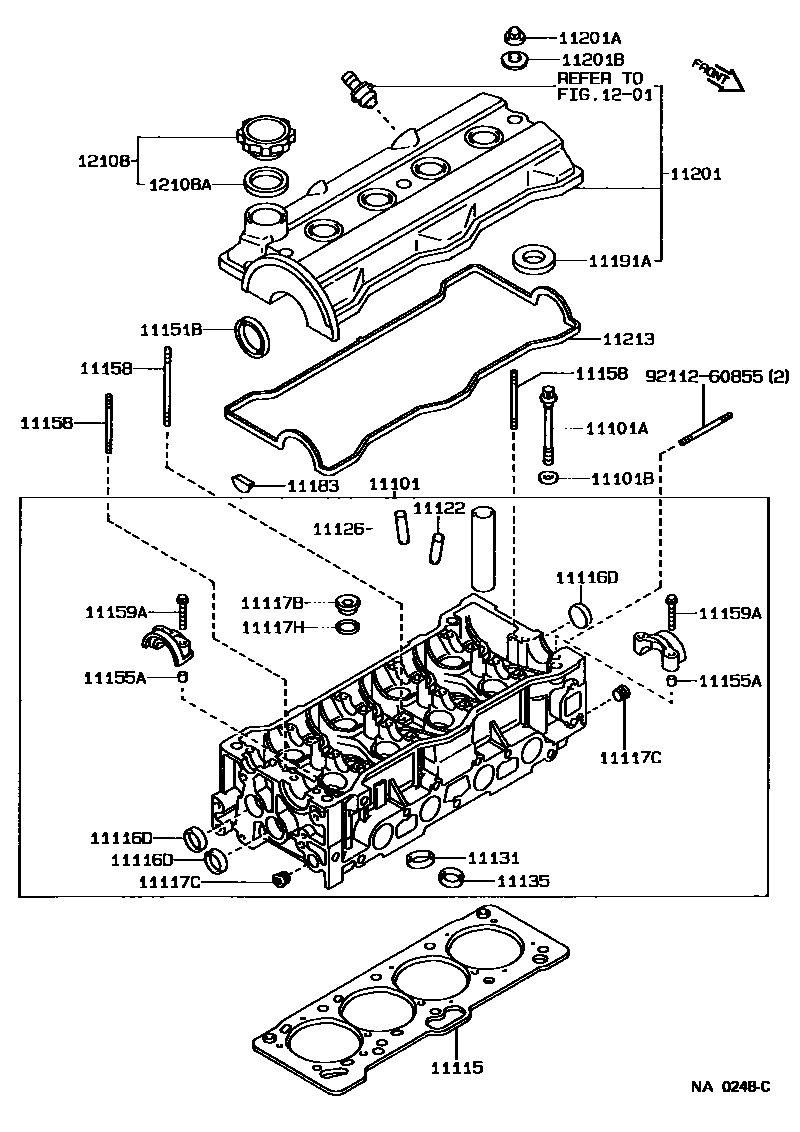

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
EX. EMISSION CONTROL(FOR USA CALIFORNIA)
EX. EMISSION CONTROL(FOR USA CALIFORNIA)
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11116DPLUG, TIGHT, NO.4
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117CPLUG, W/HEAD TAPER SCREW, NO.3
EX. EMISSION CONTROL(FOR USA CALIFORNIA)
EX.EMISSION CONTROL(FOR USA CALIFORNIA)
11117HGASKET(FOR WATER HOLE)
NO.1
NO.2
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
O/S 0.03
O/S 0.03
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
11155APIN, RING W/HEAD
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
L=74.5
L=108,L=108
L=80,L=80
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11183PLUG, SEMICIRCULAR
11191AGASKET(FOR SPARK PLUG TUBE)
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
1201
12108AGASKET(FOR OIL FILLER CAP)
9211260855
main92112-60855
26 parts on this diagram · 2 diagrams in section
