FRONT SEAT & SEAT TRACK

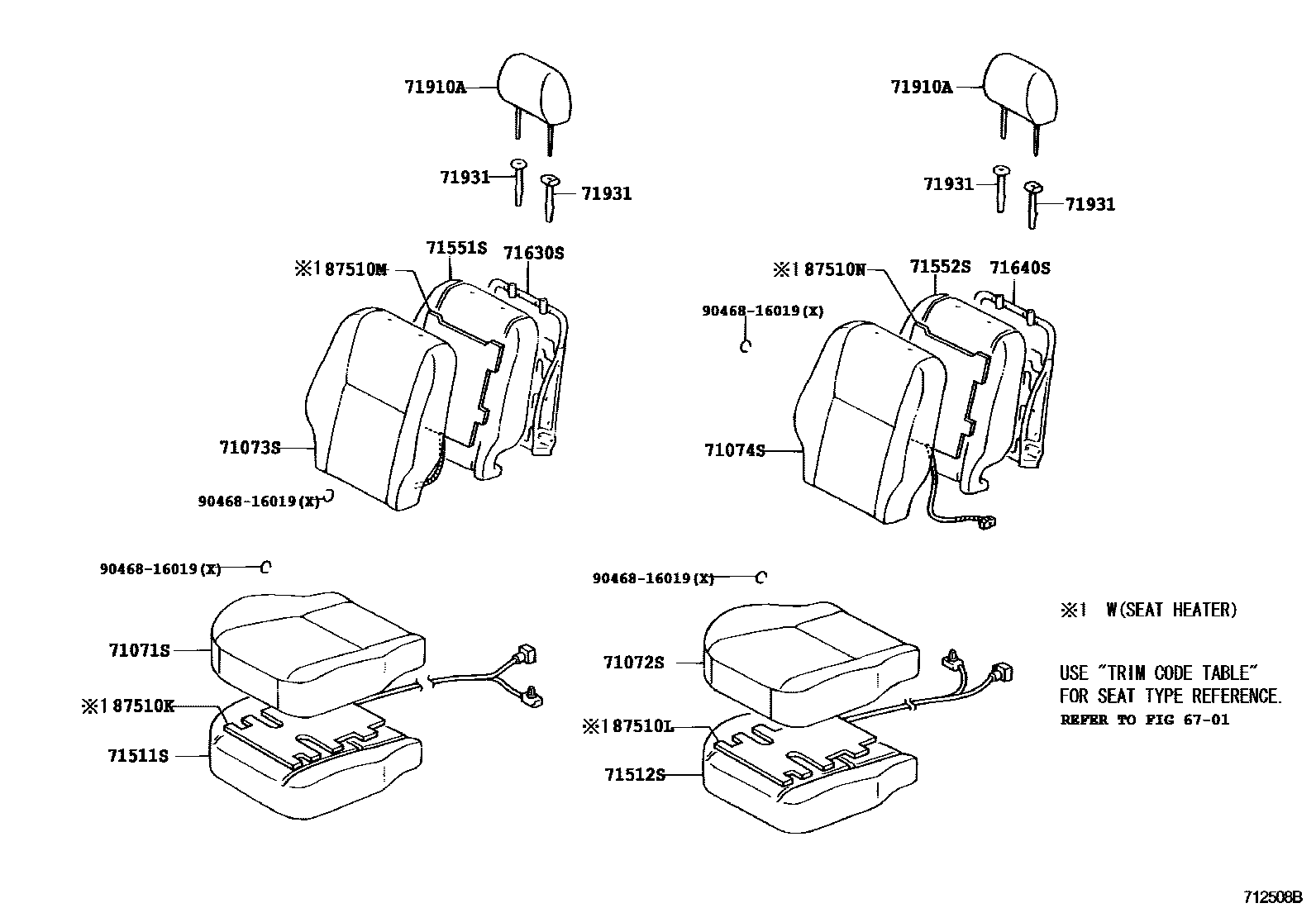

Parts diagram
6701FRONT DOOR PANEL & GLASS
→ Go to FIG 67-01
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-12A00-B0i200405-200603
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71071-12A01-B0i200604-200610
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71071-12A10-B0i200405-200603
SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71071-12A11-B0i200604-200610
SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71071-12A20-B0i200405-200505
SEAT = TYPE B-*104,DK.GRAY,TRIM1#
main71071-12A21-B0i200508-200510
SEAT = TYPE B-*104,DK.GRAY,TRIM1#
main71071-12A30-B0i200405-200505
SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71071-12A31-B0i200506-200508
SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71071-12A40-B0i200405-200505
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
main71071-12A41-B0i200506-200610
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
main71071-12A50-B0i200405-200505
SEAT = TYPE C-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71071-12A51-B0i200506-200610
SEAT = TYPE C-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71071-1N720-B0i200209-200210
DK.GRAY,TRIM1#
main71071-1N720-J0i200209-200210
DK.BLUE,TRIM8#
main71071-1N730-B0i200209-200210
W(SEAT HEATER),DK.GRAY,TRIM1#
main71071-1N730-J0i200209-200210
W(SEAT HEATER),DK.BLUE,TRIM8#
main71071-1N740-A0i200209-200210
IVORY,TRIM0#
main71071-1N740-B0i200209-200210
DK.GRAY,TRIM1#
main71071-1N750-A0i200209-200210
W(SEAT HEATER),IVORY,TRIM0#
main71071-1N750-B0i200209-200210
W(SEAT HEATER),DK.GRAY,TRIM1#
main71071-1N780-B0i200210-200405
W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#
main71071-1N780-J0i200210-200405
W(SRS SIDE AIR BAG),DK.BLUE,TRIM8#
main71071-1N790-A0i200210-200405
W(SRS SIDE AIR BAG),IVORY,TRIM0#
main71071-1N790-B0i200210-200405
W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#
main71071-1N800-B0i200210-200405
W(SEAT HEATER),DK.GRAY,TRIM1#
main71071-1N800-J0i200210-200405
W(SEAT HEATER),DK.BLUE,TRIM8#
main71071-1N810-A0i200210-200405
W(SEAT HEATER & SRS SIDE AIR BAG),IVORY,TRIM0#; W(SEAT HEATER),IVORY,TRIM0#
main71071-1N810-B0i200210-200405
W(SEAT HEATER & SRS SIDE AIR BAG),DK.GRAY,TRIM1#; W(SEAT HEATER),DK.GRAY,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-1N720-B0i200209-200210
DK.GRAY,TRIM1#
main71071-1N720-J0i200209-200210
DK.BLUE,TRIM8#
main71071-1N730-B0i200209-200210
W(SEAT HEATER),DK.GRAY,TRIM1#
main71071-1N730-J0i200209-200210
W(SEAT HEATER),DK.BLUE,TRIM8#
main71071-1N740-A0i200209-200210
IVORY,TRIM0#
main71071-1N740-B0i200209-200210
DK.GRAY,TRIM1#
main71071-1N750-A0i200209-200210
W(SEAT HEATER),IVORY,TRIM0#
main71071-1N750-B0i200209-200210
W(SEAT HEATER),DK.GRAY,TRIM1#
main71072-12A00-B0i200405-200603
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71072-12A01-B0i200604-200610
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71072-12A10-B0i200405-200603
SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71072-12A11-B0i200604-200610
SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71072-12A20-B0i200405-200505
SEAT = TYPE B-*104,DK.GRAY,TRIM1#
main71072-12A21-B0i200508-200510
SEAT = TYPE B-*104,DK.GRAY,TRIM1#
main71072-12A30-B0i200405-200505
SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71072-12A31-B0i200506-200508
SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71072-12A40-B0i200405-200505
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
main71072-12A41-B0i200506-200610
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
main71072-12A50-B0i200405-200505
SEAT = TYPE C-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71072-12A51-B0i200506-200610
SEAT = TYPE C-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71072-1K570-B0i200210-200405
W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#
main71072-1K570-J0i200210-200405
W(SRS SIDE AIR BAG),DK.BLUE,TRIM8#
main71072-1K580-A0i200210-200405
W(SRS SIDE AIR BAG),IVORY,TRIM0#
main71072-1K580-B0i200210-200405
W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#
main71072-1K590-B0i200210-200405
W(SEAT HEATER),DK.GRAY,TRIM1#
main71072-1K590-J0i200210-200405
W(SEAT HEATER),DK.BLUE,TRIM8#
main71072-1K600-A0i200210-200405
W(SEAT HEATER & SRS SIDE AIR BAG),IVORY,TRIM0#; W(SEAT HEATER),IVORY,TRIM0#
main71072-1K600-B0i200210-200405
W(SEAT HEATER & SRS SIDE AIR BAG),DK.GRAY,TRIM1#; W(SEAT HEATER),DK.GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-12A00-B0i200405-200603
SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71073-12A01-B0i200604-200610
SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71073-12A10-B0i200405-200505
SEAT = TYPE B-*104,DK.GRAY,TRIM1#
main71073-12A11-B0i200508-200510
SEAT = TYPE B-*104,DK.GRAY,TRIM1#
main71073-12A20-B0i200405-200505
SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71073-12A21-B0i200506-200508
SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71073-12A30-B0i200405-200505
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
main71073-12A31-B0i200506-200610
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
main71073-12A40-B0i200405-200505
SEAT = TYPE C-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71073-12A41-B0i200506-200610
SEAT = TYPE C-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71073-1N550-B0i200209-200405
DK.GRAY,TRIM1#
main71073-1N550-J0i200209-200405
DK.BLUE,TRIM8#
main71073-1N560-B0i200209-200405
W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#
main71073-1N560-J0i200209-200405
W(SRS SIDE AIR BAG),DK.BLUE,TRIM8#
main71073-1N570-B0i200209-200405
W(SEAT HEATER),DK.GRAY,TRIM1#
main71073-1N570-J0i200209-200405
W(SEAT HEATER),DK.BLUE,TRIM8#
main71073-1N580-B0i200209-200405
W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1#
main71073-1N580-J0i200209-200405
W(SRS SIDE AIR BAG & SEAT HEATER),DK.BLUE,TRIM8#
main71073-1N590-A0i200209-200405
IVORY,TRIM0#
main71073-1N590-B0i200209-200405
DK.GRAY,TRIM1#
main71073-1N600-A0i200209-200405
W(SRS SIDE AIR BAG),IVORY,TRIM0#
main71073-1N600-B0i200209-200405
W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#
main71073-1N610-A0i200209-200405
W(SEAT HEATER),IVORY,TRIM0#
main71073-1N610-B0i200209-200405
W(SEAT HEATER),DK.GRAY,TRIM1#
main71073-1N620-A0i200209-200405
W(SRS SIDE AIR BAG & SEAT HEATER),IVORY,TRIM0#
main71073-1N620-B0i200209-200405
W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1#
main71073-1N670-B0i200405-200603
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71073-1N671-B0i200604-200610
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-1N550-B0i200209-200405
DK.GRAY,TRIM1#
main71073-1N550-J0i200209-200405
DK.BLUE,TRIM8#
main71073-1N570-B0i200209-200405
W(SEAT HEATER),DK.GRAY,TRIM1#
main71073-1N570-J0i200209-200405
W(SEAT HEATER),DK.BLUE,TRIM8#
main71073-1N590-A0i200209-200405
IVORY,TRIM0#
main71073-1N590-B0i200209-200405
DK.GRAY,TRIM1#
main71073-1N610-A0i200209-200405
W(SEAT HEATER),IVORY,TRIM0#
main71073-1N610-B0i200209-200405
W(SEAT HEATER),DK.GRAY,TRIM1#
main71074-12A00-B0i200405-200603
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71074-12A01-B0i200604-200610
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71074-12A10-B0i200405-200603
SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71074-12A11-B0i200604-200610
SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71074-12A20-B0i200405-200505
SEAT = TYPE B-*104,DK.GRAY,TRIM1#
main71074-12A21-B0i200506-200508
SEAT = TYPE B-*104,DK.GRAY,TRIM1#
main71074-12A30-B0i200405-200505
SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71074-12A31-B0i200508-200510
SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71074-12A40-B0i200405-200505
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
main71074-12A41-B0i200506-200610
SEAT = TYPE C-*104,DK.GRAY,TRIM1#
main71074-12A50-B0i200405-200505
SEAT = TYPE C-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71074-12A51-B0i200506-200610
SEAT = TYPE C-*104 & W(SEAT HEATER),DK.GRAY,TRIM1#
main71074-1L080-B0i200209-200405
W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#
main71074-1L080-J0i200209-200405
W(SRS SIDE AIR BAG),DK.BLUE,TRIM8#
main71074-1L090-B0i200209-200405
W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1#
main71074-1L090-J0i200209-200405
W(SRS SIDE AIR BAG & SEAT HEATER),DK.BLUE,TRIM8#
main71074-1L100-A0i200209-200405
W(SRS SIDE AIR BAG),IVORY,TRIM0#
main71074-1L100-B0i200209-200405
W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#
main71074-1L110-A0i200209-200405
W(SRS SIDE AIR BAG & SEAT HEATER),IVORY,TRIM0#
main71074-1L110-B0i200209-200405
W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71502-12030i200405-200610
main71511-12840i200405-200610
main71511-1A080×2i200209-200405
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-12030i200405-200610
main71511-12840i200405-200610
main71511-1A080×2i200209-200405
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-12790×2i200209-200405
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-12790×2i200209-200405
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-02070i200209-200210
main71630-12730i200210-200405
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-02040i200209-200210
main71640-12520i200210-200405
71910AHEADREST ASSY, FRONT SEAT
main71910-12A20-B0×2i200405-200505
SEAT = TYPE B OR TYPE C OR TYPE D-*104,DK.GRAY,TRIM1#
main71910-12A21-B0×2i200506-200508
SEAT = TYPE B OR TYPE C OR TYPE D-*104,DK.GRAY,TRIM1#
main71910-1E240-B0×2i200209-200405
DARK GRAY,TRIM1#
main71910-1E240-B2×2i200405-200610
SEAT = TYPE A-*104,DK.GRAY,TRIM1#
main71910-1E240-J0×2i200209-200405
DK.BLUE,TRIM8#
main71910-1E250-A0×2i200209-200405
IVORY,TRIM0#
main71910-1E250-B0×2i200209-200405
DK.GRAY,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47010-A0×2i200209-200405
W(LOCK),IVORY,TRIM0#
main71930-47010-B2×2i200405-200610
W(LOCK),DK.GRAY,TRIM1#
main71930-47010-J0×2i200209-200405
W(LOCK),DK.BLUE,TRIM8#
main71931-47010-A0×2i200209-200405
W/O(LOCK),IVORY,TRIM0#
main71931-47010-B2×2i200209-200405
W/O(LOCK),DK.GRAY,TRIM1#
main71931-47010-J0×2i200209-200405
W/O(LOCK),DK.BLUE,TRIM8#
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-02020×2i200210-200405
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-02020×2i200210-200405
87510MHEATER ASSY, FRONT SEATBACK, RH
main87510-02010×2i200209-200405
87510NHEATER ASSY, FRONT SEATBACK, LH
main87510-02010×2i200209-200405
9046816019
main90468-16019

18 parts on this diagram · 5 diagrams in section
