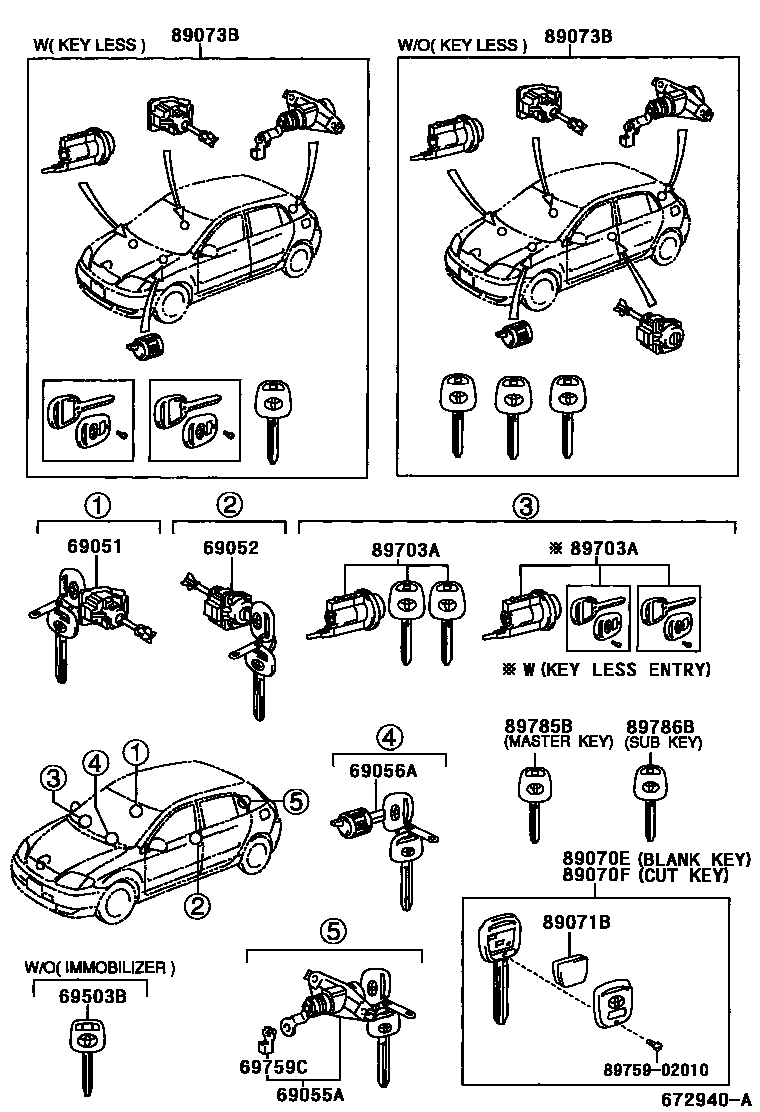

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-0W010iZZE121..JPP;ZZE120..JPP..RHD;CDE120,ZZE120..JPP..LHD..TERRA200209-200408

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0W010iCDE120..JPP;ZZE12#..JPP..TERRA;ZZE12#..JPP..LHD..SOL200209-200405

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-02110iCDE120,ZZE12#..JPP200209-200405

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-02010iCDE120,ZZE12#..JPP200209-200405

69503BKEY, CUT

main69515-05010iCDE120,ZZE12#..JPP200209-200408

MASTER KEY(VALEO)

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-20090iCDE120,ZZE12#..JPP200209-200405

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-0D020iCDE120,ZZE12#..JPP200209-200405

89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)

main89070-0D030iCDE120,ZZE12#..JPP200209-200405

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-0D010iCDE120,ZZE12#..JPP200209-200405

89073BCYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main89073-0W010iZZE12#..JPP..RHD200209-200405

main89073-0W020iNDE120,ZZE12#..JPP..LHD200209-200405

main89708-0W010iZZE121..JPP..LHD..SOL;CDE120,ZZE12#..JPP..TERRA200209-200408

W/O(KEY LESS ENTRY)

89703ACYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89073-02040iNDE120,ZZE12#..JPP200209-200405

W(KEY LESS ENTRY)

main89703-02040iZZE121..JPP..LHD..SOL;CDE120,ZZE12#..JPP..TERRA200209-200408

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-05030iZZE121..JPP..LHD..SOL;CDE120,ZZE12#..JPP..TERRA200209-200408

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-05030iCDE120,ZZE12#..JPP200209-200405

8975902010SCREW, DOOR CONTROL TRANSMITTER

main89759-02010

14 parts on this diagram · 2 diagrams in section
