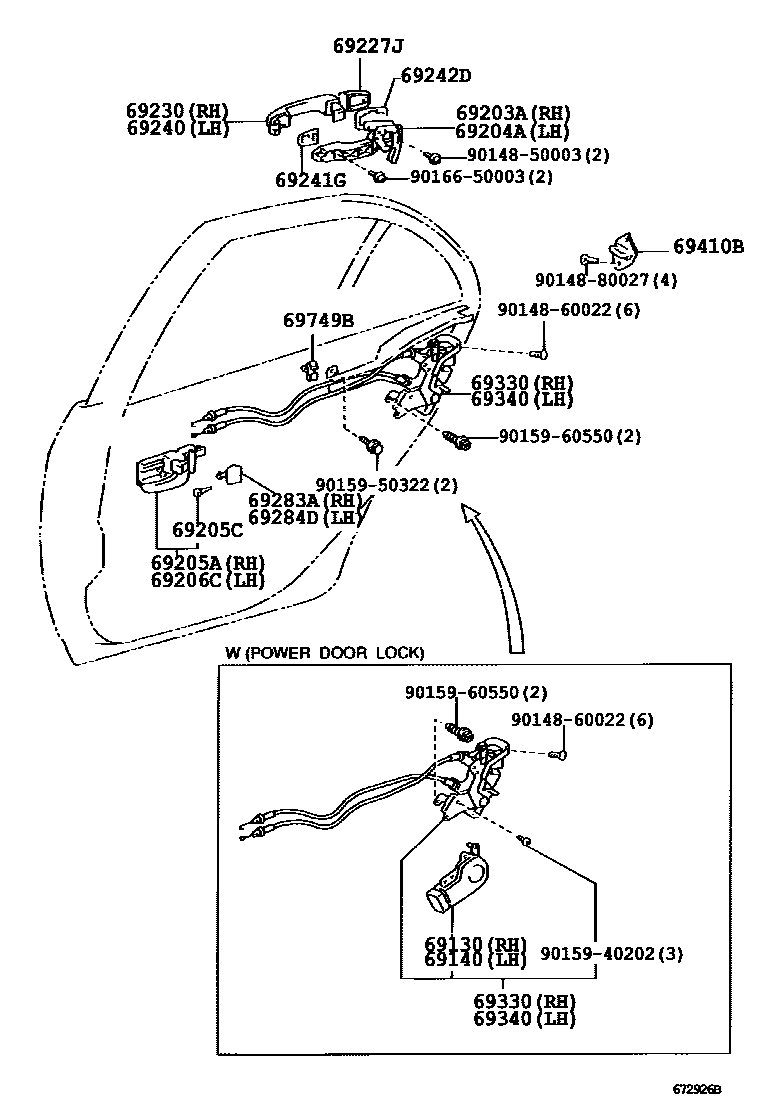

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
W(DOUBLE-LOCK)
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
W(DOUBLE-LOCK)
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
IVORY,TRIM0#
DK.GRAY,TRIM1#
DK.BLUE,TRIM8#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
IVORY,TRIM0#
DK.GRAY,TRIM1#
DK.BLUE,TRIM8#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
main69227-42070-X2iZZE121..JPP..RHD;NDE120,ZZE120..JPP;ZZE121..JPP..LHD..5F;ZZE121..JPP..LHD..4FC..SOL200405
DK. RED M.M.,3Q3
sub69227-42070
sub69227-42901
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69211-12220-X2iZZE121..JPP..RHD;NDE120,ZZE120..JPP;ZZE121..JPP..LHD..5F;ZZE121..JPP..LHD..4FC..SOL200405
DK. RED M.M.,3Q3
sub69211-12903
sub69211-12220
sub69211-52090
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69211-12220-X2iZZE121..JPP..RHD;NDE120,ZZE120..JPP;ZZE121..JPP..LHD..5F;ZZE121..JPP..LHD..4FC..SOL200405
DK. RED M.M.,3Q3
sub69211-12903
sub69211-12220
sub69211-52090
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242DPAD, REAR DOOR OUTSIDE HANDLE, LH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
IVORY,TRIM0#
DK.GRAY,TRIM1#
DK.BLUE,TRIM8#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
IVORY,TRIM0#
DK.GRAY,TRIM1#
DK.BLUE,TRIM8#
69330LOCK ASSY, REAR DOOR, RH
W(DOUBLE-LOCK)
W(MANUAL DOOR LOCK)
69340LOCK ASSY, REAR DOOR, LH
W(DOUBLE-LOCK)
W(MANUAL DOOR LOCK)
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69749BCLAMP, REAR DOOR LOCK LINK
9014850003
main90148-50003
9014860022
main90148-60022
9014880027
main90148-80027
9015940202
main90159-40202
9015950322
main90159-50322
9015960550
main90159-60550
9016650003
main90166-50003
25 parts on this diagram · 1 diagram in section
