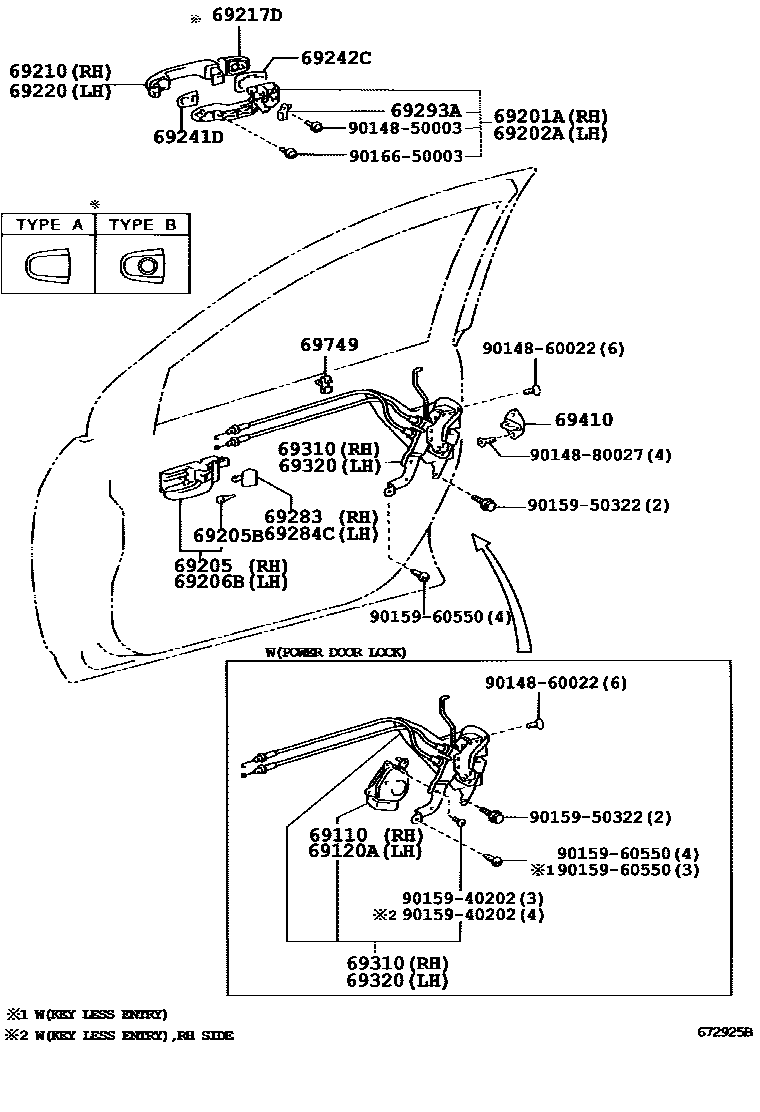

FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-12070iZZE12#..JPP..RHD200209-200405

main69110-12080iNDE120,ZZE12#..JPP..LHD..TERRA200209-200408

main69110-12090iCDE120,ZZE12#..JPP..LHD200209-200405

W(KEY LESS ENTRY)

main69110-12100iZZE12#..JPP..RHD200209-200405

W(DOUBLE-LOCK)

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-12070iZZE12#..JPP..RHD..TERRA200209-200405

main69120-12080iCDE120,ZZE12#..JPP..LHD200209-200405

main69120-12090iZZE12#..JPP..RHD200209-200405

W(KEY LESS ENTRY)

main69120-12100iZZE12#..JPP..RHD200209-200405

W(DOUBLE-LOCK)

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-12020iZZE12#..JPP..RHD200209-200405

W(DOUBLE-LOCK)

main69201-12030iNDE120,ZZE12#..JPP200209-200405

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-12020iNDE120,ZZE12#..JPP200209-200405

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-13020-A0iCDE120,ZZE12#..JPP..SOL200209-200405

IVORY,TRIM0#

main69205-13020-B0iNDE120,ZZE12#..JPP200209-200405

DK.GRAY,TRIM1#

main69205-13020-J0iCDE120,ZZE12#..JPP..TERRA200209-200405

DK.BLUE,TRIM8#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iNDE120,ZZE12#..JPP200209-200405

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-13020-A0iCDE120,ZZE12#..JPP..SOL200209-200405

IVORY,TRIM0#

main69206-13020-B0iNDE120,ZZE12#..JPP200209-200405

DK.GRAY,TRIM1#

main69206-13020-J0iCDE120,ZZE12#..JPP..TERRA200209-200405

DK.BLUE,TRIM8#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69211-12220-A0iCDE120,ZZE12#..JPP200209-200405

SUPER WHITE 2,040

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-B2iNDE120,ZZE12#..JPP200405

SILVER ME.,1C0

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-B8iCDE120,ZZE12#..JPP200209-200405

GRAY M.M.,1C3

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-C2iNDE120,ZZE12#..JPP200209-200405

BLACK MC.,209

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-D0iNDE120,ZZE12#..JPP200209-200405

SUPER RED II,3E5

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-G0iCDE120,ZZE12#..JPP200209-200405

DARK GREEN MC.,6R4

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-G1iNDE120,ZZE12#..JPP200405

DK.GREEN M.M.,6S3

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-J0iNDE120,ZZE12#..JPP200209-200405

DK.BLUE M.M.,8P4

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-J4iNDE120,ZZE12#..JPP200510

BLUE ME.,8P1

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-J5iCDE120,ZZE12#..JPP200209-200405

GRAYISH BLUE M.M.,8Q3

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-J6iCDE120,ZZE12#..JPP200209-200405

DK.BLUE,8Q4

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-P0iCDE120,ZZE12#..JPP200209-200405

SILVER M.M.,199

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-R2iNDE120,ZZE12#..JPP200405

LT.BLUE M.M.,8S1

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-X2iZZE121..JPP..RHD;NDE120,ZZE120..JPP;ZZE121..JPP..LHD..5F;ZZE121..JPP..LHD..4FC..SOL200405

DK. RED M.M.,3Q3

sub69211-12903

sub69211-12220

sub69211-52090

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-12040-A0iZZE12#..JPP200209-200405

TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SUPER WHITE 2,040

sub69217-12040

main69217-12040-A0iNDE120..JPP200408

TYPE A:REFER TO ILLUSTRATION,SUPER WHITE 2,040

sub69217-12040

main69217-12040-B3iNDE120..JPP200408

TYPE A:REFER TO ILLUSTRATION,GRAY M.M.,1C3

sub69217-12040

main69217-12040-B3iZZE12#..JPP200209-200405

TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),GRAY M.M.,1C3

sub69217-12040

main69217-12040-B4iCDE120,ZZE12#..JPP200209-200405

TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER M.M.,199

sub69217-12040

main69217-12040-B5iNDE120..JPP200408

TYPE A:REFER TO ILLUSTRATION,SILVER ME.,1C0

sub69217-12040

main69217-12040-B5iZZE12#..JPP200405

TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER ME.,1C0

sub69217-12040

main69217-12040-C2iCDE120,ZZE12#..JPP200209-200405

TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),BLACK MC.,209

sub69217-12040

main69217-12040-C2iNDE120..JPP200408

TYPE A:REFER TO ILLUSTRATION,BLACK MC.,209

sub69217-12040

main69217-12040-D0iCDE120,ZZE12#..JPP200209-200405

TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SUPER RED II,3E5

sub69217-12040

main69217-12040-G0iCDE120,ZZE12#..JPP200209-200405

TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DARK GREEN MC.,6R4

sub69217-12040

main69217-12040-G3iNDE120..JPP200408

TYPE A:REFER TO ILLUSTRATION,DK.GREEN M.M.,6S3

sub69217-12040

main69217-12040-G3iZZE12#..JPP200405

TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DK.GREEN M.M.,6S3

sub69217-12040

main69217-12040-J0iCDE120,ZZE12#..JPP200209-200405

TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DK.BLUE M.M.,8P4

sub69217-12040

main69217-12040-J0iNDE120..JPP200408

TYPE A:REFER TO ILLUSTRATION,DK.BLUE M.M.,8P4

sub69217-12040

main69217-12040-J3iCDE120,ZZE12#..JPP200209-200405

TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),GRAYISH BLUE M.M.,8Q3

sub69217-12040

main69217-12040-J4iCDE120,ZZE12#..JPP200209-200405

TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DK.BLUE,8Q4

sub69217-12040

main69217-12040-J5iNDE120,ZZE12#..JPP200510

TYPE A:REFER TO ILLUSTRATION,BLUE ME.,8P1

sub69217-12040

main69217-12040-J9iNDE120..JPP200408

TYPE A:REFER TO ILLUSTRATION,LT.BLUE M.M.,8S1

sub69217-12040

main69217-12040-J9iZZE12#..JPP200405

TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),LT.BLUE M.M.,8S1

sub69217-12040

main69217-42020-A3iNDE120,ZZE12#..JPP..TERRA200209-200405

TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SUPER WHITE 2,040

sub69217-42020

sub69217-42010

main69217-42020-A3iCDE120,ZZE12#..JPP200209-200408

TYPE B:REFER TO ILLUSTRATION,SUPER WHITE 2,040

sub69217-42020

sub69217-42010

main69217-42020-B3iNDE120,ZZE12#..JPP..TERRA200405-200408

TYPE B:REFER TO ILLUSTRATION,SILVER ME.,1C0

sub69217-42020

sub69217-42010

main69217-42020-B3iNDE120,ZZE12#..JPP..TERRA200405

TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER ME.,1C0

sub69217-42020

sub69217-42010

main69217-42020-B8iZZE121..JPP..LHD..SOL200209-200408

TYPE B:REFER TO ILLUSTRATION,GRAY M.M.,1C3

sub69217-42020

sub69217-42010

main69217-42020-B8iCDE120,ZZE12#..JPP200209-200405

TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),GRAY M.M.,1C3

sub69217-42020

sub69217-42010

main69217-42020-C2iNDE120,ZZE12#..JPP200209-200405

TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),BLACK MC.,209

sub69217-42020

sub69217-42010

main69217-42020-C2iNDE120,ZZE12#..JPP200209-200408

TYPE B:REFER TO ILLUSTRATION,BLACK MC.,209

sub69217-42020

sub69217-42010

main69217-42020-D1iNDE120,ZZE12#..JPP200209-200408

TYPE B:REFER TO ILLUSTRATION,SUPER RED II,3E5

sub69217-42020

sub69217-42010

main69217-42020-D1iCDE120,ZZE12#..JPP200209-200405

TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SUPER RED II,3E5

sub69217-42020

sub69217-42010

main69217-42020-G0iNDE120,ZZE12#..JPP200405-200408

TYPE B:REFER TO ILLUSTRATION,DK.GREEN M.M.,6S3

sub69217-42020

sub69217-42010

main69217-42020-G0iNDE120,ZZE12#..JPP..TERRA200405

TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DK.GREEN M.M.,6S3

sub69217-42020

sub69217-42010

main69217-42020-G1iCDE120,ZZE12#..JPP200209-200405

TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DARK GREEN MC.,6R4

sub69217-42020

sub69217-42010

main69217-42020-G1iZZE121..JPP..LHD..SOL;CDE120,ZZE12#..JPP..TERRA200209-200405

TYPE B:REFER TO ILLUSTRATION,DARK GREEN MC.,6R4

sub69217-42020

sub69217-42010

main69217-42020-J1iNDE120,ZZE12#..JPP..TERRA200510

TYPE B:REFER TO ILLUSTRATION,BLUE ME.,8P1

sub69217-42020

sub69217-42010

main69217-42020-J1iNDE120,ZZE12#..JPP200510

TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),BLUE ME.,8P1

sub69217-42020

sub69217-42010

main69217-42020-J2iNDE120,ZZE12#..JPP200209-200408

TYPE B:REFER TO ILLUSTRATION,DK.BLUE M.M.,8P4

sub69217-42020

sub69217-42010

main69217-42020-J2iZZE121..JPP..LHD..SOL;CDE120,ZZE12#..JPP..TERRA200209-200405

TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DK.BLUE M.M.,8P4

sub69217-42020

sub69217-42010

main69217-42020-J8iCDE120,ZZE12#..JPP200209-200405

TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),GRAYISH BLUE M.M.,8Q3

sub69217-42020

sub69217-42010

main69217-42020-J8iCDE120,ZZE12#..JPP200209-200405

TYPE B:REFER TO ILLUSTRATION,GRAYISH BLUE M.M.,8Q3

sub69217-42020

sub69217-42010

main69217-42020-J9iZZE121..JPP..LHD..SOL;CDE120,ZZE12#..JPP..TERRA200209-200405

TYPE B:REFER TO ILLUSTRATION,DK.BLUE,8Q4

sub69217-42020

sub69217-42010

main69217-42020-J9iCDE120,ZZE12#..JPP200209-200405

TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DK.BLUE,8Q4

sub69217-42020

sub69217-42010

main69217-42020-P0iZZE121..JPP..LHD..SOL;CDE120,ZZE12#..JPP..TERRA200209-200405

TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER M.M.,199

sub69217-42020

sub69217-42010

main69217-42020-P0iZZE121..JPP..LHD..SOL;CDE120,ZZE12#..JPP..TERRA200209-200405

TYPE B:REFER TO ILLUSTRATION,SILVER M.M.,199

sub69217-42020

sub69217-42010

main69217-42020-R4iNDE120,ZZE12#..JPP..TERRA200405-200408

TYPE B:REFER TO ILLUSTRATION,LT.BLUE M.M.,8S1

sub69217-42020

sub69217-42010

main69217-42020-R4iNDE120,ZZE12#..JPP200405

TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),LT.BLUE M.M.,8S1

sub69217-42020

sub69217-42010

main69217-42020-X2iZZE121..JPP..RHD;NDE120,ZZE120..JPP;ZZE121..JPP..LHD..5F;ZZE121..JPP..LHD..4FC..SOL200405-200408

TYPE B:REFER TO ILLUSTRATION,DK. RED M.M.,3Q3

sub69217-42020

sub69217-42010

main69217-42020-X2iZZE121..JPP..RHD..TERRA;NDE120,ZZE120..JPP..TERRA;ZZE121..JPP..LHD..5F..TERRA200405

TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DK. RED M.M.,3Q3

sub69217-42020

sub69217-42010

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69211-12220-A0iNDE120,ZZE12#..JPP200209-200405

SUPER WHITE 2,040

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-B2iNDE120,ZZE12#..JPP200405

SILVER ME.,1C0

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-B8iCDE120,ZZE12#..JPP200209-200405

GRAY M.M.,1C3

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-C2iNDE120,ZZE12#..JPP200209-200405

BLACK MC.,209

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-D0iNDE120,ZZE12#..JPP200209-200405

SUPER RED II,3E5

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-G0iCDE120,ZZE12#..JPP200209-200405

DARK GREEN MC.,6R4

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-G1iNDE120,ZZE12#..JPP200405

DK.GREEN M.M.,6S3

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-J0iCDE120,ZZE12#..JPP200209-200405

DK.BLUE M.M.,8P4

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-J4iNDE120,ZZE12#..JPP200510

BLUE ME.,8P1

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-J5iCDE120,ZZE12#..JPP200209-200405

GRAYISH BLUE M.M.,8Q3

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-J6iCDE120,ZZE12#..JPP200209-200405

DK.BLUE,8Q4

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-P0iCDE120,ZZE12#..JPP200209-200405

SILVER M.M.,199

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-R2iNDE120,ZZE12#..JPP200405

LT.BLUE M.M.,8S1

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-X2iZZE121..JPP..RHD;NDE120,ZZE120..JPP;ZZE121..JPP..LHD..5F;ZZE121..JPP..LHD..4FC..SOL200405

DK. RED M.M.,3Q3

sub69211-12903

sub69211-12220

sub69211-52090

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main69241-42020iCDE120,ZZE12#..JPP200209-200405

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main69242-42010iCDE120,ZZE12#..JPP200209-200405

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30040iZZE121..JPP..LHD..4FC..TERRA200405-200510

main69283-30040-A1iCDE120,ZZE12#..JPP..SOL200209-200405

IVORY,TRIM0#

sub69283-30040

main69283-30040-J0iCDE120,ZZE12#..JPP..TERRA200209-200405

DK.BLUE,TRIM8#

sub69283-30040

main69283-30040-P0iNDE120,ZZE12#..JPP200209-200610

DK.GRAY,TRIM1#

sub69283-30040

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69283-30040iZZE121..JPP..LHD..4FC..TERRA200405-200510

main69283-30040-A1iCDE120,ZZE12#..JPP..SOL200209-200405

IVORY,TRIM0#

sub69283-30040

main69283-30040-J0iCDE120,ZZE12#..JPP..TERRA200209-200405

DK.BLUE,TRIM8#

sub69283-30040

main69283-30040-P0iCDE120,ZZE12#..JPP200209-200610

DK.GRAY,TRIM1#

sub69283-30040

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-10010iCDE120,ZZE12#..JPP200209-200405

RH

main69293-10020iCDE120,ZZE12#..JPP200209-200405

LH

69310LOCK ASSY, FRONT DOOR, RH

main69030-12460iNDE120,ZZE12#..JPP..LHD..TERRA200209-200408

main69030-12480iZZE12#..JPP..RHD200209-200405

W(DOUBLE-LOCK)

main69030-12510iZZE12#..JPP..RHD200209-200405

main69030-12520iCDE120,ZZE12#..JPP..LHD200209-200405

W(KEY LESS ENTRY)

main69310-12650iCDE120,ZZE12#..JPP..TERRA200209-200405

W(MANUAL DOOR LOCK)

69320LOCK ASSY, FRONT DOOR, LH

main69040-12480iZZE12#..JPP..RHD200209-200405

W(DOUBLE-LOCK)

main69040-12510iNDE120,ZZE12#..JPP..LHD200209-200405

main69040-12530iZZE12#..JPP..RHD..TERRA200209-200405

main69040-12540iZZE12#..JPP..RHD200209-200405

W(KEY LESS ENTRY)

main69320-12700iNDE120,ZZE12#..JPP..LHD..TERRA200209-200405

W(MANUAL DOOR LOCK)

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iNDE120,ZZE12#..JPP200209-200405

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32040iCDE120,ZZE12#..JPP200209-200405

9014850003

main90148-50003

9014860022

main90148-60022

9014880027

main90148-80027

9015940202

main90159-40202

9015950322

main90159-50322

9015960550

main90159-60550

9016650003

main90166-50003

26 parts on this diagram · 1 diagram in section
