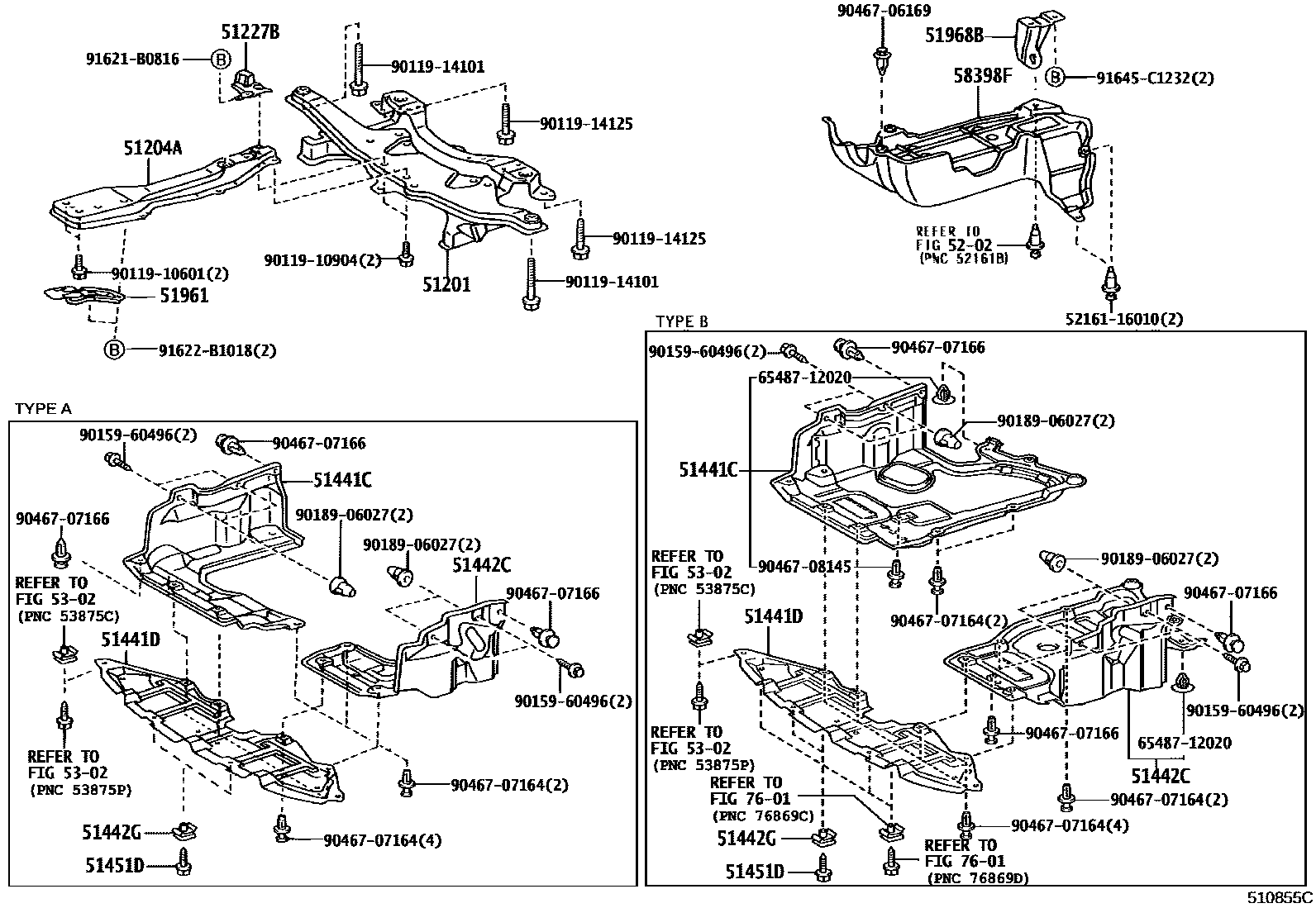

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20350iCDE120,ZZE12#..JPP200209-200303

main51201-20351iCDE120..JPP; ZZE12#..JPP200303-200405

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12150iCDE120..JPP; ZZE12#..JPP200209-200405

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-12080iCDE120,ZZE12#..JPP200209-200308

main51227-12081iCDE120..JPP; ZZE12#..JPP200308-200405

51441CCOVER, ENGINE UNDER, RH

main51410-12040iCDE120..JPP; ZZE12#..JPP200209-200405

TYPE A:REFER TO ILLUSTRATION

main51410-12060iNDE120..JPP200408

TYPE B:REFER TO ILLUSTRATION

51441DCOVER, ENGINE UNDER

main51451-13030iNDE120,ZZE12#..JPP200405

51442CCOVER, ENGINE UNDER, LH

main51420-12030iCDE120..JPP; ZZE12#..JPP..5F200209-200405

TYPE A:REFER TO ILLUSTRATION

main51420-12040iZZE121..JPP..4FC200405

TYPE A:REFER TO ILLUSTRATION

main51420-12050iNDE120..JPP200408

TYPE B:REFER TO ILLUSTRATION

51442GCLIP, ENGINE UNDER COVER, NO.1

main90467-05138×2iNDE120,ZZE12#..JPP200405-200610

51451DSCREW, NO.1

main90159-60488×2iNDE120,ZZE12#..JPP200405-200610

51961HOOK, NO.1

main51960-13010iCDE120..JPP; ZZE12#..JPP200209-200405

51968BHOOK, TRANSPORT, REAR LH

main51968-13040iCDE120..JPP; ZZE12#..JPP200209-200405

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

58398FCOVER, FLOOR UNDER, NO.1

main58398-02010iCDE120..JPP; ZZE12#..JPP200209-200405

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

6548712020CLIP, CORNER PROTECTOR

main65487-12020

9011910601

main90119-10601

9011910904

main90119-10904

9011914101

main90119-14101

9011914125

main90119-14125

9015960496

main90159-60496

9018906027

main90189-06027

9046706169

main90467-06169

9046707164

main90467-07164

9046707166

main90467-07166

9046708145

main90467-08145

91621B0816

main91621-B0816

91622B1018

main91622-B1018

91645C1232

main91645-C1232

29 parts on this diagram · 1 diagram in section
