IGNITION COIL & SPARK PLUG / GLOW PLUG

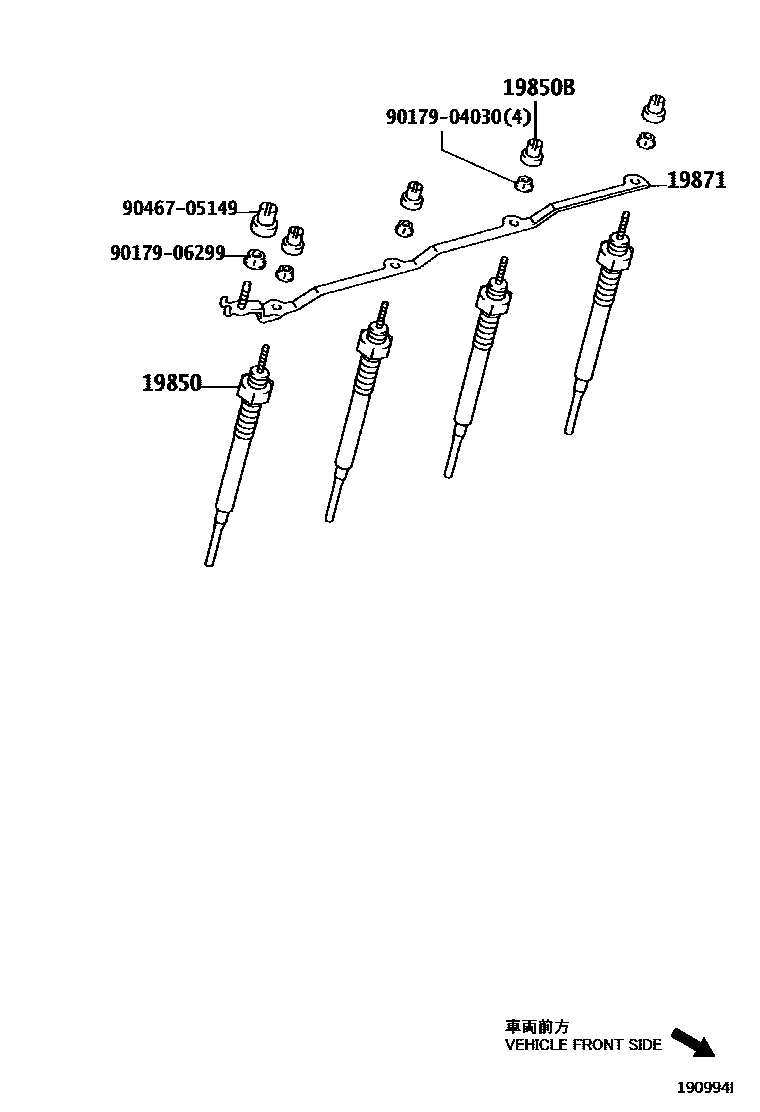

Parts diagram
19850PLUG ASSY, GLOW
main19850-0W010i200408
*BV-GV=12V-11V
main19850-27010i200209-200405
*BV-GV=12V-11V
19850BGROMMET, SCREW(FOR GLOW PLUG)
main90189-04024i200209-200405
19871CONNECTOR, GLOW PLUG NO.1
main19871-27010i200209-200405
main19871-33010i200408
9017904030
9017906299
9046705149

6 parts on this diagram · 3 diagrams in section
