ENGINE OVERHAUL GASKET KIT

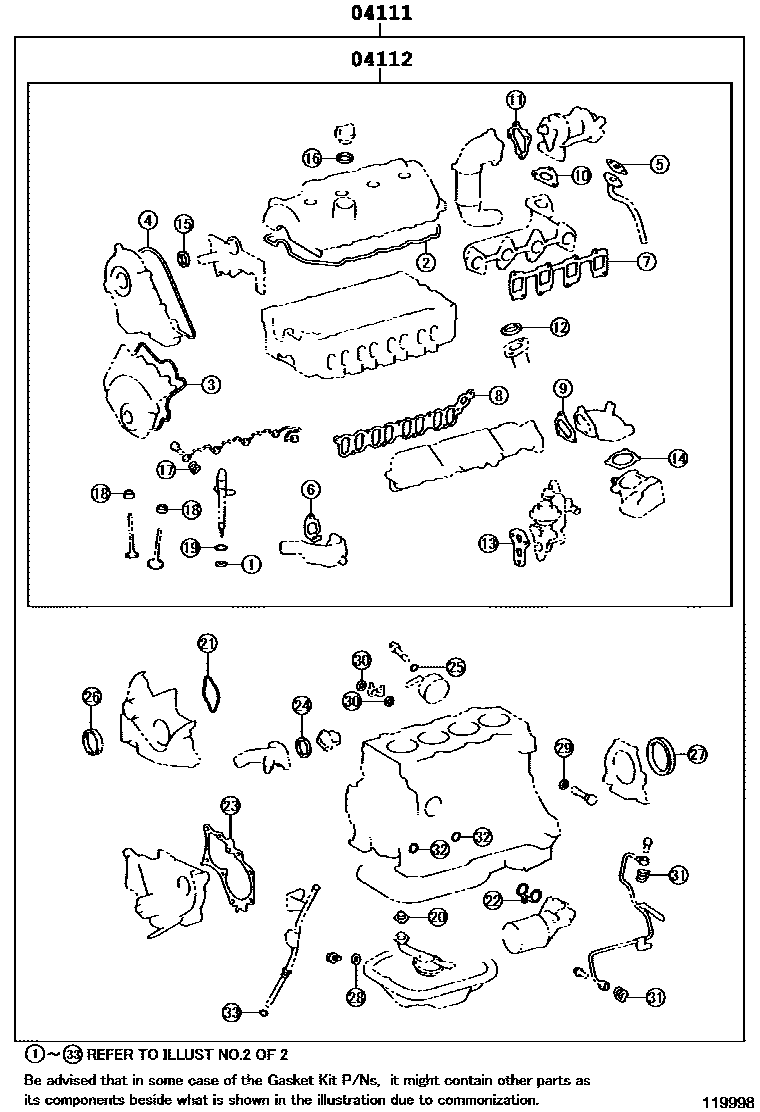

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-22081i200209-200302
sub04111-22082
main04111-22082i200302-200405
main04111-22690i200405
sub04111-22691
main04111-22700i200405
sub04111-22701
main04111-27100i200209-200405
main04111-33090i200408
04112GASKET KIT, ENGINE VALVE GRIND
main04112-22081i200209-200302
sub04112-22082
main04112-22082i200302-200405
main04112-22610i200405
main04112-22620i200405
sub04112-22621
main04112-27090i200209-200405
main04112-33090i200408

2 parts on this diagram · 8 diagrams in section
