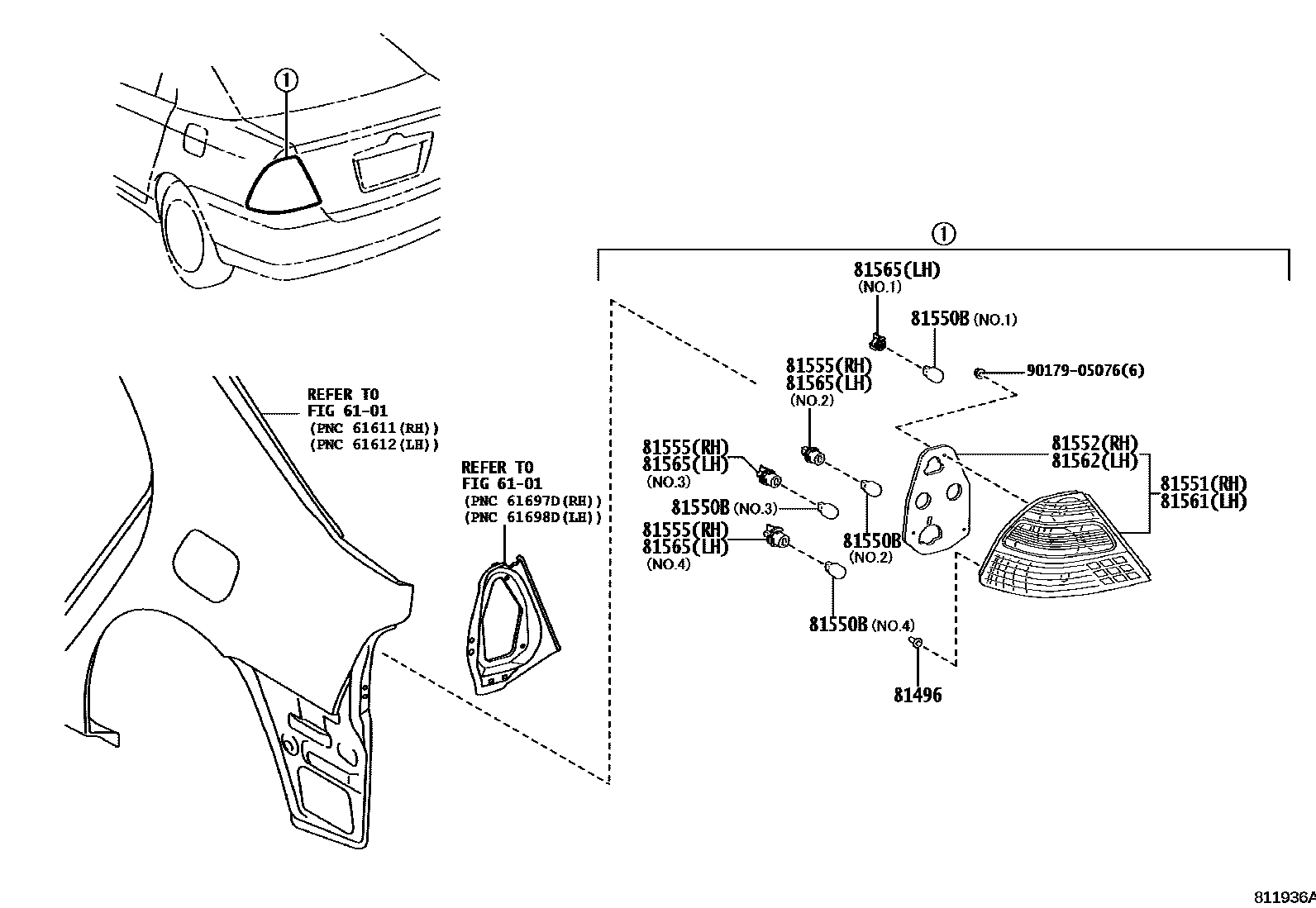

REAR COMBINATION LAMP
6101
81496GUIDE, REAR COMBINATION LAMP
81550BBULB(FOR REAR COMBINATION LAMP)
12V 21W,AMBER,NO.1,OSRAM
12V 21W,NO.1 & NO.2
12V 21W,NO.3
12V 21/5W,NO.1
12V 21/5W,NO.4
12V 21W,AMBER,NO.2
12V 21W,AMBER,NO.3
12V 21W,NO.2
12V 21/5W,NO.3
12V 21W,NO.2,GE
12V 21W,AMBER,NO.1,GE
12V 21W,AMBER,NO.1
81551LENS, REAR COMBINATION LAMP, RH
81552GASKET, REAR COMBINATION LAMP LENS, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
NO.1
NO.4
NO.3
NO.2
NO.2
NO.3
81561LENS, REAR COMBINATION LAMP, LH
81562GASKET, REAR COMBINATION LAMP LENS, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
NO.1
NO.4
NO.3
NO.2
NO.2
NO.3
NO.1
9017905076
main90179-05076
10 parts on this diagram · 3 diagrams in section
