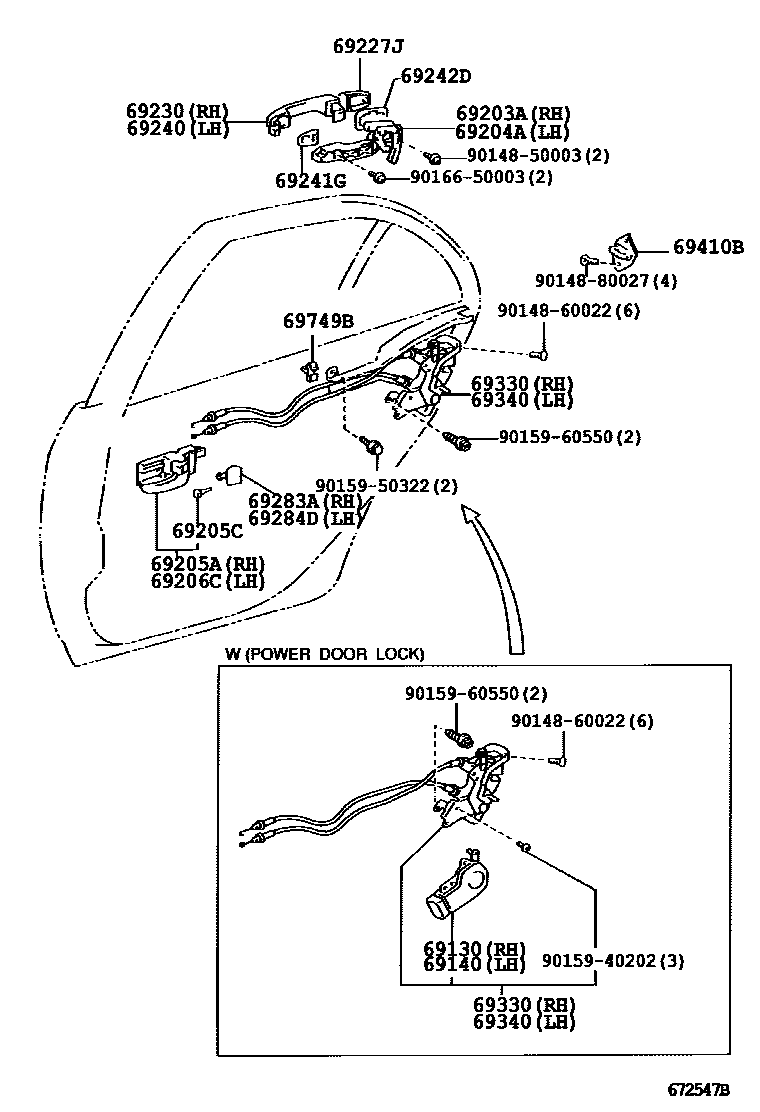

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
W(POWER DOOR LOCK)
W(POWER DOOR LOCK & DOUBLE LOCK)
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
W(POWER DOOR LOCK)
W(POWER DOOR LOCK & DOUBLE LOCK)
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
DK.GRAY,TRIM1#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
DK.GRAY,TRIM1#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242DPAD, REAR DOOR OUTSIDE HANDLE, LH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
DK.GRAY,TRIM1#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
DK.GRAY,TRIM1#
69330LOCK ASSY, REAR DOOR, RH
W(POWER DOOR LOCK)
W(POWER DOOR LOCK & DOUBLE LOCK)
69340LOCK ASSY, REAR DOOR, LH
W(POWER DOOR LOCK)
W(POWER DOOR LOCK & DOUBLE LOCK)
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69749BCLAMP, REAR DOOR LOCK LINK
9014850003
main90148-50003
9014860022
main90148-60022
9014880027
main90148-80027
9015940202
main90159-40202
9015950322
main90159-50322
9015960550
main90159-60550
9016650003
main90166-50003
25 parts on this diagram · 1 diagram in section
