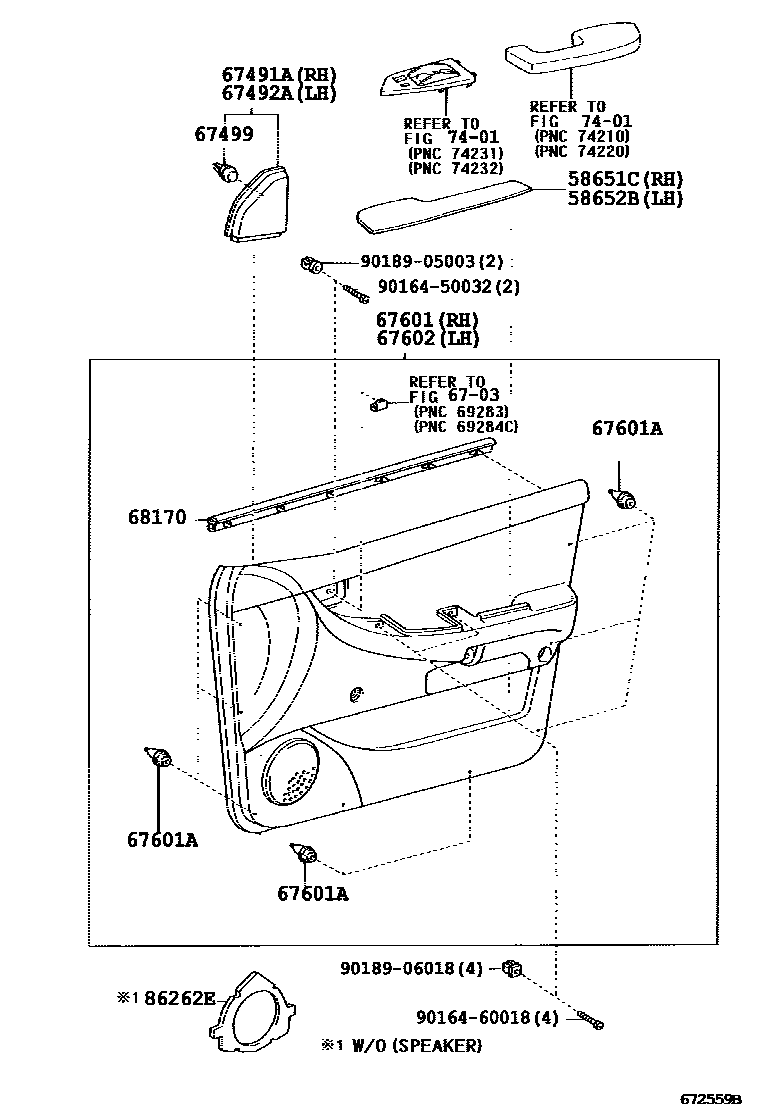

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

58651CPLATE, FRONT DOOR MAT, RH

main58651-02070-B0iNDE120,ZZE12#..JPP200405

DK.GRAY,TRIM1#

58652BPLATE, FRONT DOOR MAT, LH

main58652-02050-B0iNDE120,ZZE12#..JPP200405

DK.GRAY,TRIM1#

6703

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-12460iCDE120,ZZE12#..JPP..TERRA;ZZE121..JPP..SED..4FC..SOL200110-200405

main67491-12470iNDE120,ZZE12#..JPP..TERRA200110-200405

MANUAL REMOTE CONTROL MIRROR

main67491-12480iZZE12#..JPP..SOL200110-200405

W(TWEETER SPEAKER)

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-12460iCDE120,ZZE12#..JPP..TERRA;ZZE121..JPP..SED..4FC..SOL200110-200405

main67492-12470iCDE120,ZZE12#..JPP..WG..TERRA200110-200405

MANUAL REMOTE CONTROL MIRROR

main67492-12480iCDE120,ZZE12#..JPP..SOL200110-200405

W(TWEETER SPEAKER)

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67771-12060iNDE120,ZZE12#..JPP200110-200405

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-13831-B0iCDE120,ZZE121..JPP..RHD200110-200405

DARK GRAY,TRIM1#

sub67610-13831

main67610-13A00-B0iZZE12#..JPP..SOL200405-200610

DK.GRAY,TRIM1#

sub67610-13A01

main67610-1F081-B0iCDE120,ZZE121..JPP..RHD200110-200405

W(POWER WINDOW),DARK GRAY,TRIM1#

sub67610-1F081

main67610-1F091-B0iCDE120,ZZE12#..JPP..LHD..WG..TERRA200110-200405

DARK GRAY,TRIM1#

sub67610-1F091

main67610-1F101-B0iCDE120,ZZE12#..JPP..WG..SOL200110-200405

DARK GRAY,TRIM1#

sub67610-1F101

main67610-1F111-B0iCDE120,ZZE12#..JPP..LHD..WG..TERRA200110-200405

W(POWER WINDOW),DARK GRAY,TRIM1#

sub67610-1F111

main67610-1L211-B0iZZE12#..JPP..SED..TERRA200110-200405

DARK GRAY,TRIM1#

main67610-1L221-B0iZZE12#..JPP..SED..TERRA200110-200405

W(POWER WINDOW),DARK GRAY,TRIM1#

main67610-1L231-B0iZZE12#..JPP..SED..SOL200110-200405

DARK GRAY,TRIM1#

main67650-13020-B1iNDE120,ZZE12#..JPP..TERRA200405-200610

W(POWER WINDOW),DK.GRAY,TRIM1#

sub67650-13020

main67650-13030-B1iNDE120,ZZE12#..JPP..TERRA200405-200610

DK.GRAY,TRIM1#

sub67650-13030

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12050iCDE120,ZZE12#..JPP200110-200405

main90467-10161iNDE120,ZZE12#..JPP200405-200610

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-13841-B0iCDE120,ZZE121..JPP..RHD200110-200405

DARK GRAY,TRIM1#

sub67620-13841

main67620-13851-B0iCDE120,ZZE121..JPP..RHD200110-200405

W(POWER WINDOW),DARK GRAY,TRIM1#

sub67620-13851

main67620-13861-B0iCDE120,ZZE12#..JPP..LHD..WG..TERRA200110-200405

DARK GRAY,TRIM1#

sub67620-13861

main67620-13871-B0iCDE120,ZZE12#..JPP..WG..SOL200110-200405

DARK GRAY,TRIM1#

sub67620-13871

main67620-13881-B0iCDE120,ZZE12#..JPP..LHD..WG..TERRA200110-200405

W(POWER WINDOW),DARK GRAY,TRIM1#

sub67620-13881

main67620-1F010-B0iZZE12#..JPP..SOL200405-200610

DK.GRAY,TRIM1#

sub67620-1F011

main67620-1N781-B0iZZE12#..JPP..SED..TERRA200110-200405

DARK GRAY,TRIM1#

main67620-1N791-B0iZZE12#..JPP..SED..TERRA200110-200405

W(POWER WINDOW),DARK GRAY,TRIM1#

main67620-1N801-B0iZZE12#..JPP..SED..SOL200110-200405

DARK GRAY,TRIM1#

main67660-13020-B1iNDE120,ZZE12#..JPP..TERRA200405-200610

W(POWER WINDOW),DK.GRAY,TRIM1#

sub67660-13020

main67660-13030-B1iNDE120,ZZE12#..JPP..TERRA200405-200610

DK.GRAY,TRIM1#

sub67660-13030

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-12290iCDE120,ZZE12#..JPP200110-200207

RH

main68171-12320iCDE120,ZZE12#..JPP200207-200405

RH

main68172-12210iCDE120,ZZE12#..JPP200110-200207

LH

main68172-12240iCDE120,ZZE12#..JPP200207-200405

LH

7401

86262ECOVER, SPEAKER, FRONT

main86262-17010iZZE121..JPP..SED..4FC..SOL200110-200405

9016450032

main90164-50032

9016460018

main90164-60018

9018905003

main90189-05003

9018906018

main90189-06018

16 parts on this diagram · 3 diagrams in section
