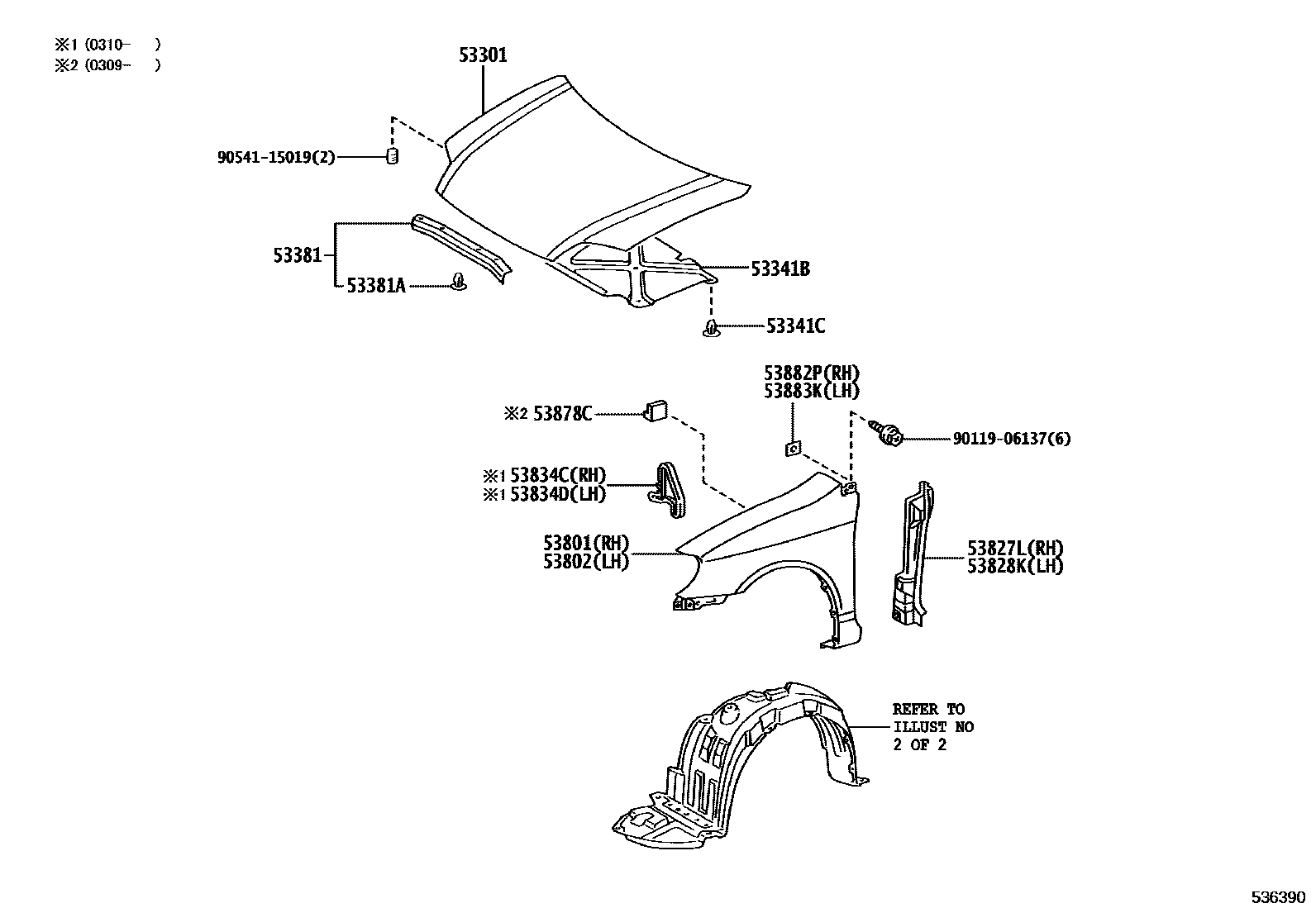

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-12870iCDE120,ZZE12#..JPP200110-200405

53341BINSULATOR, HOOD

main53341-12170iCDE120,ZZE12#..JPP200110-200405

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124×8iCDE120,ZZE12#..JPP200110-200405

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-12180iCDE120,ZZE12#..JPP200110-200405

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×8iCDE120,ZZE12#..JPP200110-200405

53801FENDER SUB-ASSY, FRONT RH

main53811-1H190iCDE120,ZZE12#..JPP200110-200405

53802FENDER SUB-ASSY, FRONT LH

main53812-1H070iCDE120,ZZE12#..JPP200110-200405

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-12050iCDE120,ZZE12#..JPP200110-200405

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-12050iCDE120,ZZE12#..JPP200110-200405

53834CPLATE, FRONT FENDER SUPPORT, RH

main53834-12120iCDE120,ZZE12#..JPP200310-200405

53834DPLATE, FRONT FENDER SUPPORT, LH

main53834-12120iCDE120,ZZE12#..JPP200310-200405

53878CSPACER, FRONT FENDER

main53878-12010×2iCDE120,ZZE12#..JPP200309-200405

53882PSEAL, FRONT FENDER, RH

main53882-16030×3iCDE120,ZZE12#..JPP200110-200405

53883KSEAL, FRONT FENDER, LH

main53882-16030×3iCDE120,ZZE12#..JPP200110-200405

9011906137

main90119-06137

9054115019

main90541-15019

16 parts on this diagram · 2 diagrams in section
