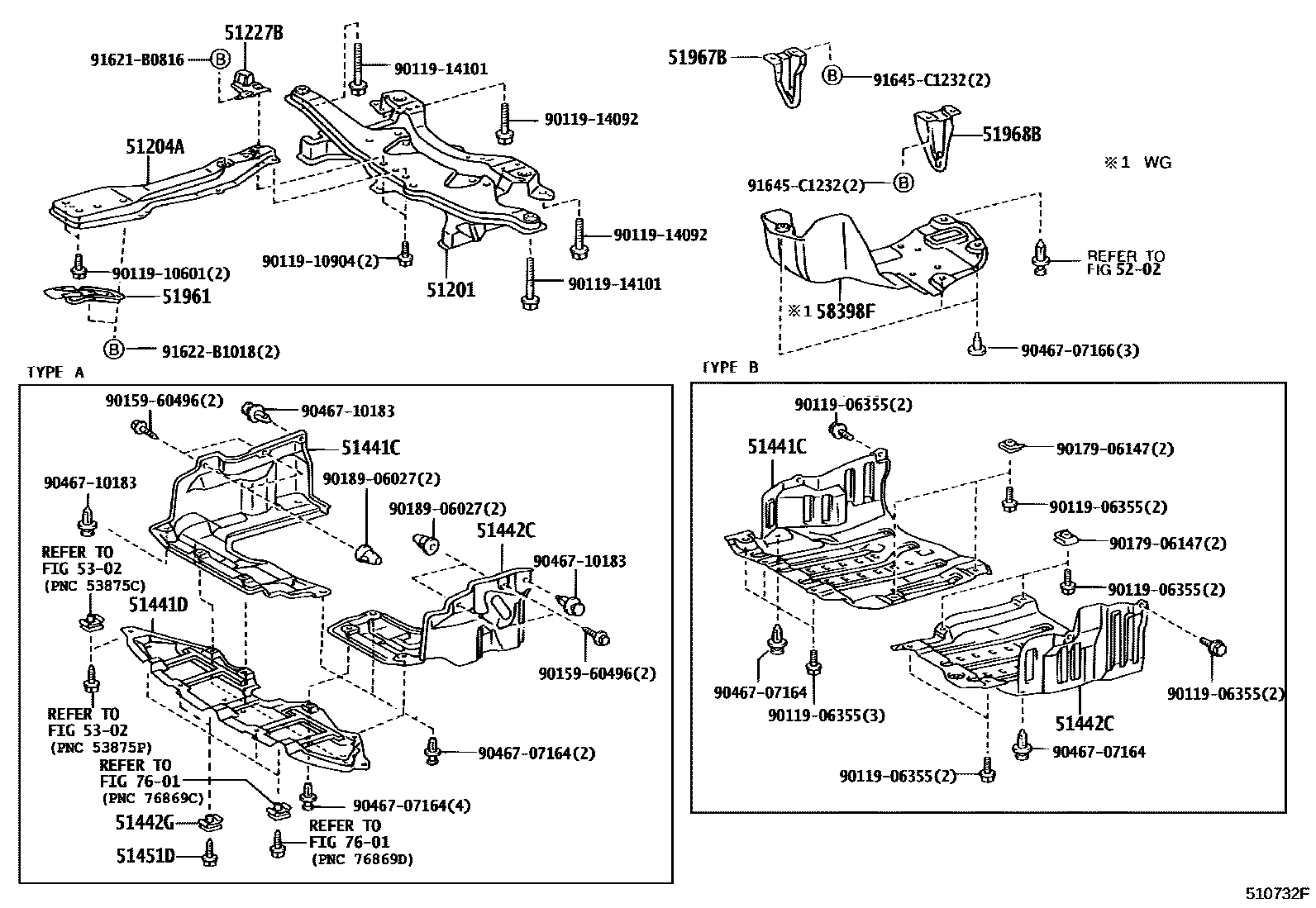

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20350iZZE120..JPP..LHD;ZZE121..JPP..LHD..SED;CDE120,ZZE121..JPP..WG200110-200303

main51201-20351iCDE120,ZZE12#..JPP..WG; ZZE12#..JPP..SED200303-200405

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12150iCDE120,ZZE12#..JPP..WG; ZZE12#..JPP..SED200110-200405

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-12080iZZE120..JPP..LHD;ZZE121..JPP..LHD..SED;CDE120,ZZE121..JPP..WG200110-200308

main51227-12081iCDE120,ZZE12#..JPP..WG; ZZE12#..JPP..SED200308-200405

51441CCOVER, ENGINE UNDER, RH

main51408-12080iZZE121..JPP..SED..4FC..SOL200110-200405

TYPE B:REFER TO ILLUSTRATION

main51410-12040iCDE120,ZZE12#..JPP..WG; ZZE12#..JPP..SED200110-200405

TYPE A:REFER TO ILLUSTRATION

main51410-12060iNDE120..JPP200408

TYPE B:REFER TO ILLUSTRATION

51441DCOVER, ENGINE UNDER

main51451-12020iCDE120,ZZE12#..JPP..WG; ZZE12#..JPP..SED200110-200405

51442CCOVER, ENGINE UNDER, LH

main51409-12060iZZE121..JPP..SED..4FC..SOL200110-200405

TYPE B:REFER TO ILLUSTRATION

main51420-12030iCDE120,ZZE12#..JPP..WG..5F; ZZE12#..JPP..SED..5F200110-200405

TYPE A:REFER TO ILLUSTRATION

main51420-12040iZZE121..JPP..SED..4FC; ZZE121..JPP..WG..4FC200110-200405

TYPE A:REFER TO ILLUSTRATION

main51420-12050iNDE120..JPP200408

TYPE B:REFER TO ILLUSTRATION

51442GCLIP, ENGINE UNDER COVER, NO.1

main90467-05138×2iCDE120,ZZE12#..JPP200110-200405

51451DSCREW, NO.1

main90159-60488×2iCDE120,ZZE12#..JPP200110-200405

51961HOOK, NO.1

main51960-13010iCDE120,ZZE12#..JPP..WG; ZZE12#..JPP..SED200110-200405

51967BHOOK, TRANSPORT, REAR RH

main51967-12270iCDE120,ZZE12#..JPP..WG; ZZE12#..JPP..SED200110-200405

51968BHOOK, TRANSPORT, REAR LH

main51968-12170iCDE120,ZZE12#..JPP..WG; ZZE12#..JPP..SED200110-200405

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

58398FCOVER, FLOOR UNDER, NO.1

main58398-02020iNDE120,ZZE12#..JPP200405

main58398-12020iCDE120,ZZE12#..JPP..WG200110-200405

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9011906355

main90119-06355

9011910601

main90119-10601

9011910904

main90119-10904

9011914092

main90119-14092

9011914101

main90119-14101

9015960496

main90159-60496

9017906147

main90179-06147

9018906027

main90189-06027

9046707164

main90467-07164

9046707166

main90467-07166

9046710183

main90467-10183

91621B0816

main91621-B0816

91622B1018

main91622-B1018

91645C1232

main91645-C1232

29 parts on this diagram · 2 diagrams in section
