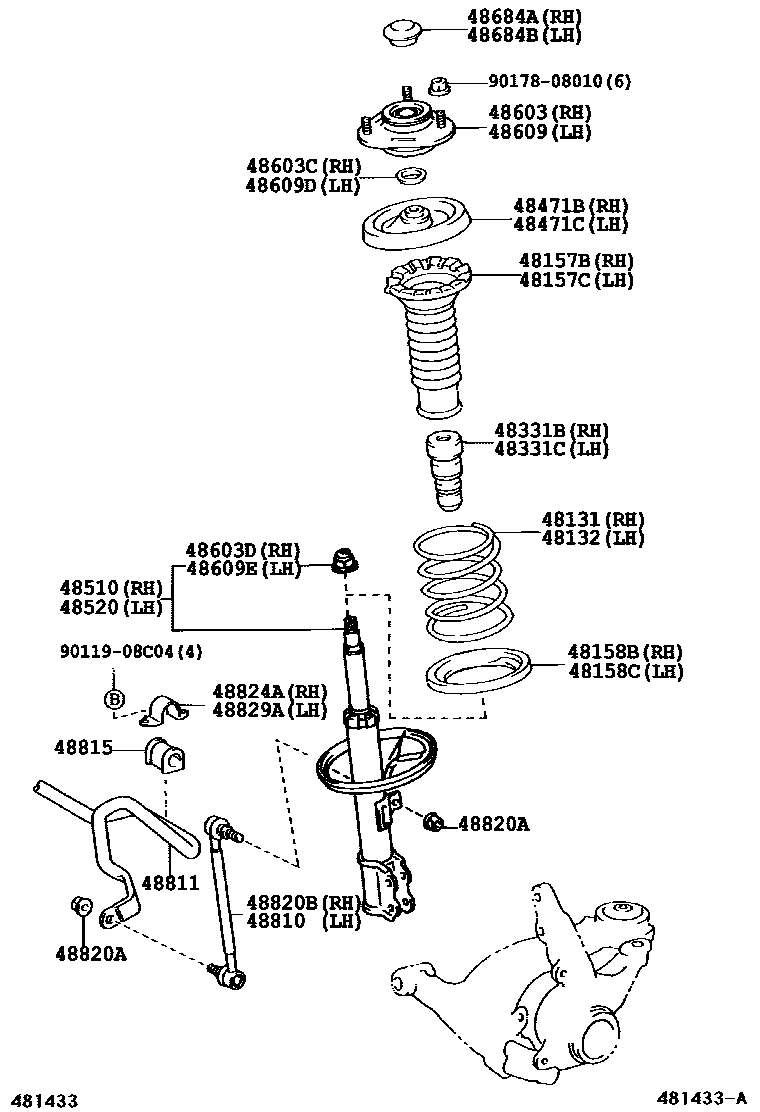

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
L=337.0,CHINA SPEC
48132SPRING, FRONT COIL, LH
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
L=337.0,CHINA SPEC
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
ROUGH ROAD PACKAGE
CHINA SPEC
48331CBUMPER, FRONT SPRING, LH
CHINA SPEC
ROUGH ROAD PACKAGE
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-1A530
MARK 48510-12A60,ROUGH ROAD PACKAGE
MARK 48510-1A411
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-1A530
MARK 48520-1A380,ROUGH ROAD PACKAGE
MARK 48520-1A271
48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011908C04
main90119-08C04
9017808010
main90178-08010
29 parts on this diagram · 1 diagram in section
