FRONT DISC BRAKE CALIPER & DUST COVER

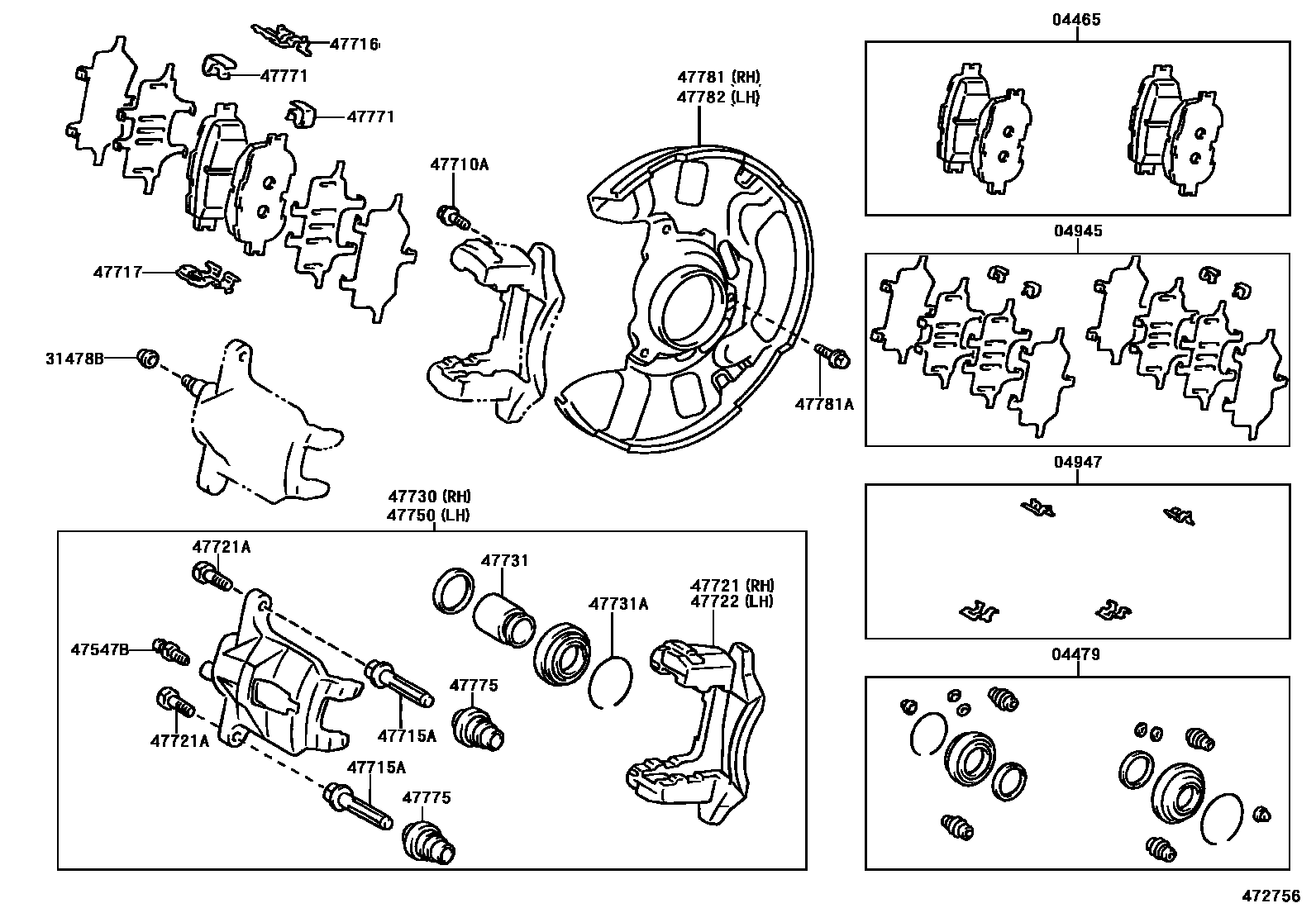

Parts diagram
04465PAD KIT, DISC BRAKE, FRONT
main04465-02130i200405
MARK TRW PAGID 648
main04465-13030i200110-200207
MARK AISIN PC553H
sub04465-2B030
main04465-13050i200110-200405
MARK AISIN PC553H
main04465-2B040i200207-200405
MARK AISIN PC553H
main04466-02110i200407
MARK NBK PN540H,ISRAEL SPEC
04479CYLINDER KIT, DISC BRAKE, FRONT
main04479-02080i200405
main04479-20320i200110-200405
sub04478-47060
main04479-20330i200110-200405
sub04478-13020
04945SHIM KIT, ANTI SQUEAL, FRONT
main04945-02070i200405
main04945-13030i200110-200405
main04945-20210i200110-200405
04947FITTING KIT, DISC BRAKE, FRONT
main04947-02050i200405
main04947-20110i200110-200405
main04947-20120i200110-200405
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
main31478-30010i200110-200405
main47548-02010i200405
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
main47547-05011i200410-200611
sub47547-05012
main47547-05012i200612
main47547-20010i200110-200405
main90080-93014i200405-200410
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
main90105-12208i200110-200405
*12-1.25PX29.5-23
47715APIN, FRONT DISC BRAKE CYLINDER SLIDE
main47715-22080i200110-200405
main47715-52010i200110-200405
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
main47716-20200i200110-200405
main47716-20210i200110-200405
47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
main47717-20100i200110-200405
main47717-20110i200110-200405
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
main47721-09060i200408-200610
sub47721-09380
main47721-09160i200405-200610
sub47721-09400
main47721-09160i200407
ISRAEL SPEC
sub47721-09400
main47721-09380i200610
main47721-09400i200610
main47721-20440i200110-200405
main47721-20450i200110-200207
main47721-20460i200207-200405
47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
main90105-08164i200110-200405
*8-1.00PX23-15
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
main47721-09090i200408-200610
sub47721-09390
main47721-09170i200407
ISRAEL SPEC
sub47721-09410
main47721-09170i200405-200610
sub47721-09410
main47721-09390i200610
main47721-09410i200610
main47722-20130i200110-200405
main47722-20140i200110-200207
main47722-20150i200207-200405
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
main47730-02100i200405-200609
sub47730-02101
main47730-02101i200610
main47730-13030i200110-200207
sub47730-20640
main47730-13050i200211-200405
main47730-20600i200110-200405
main47730-20640i200207-200211
47731PISTON, FRONT DISC BRAKE
main47731-20260i200110-200405
main47731-44010i200110-200405
sub47731-33010
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
main90520-86005i200110-200405
main90522-66001i200110-200405
47750CYLINDER ASSY, DISC BRAKE, LH
main47750-02100i200405-200609
sub47750-02101
main47750-02101i200610
main47750-13030i200110-200207
sub47750-20640
main47750-13050i200211-200405
main47750-20510i200110-200405
main47750-20640i200207-200211
47771PLATE, PAD WEAR INDICATOR, NO.1
main47771-32040i200110-200405
47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
main47775-30070i200110-200405
sub47775-50010
main47775-52010i200110-200405
sub47775-02130
47781COVER, DISC BRAKE DUST, FRONT RH
main47781-12240i200110-200405
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
main90119-06227i200110-200405
47782COVER, DISC BRAKE DUST, FRONT LH
main47782-12240i200110-200405

22 parts on this diagram · 5 diagrams in section
