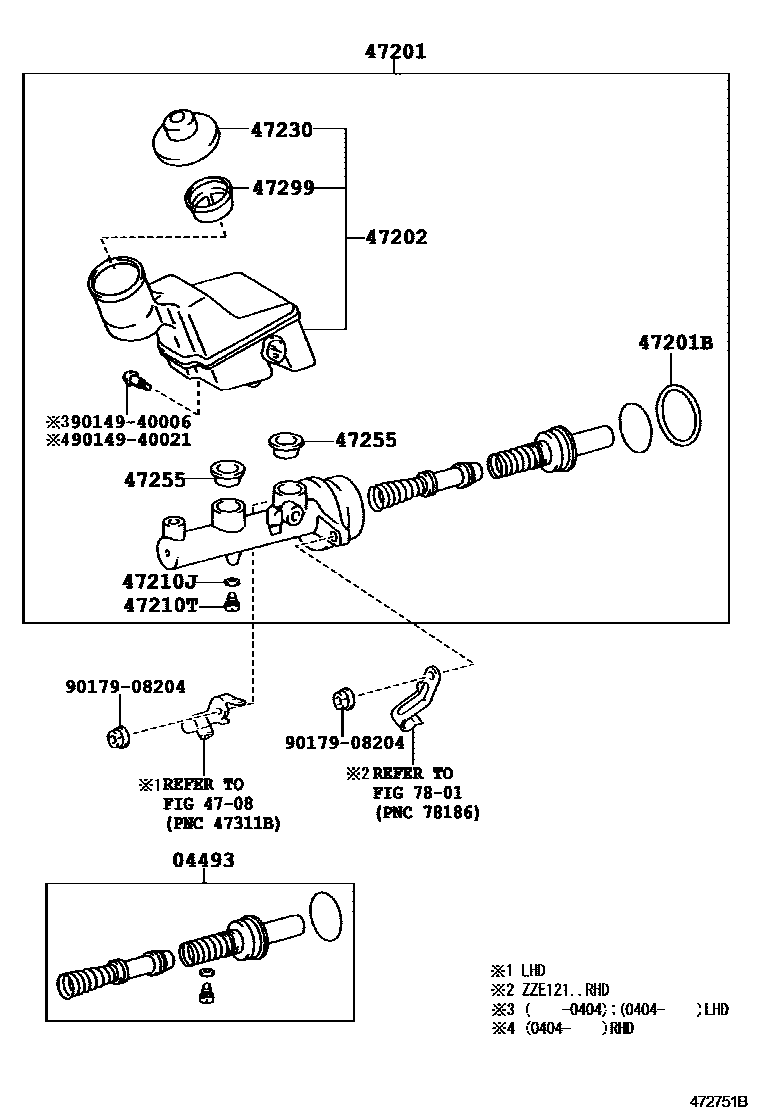

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

04493CYLINDER KIT, BRAKE MASTER

main04493-1A010iCDE120,ZZE12#..JPP200110-200405

sub04493-1A030

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09040iZZE12#..JPP..RHD200405-200610

sub47201-09270

main47201-09050iZZE12#..JPP..RHD200405-200510

W(VSC)

sub47201-09280

main47201-09060iNDE120,ZZE12#..JPP..LHD200405-200610

sub47201-09250

main47201-09070iNDE120,ZZE12#..JPP..LHD200405-200610

W(VSC)

sub47201-09260

main47201-09250iNDE120,ZZE12#..JPP..LHD200610

sub47201-09470

main47201-09260iNDE120,ZZE12#..JPP..LHD200610

W(VSC)

sub47201-09480

main47201-09270iZZE12#..JPP..RHD200610

sub47201-09420

main47201-1A340iCDE120,ZZE121..JPP..RHD200110-200405

main47201-1A360iZZE121..JPP..4FC200110-200405

main47201-1A370iCDE120,ZZE12#..JPP..LHD..5F200110-200405

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iCDE120,ZZE12#..JPP200110-200405

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09010iZZE12#..JPP..RHD200405

main47220-09020iNDE120,ZZE12#..JPP..LHD200405

main47220-12130iCDE120,ZZE121..JPP..RHD200110-200404

sub47220-12131

sub90149-40021

main47220-12131iCDE120,ZZE121..JPP..RHD200404-200405

main47220-12140iZZE121..JPP..4FC200110-200405

main47220-12150iCDE120,ZZE12#..JPP..LHD..5F200110-200405

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iCDE120,ZZE12#..JPP200112-200405

main90430-06104iCDE120,ZZE12#..JPP200110-200112

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iCDE120,ZZE12#..JPP200110-200405

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02100iNDE120,ZZE12#..JPP200405

main47230-12040iCDE120,ZZE12#..JPP200110-200405

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iCDE120,ZZE12#..JPP200110-200405

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iCDE120,ZZE12#..JPP200110-200405

7801

9014940006

main90149-40006

9014940021

main90149-40021

9017908204

main90179-08204

14 parts on this diagram · 3 diagrams in section
