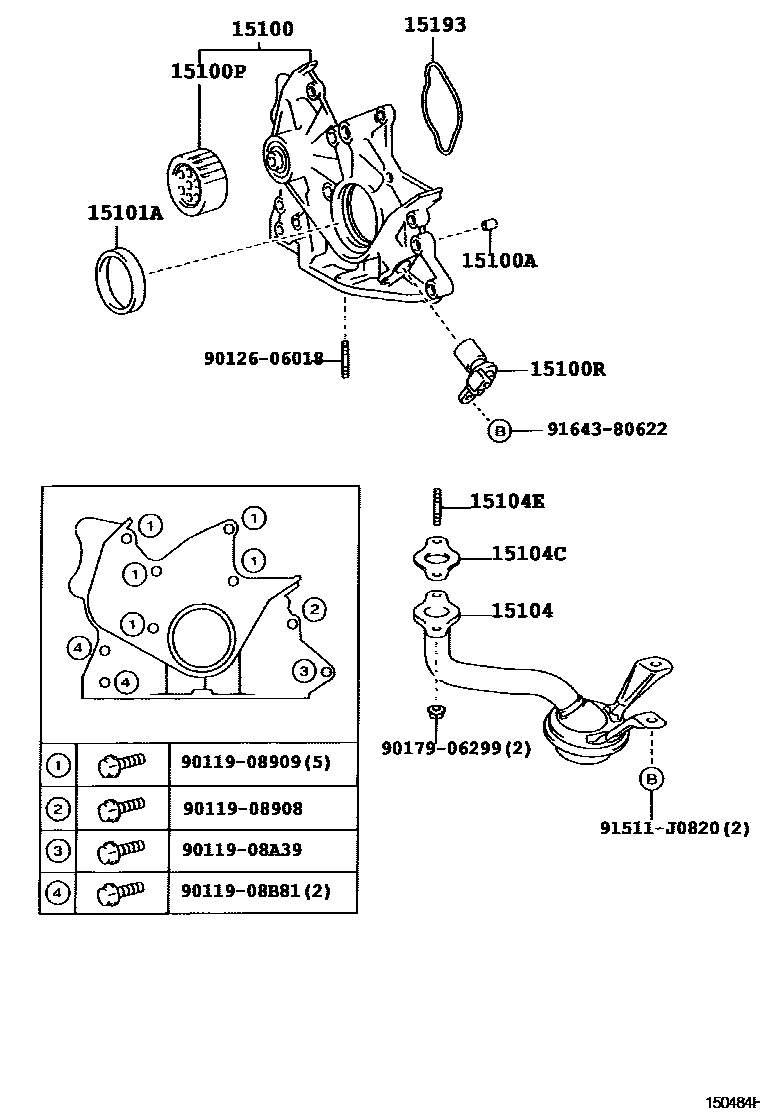

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15100PUMP ASSY, OIL

main15100-22040i3ZZFE,4ZZFE..ZZE12#..JPP200110-200206

sub15100-22041

main15100-22041i3ZZFE,4ZZFE..ZZE12#..JPP200206-200405

main15100-27030i1CDFTV..CDE120..JPP200110-200405

main15100-33040i1NDTV..NDE120..JPP200408

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003i1NDTV..NDE120..JPP200408

main90253-09003i3ZZFE,4ZZFE..ZZE12#..JPP200110-200405

main90253-11021i1CDFTV..CDE120..JPP200110-200405

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-64020i1CDFTV..CDE120..JPP200110-200405

15100RSENSOR, CRANK POSITION

main90919-05042i1CDFTV..CDE120..JPP200110-200405

15101ASEAL(FOR CRANKSHAFT)

main90311-45017i1CDFTV..CDE120..JPP200110-200405

15104STRAINER SUB-ASSY, OIL

main15104-22022i3ZZFE,4ZZFE..ZZE12#..JPP200110-200204

sub15104-22023

main15104-22023i3ZZFE,4ZZFE..ZZE12#..JPP200204-200405

main15104-27060i1CDFTV..CDE120..JPP200110-200405

main15104-33030i1NDTV..NDE120..JPP200408

15104CGASKET(FOR OIL STRAINER)

main15149-27010i1CDFTV..CDE120..JPP200110-200405

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06132i1CDFTV..CDE120..JPP200110-200405

main90126-06021i1NDTV..NDE120..JPP200408

15193GASKET, OIL PUMP

main15193-27010i1CDFTV..CDE120..JPP200110-200405

main15197-22010i3ZZFE,4ZZFE..ZZE12#..JPP200110-200405

9011908908

main90119-08908

9011908909

main90119-08909

9011908A39

main90119-08A39

9011908B81

main90119-08B81

9012606018

main90126-06018

9017906299

main90179-06299

91511J0820

main91511-J0820

9164380622

main91643-80622

17 parts on this diagram · 3 diagrams in section
