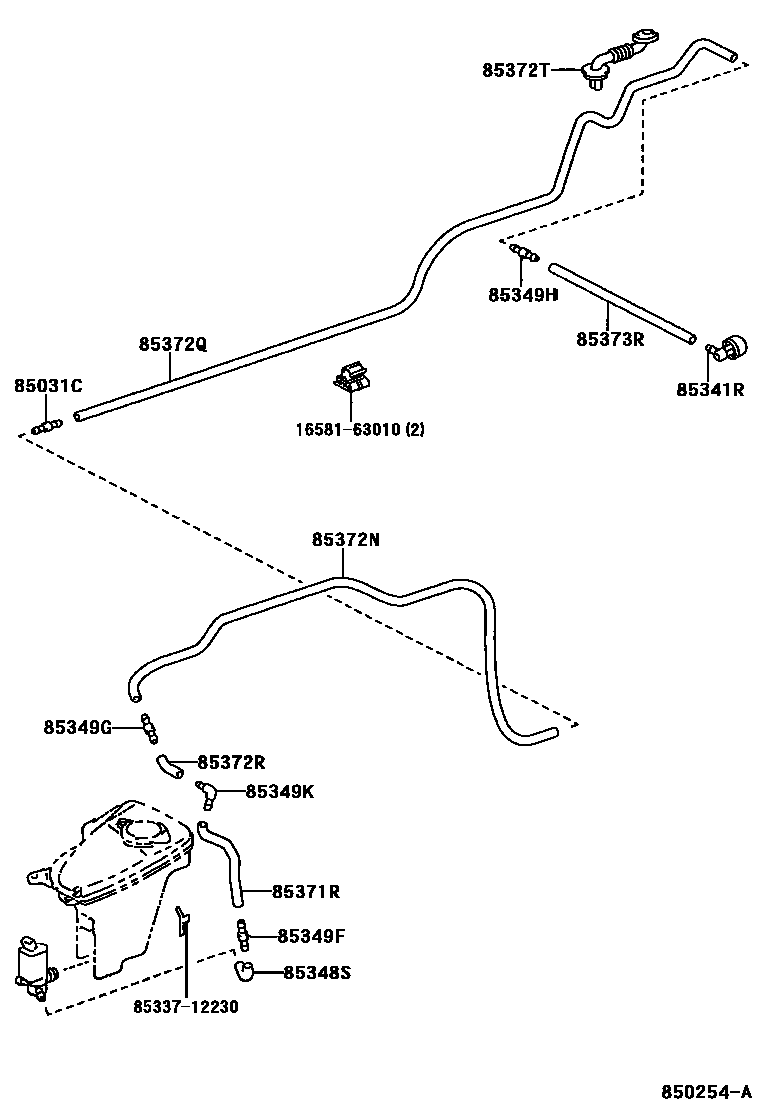

REAR WASHER
85031CVALVE SUB-ASSY, WASHER
85341RNOZZLE ASSY, WASHER
85348SJOINT, REAR WASHER ELBOW, NO.1
W(HEADLAMP CLEANER)
85349FJOINT, REAR WASHER HOSE, NO.1
W(HEADLAMP CLEANER)
85349GJOINT, REAR WASHER HOSE, NO.2
85349HJOINT, REAR WASHER HOSE, NO.3
85349KJOINT, REAR WASHER ELBOW, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=55),W(HEADLAMP CLEANER)
L=1450(*H,L=55)
L=1800(*H,L=130)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1800(*H,L=1520)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=4985(*H,L=3540)
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
L=1450(*H,L=70)
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=360)
1658163010CLAMP, HOSE(FOR WATER HOSE)
main16581-63010
8533712230CASE, LEVEL WARNING SWITCH
main85337-12230
15 parts on this diagram · 1 diagram in section
