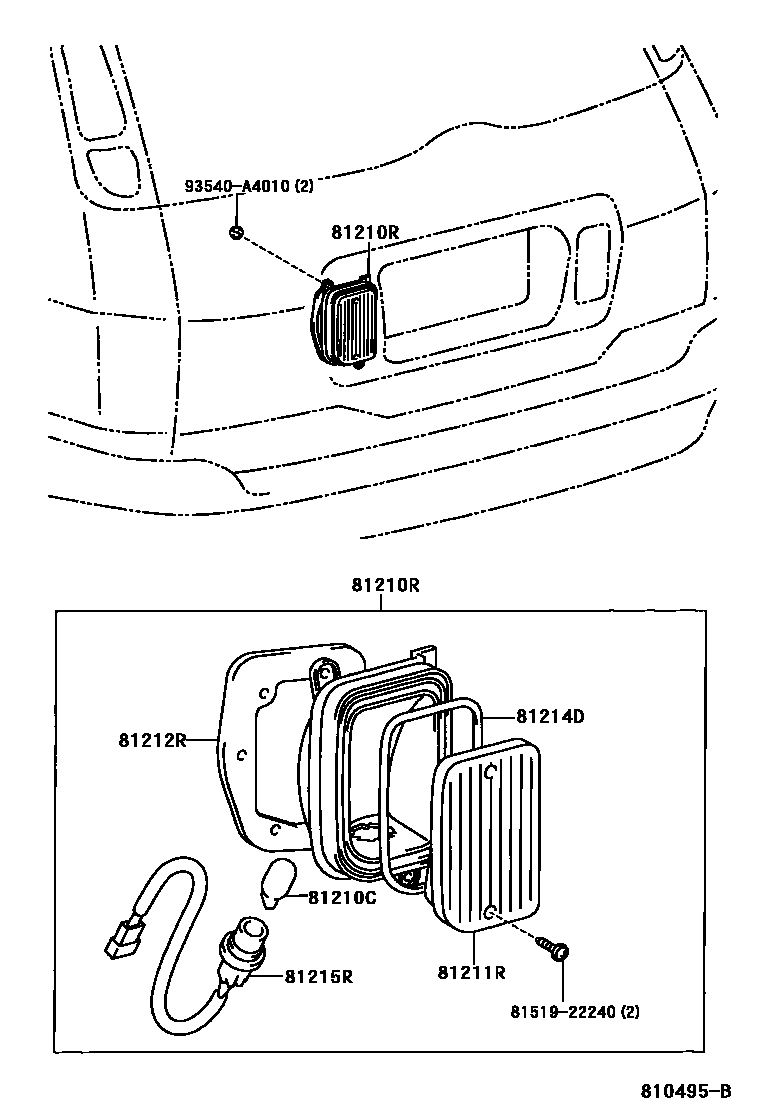

REAR FOG LAMP

81210CBULB, REAR FOG LAMP

main90981-13043iAE11#,CE110,EE111..WG199704-200109

12V 21W

81210RLAMP ASSY, REAR FOG

main81210-13060iAE111,CE110,EE111..RHD..WG199704-200107

RH

main81210-13070iAE115,CDE110,WZE110,ZZE11#..LHD..WG199704-200109

RH

main81220-13060iAE11#,CE110,EE111..LHD..WG199704-200109

LH

main81220-13070iAE111,CE110,EE111..RHD..WG199704-200107

LH

81211RLENS, REAR FOG LAMP

main81211-13060iAE11#,CE110,EE111..WG199704-200109

RH

main81221-13060iAE115,CDE110,WZE110,ZZE11#..WG199704-200109

LH

81212RGASKET, REAR FOG LAMP, NO.1

main81212-13060iAE115,CDE110,WZE110,ZZE11#..WG199704-200109

81214DGASKET, REAR FOG LAMP BODY

main81214-13060iAE115,CDE110,WZE110,ZZE11#..WG199704-200109

81215RSOCKET & WIRE, REAR FOG LAMP

main81215-13060iCDE110,WZE110,ZZE11#..RHD..WG199704-200107

main81215-13060iAE115,ZZE11#..LHD..WG199910-200109

RH

main81225-13060iAE11#,CE110,EE111..LHD..WG199704-200109

sub81215-13060

8151922240BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-22240

93540A4010

main93540-A4010

8 parts on this diagram · 1 diagram in section
