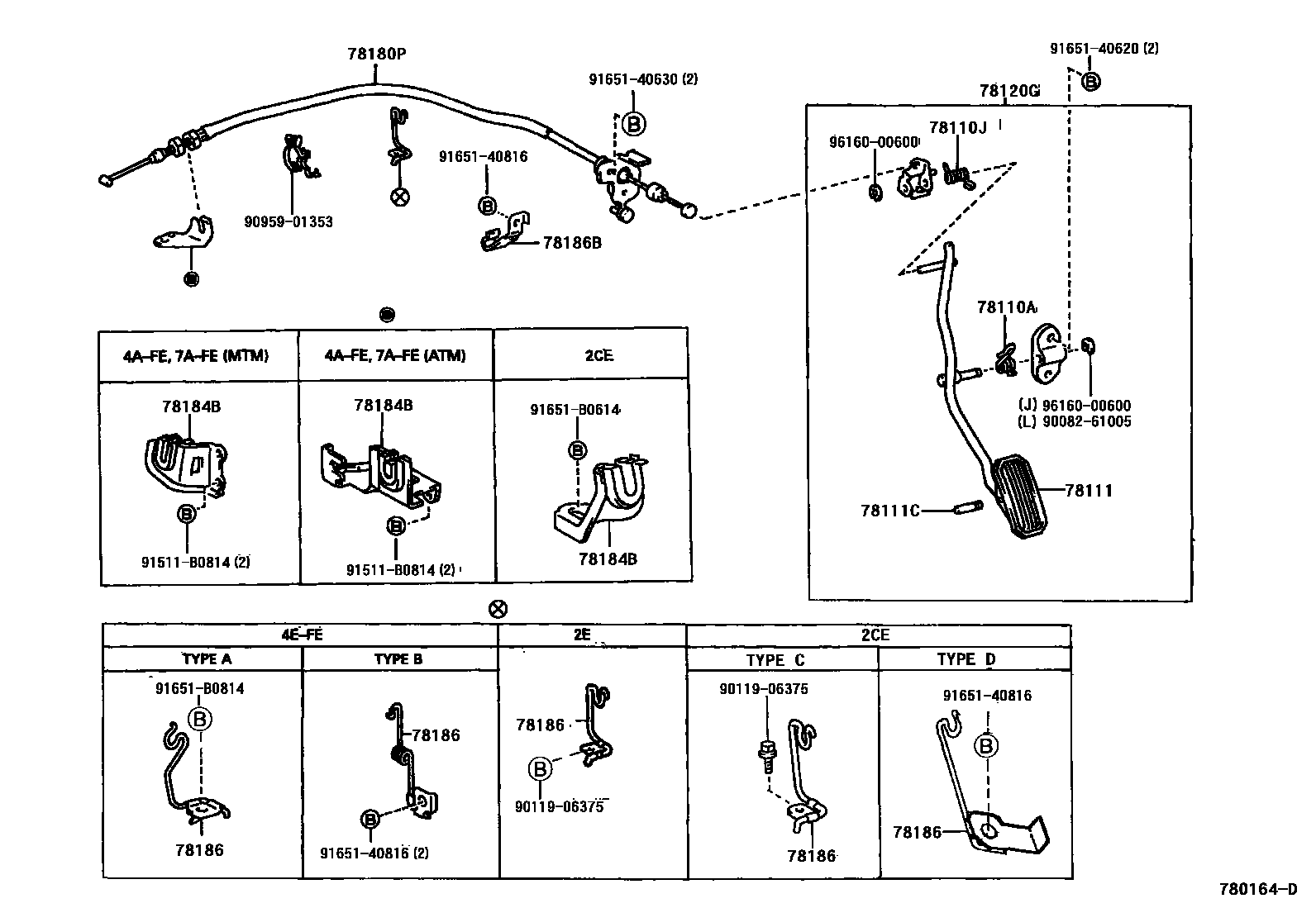

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iAE115..SOL;EE110,WZE110199704-200107

main90508-26036iZZE11#199704-200109

main90959-03195iCDE110..RHD200008-200107

TYPE A:REFER TO ILLUSTRATION

main90959-03197iCDE110..RHD200008-200107

TYPE B:REFER TO ILLUSTRATION

78110JSPRING (FOR ACCELERATOR PEDAL ROD)

main90959-03020iAE111..4FC199704-200109

main90959-03277iWZE110..LHD200001-200107

main90959-03278iWZE110..RHD200001-200107

78111PEDAL, ACCELERATOR

main78111-20060iAE115,CDE110,EE110,WZE110,ZZE11#..LHD199910-200109

main78111-32010iCDE110,WZE110,ZZE11#..RHD199910-200107

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iCDE110,WZE110,ZZE11#..RHD199704-200107

main90254-04019iAE115,CDE110,EE110,WZE110,ZZE11#..LHD199910-200109

78120GROD ASSY, ACCELERATOR PEDAL

main78010-12130iCDE110..RHD200008-200107

main78010-12160iCDE110..LHD200008-200109

main78120-12150iCE110,EE111..RHD..5F199704-200107

main78120-12160iAE111..RHD;EE111..RHD..3FC199704-199910

main78120-12201iZZE11#..LHD..5F199704-200109

main78120-12221iAE111..4FC199704-199910

main78120-12230iEE111..LHD..3FC;AE11#,CE110,EE110..LHD..5F199704-200107

main78120-12260iZZE112..4FC199910-200109

main78120-12270iWZE110..RHD200001-200107

main78120-12280iWZE110..LHD200001-200107

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-1A420iAE111..RHD199704-199910

main78180-1A520iAE115199704-200107

main78180-1A590iEE110199704-200107

main78180-1A610iCE110..RHD199704-199910

main78180-1A620iCE110..LHD199704-199910

main78180-1A630iEE111..LHD199704-199910

main78180-1A640iEE111..RHD199704-199910

main78180-1A670iZZE11#..RHD199910-200107

main78180-1A680iWZE110..RHD200001-200003

main78180-1A681iWZE110..RHD200003-200107

main78180-1A690iZZE11#..LHD199910-200109

main78180-1A700iWZE110..LHD200001-200003

main78180-1A701iWZE110..LHD200003-200107

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78024-12030iCE110199704-199910

main78024-12041iAE111..4FC199704-199910

main78024-12050iAE11#..LHD..5F199704-200107

main78184-12280iAE111..RHD199704-199910

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78183-12180iCE110199704-199910

TYPE C:REFER TO ILLUSTRATION

main78183-12190iCE110..LHD199704-199910

TYPE D:REFER TO ILLUSTRATION

main78186-12170iEE110199704-200107

main78186-12290iAE111..RHD199704-199910

main78186-12350iZZE11#..RHD199910-200107

main78186-12360iWZE110..RHD200001-200107

main78186-16150iEE111..LHD199704-199910

TYPE B:REFER TO ILLUSTRATION

78186BSUPPORT, ACCELERATOR CONTROL CABLE NO.2

main78186-12320iCE110..LHD199704-199910

sub78186-12480

main78186-12330iEE111..LHD..(STD,TERRA)199704-199910

TYPE A:REFER TO ILLUSTRATION

main78186-12330iEE111..LUNA199808-199910

9008261005

main90082-61005

9011906375

main90119-06375

9095901353

main90959-01353

91511B0814

main91511-B0814

9165140620

main91651-40620

9165140630

main91651-40630

9165140816

main91651-40816

91651B0614

main91651-B0614

91651B0814

main91651-B0814

9616000600

main96160-00600

19 parts on this diagram · 6 diagrams in section
