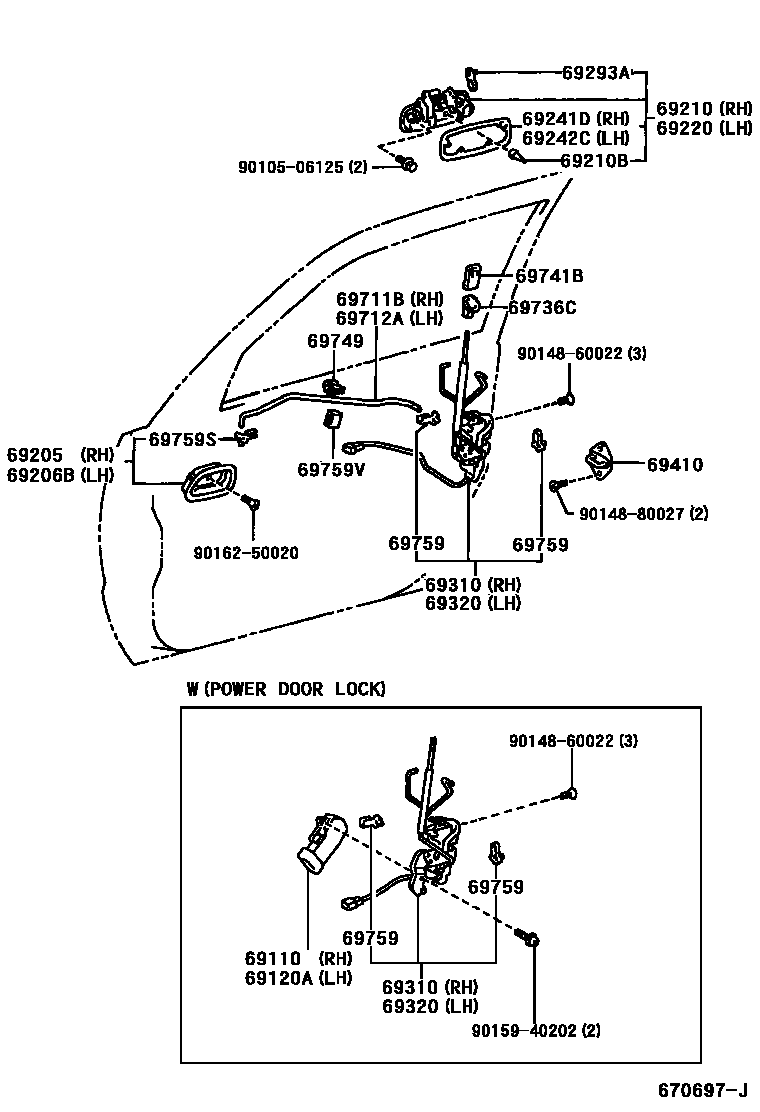

FRONT DOOR LOCK & HANDLE

0001 1 0002 1W(DOUBLE LOCK)

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-12030iCDE110,WZE110,ZZE11#..RHD..TERRA199704-200107

main69110-12040iAE11#,CE110,EE11#..LHD..(LUNA,TERRA)199704-200109

main69110-12050iCDE110,WZE110,ZZE11#..RHD199910-200107

W(DOUBLE-LOCK)

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-12030iAE111,CE110,EE111..RHD199704-200107

main69120-12040iAE115..SOL;CDE110,EE110,WZE110,ZZE11#..LHD..(SOL,TERRA)199704-200109

main69120-12050iCDE110,WZE110,ZZE11#..RHD199910-200107

W(DOUBLE-LOCK)

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12160-A0iEE110199704-199910

IVORY,TRIM0#

sub69205-12160

main69205-12160-B0iEE110199808-199910

SHADOW GRAY,TRIM12

sub69205-12160

main69205-12160-B1iEE111..STD199808-199910

MD.CHARCOAL,TRIM10

sub69205-12160

main69205-12160-B1iEE110199704-199910

MD.CHARCOAL,TRIM1#

sub69205-12160

main69205-12180-B0iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA199910-200109

SHADOW GRAY,TRIM16

sub69205-12180

main69205-12180-B1iZZE111..STD199910-200109

MD.CHARCOAL,TRIM11

sub69205-12180

main69205-12180-B1iZZE111..STD199910-200109

MD.CHARCOAL,TRIM1#

sub69205-12180

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12160-A0iEE110199704-199910

IVORY,TRIM0#

sub69206-12160

main69206-12160-B0iEE110199808-199910

SHADOW GRAY,TRIM12

sub69206-12160

main69206-12160-B1iEE110199808-199910

MD.CHARCOAL,TRIM10

sub69206-12160

main69206-12160-B1iEE110199704-199910

MD.CHARCOAL,TRIM1#

sub69206-12160

main69206-12180-B0iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA199910-200109

SHADOW GRAY,TRIM16

main69206-12180-B1iZZE111..STD199910-200109

MD.CHARCOAL,TRIM1#

main69206-12180-B1iZZE111..STD199910-200109

MD.CHARCOAL,TRIM11

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12280iEE110,ZZE11#..STD,TERRA199704-200109

BLACK

main69210-12280iCDE110,WZE110..TERRA200001-200109

main69210-12290-A0iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA199808-200109

SUPER WHITE 2,040

sub69210-12290

main69210-12290-B3iAE11#,CE110,EE111..LUNA,TERRA199808-200109

SILVER ME,199

sub69210-12290

main69210-12290-C0iAE11#,CE110,EE111..WG199808-200109

BLACK ME,205

sub69210-12290

main69210-12290-D1iAE11#,CE110,EE111..LUNA,TERRA199808-199910

CORAL REEF M.M.,3L6

sub69210-12290

main69210-12290-D4iAE11#,CE110,EE111..LUNA,TERRA199808-200109

SUPER RED II,3E5

sub69210-12290

main69210-12290-D6iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA199910-200109

RED M.M.,3N8

sub69210-12290

main69210-12290-G1iAE11#,CE110,EE111..LUNA,TERRA199808-199910

GREEN M.M.,6P5

sub69210-12290

main69210-12290-G8iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA199910-200109

GREEN MC.,6R8

sub69210-12290

main69210-12290-J2iAE11#,CE110,EE111..LUNA,TERRA199808-200109

BLUE M.M.,8L5

sub69210-12290

main69210-12290-J3iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199808-200109

DK.BLUE,8M4

sub69210-12290

main69210-12290-K1iAE11#,CE110,EE111..LUNA,TERRA199808-199910

VIOLET M.M.,944

sub69210-12290

main69210-12290-R0iAE111,CE110,EE111..SED..(LUNA,TERRA)199906-200109

DK.BLUE M.M.,8L3

sub69210-12290

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04018iAE11#,CE110,EE11#199704-200109

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-12280iCDE110,WZE110..TERRA200001-200109

main69220-12280iEE110,ZZE11#..STD,TERRA199704-200109

BLACK

main69220-12290-A0iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA199808-200109

SUPER WHITE 2,040

sub69220-12290

main69220-12290-B3iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA199808-200109

SILVER ME,199

sub69220-12290

main69220-12290-C0iAE115,CDE110,WZE110,ZZE11#..WG199808-200109

BLACK ME,205

sub69220-12290

main69220-12290-D1iAE11#,CE110,EE111..LUNA,TERRA199808-199910

CORAL REEF M.M.,3L6

sub69220-12290

main69220-12290-D4iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA199808-200109

SUPER RED II,3E5

sub69220-12290

main69220-12290-D6iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA199910-200109

RED M.M.,3N8

sub69220-12290

main69220-12290-G1iAE11#,CE110,EE111..LUNA,TERRA199808-199910

GREEN M.M.,6P5

sub69220-12290

main69220-12290-G8iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA199910-200109

GREEN MC.,6R8

sub69220-12290

main69220-12290-J2iAE11#,CE110,EE111..LUNA,TERRA199808-200109

BLUE M.M.,8L5

sub69220-12290

main69220-12290-J3iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199808-200109

DK.BLUE,8M4

sub69220-12290

main69220-12290-K1iAE11#,CE110,EE111..LUNA,TERRA199808-199910

VIOLET M.M.,944

sub69220-12290

main69220-12290-R0iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA199906-200109

DK.BLUE M.M.,8L3

sub69220-12290

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main69241-12100iAE11#,CE110,EE11#199704-200109

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main69242-12050iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iAE11#,CE110,EE11#199704-200109

RH

main69293-12040iAE11#,CE110,EE11#199704-200109

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-12550iAE111,CE110,EE11#..STD,TERRA199704-200109

main69310-12600iAE111,CE110,EE111..RHD199704-200107

W(POWER DOOR LOCK)

main69310-12610iAE11#,CE110,EE11#..LHD..TERRA199704-200109

W(POWER DOOR LOCK)

main69310-12610iCDE110..SOL200008-200109

main69310-12640iCDE110,WZE110,ZZE11#..RHD199910-200107

W(DOUBLE-LOCK)

69320LOCK ASSY, FRONT DOOR, LH

main69320-12560iAE111,CE110,EE11#..STD,TERRA199704-200109

main69320-12590iAE111,CE110,EE111..RHD199704-200107

W(POWER DOOR LOCK)

main69320-12610iAE11#,CE110,EE11#..LHD..TERRA199704-200109

W(POWER DOOR LOCK)

main69320-12610iCDE110..SOL200008-200109

main69320-12640iCDE110,WZE110,ZZE11#..RHD199910-200107

W(DOUBLE-LOCK)

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-12170iAE11#,CE110,EE11#199704-200109

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-12180iAE11#,CE110,EE11#199704-200109

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-12121iAE11#,CE110,EE11#199704-200109

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-12040-A0iEE110199704-199910

IVORY,TRIM0#

sub69741-12040

main69741-12040-B0iEE110199808-199910

SHADOW GRAY,TRIM12

sub69741-12040

main69741-12040-B0iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA199910-200109

SHADOW GRAY,TRIM16

sub69741-12040

main69741-12040-B3iAE11#,CE110,EE11#..LUNA,TERRA199704-200109

MD.CHARCOAL,TRIM1#

sub69741-12040

main69741-12040-B3iEE111..STD199808-199910

MD.CHARCOAL,TRIM10

sub69741-12040

main69741-12040-B3iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA199910-200109

MD.CHARCOAL,TRIM11

sub69741-12040

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12070iAE11#,CE110,EE11#199704-200109

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20040iAE11#,CE110,EE11#199704-200109

YELLOW

main69759-20050iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

BROWN

main69759-24010iAE11#,CE110,EE11#199704-200109

NATURAL

main69759-24020iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

BLUE

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-22040iAE11#,CE110,EE11#199704-200109

LH

main69759-22050iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

RH

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-14010iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

80 X 40

main69759-20390iAE11#,CE110,EE11#199704-200109

60 X 40

9010506125

main90105-06125

9014860022

main90148-60022

9014880027

main90148-80027

9015940202

main90159-40202

9016250020

main90162-50020

26 parts on this diagram · 2 diagrams in section
