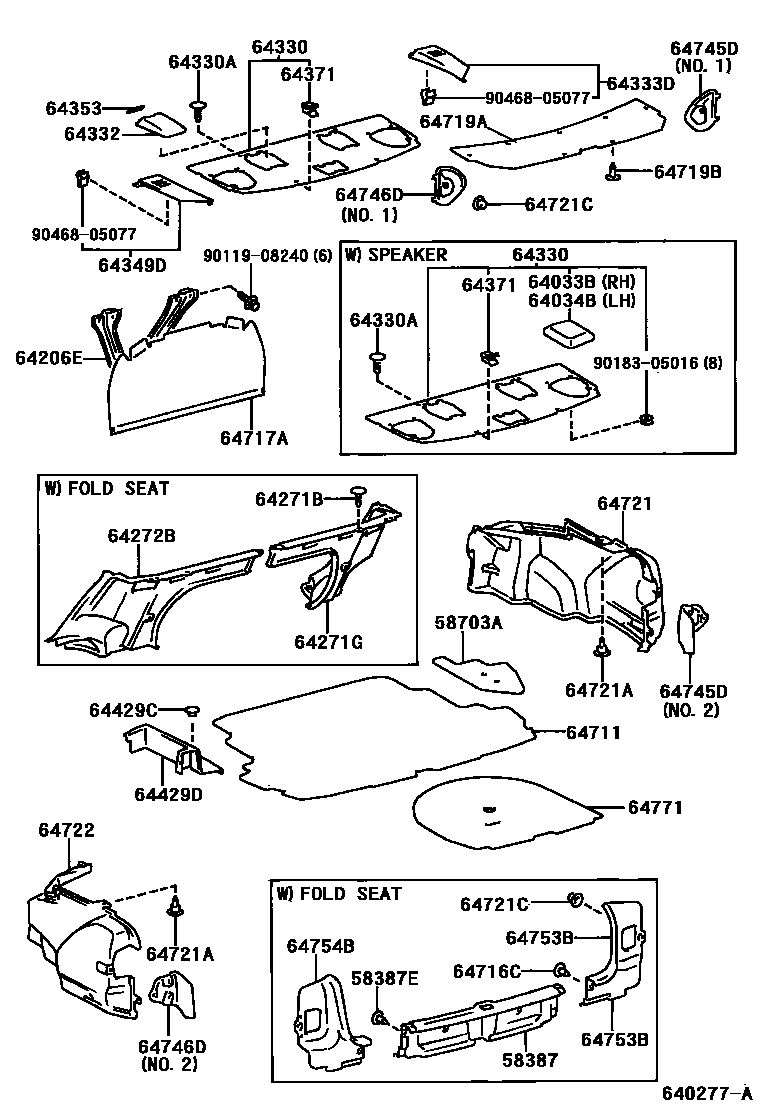

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-12050-B0iEE110199901-199910

SHADOW GRAY,TRIM0#,10,12

main58387-12050-B0iAE111,CE110,EE11#..SED..(LUNA,TERRA)199704-199901

SHADOW GRAY,TRIM0#,1#

main58387-12050-B0iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM11,16

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-05096-22iEE110199704-199901

BLACK,TRIM0#,1#

sub90467-05096

main90467-05096-22iEE110199901-199910

BLACK,TRIM0#,10,12

sub90467-05096

main90467-05096-22iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

BLACK,TRIM11,16

sub90467-05096

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-12080iCDE110,EE110,WZE110,ZZE11#..SED199704-200109

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64383-12160-A0iEE110199704-199910

IVORY,TRIM0#

main64383-12160-B0iAE111,CE110,EE11#..SED..(LUNA,TERRA)199901-199910

SHADOW GRAY,TRIM1#

main64383-12160-B0iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM16

main64383-12160-B2iZZE111..STD199704-200109

MD.CHARCOAL,TRIM1#

main64383-12160-B2iZZE111..STD199910-200109

MD.CHARCOAL,TRIM11

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64384-12080-A0iEE110199704-199910

IVORY,TRIM0#

sub64384-12080

main64384-12080-B0iAE111,CE110,EE11#..SED..(LUNA,TERRA)199901-199910

SHADOW GRAY,TRIM1#

sub64384-12080

main64384-12080-B0iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM16

sub64384-12080

main64384-12080-B2iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199704-200109

MD.CHARCOAL,TRIM1#

sub64384-12080

main64384-12080-B2iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

MD.CHARCOAL,TRIM11

sub64384-12080

64206EPANEL SUB-ASSY, ROOM PARTITION

main64206-12010iCDE110,EE110,WZE110,ZZE11#..SED..(STD,TERRA)199704-200109

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-05020-01iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

BLACK,TRIM11,16

sub90467-05020

sub90467-05027

main90467-05020-22iAE111,CE110,EE11#..SED..(LUNA,TERRA)199808-199901

GRAPHITE,TRIM1#

sub90467-05020

sub90467-05027

main90467-05020-22iEE110199901-199910

GRAPHITE,TRIM10,12

sub90467-05020

sub90467-05027

main90467-05020-A4iEE110199705-199910

IVORY,TRIM0#

sub90467-05020

sub90467-05027

main90467-05020-B1iEE110199901-199910

SHADOW GRAY,TRIM12

sub90467-05020

sub90467-05027

main90467-05020-B1iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM16

sub90467-05020

sub90467-05027

main90467-05020-B7iEE110199704-200109

MD.CHARCOAL,TRIM1#

sub90467-05020

sub90467-05027

main90467-05020-B7iZZE111..STD199910-200109

MD.CHARCOAL,TRIM11

sub90467-05020

sub90467-05027

64271GBOARD, ROOM PARTITION, RH

main64271-12170-A0iEE110199704-199910

IVORY,TRIM0#

main64271-12170-B0iAE111,CE110,EE11#..SED..(LUNA,TERRA)199901-199910

SHADOW GRAY,TRIM1#

main64271-12170-B0iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM16

main64271-12170-B1iEE110199704-199910

MD.CHARCOAL,TRIM1#

main64271-12170-B1iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

MD.CHARCOAL,TRIM11

64272BBOARD, ROOM PARTITION, LH

main64272-12100-A0iEE110199704-199910

IVORY,TRIM0#

main64272-12100-B0iEE110199901-199910

SHADOW GRAY,TRIM12

main64272-12100-B0iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM16

main64272-12100-B1iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

MD.CHARCOAL,TRIM11

main64272-12100-B1iEE110199704-199901

MD.CHARCOAL,TRIM1#

main64272-12100-B1iEE110199901-199910

MD.CHARCOAL,TRIM10

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-1A890-A0iEE110199704-199910

W(HIGH MOUNT STOP LAMP;IN ROOM & 3POINT REAR CENTER SEAT BELT),IVORY,TRIM0#

main64330-1A890-A0iAE111,EE111..SED..LUNA199808-199910

IVORY,TRIM0#

main64330-1A890-B0iEE110199704-200109

W(HIGH MOUNT STOP LAMP;IN ROOM & 3POINT REAR CENTER SEAT BELT),DK. CHARCOAL,TRIM1#

main64330-1A890-B0iZZE111..STD199910-200109

W(HIGH MOUNT STOP LAMP;IN ROOM & 3POINT REAR CENTER SEAT BELT),DK. CHARCOAL,TRIM11

main64330-1A890-B0iCDE110..SED..TERRA;ZZE112..SED..4FC..SOL200005-200109

DK. CHARCOAL,TRIM11

main64330-1A890-B1iEE110,WZE110,ZZE11#..SED..TERRA199910-200109

W(HIGH MOUNT STOP LAMP;IN ROOM & 3POINT REAR CENTER SEAT BELT),SHADOW GRAY,TRIM16

main64330-1A890-B1iAE111,CE110,EE11#..SED..TERRA199901-199910

W(HIGH MOUNT STOP LAMP;IN ROOM & 3POINT REAR CENTER SEAT BELT),SHADOW GRAY,TRIM1#

main64330-1A890-B1iAE111,CE110,EE11#..SED..TERRA199901-199910

SHADOW GRAY,TRIM1#

main64330-1A890-B1iCDE110..SED..TERRA;ZZE112..SED..4FC..SOL200005-200109

SHADOW GRAY,TRIM16

main64330-1E010-A0iAE111,CE110,EE11#..SED..(LUNA,TERRA)199704-199910

W(HIGH MOUNT STOP LAMP;IN ROOM & REAR SPEAKER),IVORY,TRIM0#

main64330-1E010-B0iZZE111..STD199910-200109

W(HIGH MOUNT STOP LAMP;IN ROOM & REAR SPEAKER),DK. CHARCOAL,TRIM11

main64330-1E010-B0iEE110199704-200109

W(HIGH MOUNT STOP LAMP;IN ROOM & REAR SPEAKER),DK. CHARCOAL,TRIM1#

main64330-1E010-B1iEE110199901-199910

W(HIGH MOUNT STOP LAMP;IN ROOM & REAR SPEAKER),SHADOW GRAY,TRIM1#

main64330-1E010-B1iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

W(HIGH MOUNT STOP LAMP;IN ROOM & REAR SPEAKER),SHADOW GRAY,TRIM16

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90904-67023-A0iAE111,CE110,EE11#..SED..(LUNA,TERRA)199704-199910

IVORY,TRIM0#

sub90904-67023

main90904-67023-B0iAE111,CE110,EE11#..SED199704-200109

SHADOW GRAY,TRIM1#

sub90904-67023

main90904-67023-B1iAE111,CE110,EE11#..SED199708-200109

DK.CHARCOAL,TRIM1#

sub90904-67023

64332COVER, PACKAGE TRAY TRIM

main64332-12440-A1iEE110199704-199910

IVORY,TRIM0#

sub64332-12440

main64332-12440-B1iEE110199704-200109

DK.CHARCOAL,TRIM1#

sub64332-12440

main64332-12440-B1iZZE111..STD199910-200109

DK.CHARCOAL,TRIM11

sub64332-12440

main64332-12440-B2iAE111,CE110,EE11#..SED..(LUNA,TERRA)199901-199910

SHADOW GRAY,TRIM1#

sub64332-12440

main64332-12440-B2iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM16

sub64332-12440

64333DCOVER, PACKAGE TRAY TRIM SIDE, RH

main64333-12110-A0iAE111,CE110,EE11#..SED..(LUNA,TERRA)199704-199910

IVORY,TRIM0#

sub64333-12110

main64333-12110-B0iEE110199901-199910

SHADOW GRAY,TRIM1#

sub64333-12110

main64333-12110-B0iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM16

sub64333-12110

main64333-12110-B2iEE110199704-200109

MD.CHARCOAL,TRIM1#

sub64333-12110

main64333-12110-B2iZZE111..STD199910-200109

MD.CHARCOAL,TRIM11

sub64333-12110

64349DCOVER, PACKAGE TRAY TRIM SIDE, LH

main64349-12070-A0iEE110199704-199910

IVORY,TRIM0#

sub64349-12070

main64349-12070-B0iAE111,CE110,EE11#..SED..(LUNA,TERRA)199901-199910

SHADOW GRAY,TRIM1#

sub64349-12070

main64349-12070-B0iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM16

sub64349-12070

main64349-12070-B2iAE111,CE110,EE11#..SED199704-200109

MD.CHARCOAL,TRIM1#

sub64349-12070

main64349-12070-B2iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

MD.CHARCOAL,TRIM11

sub64349-12070

64353COVER, PACKAGE TRAY TRIM BELT HOLE

main64353-12090-A0iAE111,CE110,EE11#..SED..(LUNA,TERRA)199704-199910

IVORY,TRIM0#

sub64353-12090

main64353-12090-B0iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199704-200109

MD.CHARCOAL,TRIM1#

sub64353-12090

main64353-12090-B0iZZE111..STD199910-200109

MD.CHARCOAL,TRIM11

sub64353-12090

main64353-12090-B1iEE110199901-199910

SHADOW GRAY,TRIM1#

sub64353-12090

main64353-12090-B1iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM16

sub64353-12090

64371RETAINER, PACKAGE TRAY TRIM

main64371-16010iAE111,CE110,EE11#..SED199704-200109

64429CCLIP(FOR LUGGAGE COMPARTMENT SIDE TRAY)

main90467-09156-C0iEE110199704-199901

BLACK,TRIM0#,1#

main90467-09156-C0iEE110199901-199910

BLACK,TRIM0#,10,12

main90467-09156-C0iZZE111..STD199704-200109

BLACK,TRIM1#

main90467-09156-C0iZZE111..STD199910-200109

BLACK,TRIM11,16

64429DTRAY, LUGGAGE COMPARTMENT SIDE

main64429-12010-B0iEE110199704-199901

SHADOW GRAY,TRIM0#,1#

main64429-12010-B0iEE110199901-199910

SHADOW GRAY,TRIM0#,10,12

main64429-12010-B0iZZE111..STD199704-200109

SHADOW GRAY,TRIM1#

main64429-12010-B0iZZE111..STD199910-200109

SHADOW GRAY,TRIM11,16

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-12370-B0iEE110199901-199910

SHADOW GRAY,TRIM0#,10,12

main64711-12370-B0iEE110199704-199901

SHADOW GRAY,TRIM0#,1#

main64711-12370-B0iZZE111..STD199704-200109

SHADOW GRAY,TRIM1#

main64711-12370-B0iZZE111..STD199910-200109

SHADOW GRAY,TRIM11,16

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05096-22iEE110199704-199901

BLACK,TRIM0#,1#

sub90467-05096

main90467-05096-22iAE111,CE110,EE11#..SED..(LUNA,TERRA)199901-199910

BLACK,TRIM0#,10,12

sub90467-05096

main90467-05096-22iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

BLACK,TRIM11,16

sub90467-05096

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-12090-C0iZZE111..STD199704-200109

BLACK,TRIM1#

main64717-12090-C0iAE111,CE110,EE11#..SED..TERRA199901-199910

BLACK,TRIM0#,10,12

main64717-12090-C0iAE111,CE110,EE11#..SED..TERRA199704-199901

BLACK,TRIM0#,1#

main64717-12090-C0iCDE110,EE110,WZE110,ZZE11#..SED..TERRA199910-200109

BLACK,TRIM11,16

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-12090-B0iEE110199704-199901

SHADOW GRAY,TRIM0#,1#

main64719-12090-B0iEE110199901-199910

SHADOW GRAY,TRIM0#,10,12

main64719-12090-B0iZZE111..STD199704-200109

SHADOW GRAY,TRIM1#

main64719-12090-B0iZZE111..STD199910-200109

SHADOW GRAY,TRIM11,16

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-05096-22iZZE111..STD199704-200109

BLACK,TRIM1#

sub90467-05096

main90467-05096-22iAE111,CE110,EE11#..LHD..SED..(LUNA,TERRA)199901-199910

BLACK,TRIM0#,10,12

sub90467-05096

main90467-05096-22iAE111,CE110,EE11#..LHD..SED..(LUNA,TERRA)199704-199901

BLACK,TRIM0#,1#

sub90467-05096

main90467-05096-22iCDE110,EE110,WZE110,ZZE11#..LHD..SED..(SOL,TERRA)199910-200109

BLACK,TRIM11,16

sub90467-05096

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-12190-B0iAE111,CE110,EE11#..SED..(LUNA,TERRA)199901-199910

SHADOW GRAY,TRIM0#,10,12

main64721-12190-B0iEE111..STD199704-200109

SHADOW GRAY,TRIM1#

main64721-12190-B0iAE111,CE110,EE11#..SED..(LUNA,TERRA)199704-199901

SHADOW GRAY,TRIM0#,1#

main64721-12190-B0iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM11,16

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05096-22iEE110199704-199901

BLACK,TRIM0#,1#

sub90467-05096

main90467-05096-22iEE110199901-199910

BLACK,TRIM0#,10,12

sub90467-05096

main90467-05096-22iZZE111..STD199704-200109

BLACK,TRIM1#

sub90467-05096

main90467-05096-22iZZE111..STD199910-200109

BLACK,TRIM11,16

sub90467-05096

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-05131-C0iAE111,CE110,EE11#..SED..TERRA199704-199901

BLACK,TRIM0#,1#

main90467-05131-C0iEE111..STD199704-200109

BLACK,TRIM1#

main90467-05131-C0iEE110199901-199910

W(FOLDING REAR SEAT),BLACK,TRIM0#,10,12

main90467-05131-C0iEE110199901-199910

BLACK,TRIM0#,10,12

main90467-05131-C0iEE110199704-199901

W(FOLDING REAR SEAT),BLACK,TRIM0#,1#

main90467-05131-C0iCDE110..SED..TERRA;EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

W(FOLDING REAR SEAT),BLACK,TRIM11,16

main90467-05131-C0iCDE110..SED..TERRA;EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

BLACK,TRIM11,16

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-12230-B0iAE111,CE110,EE11#..SED..(LUNA,TERRA)199704-199901

SHADOW GRAY,TRIM0#,1#

main64722-12230-B0iEE110199901-199910

SHADOW GRAY,TRIM0#,10,12

main64722-12230-B0iZZE111..STD199704-200109

SHADOW GRAY,TRIM1#

main64722-12230-B0iZZE111..STD199910-200109

SHADOW GRAY,TRIM11,16

64745DCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-12090-B0iZZE111..STD199704-200109

SHADOW GRAY,TRIM1#

main64745-12090-B0iEE110199704-199901

SHADOW GRAY,TRIM0#,1#

main64745-12090-B0iCDE110,EE110,WZE110,ZZE11#..SED..TERRA199910-200109

SHADOW GRAY,TRIM11,16

main64745-12090-B0iEE110199901-199910

SHADOW GRAY,TRIM0#,10,12

main64745-12100iEE110199704-199910

NO.1

main64745-12100iAE111,EE111..SED..LUNA199808-200109

64746DCOVER, REAR COMBINATION LAMP SERVICE, LH

main64746-12110-B0iEE110199704-199901

SHADOW GRAY,TRIM0#,1#

main64746-12110-B0iEE110199901-199910

SHADOW GRAY,TRIM0#,10,12

main64746-12110-B0iZZE111..STD199704-200109

SHADOW GRAY,TRIM1#

main64746-12110-B0iZZE111..STD199910-200109

SHADOW GRAY,TRIM11,16

main64746-12120iEE110199704-199910

NO.1

main64746-12120iCDE110,EE110,WZE110,ZZE11#..SED199808-200109

64753BPLATE, REAR FLOOR FINISH SIDE, RH

main64753-12030-B0iEE110199704-199901

SHADOW GRAY,TRIM0#,1#

main64753-12030-B0iEE110199901-199910

SHADOW GRAY,TRIM0#,10,12

main64753-12030-B0iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM11,16

64754BPLATE, REAR FLOOR FINISH SIDE, LH

main64754-12030-B0iEE110199901-199910

SHADOW GRAY,TRIM0#,10,12

main64754-12030-B0iAE111,CE110,EE11#..SED..(LUNA,TERRA)199704-199901

SHADOW GRAY,TRIM0#,1#

main64754-12030-B0iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM11,16

64771COVER, SPARE WHEEL

main64770-12240iCDE110,EE110,WZE110,ZZE11#..SED199704-200109

9011908240

main90119-08240

9018305016

main90183-05016

9046805077

main90468-05077

35 parts on this diagram · 1 diagram in section
