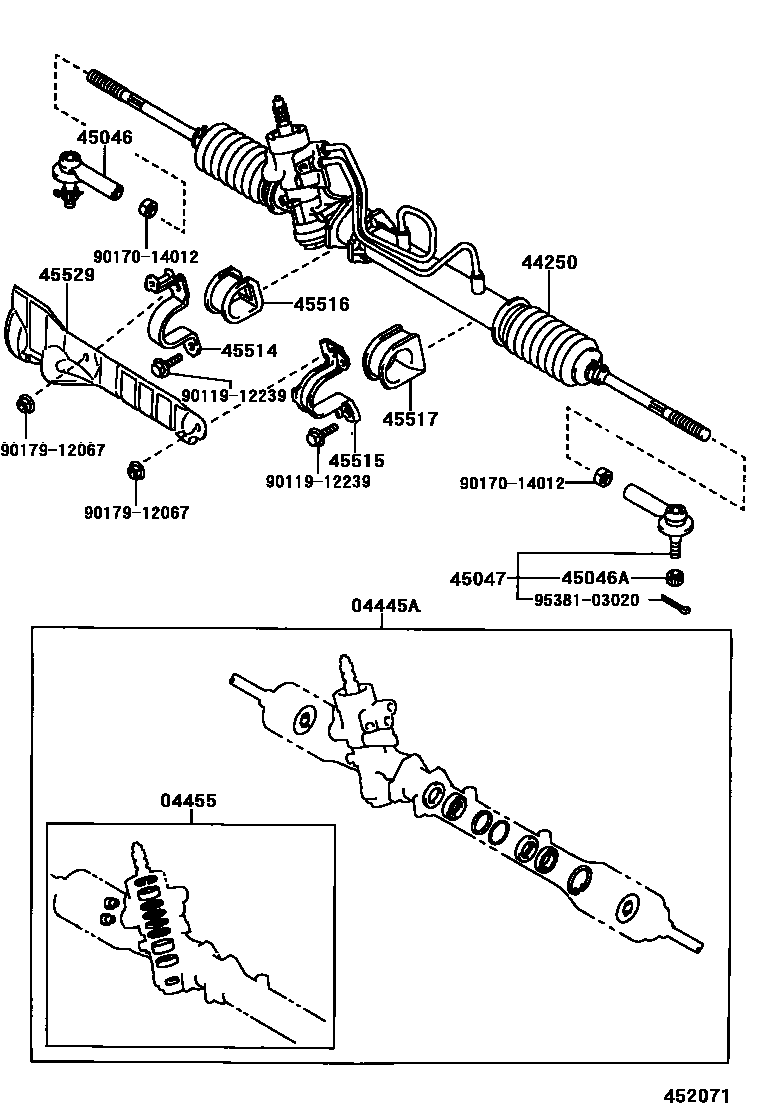

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-12150iAE11#,CE110,EE11#199704-199910

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-12090iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-12540iWZE110,ZZE11#..RHD199910-200007

main44250-12541iCDE110,WZE110,ZZE11#..RHD200007-200107

main44250-12580iAE115..SOL;EE110,WZE110,ZZE11#..LHD199704-200007

main44250-12581iAE115,CDE110,EE110,WZE110,ZZE11#..LHD200007-200109

45046END SUB-ASSY, TIE ROD, RH

main45046-29305iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAE11#,CE110,EE11#199704-199910

45047END SUB-ASSY, TIE ROD, LH

main45046-29305iAE11#,CE110,EE11#199704-199910

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-12090iAE115..SOL;CDE110,EE110,WZE110..LHD199704-200109

main45514-12110iCDE110,WZE110..RHD200001-200107

main45514-12120iZZE11#199910-200109

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-12170iAE111,CE110,EE111..RHD199704-199910

main45515-12180iAE115..SOL;CDE110,EE110,WZE110..LHD199704-200109

main45515-12190iZZE11#..RHD199910-200107

main45515-12200iZZE11#..LHD199910-200109

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-12060iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-12111iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

45529INSULATOR, STEERING RACK BOOT HEAT

main45529-12030iZZE11#..RHD199910-200107

main45529-12040iZZE11#..LHD199910-200109

9011912239

main90119-12239

9017014012

main90170-14012

9017912067

main90179-12067

9538103020

main95381-03020

15 parts on this diagram · 2 diagrams in section
