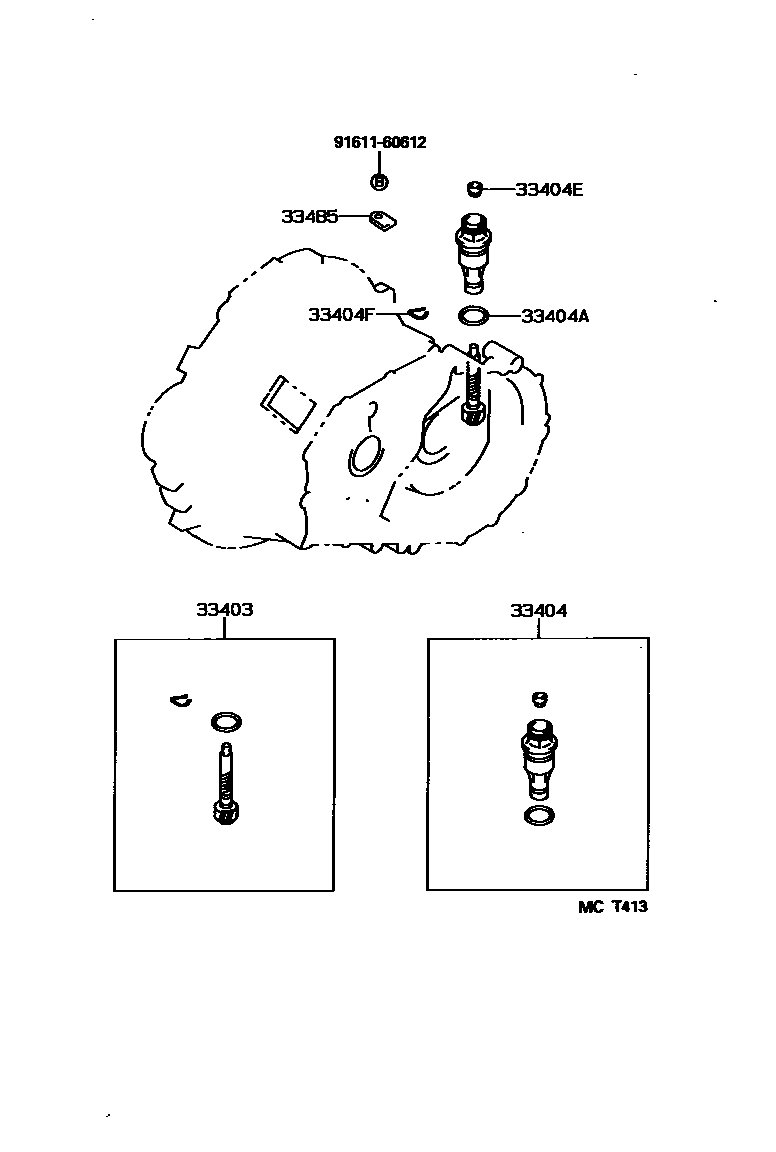

SPEEDOMETER DRIVEN GEAR (MTM)
33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
N=31,MARK 31:35
N=30,MARK 30:35
N=30,MARK 30:34
N=30,MARK 30:35
N=30,MARK 30:35,W(185/65HR14TIRE)
N=31,MARK 31:35
N=30,MARK 30:35
N=28,MARK 28:32
N=22,MARK 22:25
33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
9161160612
main91611-60612
7 parts on this diagram · 6 diagrams in section
