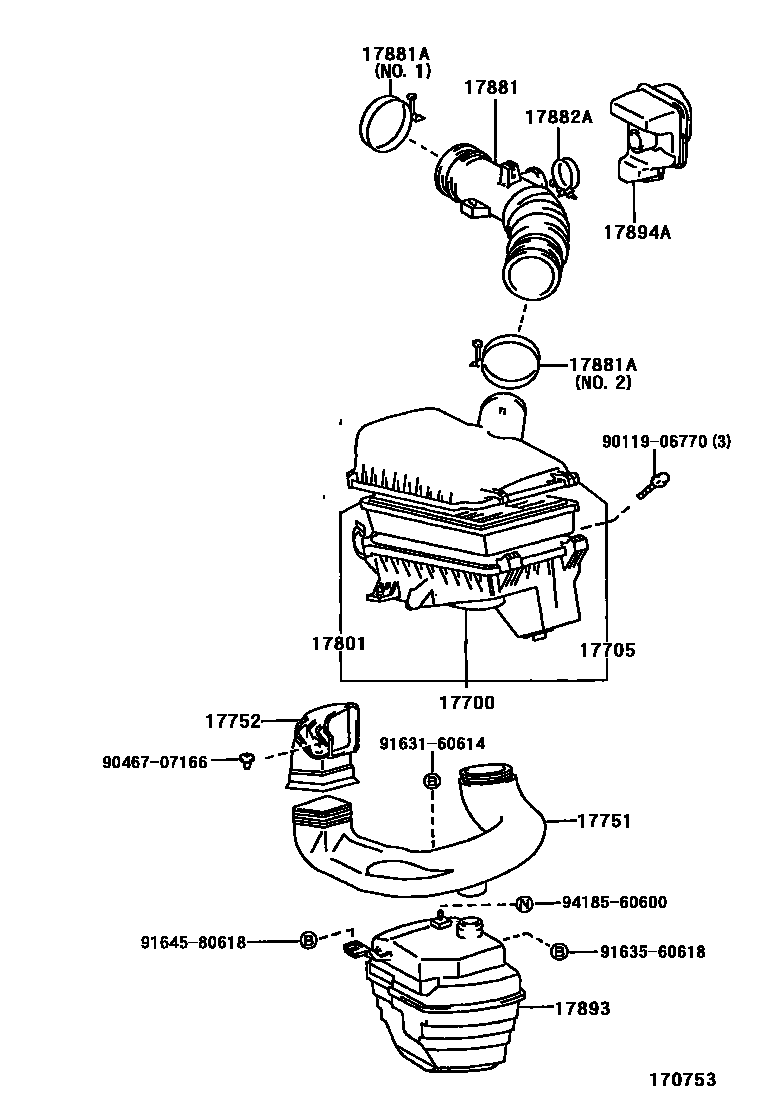

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17700CLEANER ASSY, AIR

main17700-11790i2E..EE110199704-199910

main17700-15360i4AFE,7AFE..AE11#199704-199910

main17700-1A050i7AFE..AE115199910-200107

main17700-1B040i4EFE..EE111199704-199910

main17700-22070i3ZZFE,4ZZFE..ZZE11#199910-200109

main17700-27150i1CDFTV..CDE110200008-200109

main17700-53010i1WZ..WZE110200001-200107

main17700-64400i2CE..CE110199704-199709

sub17700-64401

main17700-64401i2CE..CE110199709-199910

17705CAP SUB-ASSY, AIR CLEANER

main17705-11360i2E..EE110199704-199910

main17705-11600i4EFE..EE111199704-199910

main17705-15190i4AFE,7AFE..AE11#199704-200107

main17705-22080i3ZZFE,4ZZFE..ZZE11#199910-200109

main17705-27020i1CDFTV..CDE110200008-200109

main17705-53010i1WZ..WZE110200001-200107

main17705-64280i2CE..CE110199704-199709

main17705-64281i2CE..CE110199709-199910

17751INLET, AIR CLEANER, NO.1

main17750-11040i2E..EE110199704-199910

main17751-15070i4AFE,7AFE..AE11#199704-200107

main17751-22040i3ZZFE,4ZZFE..ZZE11#199910-200109

17752INLET, AIR CLEANER, NO.2

main17752-15030i7AFE..AE115199704-200107

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-02030i4AFE,7AFE..AE11#199704-199707

(L)

main17801-11090i4EFE..EE111199704-199910

main17801-11100i2E..EE110199704-199910

main17801-15070i3ZZFE,4ZZFE..ZZE11#199707-200109

main17801-15070i4AFE,7AFE..AE11#199704-199707

(J)

main17801-64060i1CDFTV..CDE110200008-200109

sub17801-64070

main17801-64070i2CE..CE110199704-200107

17881HOSE, AIR CLEANER, NO.1

main17880-27020i1CDFTV..CDE110200008-200109

main17881-10033i2E..EE110199704-199910

main17881-11560i4EFE..EE111199704-199910

main17881-15200i4AFE,7AFE..AE11#199704-200107

main17881-22040i3ZZFE,4ZZFE..ZZE11#199910-200109

main17881-53010i1WZ..WZE110200001-200107

main17881-64360i2CE..CE110199704-199910

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-58003i1CDFTV..CDE110200008-200109

TURBOCHARGER SIDE

main90460-73001i1CDFTV..CDE110200008-200109

AIR CLEANER SIDE

sub90460-73011

main90460-73001i1WZ..WZE110200001-200107

NO.1

sub90460-73011

main90460-73001i3ZZFE,4ZZFE..ZZE11#199910-200109

sub90460-73011

main90460-73009i4AFE,7AFE..AE11#..LHD199704-200107

NO.2

main96111-10690i4EFE..EE111199704-199910

main96111-10730i7AFE..AE115199704-200107

NO.1

main96111-10750i1WZ..WZE110200001-200107

NO.2

17882HOSE, AIR CLEANER, NO.2

main17882-53010i1WZ..WZE110200001-200107

main17882-64110i2CE..CE110199704-199910

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10480i4AFE,7AFE..AE11#199704-200107

main96111-10650i2CE..CE110199704-199910

main96111-10750i1WZ..WZE110200001-200107

NO.2

main96111-10800i1WZ..WZE110200001-200107

NO.1

17893RESONATOR, INTAKE AIR

main17893-15050i2CE..CE110199704-200107

17894ARESONATOR, INTAKE AIR, NO.2

main17894-11130i4EFE..EE111199704-199910

main17894-15050i7AFE..AE115199704-200107

main17894-53010i1WZ..WZE110200001-200107

main17894-64070i2CE..CE110199704-199910

9011906770

main90119-06770

9046707166

main90467-07166

9163160614

main91631-60614

9163560618

main91635-60618

9164580618

main91645-80618

9418560600

main94185-60600

17 parts on this diagram · 7 diagrams in section
