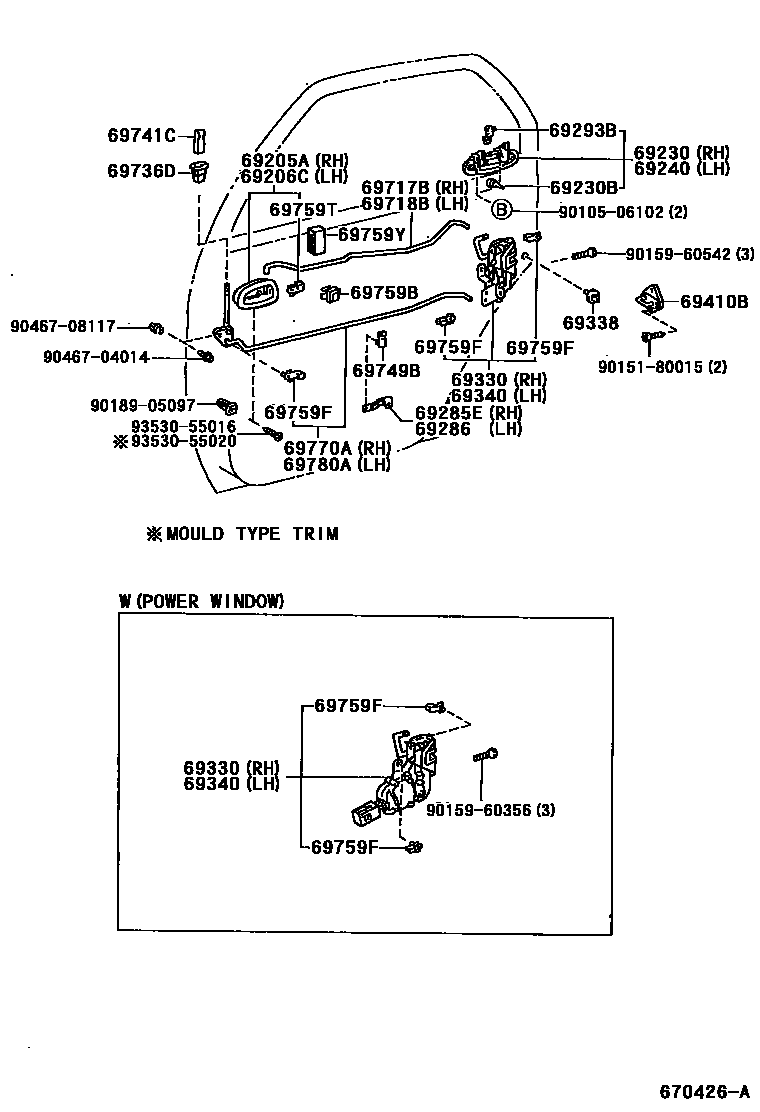

REAR DOOR LOCK & HANDLE

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-12130-02iEE101..SED..STD199205-199505

TAUPE,TRIM9#

sub69205-12130

sub69205-28060

main69205-12130-03iCE100,EE101..STD199205-199704

SHADOW GRAY,TRIM1#

sub69205-12130

sub69205-28060

main69205-12130-04iCE100,EE101..STD199205-199704

DARK BLUE,TRIM8#

sub69205-12130

sub69205-28060

main69207-12020-02iAE101,EE101..SED..GLI199205-199505

TAUPE,TRIM9#

sub69207-12020

main69207-12020-03iAE10#,CE100,EE10#..GLI,XL,XLI199205-199704

SHADOW GRAY,TRIM1#

sub69207-12020

main69207-12020-04iAE10#,CE100,EE10#..GLI,XL,XLI199205-199704

DARK BLUE,TRIM8#

sub69207-12020

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-12130-02iEE101..SED..STD199205-199505

TAUPE,TRIM9#

sub69206-12130

sub69206-28070

main69206-12130-03iCE100,EE101..STD199205-199704

SHADOW GRAY,TRIM1#

sub69206-12130

sub69206-28070

main69206-12130-04iCE100,EE101..STD199205-199704

DARK BLUE,TRIM8#

sub69206-12130

sub69206-28070

main69208-12020-02iAE101,EE101..SED..GLI199205-199505

TAUPE,TRIM9#

sub69208-12020

main69208-12020-03iAE10#,CE100,EE10#..GLI,XL,XLI199205-199704

SHADOW GRAY,TRIM1#

sub69208-12020

main69208-12020-04iAE10#,CE100,EE10#..GLI,XL,XLI199205-199704

DARK BLUE,TRIM8#

sub69208-12020

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-12140iAE10#,CE100,EE10#199205

main69230-12150-A0iAE10#,CE100,EE101..XL,XLI199605

SUPER WHITE 2,040

sub69230-12150

main69230-12150-B3iAE10#,CE100,EE101..XL,XLI199605

BLUEISH GRAY ME.,182

sub69230-12150

main69230-12150-B5iAE10#,CE100,EE101..XL,XLI199605

SILVER ME,199

sub69230-12150

main69230-12150-D0iAE10#,CE100,EE101..XL,XLI199605

SUPER RED 2,3E5

sub69230-12150

main69230-12150-D2iAE10#,CE100,EE101..XL,XLI199605

RED MICA ME,3K4

sub69230-12150

main69230-12150-G7iAE10#,CE100,EE101..XL,XLI199605-199611

MD. GREEN M.M.,6P0

sub69230-12150

main69230-12150-H2iEE101..LHD..WG..XLI199412-199504

95 SPRING CAMPAIGN,TURQUOISE M.M.,746

sub69230-12150

main69230-12150-H2iAE10#,CE100,EE101..XL,XLI199605

TURQUOISE M.M.,746

sub69230-12150

main69230-12150-J5iEE101..LHD..WG..XLI199412-199504

95 SPRING CAMPAIGN,LT PURPLISH BLUE M.M,8K1

sub69230-12150

main69230-12150-J7iAE10#,CE100,EE101..XL,XLI199605

DARK BLUE MC.,8K8

sub69230-12150

main69230-12150-J9iAE10#,CE100,EE101..XL,XLI199605

STRONG BLUE M,8B6

sub69230-12150

main69230-12150-Q1iAE10#,CE100,EE101..XL,XLI199611

GREEN MC.,6P6

sub69230-12150

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04014iAE10#,CE100,EE10#199205

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-12140iAE10#,CE100,EE10#199205

main69240-12150-A0iAE10#,CE100,EE101..XL,XLI199605

SUPER WHITE 2,040

sub69240-12150

main69240-12150-B3iAE10#,CE100,EE101..XL,XLI199605

BLUEISH GRAY ME.,182

sub69240-12150

main69240-12150-B5iAE10#,CE100,EE101..XL,XLI199605

SILVER ME,199

sub69240-12150

main69240-12150-D0iAE10#,CE100,EE101..XL,XLI199605

SUPER RED 2,3E5

sub69240-12150

main69240-12150-D2iAE10#,CE100,EE101..XL,XLI199605

RED MICA ME,3K4

sub69240-12150

main69240-12150-G7iAE10#,CE100,EE101..XL,XLI199605-199611

MD. GREEN M.M.,6P0

sub69240-12150

main69240-12150-H2iAE10#,CE100,EE101..XL,XLI199605

TURQUOISE M.M.,746

sub69240-12150

main69240-12150-H2iEE101..LHD..WG..XLI199412-199504

95 SPRING CAMPAIGN,TURQUOISE M.M.,746

sub69240-12150

main69240-12150-J5iEE101..LHD..WG..XLI199412-199504

95 SPRING CAMPAIGN,LT PURPLISH BLUE M.M,8K1

sub69240-12150

main69240-12150-J6iAE10#,CE100,EE101..XL,XLI199605

DARK BLUE MC,8K8

sub69240-12150

main69240-12150-J9iAE10#,CE100,EE101..XL,XLI199605

STRONG BLUE M,8B6

sub69240-12150

main69240-12150-Q1iAE10#,CE100,EE101..XL,XLI199611

GREEN MC.,6P6

sub69240-12150

69285EPLATE, REAR DOOR INSIDE LOCKING CONTROL, RH

main69285-12020iAE101,CE100,EE10#199205-199403

69286PLATE, REAR DOOR INSIDE LOCKING CONTROL, LH

main69286-12020iAE101,CE100,EE10#199205-199403

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12030iAE10#,CE100,EE10#199205

RH

main69293-12040iAE10#,CE100,EE10#199205

LH

69330LOCK ASSY, REAR DOOR, RH

main69305-12020iAE101,CE100,EE10#199205-199403

sub69305-12021

main69305-12021iAE101,CE100,EE10#199403-199505

main69305-12050iAE101,CE100,EE10#..GLI,XL,XLI199205-199403

W(*EL)

sub69305-12051

main69305-12051iAE103199505

W(POWER WINDOW)

main69305-12051iAE101,CE100,EE10#..GLI,XL,XLI199403-199505

W(*EL)

69338KNOB, CHILD PROTECTOR LOCK LEVER

main69338-12020iAE10#,CE100,EE10#199205

69340LOCK ASSY, REAR DOOR, LH

main69306-12020iAE101,CE100,EE10#199205-199403

sub69306-12021

main69306-12021iAE101,CE100,EE10#199403-199505

main69306-12050iAE101,CE100,EE10#..GLI,XL,XLI199205-199403

W(*EL)

sub69306-12051

main69306-12051iAE103199403-199505

W(*EL)

main69306-12051iEE101..LHD..GLI;AE101,EE100..LHD;CE100,EE101..XL,XLI199505

W(POWER WINDOW)

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20070iAE101,CE100,EE10#199205-199305

main69410-87001iAE10#,CE100,EE10#199305

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-12050iAE10#,CE100,EE10#199205

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-12060iAE10#,CE100,EE10#199205

69736DGUIDE, REAR DOOR LOCKING LINK

main69736-12100iAE10#,CE100,EE10#199205

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-87003-02iAE101,CE100,EE10#..SED199205-199505

TAUPE,TRIM9#

sub69741-87003

main69741-87003-13iAE10#,CE100,EE10#199205-199704

SHADOW GRAY,TRIM1#

sub69741-87003

main69741-87003-14iAE10#,CE100,EE10#199205-199704

DARK BLUE,TRIM8#

sub69741-87003

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12080iAE10#,CE100,EE10#199205

69759BSNAP, REAR DOOR LOCK CYLINDER

main69749-50020iAE10#,CE100,EE10#199205

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20020iAE10#,CE100,EE10#199205

NATURAL

main69759-20030iAE10#,CE100,EE10#199205

LIGHT BLUE

main69759-20040iAE10#,CE100,EE10#199205

YELLOW

main69759-20050iAE10#,CE100,EE10#199205

BROWN

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-22040iAE10#,CE100,EE10#199205

LH

main69759-22050iAE10#,CE100,EE10#199205

RH

69759YSILENCER, REAR DOOR LOCK LINK

main69759-20390iAE10#,CE100,EE10#199601

60 X 40

main69759-30021iAE10#,CE100,EE10#199511

80 X 40

main69759-30021iAE10#,CE100,EE10#199205-199511

69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-12050iAE10#,CE100,EE10#199403

main69770-12090iAE101,CE100,EE10#199205-199403

sub69770-12050

69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-12050iAE10#,CE100,EE10#199403

main69780-12090iAE101,CE100,EE10#199205-199403

sub69780-12050

9010506102

main90105-06102

9015180015

main90151-80015

9015960356

main90159-60356

9015960542

main90159-60542

9018905097

main90189-05097

9046704014

main90467-04014

9046708117

main90467-08117

9353055016

main93530-55016

9353055020

main93530-55020

32 parts on this diagram · 1 diagram in section
