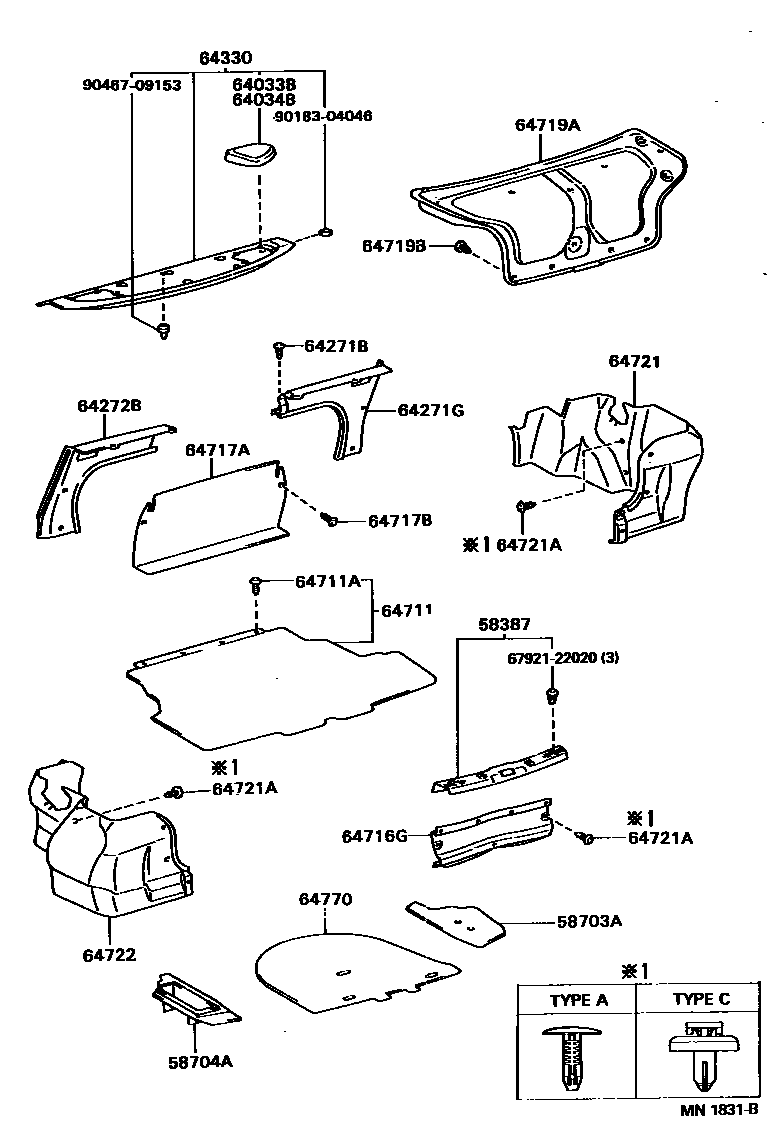

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-12010-22iAE101,CE100,EE10#..SED..(XL,XLI)199401-199505

BLACK,TRIM1#

main58387-12010-22iAE101,CE100,EE10#..SED199205-199505

BLACK,TRIM1#,8#,9#

main58387-12010-22iAE101,CE100,EE10#..SED199505

BLACK,TRIM1#,8#

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-12070iAE101,CE100,EE10#..SED199205

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-12070iAE101,CE100,EE10#..SED199205

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-12120-K0iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205-199505

TAUPE,TRIM9#

main64033-12120-P0iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205

SHADOW GRAY,TRIM1#

main64033-12120-W3iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205

DARK BLUE,TRIM8#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-12060-K0iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205-199505

TAUPE,TRIM9#

main64034-12060-P0iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205

SHADOW GRAY,TRIM1#

main64034-12060-W3iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205

DARK BLUE,TRIM8#

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-05020-22iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199405-199704

GRAPHITE,TRIM1#,8#

sub90467-05020

sub90467-05027

main90467-05020-22iAE101,CE100,EE10#..SED..(XL,XLI)199405-199505

GRAPHITE,TRIM1#,8#,9#

sub90467-05020

sub90467-05027

main90467-05110-B0iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205-199308

SHADOW GRAY,TRIM1#

main90467-05110-C0iAE101,EE101..SED..GLI199401-199405

BLACK,TRIM1#,8#

main90467-05110-C0iAE101,EE101..SED..GLI199308-199405

BLACK,TRIM1#,8#,9#

main90467-05110-J0iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205-199308

DARK BLUE,TRIM8#

main90467-05110-K0iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205-199308

TAUPE,TRIM9#

64271GBOARD, ROOM PARTITION, RH

main64271-12130-C0iAE101,EE101..SED..GLI199308-199505

BLACK,TRIM1#,8#,9#

main64271-12130-C0iAE101,CE100,EE10#..SED..(XL,XLI)199401-199704

BLACK,TRIM1#,8#

main64271-12130-K0iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205-199308

TAUPE,TRIM9#

main64271-12130-P0iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205-199308

SHADOW GRAY,TRIM1#

main64271-12130-W3iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205-199308

DARK BLUE,TRIM8#

64272BBOARD, ROOM PARTITION, LH

main64272-12070-C0iAE101,CE100,EE10#..SED..(XL,XLI)199308-199505

BLACK,TRIM1#,8#,9#

main64272-12070-C0iAE101,EE101..SED..GLI199401-199704

BLACK,TRIM1#,8#

main64272-12070-K0iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205-199308

TAUPE,TRIM9#

main64272-12070-P0iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205-199308

SHADOW GRAY,TRIM1#

main64272-12070-W3iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205-199308

DARK BLUE,TRIM8#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-1A430-J1iAE101,CE100,EE10#..SED199205-199505

DARK BLUE,TRIM8#

sub64330-1A430

main64330-1A430-K0iAE101,EE101..SED..(GLI,STD)199205-199505

TAUPE,TRIM9#

sub64330-1A430

main64330-1A430-P0iAE101,CE100,EE10#..SED199205-199505

SHADOW GRAY,TRIM1#

sub64330-1A430

main64330-1A440-J1iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205-199505

W(SPEAKER),DARK BLUE,TRIM8#

sub64330-1A440

main64330-1A440-K0iAE101,EE101..SED..GLI199205-199505

W(SPEAKER),TAUPE,TRIM9#

sub64330-1A440

main64330-1A440-P0iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205-199505

W(SPEAKER),SHADOW GRAY,TRIM1#

sub64330-1A440

main64330-1A500-J1iAE101..RHD;CE100,EE10#..SED;AE101..LHD..5F..GLI199505-199704

DARK BLUE,TRIM8#

sub64330-1A500

main64330-1A500-J1iAE101..LHD..4FC;AE101..SED..5F..XLI199308-199704

ENGLAND SPEC,DARK BLUE,TRIM8#

sub64330-1A500

main64330-1A500-K0iAE101..LHD..4FC..GLI199308-199505

ENGLAND SPEC,TAUPE,TRIM9#

sub64330-1A500

main64330-1A500-P0iAE101..RHD;CE100,EE10#..SED;AE101..LHD..5F..GLI199505-199704

SHADOW GRAY,TRIM1#

sub64330-1A500

main64330-1A500-P0iAE101..LHD..4FC;AE101..SED..5F..XLI199308-199704

ENGLAND SPEC,SHADOW GRAY,TRIM1#

sub64330-1A500

main64330-1A510-J1iAE101..LHD..4FC;AE101..SED..5F..XLI199308-199704

ENGLAND SPEC & W(SPEAKER),DARK BLUE,TRIM8#

sub64330-1A510

main64330-1A510-J1iAE101..RHD;AE101..LHD..5F..GLI;CE100,EE10#..SED..(GLI,XL,XLI)199505-199704

W(SPEAKER),DARK BLUE,TRIM8#

sub64330-1A510

main64330-1A510-K0iAE101..LHD..4FC..GLI199308-199505

ENGLAND SPEC & W(SPEAKER),TAUPE,TRIM9#

sub64330-1A510

main64330-1A510-P0iAE101..LHD..4FC;AE101..SED..5F..XLI199308-199704

ENGLAND SPEC & W(SPEAKER),SHADOW GRAY,TRIM1#

sub64330-1A510

main64330-1A510-P0iAE101..RHD;AE101..LHD..5F..GLI;CE100,EE10#..SED..(GLI,XL,XLI)199505-199704

W(SPEAKER),SHADOW GRAY,TRIM1#

sub64330-1A510

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-12330-C0iEE101..SED..STD199505

BLACK,TRIM1#,8#

main64711-12330-C0iEE101..SED..STD199205-199505

BLACK,TRIM1#,8#,9#

main64711-12350-C0iAE101,CE100,EE10#..SED..(XL,XLI)199401

BLACK,TRIM1#,8#

main64711-12350-C0iAE101,CE100,EE10#..SED..(XL,XLI)199205-199401

BLACK,TRIM1#,8#,9#

main64711-12360-C0iAE101,EE101..SED..GLI199505

BLACK,TRIM1#,8#

main64711-12360-C0iAE101,EE101..SED..GLI199205-199505

BLACK,TRIM1#,8#,9#

main64711-12360-C0iAE101,CE100,EE10#..SED..(XL,XLI)199401

W(4-WAY SPLIT FOLD DOWN SEAT),BLACK,TRIM1#,8#

main64711-12360-C0iAE101,CE100,EE10#..SED..(XL,XLI)199205-199401

W(4-WAY SPLIT FOLD DOWN SEAT),BLACK,TRIM1#,8#,9#

64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)

main90467-09156-C0iAE101,EE101..SED..GLI199401-199704

BLACK,TRIM1#,8#

main90467-09156-C0iAE101,EE101..SED..GLI199205-199505

BLACK,TRIM1#,8#,9#

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-12130-C0iAE101,CE100,EE10#..SED..(XL,XLI)199401-199704

BLACK,TRIM1#,8#

main64716-12130-C0iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205-199505

BLACK,TRIM1#,8#,9#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-12050-C0iAE101,CE100,EE10#..SED..(STD,XL,XLI)199205-199305

BLACK,TRIM1#,8#,9#

main64717-12060-C0iAE101,CE100,EE10#..SED..(XL,XLI)199401-199505

BLACK,TRIM1#,8#

sub64717-12080

main64717-12060-C0iAE101,CE100,EE10#..SED..(XL,XLI)199305-199505

BLACK,TRIM1#,8#,9#

sub64717-12080

main64717-12080-C1iAE101,CE100,EE10#..SED..(STD,XL,XLI)199505

BLACK,TRIM1#,8#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-05027iAE101,CE100,EE10#..SED..(STD,XL,XLI)199205-199209

main90467-05027-22iAE101,CE100,EE10#..SED..(STD,XL,XLI)199209-199308

BLACK,TRIM1#,8#,9#

sub90467-05027

main90467-05096-22iAE101,CE100,EE10#..SED..(STD,XL,XLI)199308-199505

BLACK,TRIM1#,8#,9#

sub90467-05096

main90467-05096-22iAE101,CE100,EE10#..SED..(XL,XLI)199401-199505

BLACK,TRIM1#,8#

sub90467-05096

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-12010-C0iAE101,CE100,EE10#..LHD..SED..(XL,XLI)199205-199505

BLACK,TRIM1#,8#,9#

main64719-12010-C0iAE101,CE100,EE10#..LHD..SED..(XL,XLI)199401-199505

BLACK,TRIM1#,8#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07138iAE101,CE100,EE10#..LHD..SED199211-199402

main90467-07146iAE101,CE100,EE10#..LHD..SED199205-199211

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-12150-C0iAE101,CE100,EE10#..SED..(XL,XLI)199205-199505

BLACK,TRIM1#,8#,9#

main64721-12150-C0iAE101,EE101..SED..(GLI,STD)199401-199505

BLACK,TRIM1#,8#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05096-01iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205-199208

BLACK,TRIM1#,8#,9#,TYPE A

sub90467-05096

main90467-05096-22iAE101,EE101..SED..GLI199401-199505

BLACK,TRIM1#,8#,TYPE A

sub90467-05096

main90467-05096-22iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199208-199505

BLACK,TRIM1#,8#,9#,TYPE A

sub90467-05096

main90467-05105-C0iAE101,CE100,EE10#..SED199205-199505

BLACK,TRIM1#,8#,9#,TYPE C

sub90467-05105

main90467-05105-C0iAE101,CE100,EE10#..SED..(XL,XLI)199401-199505

BLACK,TRIM1#,8#,TYPE C

sub90467-05105

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-12190-C0iAE101,EE101..SED..(GLI,STD)199205-199505

BLACK,TRIM1#,8#,9#

main64722-12190-C0iAE101,CE100,EE10#..SED..(XL,XLI)199401-199505

BLACK,TRIM1#,8#

64770COVER ASSY, SPARE WHEEL

main64770-12171iAE101,CE100,EE10#..SED199205

6792122020RETAINER, FRONT DOOR SCUFF PLATE

main67921-22020

9018304046

main90183-04046

9046709153

main90467-09153

23 parts on this diagram · 1 diagram in section
