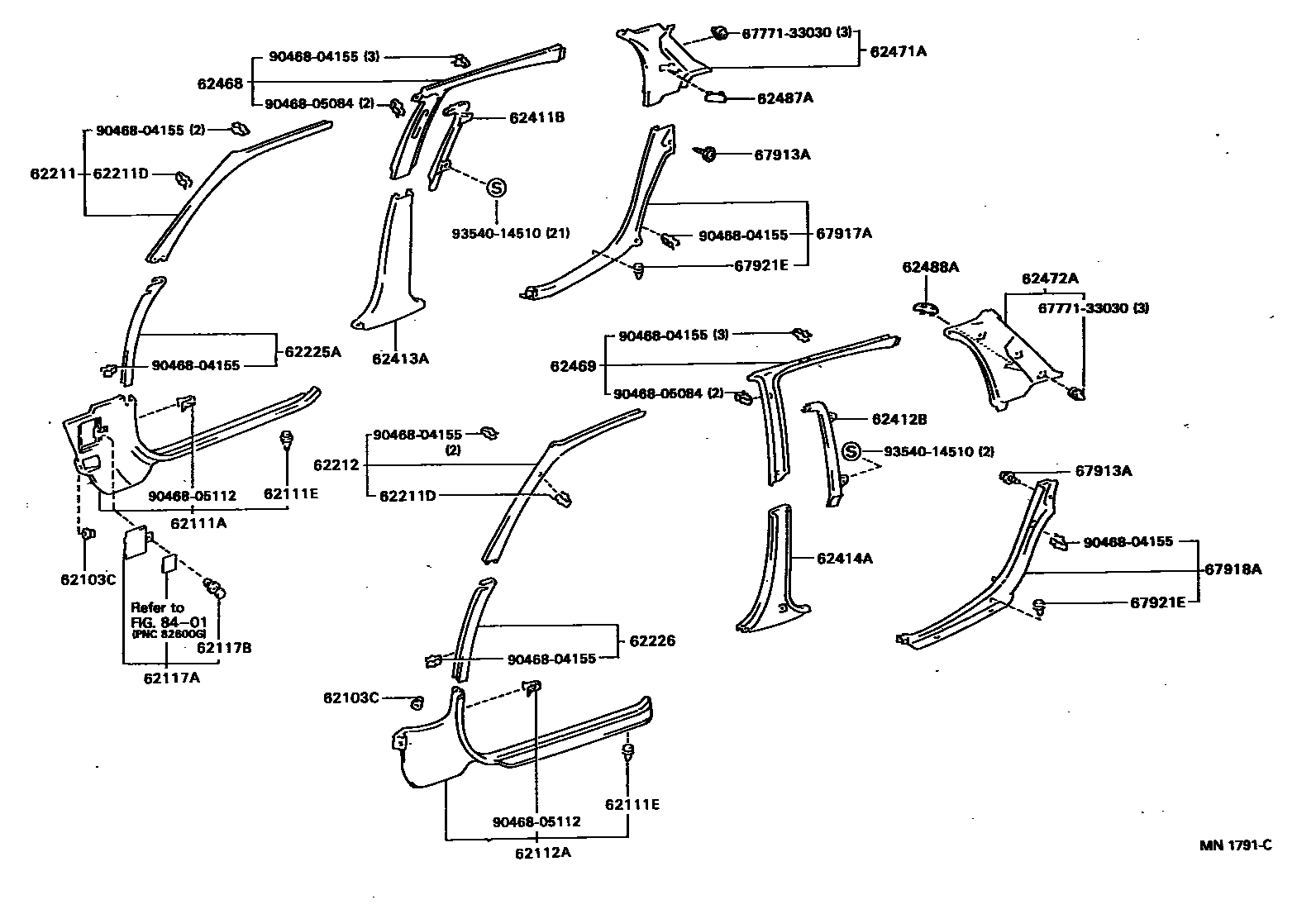

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-05050-01iAE101,CE100,EE10#..SED199206-199211

BLACK,TRIM1#,8#,9#

sub90467-05050

main90467-05050-01iAE101,CE100,EE10#..WG199206-199211

BLACK,TRIM1#,8#

sub90467-05050

main90467-05050-22iAE101,CE100,EE10#..WG199211-199704

BLACK,TRIM1#,8#

sub90467-05050

main90467-05050-22iAE101,EE101..SED..(GLI,STD)199211-199505

BLACK,TRIM1#,8#,9#

sub90467-05050

main90467-08160iAE101,CE100,EE10#199205-199206

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-12160-K0iAE101,EE101..RHD..SED..GLI199205-199505

TAUPE,TRIM9#

sub62101-12160

main62101-12160-P0iAE101,CE100,EE101..RHD199205-199704

SHADOW GRAY,TRIM1#

sub62101-12160

main62101-12160-W3iAE101,CE100,EE101..RHD199205-199704

DARK BLUE,TRIM8#

sub62101-12160

main62101-12190-B0iAE10#,CE100,EE10#..LHD199205-199704

SHADOW GRAY,TRIM1#

sub62101-12190

main62101-12190-J0iAE10#,CE100,EE10#..LHD199205-199704

DARK BLUE,TRIM8#

sub62101-12190

main62101-12190-K0iAE101,EE101..LHD..SED..(GLI,STD)199205-199505

TAUPE,TRIM9#

sub62101-12190

62111ERETAINER, COWL SIDE TRIM

main67921-32010iAE10#,CE100,EE10#199205

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-12160-K0iAE101,EE101..RHD..SED..GLI199205-199505

TAUPE,TRIM9#

sub62102-12160

main62102-12160-P0iAE101,CE100,EE101..RHD199205-199704

SHADOW GRAY,TRIM1#

sub62102-12160

main62102-12160-W3iAE101,CE100,EE101..RHD199205-199704

DARK BLUE,TRIM8#

sub62102-12160

main62102-12190-B0iAE10#,CE100,EE10#..LHD199205-199704

SHADOW GRAY,TRIM1#

sub62102-12190

main62102-12190-J0iAE10#,CE100,EE10#..LHD199205-199704

DARK BLUE,TRIM8#

sub62102-12190

main62102-12190-K0iAE101,EE101..LHD..SED..(GLI,STD)199205-199505

TAUPE,TRIM9#

sub62102-12190

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-12140-K0iAE101,EE101..RHD..SED..GLI199205-199505

TAUPE,TRIM9#

sub62117-12141

main62117-12140-P0iAE101,CE100,EE101..RHD199205-199605

SHADOW GRAY,TRIM1#

sub62117-12141

main62117-12140-W3iAE101,CE100,EE101..RHD199205-199605

DARK BLUE,TRIM8#

sub62117-12141

main62117-12141-P0iAE101,CE100,EE101..RHD199605-199704

SHADOW GRAY,TRIM1#

sub62117-12141

main62117-12141-W3iAE101,CE100,EE101..RHD199605-199704

DARK BLUE,TRIM8#

sub62117-12141

main62117-12150-B0iAE101,CE100,EE101..LHD199205-199505

*FRG,SHADOW GRAY,TRIM1#

main62117-12150-J0iAE101,CE100,EE101..LHD199205-199505

*FRG,DARK BLUE,TRIM8#

main62117-12150-K0iAE101,CE100,EE101..LHD..SED199205-199505

*FRG,TAUPE,TRIM9#

main62117-12170-B0iAE101,CE100,EE10#..LHD199205-199505

SHADOW GRAY,TRIM1#

sub62117-12170

main62117-12170-J0iAE101,CE100,EE10#..LHD199205-199505

DARK BLUE,TRIM8#

sub62117-12170

main62117-12170-K0iAE101,CE100,EE10#..LHD..SED199205-199505

TAUPE,TRIM9#

sub62117-12170

main62117-12171-B0iAE10#,CE100,EE10#..LHD199505-199704

SHADOW GRAY,TRIM1#

sub62117-12171

main62117-12171-J0iAE10#,CE100,EE10#..LHD199505-199704

DARK BLUE,TRIM8#

sub62117-12171

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-08149iAE10#,CE100,EE10#199205

62211GARNISH, FRONT PILLAR, RH

main62211-12200-K0iAE101,EE101..SED..(GLI,STD)199205-199505

TAUPE,TRIM9#

sub62211-12200

main62211-12200-P0iAE10#,CE100,EE10#199205-199704

SHADOW GRAY,TRIM1#

sub62211-12200

main62211-12200-W3iAE10#,CE100,EE10#199205-199704

DARK BLUE,TRIM8#

sub62211-12200

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90468-05084iAE10#,CE100,EE10#199205

62212GARNISH, FRONT PILLAR, LH

main62212-12200-K0iAE101,CE100,EE10#..SED199205-199505

TAUPE,TRIM9#

sub62212-12200

main62212-12200-P0iAE10#,CE100,EE10#199205-199704

SHADOW GRAY,TRIM1#

sub62212-12200

main62212-12200-W3iAE10#,CE100,EE10#199205-199704

DARK BLUE,TRIM8#

sub62212-12200

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-12010-K0iAE101,CE100,EE10#..SED199205-199505

TAUPE,TRIM9#

sub62225-12010

main62225-12010-P0iAE10#,CE100,EE10#199205-199704

SHADOW GRAY,TRIM1#

sub62225-12010

main62225-12010-W3iAE10#,CE100,EE10#199205-199704

DARK BLUE,TRIM8#

sub62225-12010

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-12010-K0iAE101,CE100,EE10#..SED199205-199505

TAUPE,TRIM9#

sub62226-12010

main62226-12010-P0iAE10#,CE100,EE10#199205-199704

SHADOW GRAY,TRIM1#

sub62226-12010

main62226-12010-W3iAE10#,CE100,EE10#199205-199704

DARK BLUE,TRIM8#

sub62226-12010

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-12440-K0iAE101,CE100,EE10#..SED199205-199505

TAUPE,TRIM9#

sub62411-12440

main62411-12440-P0iAE10#,CE100,EE10#199205-199704

SHADOW GRAY,TRIM1#

sub62411-12440

main62411-12440-W3iAE10#,CE100,EE10#199205-199704

DARK BLUE,TRIM8#

sub62411-12440

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-12440-K0iAE101,CE100,EE10#..SED199205-199505

TAUPE,TRIM9#

sub62412-12440

main62412-12440-P0iAE10#,CE100,EE10#199205-199704

SHADOW GRAY,TRIM1#

sub62412-12440

main62412-12440-W3iAE10#,CE100,EE10#199205-199704

DARK BLUE,TRIM8#

sub62412-12440

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-12180-K0iAE101,CE100,EE10#..SED199205-199505

TAUPE,TRIM9#

sub62413-12180

main62413-12180-P0iAE10#,CE100,EE10#199205-199704

SHADOW GRAY,TRIM1#

sub62413-12180

main62413-12180-W3iAE10#,CE100,EE10#199205-199704

DARK BLUE,TRIM8#

sub62413-12180

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-12180-K0iAE101,CE100,EE10#..SED199205-199505

TAUPE,TRIM9#

sub62414-12180

main62414-12180-P0iAE10#,CE100,EE10#199205-199704

SHADOW GRAY,TRIM1#

sub62414-12180

main62414-12180-W3iAE10#,CE100,EE10#199205-199704

DARK BLUE,TRIM8#

sub62414-12180

62468GARNISH, CENTER PILLAR, REAR RH

main62468-12040-K0iAE101,CE100,EE10#..SED199205-199505

TAUPE,TRIM9#

sub62468-12040

main62468-12040-P0iAE101,CE100,EE10#..SED199205-199704

SHADOW GRAY,TRIM1#

sub62468-12040

main62468-12040-W3iAE101,CE100,EE10#..SED199205-199704

DARK BLUE,TRIM8#

sub62468-12040

main62468-13030-B0iAE10#,CE100,EE10#..WG199205-199704

SHADOW GRAY,TRIM1#

main62468-13030-J0iAE10#,CE100,EE10#..WG199205-199704

DARK BLUE,TRIM8#

62469GARNISH, CENTER PILLAR, REAR LH

main62469-12040-K0iAE101,CE100,EE10#..SED199205-199505

TAUPE,TRIM9#

sub62469-12040

main62469-12040-P0iAE101,CE100,EE10#..SED199205-199704

SHADOW GRAY,TRIM1#

sub62469-12040

main62469-12040-W3iAE101,CE100,EE10#..SED199205-199704

DARK BLUE,TRIM8#

sub62469-12040

main62469-13020-B0iAE10#,CE100,EE10#..WG199205-199704

SHADOW GRAY,TRIM1#

main62469-13020-J0iAE10#,CE100,EE10#..WG199205-199704

DARK BLUE,TRIM8#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-12650-K0iAE101,CE100,EE10#..SED199205-199505

TAUPE,TRIM9#

sub62471-12650

main62471-12650-P0iAE101,CE100,EE10#..SED199205

SHADOW GRAY,TRIM1#

sub62471-12650

main62471-12650-W3iAE101,CE100,EE10#..SED199205

DARK BLUE,TRIM8#

sub62471-12650

62472AGARNISH, ROOF SIDE, INNER LH

main62472-12650-K0iAE101,CE100,EE10#..SED199205-199505

TAUPE,TRIM9#

sub62472-12650

main62472-12650-P0iAE101,CE100,EE10#..SED199205

SHADOW GRAY,TRIM1#

sub62472-12650

main62472-12650-W3iAE101,CE100,EE10#..SED199205

DARK BLUE,TRIM8#

sub62472-12650

62487ACOVER, ROOF SIDE INNER GARNISH, RH

main62487-12020-K0iAE101,CE100,EE10#..SED199205-199505

TAUPE,TRIM9#

sub62487-12020

main62487-12020-P0iAE101,CE100,EE10#..SED199205-199704

SHADOW GRAY,TRIM1#

sub62487-12020

main62487-12020-W3iAE101,CE100,EE10#..SED199205-199704

DARK BLUE,TRIM8#

sub62487-12020

62488ACOVER, ROOF SIDE INNER GARNISH, LH

main62488-12010-K0iAE101,CE100,EE10#..SED199205-199505

TAUPE,TRIM9#

sub62488-12010

main62488-12010-P0iAE101,CE100,EE10#..SED199205-199704

SHADOW GRAY,TRIM1#

sub62488-12010

main62488-12010-W3iAE101,CE100,EE10#..SED199205-199704

DARK BLUE,TRIM8#

sub62488-12010

67913ACLIP(FOR SCUFF PLATE)

main90467-06049-01iAE101,CE100,EE10#..SED199205-199209

BLACK,TRIM1#,8#,9#

sub90467-06049

main90467-06049-22iAE101,EE101..SED..(GLI,STD)199401-199505

BLACK,TRIM1#,8#

sub90467-06049

main90467-06049-22iAE101,CE100,EE10#..SED199209-199505

BLACK,TRIM1#,8#,9#

sub90467-06049

67917APLATE, REAR DOOR SCUFF, RH

main67917-12070-K0iAE101,EE101..SED..(GLI,STD)199205-199505

TAUPE,TRIM9#

sub67917-12070

main67917-12070-P0iAE101,CE100,EE10#..SED199205-199704

SHADOW GRAY,TRIM1#

sub67917-12070

main67917-12070-W3iAE101,CE100,EE10#..SED199205-199704

DARK BLUE,TRIM8#

sub67917-12070

main67917-13030-B0iAE10#,CE100,EE10#..WG199205-199509

SHADOW GRAY,TRIM1#

sub67917-13030

main67917-13030-J0iAE10#,CE100,EE10#..WG199205-199509

DARK BLUE,TRIM8#

sub67917-13030

67918APLATE, REAR DOOR SCUFF, LH

main67918-12060-K0iAE101,EE101..SED..(GLI,STD)199205-199505

TAUPE,TRIM9#

sub67918-12060

main67918-12060-P0iAE101,CE100,EE10#..SED199205

SHADOW GRAY,TRIM1#

sub67918-12060

main67918-12060-W3iAE101,CE100,EE10#..SED199205

DARK BLUE,TRIM8#

sub67918-12060

main67918-13030-B0iAE10#,CE100,EE10#..WG199205-199509

SHADOW GRAY,TRIM1#

sub67918-13030

main67918-13030-J0iAE10#,CE100,EE10#..WG199205-199509

DARK BLUE,TRIM8#

sub67918-13030

67921ERETAINER, REAR DOOR SCUFF PLATE

main67921-32010iAE10#,CE100,EE10#199205

8401

6777133030WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33030

9046804155

main90468-04155

9046805084

main90468-05084

9046805112

main90468-05112

9354014510

main93540-14510

31 parts on this diagram · 2 diagrams in section
