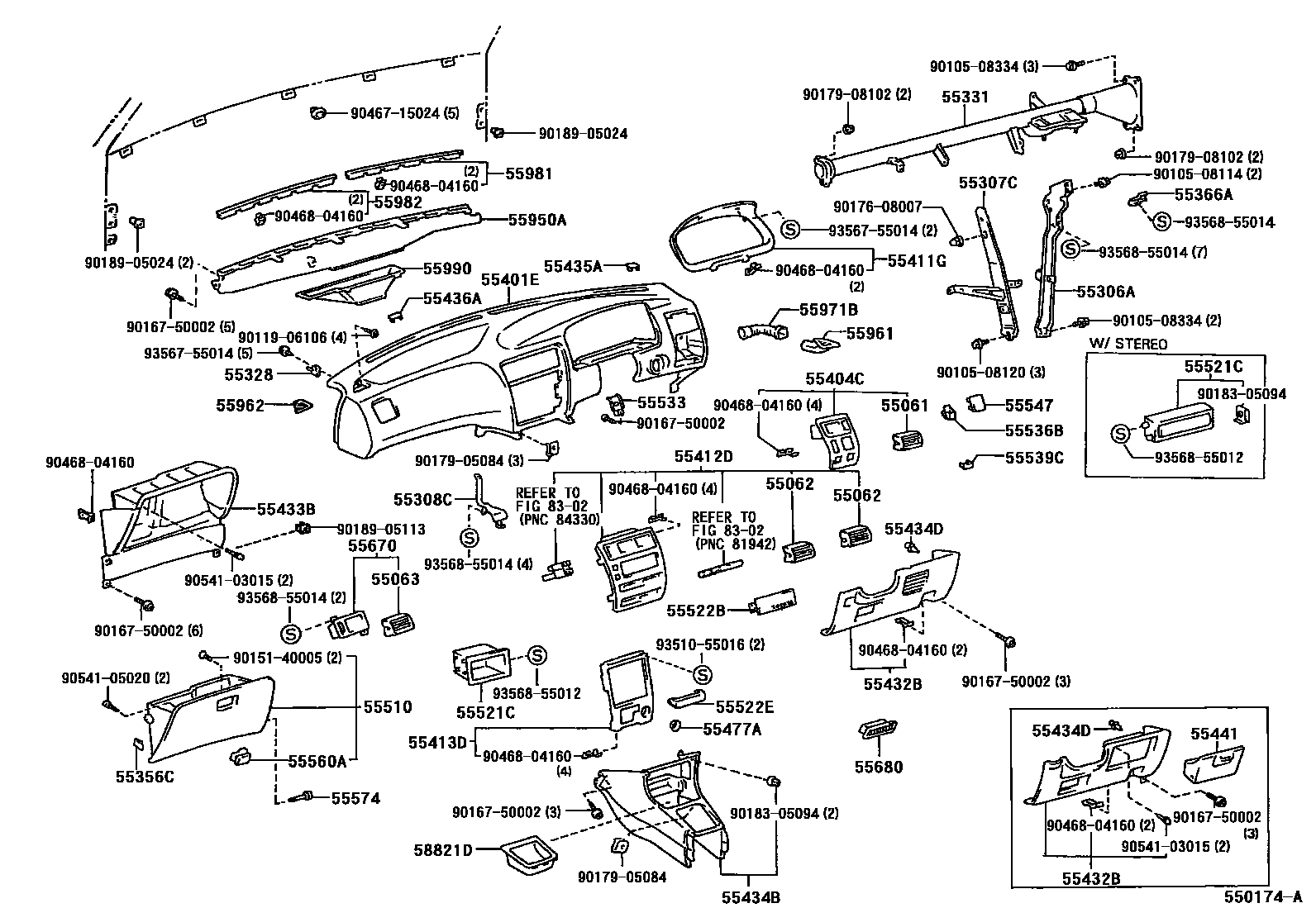

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1

55061REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1

main55061-12150iAE101,CE100,EE101..RHD199205

main55061-12170iAE10#,CE100,EE10#..LHD199205

55062REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2

main55062-12060iAE101,CE100,EE101..RHD199205-199704

main55062-12080iAE10#,CE100,EE10#..LHD199205-199704

55063REGISTER SUB-ASSY, INSTRUMENT, NO.3

main55061-12180-B0iAE10#,CE100,EE10#..LHD199205-199704

SHADOW GRAY,TRIM1#

sub55061-12170

main55061-12180-J0iAE10#,CE100,EE10#..LHD199205-199704

DARK BLUE,TRIM8#

sub55061-12170

main55061-12180-K0iAE101,EE101..LHD..SED..(GLI,STD)199205-199505

TAUPE,TRIM9#

sub55061-12170

main55063-12050-B0iAE101,CE100,EE101..RHD199205-199704

SHADOW GRAY,TRIM1#

sub55063-12050

main55063-12050-J0iAE101,CE100,EE101..RHD199205-199704

DARK BLUE,TRIM8#

sub55063-12050

main55063-12050-K0iAE101,CE100,EE101..RHD..SED199205-199505

TAUPE,TRIM9#

sub55063-12050

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12150iAE101,CE100,EE101..RHD199205-199305

sub55306-12200

main55306-12180iAE101,CE100,EE10#..LHD199205-199305

sub55306-12220

sub85999-12330

main55306-12200iAE101,CE100,EE101..RHD199305

main55306-12210iAE103199505

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)

main55306-12220iAE101,CE100,EE10#..LHD199305

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12200iAE101,CE100,EE101..RHD199205-199610

sub55307-12201

main55307-12201iAE101,CE100,EE101..RHD199610

main55307-12220iAE101,CE100,EE101..LHD199505

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)

main55307-12230iAE101,CE100,EE10#..LHD199205

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-12180iAE101,CE100,EE101..RHD199205

main55308-12200iAE103199505

W(*80,DRIVER SIDE & FRONT PASSENGER SIDE)

main55308-12210iAE101,CE100,EE10#..LHD199205

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12060iAE10#,CE100,EE10#199205

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-12240iAE101,CE100,EE101..RHD199205-199704

sub55330-12241

main55330-12260iAE101,CE100,EE10#..LHD199205-199505

sub55330-12261

main55330-12261iAE101,CE100,EE10#..LHD199505-199704

main55330-12271iAE103199505-199704

main55330-12291iAE10#,CE100,EE101..LHD199505-199704

W(*80)

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-12060iAE101,CE100,EE10#..LHD199205-199305

NO.1

main55356-12060iAE101,CE100,EE10#199205-199301

NO.2

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-12040iAE101,CE100,EE101..RHD199205

main55366-12050iAE10#,CE100,EE10#..LHD199205

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-12300-K0iAE101,CE100,EE101..RHD..SED199205-199311

TAUPE,TRIM9#

sub55401-12370

sub55404-12610

sub55404-12620

main55401-12300-P0iAE101,CE100,EE101..RHD199205-199311

SHADOW GRAY,TRIM1#

sub55401-12370

sub55404-12610

sub55404-12620

main55401-12300-W3iAE101,CE100,EE101..RHD199205-199311

DARK BLUE,TRIM8#

sub55401-12370

sub55404-12610

sub55404-12620

main55401-12333-37iAE101,CE100,EE101..RHD199311-199401

TRIM8#

main55401-12337-K0iAE101,EE101..RHD..SED..GLI199311-199402

TRIM9#

main55401-12340-B0iAE101,CE100,EE10#..LHD199205-199311

SHADOW GRAY,TRIM1#

sub55401-12400

sub55404-12630

sub55404-12640

main55401-12340-J0iAE101,CE100,EE10#..LHD199205-199311

DARK BLUE,TRIM8#

sub55401-12400

sub55404-12630

sub55404-12640

main55401-12340-K0iAE101,CE100,EE10#..LHD..SED199205-199311

TAUPE,TRIM9#

sub55401-12400

sub55404-12630

sub55404-12640

main55401-12370-B0iAE101,CE100,EE101..RHD199311-199503

SHADOW GRAY,TRIM1#

sub55401-12460

main55401-12370-J0iAE101,CE100,EE101..RHD199311-199503

DARK BLUE,TRIM8#

sub55401-12460

main55401-12370-K0iAE101,EE101..RHD..SED..GLI199311-199503

TAUPE,TRIM9#

sub55401-12460

main55401-12400-B0iAE101,CE100,EE10#..LHD199311-199503

SHADOW GRAY,TRIM1#

sub55401-12450

main55401-12400-J0iAE101,CE100,EE10#..LHD199311-199503

DARK BLUE,TRIM8#

sub55401-12450

main55401-12400-K0iAE101,CE100,EE10#..LHD..SED199311-199503

TAUPE,TRIM9#

sub55401-12450

main55401-12410-B0iAE10#,CE100,EE101..LHD199505-199704

W(*80),SHADOW GRAY,TRIM1#

main55401-12410-J0iAE10#,CE100,EE101..LHD199505-199704

W(*80),DARK BLUE,TRIM8#

main55401-12450-B0iAE10#,CE100,EE10#..LHD199503-199704

SHADOW GRAY,TRIM1#

main55401-12450-J0iAE10#,CE100,EE10#..LHD199503-199704

DARK BLUE,TRIM8#

main55401-12460-B0iAE101,CE100,EE101..RHD199503-199704

SHADOW GRAY,TRIM1#

sub55401-12381

main55401-12460-J0iAE101,CE100,EE101..RHD199503-199704

DARK BLUE,TRIM8#

sub55401-12381

main55401-12460-K0iAE101,EE101..RHD..SED..GLI199503-199505

TAUPE,TRIM9#

sub55401-12381

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-12580iAE101,CE100,EE101..RHD199205-199301

sub55404-12620

main55404-12600iAE101,CE100,EE10#..LHD199205-199302

sub55404-12640

main55404-12620iAE101,CE100,EE101..RHD199311

sub55404-12610

main55404-12640iAE10#,CE100,EE10#..LHD199311

main55404-12650iAE101,CE100,EE101..RHD199301-199311

sub55404-12620

main55404-12660iAE101,CE100,EE10#..LHD199302-199311

sub55404-12640

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-12870iAE101,CE100,EE101..RHD199205

main55411-12890iAE10#,CE100,EE10#..LHD199205

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55405-12570iAE101,CE100,EE101..RHD199205-199301

sub55405-12790

main55405-12590iAE101,CE100,EE10#..LHD199205-199302

sub55405-12690

main55405-12680iAE101,CE100,EE101..RHD199301-199305

sub55405-12790

main55405-12690iAE10#,CE100,EE10#..LHD199302-199605

main55405-12760iAE101,CE100,EE101..RHD199305-199605

main55405-12790iAE101,CE100,EE101..RHD199605

main55405-12860iAE10#,CE100,EE10#..LHD199605

sub55405-12690

55413DPANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER

main55413-12420iAE101,CE100,EE101..RHD199205

main55413-12430iAE10#,CE100,EE10#..LHD199205

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55045-12180-B0iAE103199505-199704

SHADOW GRAY,TRIM1#

main55045-12180-B0iAE103199505-199704

W(*80),SHADOW GRAY,TRIM1#

main55045-12180-J0iAE103199505-199704

W(*80),DARK BLUE,TRIM8#

main55045-12180-J0iAE103199505-199704

DARK BLUE,TRIM8#

main55432-12310-B0iAE101,CE100,EE101..RHD199205-199704

SHADOW GRAY,TRIM1#

sub55432-12430

sub55432-12310

main55432-12310-J0iAE101,CE100,EE101..RHD199205-199704

DARK BLUE,TRIM8#

sub55432-12430

sub55432-12310

main55432-12310-K0iAE101,EE101..RHD..SED..GLI199205-199505

TAUPE,TRIM9#

sub55432-12430

sub55432-12310

main55432-12360-B0iAE101,CE100,EE10#..LHD199205-199704

SHADOW GRAY,TRIM1#

main55432-12360-J0iAE101,CE100,EE10#..LHD199205-199704

DARK BLUE,TRIM8#

main55432-12360-K0iAE101,CE100,EE10#..LHD..SED199205-199505

TAUPE,TRIM9#

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-12090-B0iAE101,CE100,EE101..RHD199205-199704

SHADOW GRAY,TRIM1#

sub55433-12090

main55433-12090-J0iAE101,CE100,EE101..RHD199205-199704

DARK BLUE,TRIM8#

sub55433-12090

main55433-12090-K0iAE101,CE100,EE101..RHD..SED199205-199505

TAUPE,TRIM9#

sub55433-12090

main55433-12120-B0iAE101,CE100,EE10#..LHD199205-199704

SHADOW GRAY,TRIM1#

sub55433-12120

main55433-12120-J0iAE101,CE100,EE10#..LHD199205-199704

DARK BLUE,TRIM8#

sub55433-12120

main55433-12120-K0iAE101,EE101..LHD..SED..(GLI,STD)199205-199505

TAUPE,TRIM9#

sub55433-12120

main55433-12160-B0iAE101,CE100,EE101..LHD199505-199704

W(*80),SHADOW GRAY,TRIM1#

main55433-12160-B0iAE103199505-199704

SHADOW GRAY,TRIM1#

main55433-12160-J0iAE101,CE100,EE101..LHD199505-199704

DARK BLUE,TRIM8#

main55433-12160-J0iAE103199505-199704

W(*80),DARK BLUE,TRIM8#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-12100-K0iAE101,CE100,EE101..RHD..SED199205-199401

TAUPE,TRIM9#

sub55434-12101

main55434-12100-P0iAE101,CE100,EE101..RHD199205-199401

SHADOW GRAY,TRIM1#

sub55434-12101

main55434-12100-W3iAE101,CE100,EE101..RHD199205-199401

DARK BLUE,TRIM8#

sub55434-12101

main55434-12101-K0iAE101,EE101..RHD..SED..GLI199401-199505

TAUPE,TRIM9#

sub55434-12101

main55434-12101-P0iAE101,CE100,EE101..RHD199401-199704

SHADOW GRAY,TRIM1#

sub55434-12101

main55434-12101-W3iAE101,CE100,EE101..RHD199401-199704

DARK BLUE,TRIM8#

sub55434-12101

main55434-12121-B0iAE101,CE100,EE101..LHD199505-199605

W(*80),SHADOW GRAY,TRIM1#

main55434-12121-B0iAE101,CE100,EE101..LHD199605-199704

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1#

main55434-12121-J0iAE101,CE100,EE101..LHD199605-199704

W(*80,DRIVER SIDE & PASSENGER SIDE),DARK BLUE,TRIM8#

main55434-12121-J0iAE101,CE100,EE101..LHD199505-199605

W(*80),DARK BLUE,TRIM8#

main55434-12130-B0iAE101,CE100,EE10#..LHD199205-199401

SHADOW GRAY,TRIM1#

sub55434-12131

main55434-12130-J0iAE101,CE100,EE10#..LHD199205-199401

DARK BLUE,TRIM8#

sub55434-12131

main55434-12130-K0iAE101,CE100,EE10#..LHD..SED199205-199401

TAUPE,TRIM9#

sub55434-12131

main55434-12131-B0iAE101,CE100,EE10#..LHD199401-199704

SHADOW GRAY,TRIM1#

main55434-12131-J0iEE101..SED..STD;AE101,CE100,EE10#..LHD..(GLI,XL,XLI)199401-199704

DARK BLUE,TRIM8#

main55434-12131-K0iAE101,EE101..LHD..SED..(GLI,STD)199401-199505

TAUPE,TRIM9#

main55434-12170-B0iAE103199505-199704

SHADOW GRAY,TRIM1#

main55434-12170-J0iAE103199505-199704

DARK BLUE,TRIM8#

55434DCLIP, INSTRUMENT PANEL FINISH, LOWER CENTER

main90467-07073-C0iAE101,CE100,EE10#..WG199205-199505

BLACK,TRIM1#,8#,9#

sub90467-07073

main90467-07073-C0iAE101,CE100,EE10#..WG199205-199704

BLACK,TRIM1#,8#

sub90467-07073

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-12010-C0iEE101..RHD..WG199310-199505

BLACK,TRIM1#,8#

sub55435-12010

main55435-12010-C0iAE101,CE100,EE101..RHD..SED199310-199505

BLACK,TRIM1#,8#,9#

sub55435-12010

main55435-12010-K0iAE101,CE100,EE101..RHD..SED199205-199310

TAUPE,TRIM9#

sub55435-12010

main55435-12010-P0iAE101,CE100,EE101..RHD199205-199310

SHADOW GRAY,TRIM1#

sub55435-12010

main55435-12010-W3iAE101,CE100,EE101..RHD199205-199310

DARK BLUE,TRIM8#

sub55435-12010

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-12020-C0iAE101,EE101..RHD..SED..GLI199310-199505

BLACK,TRIM1#,8#

sub55436-12020

main55436-12020-C0iAE101,CE100,EE101..RHD..SED199310-199505

BLACK,TRIM1#,8#,9#

sub55436-12020

main55436-12020-K0iAE101,CE100,EE101..RHD..SED199205-199310

TAUPE,TRIM9#

sub55436-12020

main55436-12020-P0iAE101,CE100,EE101..RHD199205-199310

SHADOW GRAY,TRIM1#

sub55436-12020

main55436-12020-W3iAE101,CE100,EE101..RHD199205-199310

DARK BLUE,TRIM8#

sub55436-12020

55441BOX, INSTRUMENT PANEL

main55440-12030-B0iAE101,CE100,EE101..RHD199205-199704

SHADOW GRAY,TRIM1#

sub55440-12030

main55440-12030-J0iAE101,CE100,EE101..RHD199205-199704

DARK BLUE,TRIM8#

sub55440-12030

main55440-12030-K0iAE101,CE100,EE101..RHD..SED199205-199505

TAUPE,TRIM9#

sub55440-12030

main55440-12070-B0iAE101,CE100,EE10#..LHD199205-199704

SHADOW GRAY,TRIM1#

sub55440-12070

main55440-12070-J0iAE101,CE100,EE10#..LHD199205-199704

DARK BLUE,TRIM8#

sub55440-12070

main55440-12070-K0iAE101,EE101..LHD..SED..(GLI,STD)199205-199505

TAUPE,TRIM9#

sub55440-12070

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-12100iAE10#,CE100,EE10#199205

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-12310-B0iAE101,CE100,EE101..RHD199205-199308

SHADOW GRAY,TRIM1#

sub55550-12310

main55550-12310-B1iAE101,CE100,EE101..RHD199308-199704

SPRUCE,TRIM1#

sub55550-12310

main55550-12310-J0iAE101,CE100,EE101..RHD199205-199308

DARK BLUE,TRIM8#

sub55550-12310

main55550-12310-J1iAE101,CE100,EE101..RHD199308-199704

DARK BLUE,TRIM8#

sub55550-12310

main55550-12310-K0iAE101,CE100,EE101..RHD..SED199205-199308

TAUPE,TRIM9#

sub55550-12310

main55550-12310-K1iAE101,EE101..RHD..SED..GLI199308-199505

TAUPE,TRIM9#

sub55550-12310

main55550-12340-B0iAE101,CE100,EE10#..LHD199205-199308

SHADOW GRAY,TRIM1#

sub55550-12340

main55550-12340-B1iAE101,CE100,EE10#..LHD199308-199704

SHADOW GRAY,TRIM1#

sub55550-12340

main55550-12340-J0iAE101,CE100,EE10#..LHD199205-199308

DARK BLUE,TRIM8#

sub55550-12340

main55550-12340-J1iAE101,CE100,EE10#..LHD199308-199704

DARK BLUE,TRIM8#

sub55550-12340

main55550-12340-K0iAE101,CE100,EE10#..LHD..SED199205-199308

TAUPE,TRIM9#

sub55550-12340

main55550-12340-K1iAE101,EE101..LHD..SED..(GLI,STD)199308-199505

TAUPE,TRIM9#

sub55550-12340

main55550-12350-B1iAE101,CE100,EE101..LHD199505-199704

SHADOW GRAY,TRIM1#

sub55550-12350

main55550-12350-B1iAE101,CE100,EE101..LHD199505-199704

W(*80),SHADOW GRAY,TRIM1#

sub55550-12350

main55550-12350-J1iAE103199505-199704

W(*80),DARK BLUE,TRIM8#

sub55550-12350

main55550-12350-J1iAE103199505-199704

DARK BLUE,TRIM8#

sub55550-12350

55521CCOVER, STEREO OPENING

main55521-16040iAE10#,CE100,EE10#199205-199704

2 DIN BOX

sub55521-36020

55522BCOVER, RADIO TUNER OPENING

main55522-12120iAE10#,CE100,EE10#199205

sub55522-20060

55522ECOVER, CUP HOLDER OPENING

main55522-12110iAE10#,CE100,EE10#199205

55533COVER, AUTO CLOCK HOLE

main55533-12130iAE101,CE100,EE10#..STD,XL,XLI199205-199505

55536BCOVER, LIGHT CONTROL SWITCH HOLE

main55536-12010iAE10#,CE100,EE10#..STD,XL,XLI199205

55539CCOVER, SPARE SWITCH HOLE

main55539-12110iAE10#,CE100,EE10#199205

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-12020iAE10#,CE100,EE10#199205

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-12080-02iAE101,EE101..SED..(GLI,STD)199205-199505

TAUPE,TRIM9#

sub55560-12080

main55560-12080-03iAE101,CE100,EE10#199205-199208

SHADOW GRAY,TRIM1#

sub55560-12080

main55560-12080-04iAE101,CE100,EE10#199205-199704

DARK BLUE,TRIM8#

sub55560-12080

main55560-12080-P0iAE101,CE100,EE10#199208-199704

SHADOW GRAY,TRIM1#

sub55560-12080

main55560-12090-B0iAE103199505-199704

W(*80),SHADOW GRAY,TRIM1#

sub55560-12090

main55560-12090-B0iAE103199505-199704

SHADOW GRAY,TRIM1#

sub55560-12090

main55560-12090-J0iAE103199505-199704

DARK BLUE,TRIM8#

sub55560-12090

main55560-12090-J0iAE103199505-199704

W(*80),DARK BLUE,TRIM8#

sub55560-12090

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010iAE10#,CE100,EE10#199205

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-12170-B0iAE101,CE100,EE101..RHD199205-199301

SHADOW GRAY,TRIM1#

sub55670-12210

main55670-12170-J0iAE101,CE100,EE101..RHD199205-199301

DARK BLUE,TRIM8#

sub55670-12210

main55670-12170-K0iAE101,CE100,EE101..RHD..SED199205-199301

TAUPE,TRIM9#

sub55670-12210

main55670-12190-B0iAE101,CE100,EE10#..LHD199205-199302

SHADOW GRAY,TRIM1#

sub55670-12180

main55670-12190-J0iAE101,CE100,EE10#..LHD199205-199302

DARK BLUE,TRIM8#

sub55670-12180

main55670-12190-K0iAE101,CE100,EE10#..LHD..SED199205-199302

TAUPE,TRIM9#

sub55670-12180

main55670-12210-B0iCE100..RHD..SED;AE101,EE101..RHD199301

SHADOW GRAY,TRIM1#

sub55670-12210

main55670-12210-J0iCE100..RHD..SED;AE101,EE101..RHD199301

DARK BLUE,TRIM8#

sub55670-12210

main55670-12210-K0iAE101,EE101..RHD..SED..GLI199301-199505

TAUPE,TRIM9#

sub55670-12210

main55670-12220-B0iAE101,CE100,EE10#..LHD199302

SHADOW GRAY,TRIM1#

sub55670-12180

main55670-12220-J0iAE101,CE100,EE10#..LHD199302

DARK BLUE,TRIM8#

sub55670-12180

main55670-12220-K0iAE101,CE100,EE10#..LHD..SED199302-199505

TAUPE,TRIM9#

sub55670-12180

main55670-12250-B0iAE101,CE100,EE101..LHD199505

W(*80),SHADOW GRAY,TRIM1#

sub55670-12250

main55670-12250-B0iAE103199505

SHADOW GRAY,TRIM1#

sub55670-12250

main55670-12250-J0iAE103199505

DARK BLUE,TRIM8#

sub55670-12250

main55670-12250-J0iAE103199505

W(*80),DARK BLUE,TRIM8#

sub55670-12250

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-12050iAE101,CE100,EE10#199302-199305

main55680-12050-K0iAE101,CE100,EE10#..SED199205-199302

TAUPE,TRIM9#

sub55680-12050

main55680-12050-P0iAE101,CE100,EE10#199205-199302

SHADOW GRAY,TRIM1#

sub55680-12050

main55680-12050-W3iAE101,CE100,EE10#199205-199302

DARK BLUE,TRIM8#

sub55680-12050

55950ANOZZLE ASSY, DEFROSTER

main55950-12140iAE101,CE100,EE101..RHD199205-199208

sub55950-12170

main55950-12160iAE101,CE100,EE10#..LHD199205-199208

sub55950-12180

main55950-12170iAE101,CE100,EE101..RHD199208

main55950-12180iAE10#,CE100,EE10#..LHD199208

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12180-K0iAE101,EE101..RHD..SED..GLI199205-199505

TAUPE,TRIM9#

sub55961-12180

main55961-12180-P0iAE101,CE100,EE101..RHD199205-199704

SHADOW GRAY,TRIM1#

sub55961-12180

main55961-12180-W3iAE101,CE100,EE101..RHD199205-199704

DARK BLUE,TRIM8#

sub55961-12180

main55961-12200-B0iAE10#,CE100,EE10#..LHD199205-199704

SHADOW GRAY,TRIM1#

sub55961-12200

main55961-12200-J0iAE10#,CE100,EE10#..LHD199205-199704

DARK BLUE,TRIM8#

sub55961-12200

main55961-12200-K0iAE101,EE101..LHD..SED..(GLI,STD)199205-199505

TAUPE,TRIM9#

sub55961-12200

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12160-K0iAE101,EE101..RHD..SED..GLI199205-199505

TAUPE,TRIM9#

sub55962-12160

main55962-12160-P0iAE101,CE100,EE101..RHD199205-199704

SHADOW GRAY,TRIM1#

sub55962-12160

main55962-12160-W3iAE101,CE100,EE101..RHD199205-199704

DARK BLUE,TRIM8#

sub55962-12160

main55962-12180-B0iAE10#,CE100,EE10#..LHD199205-199704

SHADOW GRAY,TRIM1#

sub55962-12180

main55962-12180-J0iAE101,CE100,EE101..LHD..(GLI,STD)199205-199704

DARK BLUE,TRIM8#

sub55962-12180

main55962-12180-K0iAE101,CE100,EE10#..LHD..SED199205-199505

TAUPE,TRIM9#

sub55962-12180

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-12110iAE10#,CE100,EE10#199205

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-12050iAE101,CE100,EE101..RHD199205

main55981-12070iAE10#,CE100,EE10#..LHD199205

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-12050iAE101,CE100,EE101..RHD199205

main55982-12070iAE10#,CE100,EE10#..LHD199205

55990NOZZLE ASSY, CENTER DEFROSTER

main55990-12010iAE101,CE100,EE101..RHD199205

main55990-12020iAE10#,CE100,EE10#..LHD199205

58821DPANEL, CONSOLE, UPPER FRONT

main58821-12050-K0iAE101,CE100,EE101..RHD..SED199205-199505

TAUPE,TRIM9#

sub58821-12050

main58821-12050-P0iAE101,CE100,EE101..RHD199205-199704

SHADOW GRAY,TRIM1#

sub58821-12050

main58821-12050-W3iAE101,CE100,EE101..RHD199205-199704

DARK BLUE,TRIM8#

sub58821-12050

main58821-12070-B0iAE101,CE100,EE10#..LHD199205-199704

SHADOW GRAY,TRIM1#

sub58821-12070

main58821-12070-J0iAE101,CE100,EE10#..LHD199205-199704

DARK BLUE,TRIM8#

sub58821-12070

main58821-12070-K0iAE101,EE101..LHD..SED..(GLI,STD)199205-199505

TAUPE,TRIM9#

sub58821-12070

main58821-12090-B0iAE103199505-199704

SHADOW GRAY,TRIM1#

sub58821-12090

main58821-12090-J0iAE103199505-199704

DARK BLUE,TRIM8#

sub58821-12090

8302

9010508114

main90105-08114

9010508120

main90105-08120

9010508334

main90105-08334

9011906106

main90119-06106

9015140005

main90151-40005

9016750002

main90167-50002

9017608007

main90176-08007

9017905084

main90179-05084

9017908102

main90179-08102

9018305094

main90183-05094

9018905024

main90189-05024

9018905113

main90189-05113

9046715024

main90467-15024

9046804160

main90468-04160

9054103015

main90541-03015

9054105020

main90541-05020

9351055016

main93510-55016

9356755014

main93567-55014

9356855012

main93568-55012

9356855014

main93568-55014

64 parts on this diagram · 3 diagrams in section
