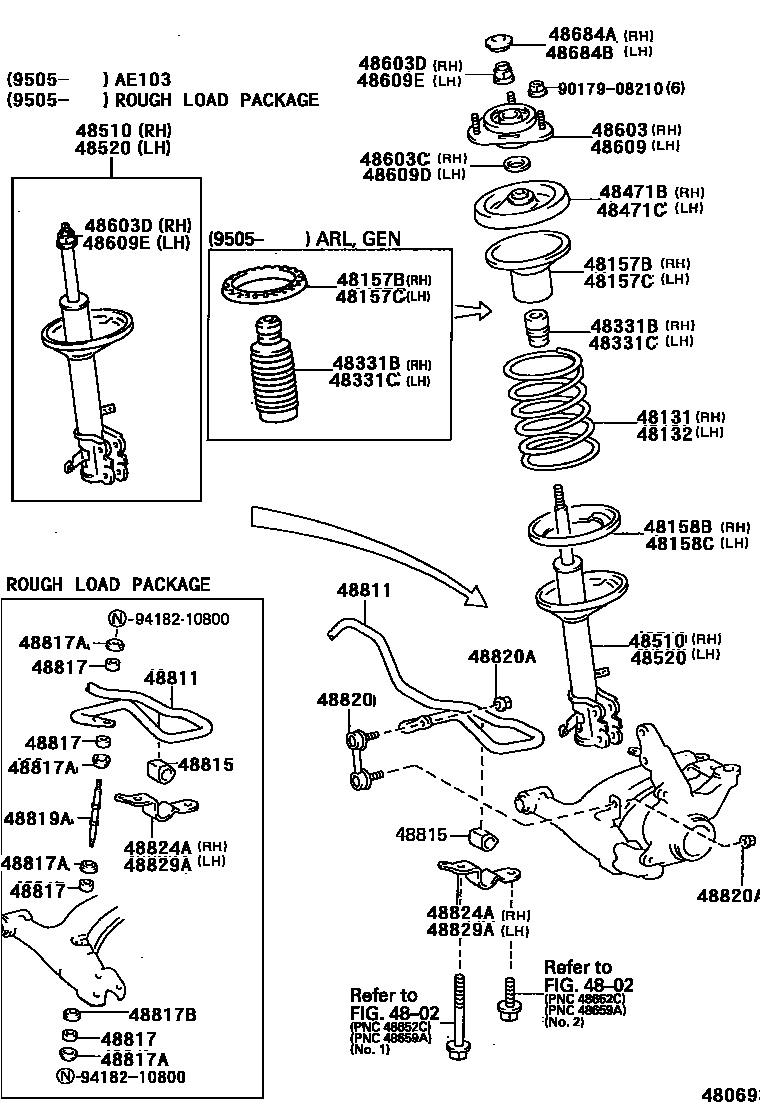

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-1K380iAE101..LHD..5F;EE101..RHD..3FC199205-199704

main48131-1K400iCE100..RHD;AE101..RHD..4FC199205-199704

main48131-1K530iEE101..RHD..5F;EE101..LHD..3FC199205-199704

main48131-1K540iCE100..LHD;AE101..RHD..5F;AE101..LHD..4FC199205-199704

main48131-1K700iEE10#..LHD..5F199205-199704

main48131-1L270iEE100199205-199704

ROUGH ROAD PACKAGE 1

main48131-1L340iCE100..LHD..SED199205-199704

ROUGH ROAD PACKAGE 1 & *EX-USSR

main48131-1L770iAE103199505-199704

48132SPRING, FRONT COIL, LH

main48131-1K380iAE101..RHD..5F;EE101..LHD..3FC199205-199704

main48131-1K400iCE100..LHD;AE101..LHD..4FC199205-199704

main48131-1K530iEE10#..LHD..5F;EE101..RHD..3FC199205-199704

main48131-1K540iCE100..RHD;AE101..LHD..5F;AE101..RHD..4FC199205-199704

main48131-1L290iEE100199205-199704

ROUGH ROAD PACKAGE 1

main48131-1L360iCE100..LHD..SED199205-199704

ROUGH ROAD PACKAGE 1 & *EX-USSR

main48131-1L770iAE103199505-199704

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-12060iAE101,CE100,EE10#199205-199505

main48157-12070iAE10#,CE100,EE10#199505-199704

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-12060iAE101,CE100,EE10#199205-199505

main48157-12070iAE10#,CE100,EE10#199505-199704

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-12030iAE10#,CE100,EE10#199205

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-12030iAE10#,CE100,EE10#199205-199704

48331BBUMPER, FRONT SPRING, RH

main48331-12120iAE101,EE10#199205-199505

main48331-12130iCE100199205-199505

ROUGH ROAD PACKAGE 1

main48331-12140iAE101,EE10#199505-199704

main48331-12150iAE103,CE100199505-199704

ROUGH ROAD PACKAGE 1

48331CBUMPER, FRONT SPRING, LH

main48331-12120iAE101,EE10#199205-199505

main48331-12130iCE100199205-199505

ROUGH ROAD PACKAGE 1

main48331-12140iAE101,EE10#199505-199704

main48331-12150iAE103,CE100199505-199704

ROUGH ROAD PACKAGE 1

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-01020iCE100,EE100..LHD..SED199505-199704

ROUGH ROAD PACKAGE 1 & *EX-USSR,(L)

main48044-01020iAE10#,CE100,EE10#199505-199704

(L)

main48044-12090iAE10#,CE100,EE10#199205-199704

(J)

main48044-12090iCE100,EE100..LHD..SED199505-199704

ROUGH ROAD PACKAGE 1 & *EX-USSR,(J)

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-01020iAE10#,CE100,EE10#199505-199704

ROUGH ROAD PACKAGE 1 & *EX-USSR,(L)

main48044-01020iCE100,EE100..LHD..SED199505-199704

(L)

main48044-12090iAE10#,CE100,EE10#199205-199704

(J)

main48044-12090iCE100,EE100..LHD..SED199505-199704

ROUGH ROAD PACKAGE 1 & *EX-USSR,(J)

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-12750iEE100199205-199704

main48510-12790iCE100..LHD..SED199205-199505

ROUGH ROAD PACKAGE 1

sub48510-19475

main48510-12790iEE100199205-199505

ROUGH ROAD PACKAGE 1 & *EX-USSR

sub48510-19475

main48510-12840iAE101,EE101199205-199704

main48510-19455iAE103199505-199704

sub48510-80233

main48510-19475iEE100199505-199704

ROUGH ROAD PACKAGE 1 & *EX-USSR

sub48510-80222

main48510-19475iCE100..LHD..SED199505-199704

ROUGH ROAD PACKAGE 1

sub48510-80222

main48510-1A010iCE100199205-199704

sub48510-80232

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-12610iAE101,EE101199205-199704

main48520-12630iEE100199205-199704

main48520-12670iEE100199205-199505

ROUGH ROAD PACKAGE 1 & *EX-USSR

sub48520-19195

main48520-12670iEE100199205-199505

ROUGH ROAD PACKAGE 1

sub48520-19195

main48520-12770iCE100199205-199704

sub48520-80055

main48520-19175iAE103199505-199704

sub48520-80056

main48520-19195iCE100..LHD..SED199505-199704

ROUGH ROAD PACKAGE 1

sub48520-80048

main48520-19195iCE100..LHD..SED199505-199704

ROUGH ROAD PACKAGE 1 & *EX-USSR

sub48520-80048

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-12250iCE100..LHD..SED199205-199505

ROUGH ROAD PACKAGE 1

sub48609-12350

main48609-12250iEE100199205-199505

ROUGH ROAD PACKAGE 1 & *EX-USSR

sub48609-12350

main48609-12270iEE100199205-199505

sub48609-12330

main48609-12290iAE101,CE100,EE101199205-199505

sub48609-12340

main48609-12330iAE103,EE100199505-199704

main48609-12340iAE101,CE100,EE101199505-199704

sub48609-12341

main48609-12350iEE100199505-199704

ROUGH ROAD PACKAGE 1

main48609-12350iEE100199505-199704

ROUGH ROAD PACKAGE 1 & *EX-USSR

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22049iAE10#,CE100,EE10#199205-199704

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main94182-11400iAE10#,CE100,EE10#199205-199704

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-12250iEE100199205-199505

ROUGH ROAD PACKAGE 1

sub48609-12350

main48609-12250iEE100199205-199505

ROUGH ROAD PACKAGE 1 & *EX-USSR

sub48609-12350

main48609-12270iEE100199205-199505

sub48609-12330

main48609-12290iAE101,CE100,EE101199205-199505

sub48609-12340

main48609-12330iAE103,EE100199505-199704

main48609-12340iAE101,CE100,EE101199505-199704

sub48609-12341

main48609-12350iCE100..LHD..SED199505-199704

ROUGH ROAD PACKAGE 1 & *EX-USSR

main48609-12350iCE100..LHD..SED199505-199704

ROUGH ROAD PACKAGE 1

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22049iAE10#,CE100,EE10#199205-199704

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main94182-11400iAE10#,CE100,EE10#199205-199704

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-12070iAE10#,CE100,EE10#199602-199704

main48684-32010iAE10#,CE100,EE10#199205-199602

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-12070iAE10#,CE100,EE10#199602-199704

main48684-32010iAE10#,CE100,EE10#199205-199602

48811BAR, STABILIZER, FRONT

main48811-12720iAE101,CE100,EE101199205-199704

main48811-12890iCE100..LHD..SED199205-199704

ROUGH ROAD PACKAGE 1 & *EX-USSR

main48811-1A040iAE103199505-199704

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-12220iAE101,CE100,EE101199205-199704

main48815-12230iCE100..LHD..SED199205-199704

ROUGH ROAD PACKAGE 1 & *EX-USSR

main48815-12240iAE103199505-199704

48817CUSHION, FRONT STABILIZER

main48817-30020iAE103;CE100..LHD..SED199205-199704

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iAE103;CE100..LHD..SED199205-199704

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iAE103;CE100..LHD..SED199205-199704

48819ABOLT, FRONT STABILIZER

main48819-20030iAE103;CE100..LHD..SED199205-199704

48820LINK ASSY, FRONT STABILIZER

main48820-20021iAE101,CE100,EE101199205-199312

main48820-33010iAE101,CE100,EE101199312-199704

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10183iAE101,CE100,EE101199205

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-12130iAE10#,CE100,EE101199205-199704

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-12060iAE10#,CE100,EE101199205-199704

9017908210

main90179-08210

9418210800

main94182-10800

32 parts on this diagram · 1 diagram in section
