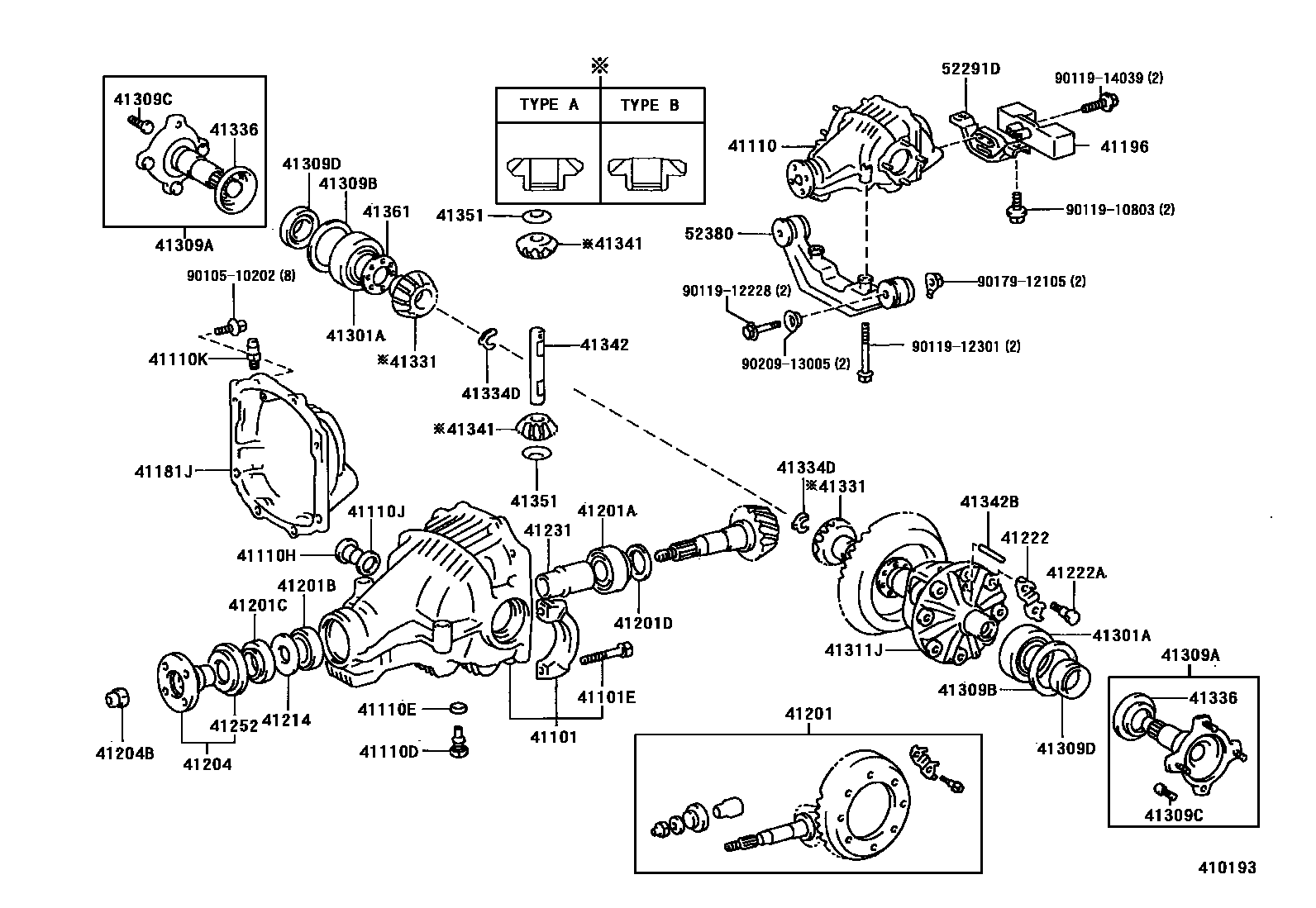

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:14=2.929
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)
41181JCOVER, REAR DIFFERENTIAL CARRIER
41196DAMPER, REAR DIFFERENTIAL DYNAMIC
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:14=2.929
41201ABEARING (FOR REAR DRIVE PINION REAR)
sub90366-34019
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
sub90311-38068
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=2.36,MARK 05
T=2.39,MARK 06
T=2.42,MARK 07
T=2.43,MARK 08
T=2.48,MARK 09
T=2.51,MARK 10
T=2.54,MARK 11
T=2.57,MARK 12
T=2.60,MARK 13
T=2.63,MARK 14
T=2.66,MARK 15
T=2.69,MARK 16
OD=47,T=2.27,MARK 02
OD=47,T=2.30,MARK 03
OD=47,T=2.33,MARK 04
T=2.30,MARK 30
T=2.31,MARK 31
T=2.32,MARK 32
T=2.33,MARK 33
T=2.34,MARK 34
T=2.35,MARK 35
T=2.36,MARK 36
T=2.37,MARK 37
T=2.38,MARK 38
T=2.39,MARK 39
T=2.40,MARK 40
T=2.41,MARK 41
T=2.42,MARK 42
T=2.43,MARK 43
T=2.44,MARK 44
T=2.45,MARK 45
T=2.46,MARK 46
T=2.47,MARK 47
T=2.48,MARK 48
T=2.49,MARK 49
T=2.50,MARK 50
T=2.51,MARK 51
T=2.52,MARK 52
T=2.53,MARK 53
T=2.54,MARK 54
T=2.55,MARK 55
T=2.56,MARK 56
T=2.57,MARK 57
T=2.58,MARK 58
T=2.59,MARK 59
T=2.60,MARK 60
T=2.61,MARK 61
T=2.62,MARK 62
T=2.63,MARK 63
T=2.64,MARK 64
T=2.65,MARK 65
T=2.66,MARK 66
T=2.67,MARK 67
T=2.68,MARK 68
T=2.69,MARK 69
T=2.70,MARK 70
T=2.71,MARK 71
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41309ASHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR
41309BWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=2.22
T=2.25
T=2.28
T=2.31
T=2.34
T=2.37
T=2.40
T=2.43
T=2.46
T=2.49
T=2.52
T=2.55
T=2.58
T=2.61
T=2.64
T=2.67
T=2.70
T=2.73
T=2.76
T=2.79
T=2.82
T=2.85
T=2.88
T=2.91
T=2.94
T=2.97
T=3.00
T=3.03
T=3.06
T=3.09
T=3.12
T=3.15
T=3.18
T=3.21
41309CBOLT (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41311JCASE, REAR DIFFERENTIAL
41331GEAR, REAR DIFFERENTIAL SIDE
TYPE A
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41341PINION, REAR DIFFERENTIAL
TYPE B
41342SHAFT, REAR DIFFERENTIAL PINION
41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
52291DCUSHION, REAR DIFFERENTIAL SUPPORT MEMBER
52380SUPPORT, REAR DIFFERENTIAL, NO.1
9010510202
main90105-10202
9011910803
main90119-10803
9011912228
main90119-12228
9011912301
main90119-12301
9011914039
main90119-14039
9017912105
main90179-12105
9020913005
main90209-13005
45 parts on this diagram · 1 diagram in section
