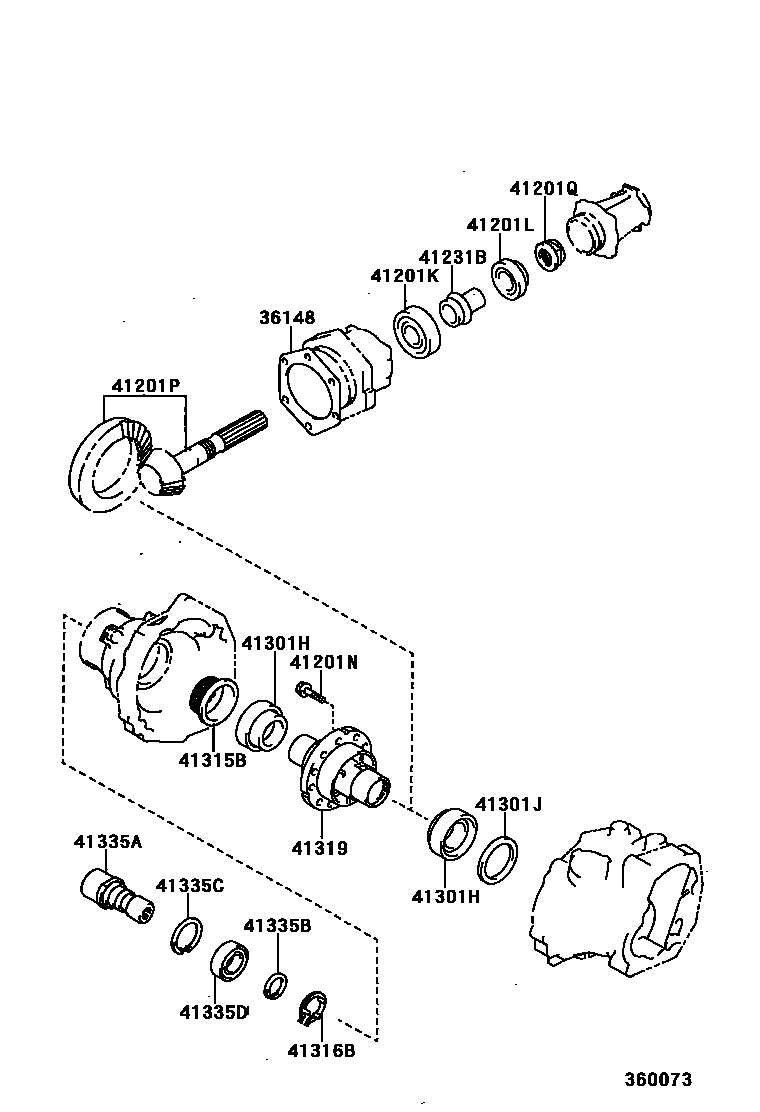

TRANSFER GEAR
36148SHIM, PINION BEARING CAGE
T=0.30,MARK A
T=0.33,MARK B
T=0.36,MARK C
T=0.39,MARK D
T=0.42,MARK E
T=0.45,MARK F
T=0.48,MARK G
T=0.51,MARK H
T=0.54,MARK J
T=0.57,MARK K
41201KBEARING (FOR TRANSFER DRIVEN PINION FRONT)
41201LBEARING (FOR TRANSFER DRIVEN PINION REAR)
41201NBOLT (FOR TRANSFER GEAR )
41201QNUT (FOR TRANSFER GEAR)
41231BSPACER, TRANSFER PINION BEARING
41301HBEARING(FOR RING GEAR MOUNTING CASE)
RH
LH
W(ABS),RH
W(ABS),LH
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
T=2.13,MARK 01
T=2.16,MARK 02
T=2.19,MARK 03
T=2.22,MARK 04
T=2.25,MARK 05
T=2.28,MARK 06
T=2.31,MARK 07
T=2.34,MARK 08
T=2.37,MARK 09
T=2.40,MARK 10
T=2.43,MARK 11
T=2.46,MARK 12
T=2.49,MARK 13
T=2.52,MARK 14
T=2.55,MARK 15
T=2.58,MARK 16
T=2.61,MARK 17
T=2.64,MARK 18
T=2.67,MARK 19
T=2.70,MARK 20
T=2.73,MARK 21
T=2.76,MARK 22
T=2.79,MARK 23
T=2.82,MARK 24
41316BPLATE, ADJUSTING NUT LOCK
41319CASE, TRANSFER RING GEAR MOUNTING
41335AHOLDER, DIFFERENTIAL SIDE GEAR SHAFT
41335BRING, SHAFT SNAP (FOR SIDE GEAR SHAFT HOLDER)
41335CRING, HOLE SNAP (FOR SIDE GEAR SHAFT HOLDER)
sub90521-76005
41335DBEARING (FOR SIDE GEAR SHAFT HOLDER)
16 parts on this diagram · 2 diagrams in section
